Part Number 779008-01
Manufacturer/Brand National Instruments
Description: 779008-01, Reconfigurable I/O, 4 Slot, 0.5 W Power Consumption, NI-9151 CompactRIO Chassis
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

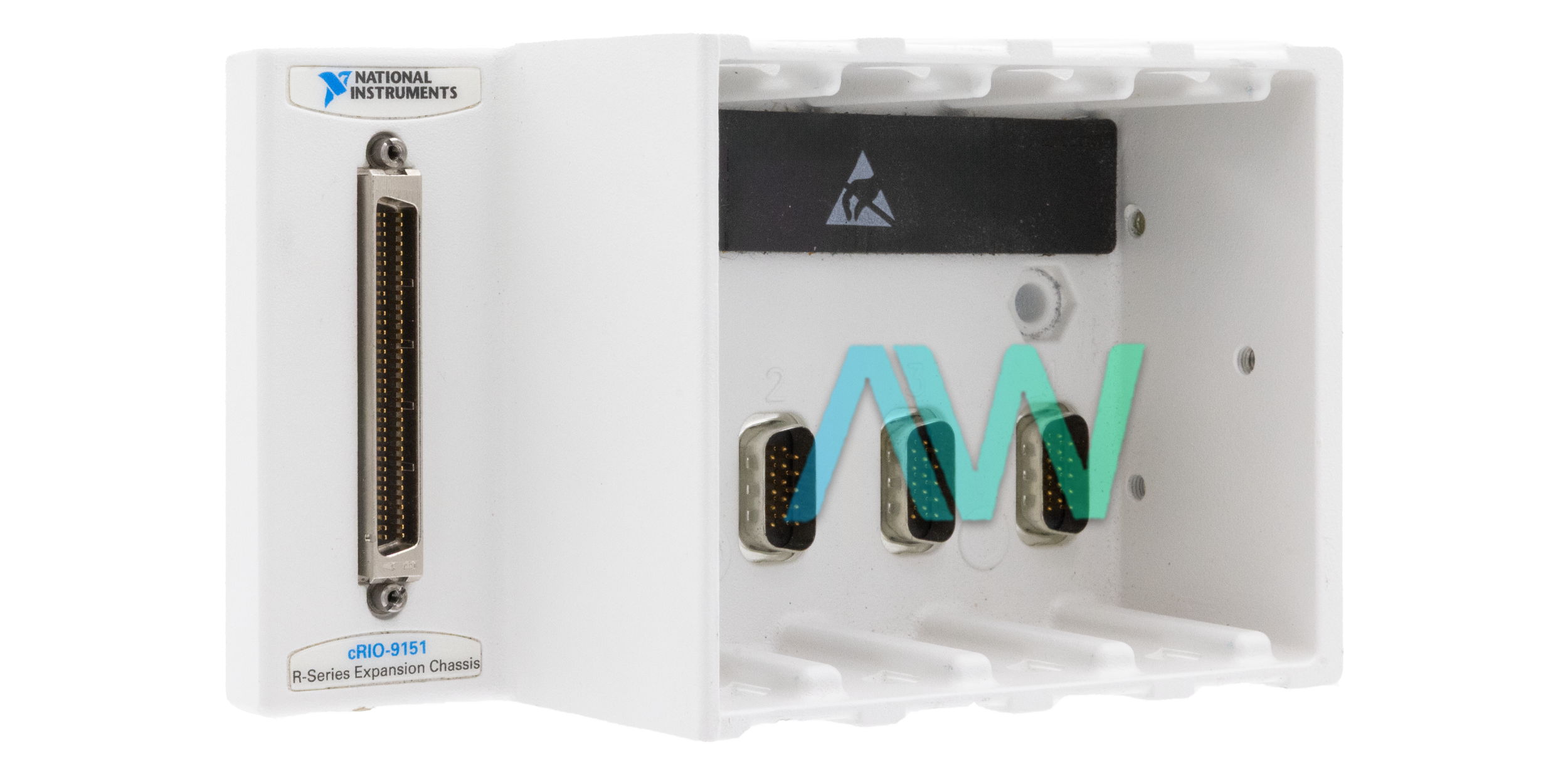

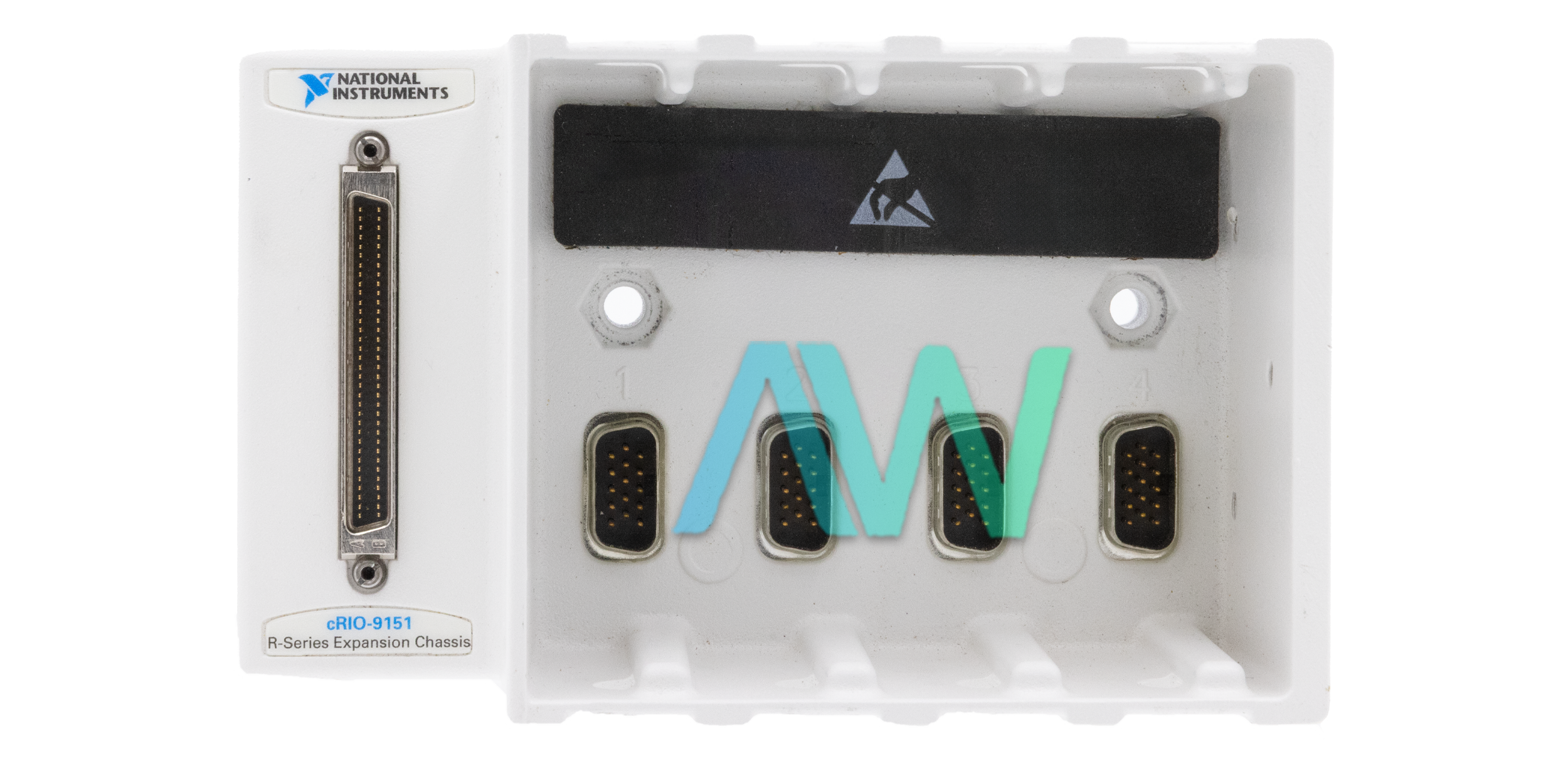

National Instruments 779008-01 Reconfigurable I/O Module CompactRIO Chassis

The part number 779008-01 from National Instruments is the identifying part number for the NI-9151 4-Slot, Reconfigurable I/O Module CompactRIO Chassis. This 4-slot chassis is designed for the National Instruments CompactRIO I/O modules. The chassis has a power consumption rating of 0.5 W maximum in Active mode and does not support the Sleep mode.

The 779008-01 chassis has a compact size with dimensions of 142 mm × 88.1 mm × 59.2 mm (5.6 in. × 3.5 in. × 2.3 in.) and weighs 527 grams without the I/O modules attached. With U.S. (UL) Class I, Division 2, Groups A, B, C, D, and T4 standards the module can be mounted in environments where flammable gases, vapors, or liquids may be present intermittently under normal operating conditions. The T4 designation signifies that the chassis is rated for use in environments where the temperature may reach up to T4 (130 degrees Celsius). Similarly, the chassis is designed according to the Canada (C-UL), Europe (ATEX), and International (IECEx) standards.

The 779008-01 chassis meets the EMC standards for sensitive electrical equipment for measurement, control, and laboratory use with the EN 55011 Emissions; Group 1, Class A Nonindustrial levels per EN 61326-1:1997 + A2:2001, Table 1 CE, C-Tick, and FCC Part 15 (Class A) Compliant standards.

Following the IEC 60068-2-1, and IEC 60068-2-2 standards the 779008-01 chassis is designed to be operated in an environment with an operating temperature of -40 °C to 70 °C. It can also be stored in an environment with a temperature of -40 degrees Celsius to 85 degrees Celsius. The operating humidity according to the IEC 60068-2-78 standard is between 10% RH to 90% RH, non-condensing, while the storage humidity is between 5% RH to 95% RH, non-condensing. The chassis is IP 40-rated protecting it from surface-level scratches. To mount the chassis it is recommended to mount it on a standard 35 mm DIN rail at an altitude of 2000 meters maximum. The chassis can be mounted with two M4 screws or number 10 Panhead screws. This device is designed for indoor use only.

Part Number779008-01
Model NameNI-9151
Part TypeReconfigurable I/O Module CompactRIO Chassis
Power Consumption0.5 Watts (Active Mode)
Weight (unloaded)527 grams
Dimensions142 mm × 88.1 mm × 59.2 mm
(5.6 in. × 3.5 in. × 2.3 in.)
Operating temperature
(IEC 60068-2-1, IEC 60068-2-2)
-40 °C to 70 °C
Storage temperature
(IEC 60068-2-1, IEC 60068-2-2)
-40 °C to 85 °C
Ingress protectionIP 40
Maximum Altitude2000 meters
ManufacturerNI


Why Buy From Apex Waves:

Apex Waves Youtube Video

"The business transaction was super easy and friendly."


"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"


"They were very helpful to get me the test equipment that I need."



Delivery:
UPS, FedEX and DHL – Free Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment: Authorize.net Visa Master Card American Express BB&T Better Business Bureau Dun & Bradstreet
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page: Facebook Icon Twitter Icon LinkedIn Icon
Common Typos: Y79008-01, U79008-01, 7I9008-01, 77P008-01, 779008-P1

779008-01



Modular Systems > National Instruments > CompactRIO Controllers

779008-01
4.6/5 | 14 ratings

779008-01, Reconfigurable I/O, 4 Slot, 0.5 W Power Consumption, NI-9151 CompactRIO Chassis

Request for Availablility
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Call now for best pricing
1-800-915-6216

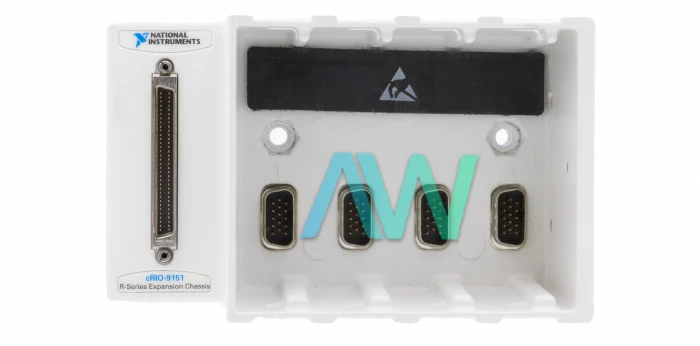

National Instruments 779008-01 Reconfigurable I/O Module CompactRIO Chassis
