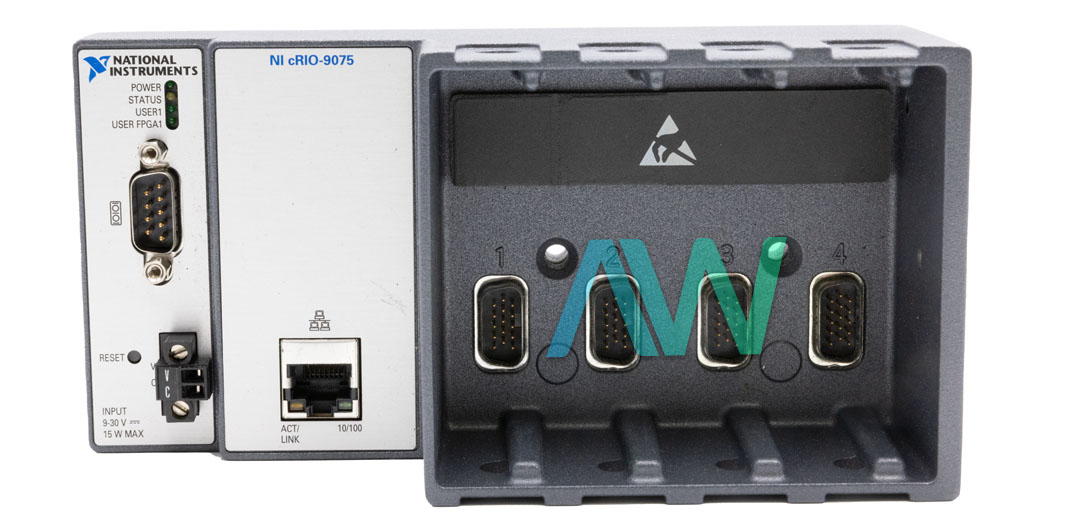

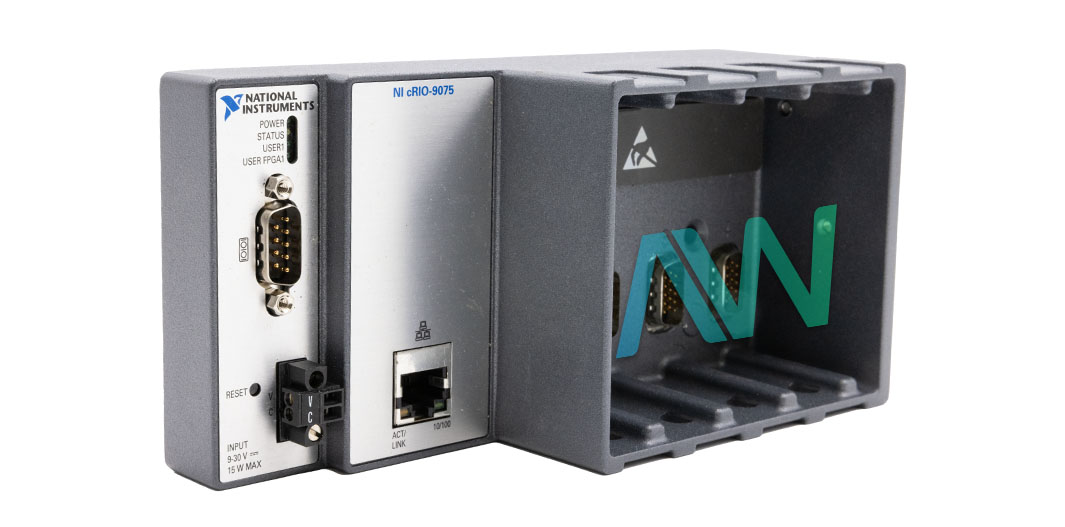

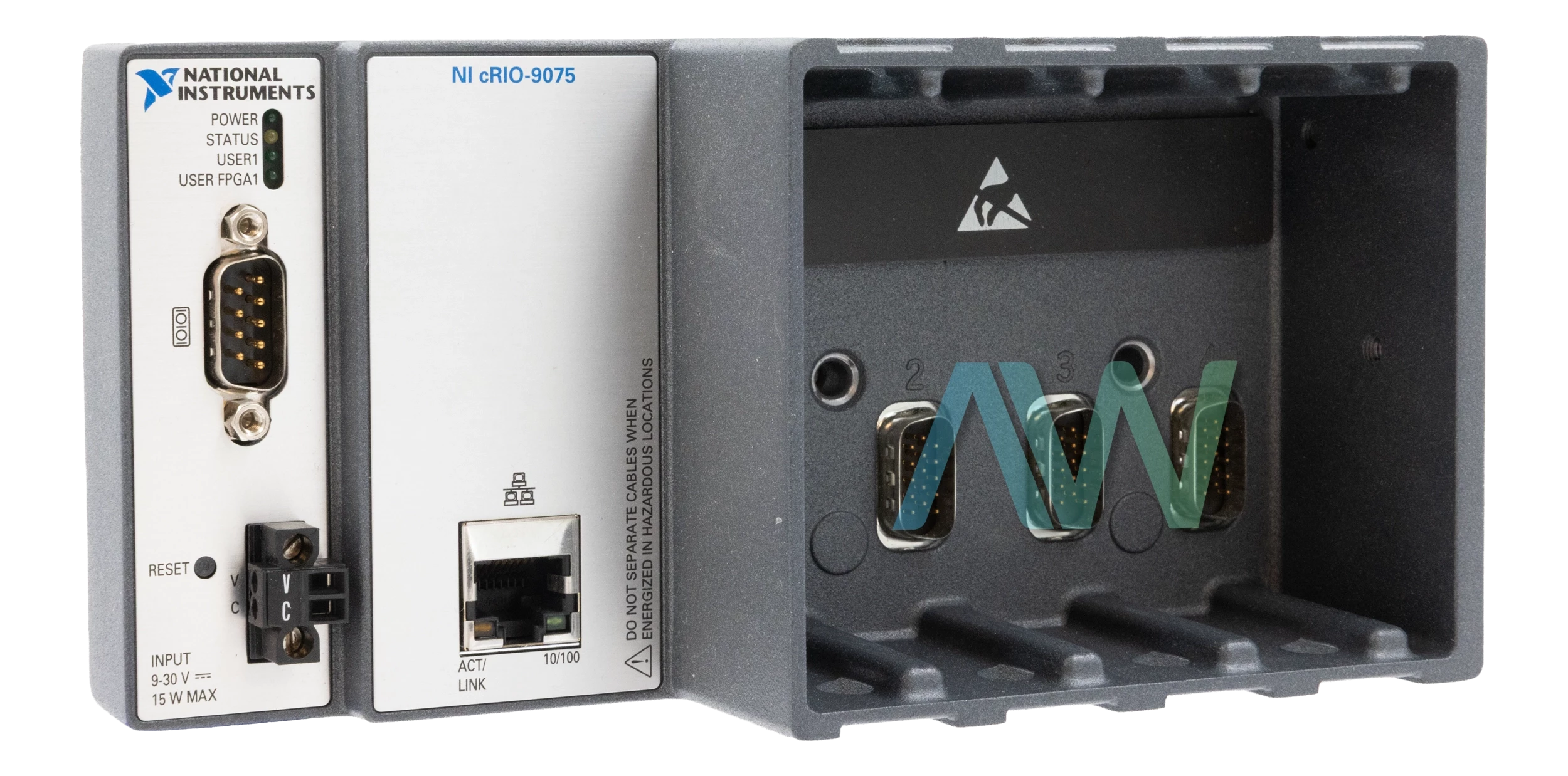

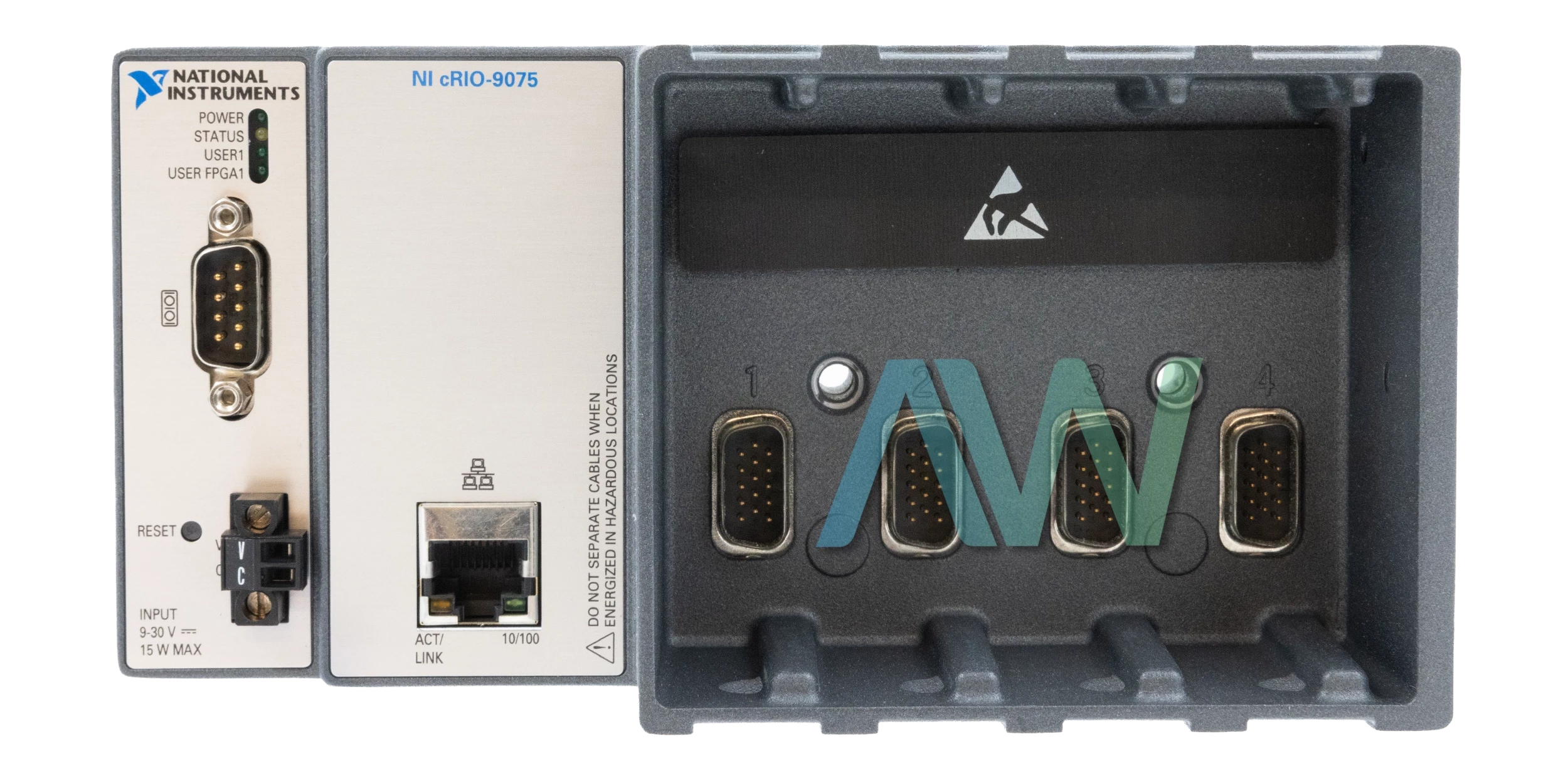

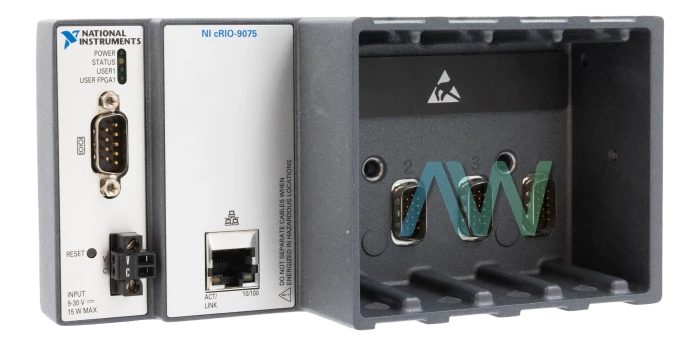

National Instruments 781715-01 CompactRIO Controller
National Instruments part number 781715-01 is an identifying part number for the cRIO-9075, a CompactRIO Controller. The NI 781715-01 is a CompactRIO Controller with 4 slots, a CPU Frequency of 400 MHz, 256 MB Storage memory and Xilinx Spartan-6 LX 25 FPGA. This embedded controller is designed for advanced control and monitoring applications. This durable, fanless controller is equipped with a real-time processor and an FPGA, providing robust performance.
It also offers various connectivity options, including an Ethernet port and a serial port, making it versatile for numerous industrial applications. The part number 781715-01 can be configured using the Measurement & Automation Explorer (MAX) tools. It is compatible with a 24 W, 24 VDC power supply, although under standard operating conditions, it consumes a maximum of 15 watts. Additionally, the cRIO-9075 supports a wide range of I/O options, including 5 V or TTL digital I/O, pulse generators, counters, timers, high current relays, high voltage relays, as well as 12 V, 24 V, and 48 V industrial I/O, and up to ±60 V analog I/O.
It has a nonvolatile memory of 256 MB, ensuring data persistence even during power loss. It features a DRAM capacity of 128 MB for efficient data processing. With a maximum baud rate of 230,400 bps, it enables fast and reliable communication. Users can configure data bits ranging from 5 to 8 and stop bits options of 1 or 2, providing flexibility for various communication protocols. Additionally, the device supports parity settings including Odd, Even, Mark, and Space, enhancing data integrity and accuracy in communication.
| Model | 781715-01 |
|---|---|
| Model Range | cRIO-9075 |
| Part Type | 4 FPGA CompactRIO Controller |
| CPU Frequency | 400 MHz |
| Slots | 4 |
| Storage | 256 MB |
| Network Interface | 10Base-T and 100Base-TX Ethernet |
| Data Bits | 5, 6, 7, 8 |
| Maximum Baud Rate | 230,400 bps |
| FPGA Type | Xilinx Spartan-6 LX 25 |
