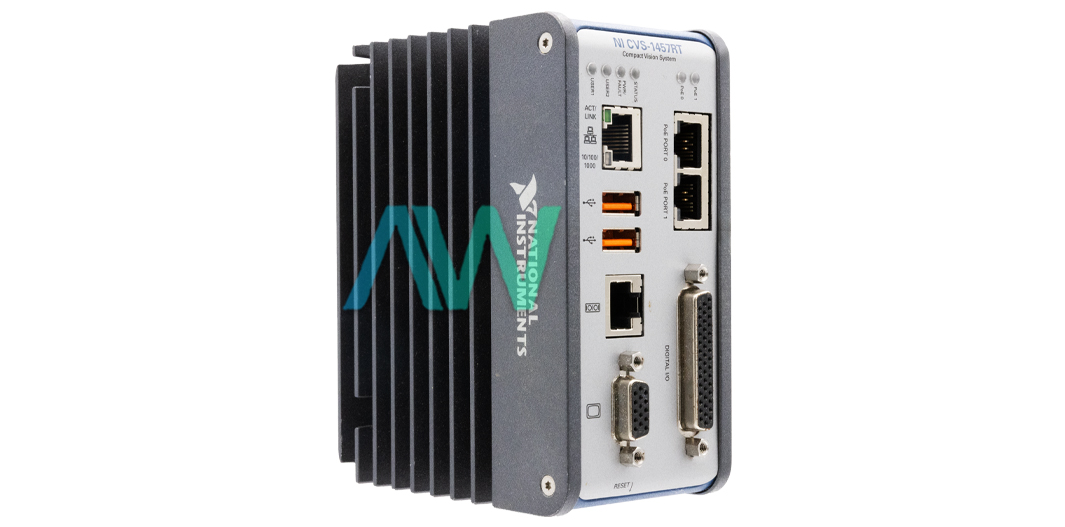

National Instruments CVS-1457RT Compact Vision System
Featured with an Intel Atom processor and TTL digital I/O capabilities, the NI CVS-1457RT is a Compact Vision System from National Instruments. This system comes with PoE (Power over Ethernet technology) and can help you deploy your visual systems simply with less cabling. The CVS-1457RT has network connectivity and can easily be considered for various machine vision applications.

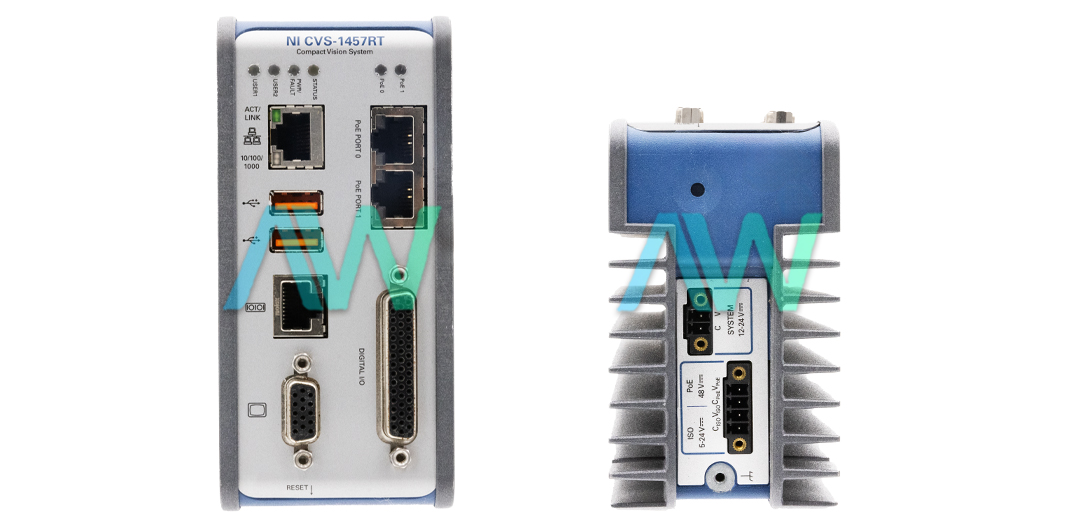

The TTL digital I/O lines provided on this Compact Vision System are backed by an integrated FPGA. This real-time imaging system is designed to acquire, process, and display images directly from GigE Vision compatible cameras. The NI CVS-1457RT also offers a variety of digital I/O options. These I/O options enable users to utilize a broad range of external devices to configure and initiate an inspection and to compile and display results. The front panel of this device has 1 VGA connector, 1 RJ50 serial port, 2 USB 2.0 ports, 1 primary Ethernet connector, and 2 PoE compatible Gigabit Ethernet ports. For digital communications with external devices, this model has a 44-pin digital I/O port as well.
The digital I/O port comes with 8 isolated inputs, 2 bidirectional (RS-422) differential pairs, 8 isolated outputs, and 8 bidirectional TTL lines. The NI CVS-1457RT features a user-configurable FPGA that permits the digital I/O to be customized and configured for specific applications. The two PoE enabled ports are capable of providing data and power connection to GigE Vision compatible cameras.
Designed for indoor use only, the CVS-1457RT has an operating temperature range of 0 °C to 55 °C. When not operational, the device has a storage temperature range
The CVS-1457RT is no longer available with National Instruments, but the Compact Vision System will remain available for both purchase and repair services in perpetuity with Apex Waves!
| Model | CVS-1457RT |
|---|---|
| Manufacturer | National Instruments |
| Type | Compact Vision System |
| Processor | 1.6 GHz Intel Atom Processor |
| Bidirectional TTL Lines | 8 |
| Isolated Inputs | 8 |
| Isolated Outputs | 8 |
| Processor Cache | 512 KB |
| System RAM | 1 GB |
| Reconfigurable FPGA | Spartan-6 LX25 |
| USB Ports | 2 |
| Max USB Port Data Rates | 480 Mbit/s |
| TTL I/O Channels | 8 |
| Dimensions | 4.25 x 2.4 in. x 5.1 in. |
| Weight | 2.06 lb. |
| CVS-1457RT Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
Associated part numbers for CVS-1457RT:
National Instruments CVS-1457RT Frequently Asked Questions
Question: What type of differential Input/Output channels does the CVS-1457RT have?
Answer: The differential I/O channels of the system are either bidirectional RS-422/RS-485 or single-ended input.
Question: What are the environmental temperature ranges of the CVS-1457RT?
Answer: The device should be operated in temperatures ranging from 0 °C to 55 °C, and it can be stored in temperatures ranging from -20 °C to 85 °C.
Question: What is the frequency of the processor for the device?
Answer: The processor of the CVS-1457RT has a frequency of 1.66 GHz.
Question: How much RAM does the FPGA of the CV-1457RT have?
Answer: The Spartan-6 LX25 FPGA has 52 blocks (936 Kbits) of RAM.
