Part Number PCI-4472B
Manufacturer/Brand National Instruments
Description: The PCI-4472B is a NI Data Acquisition Module for Sound and Vibration Applications with 8 Input Channels.
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

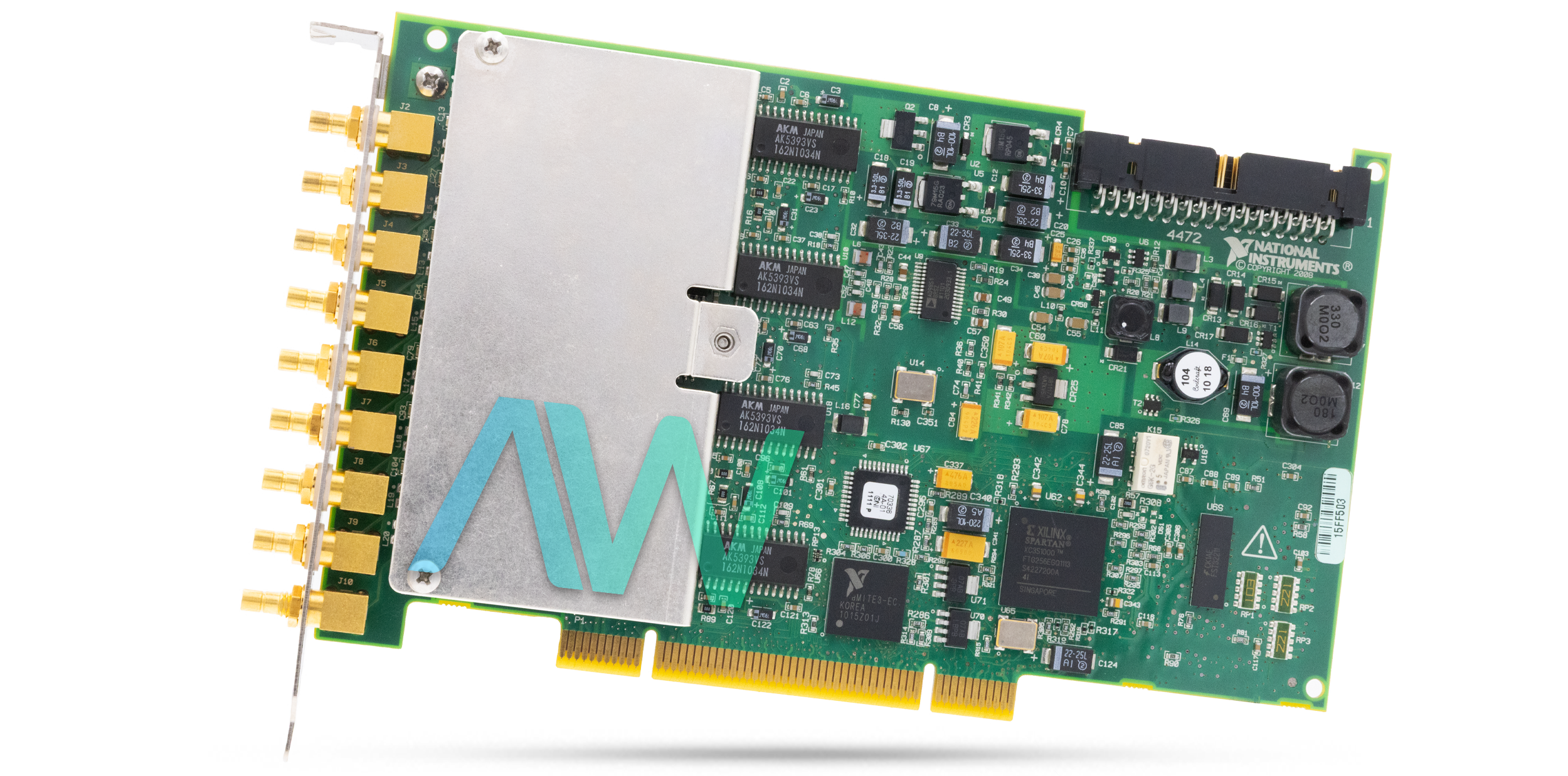

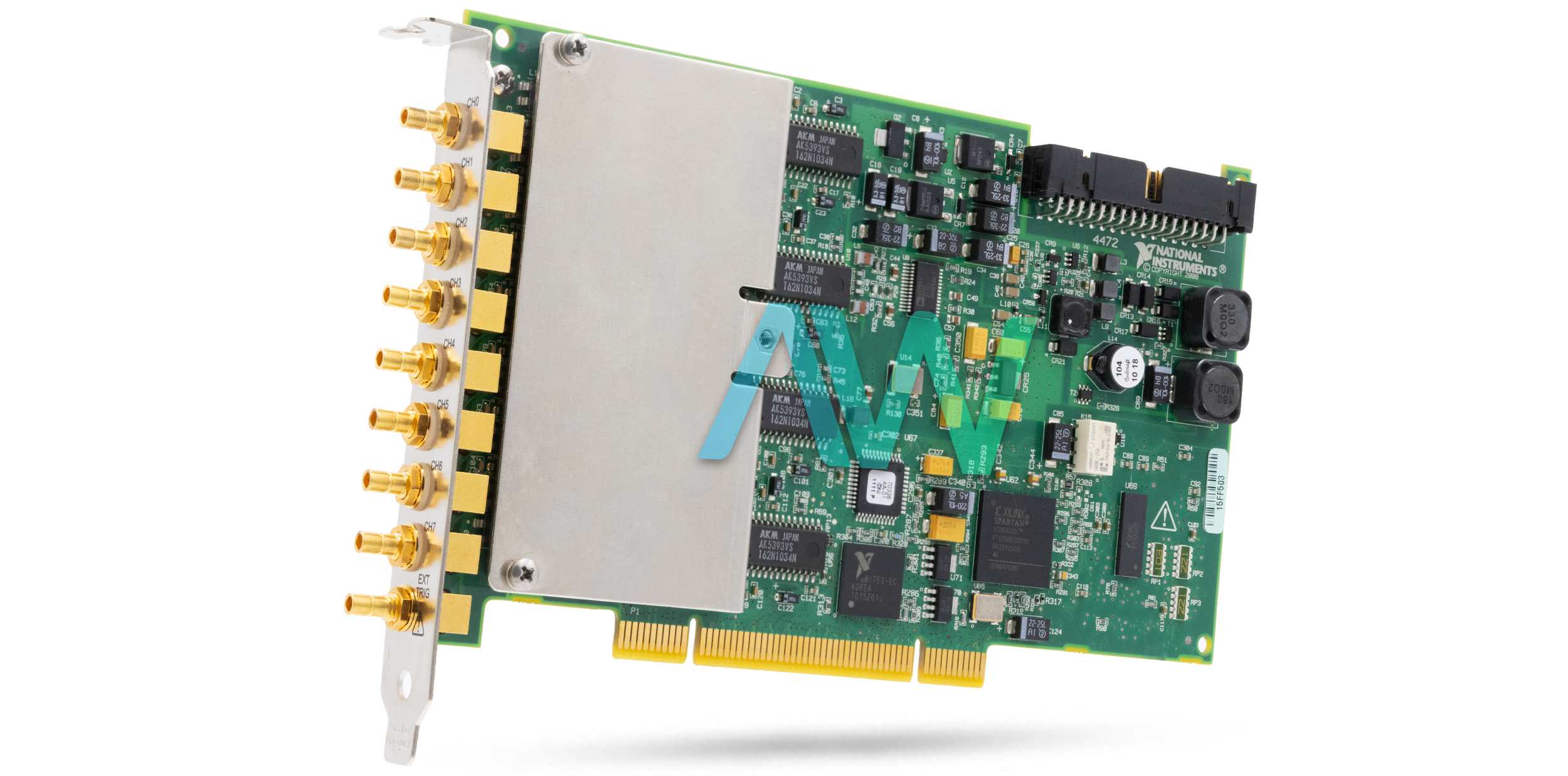

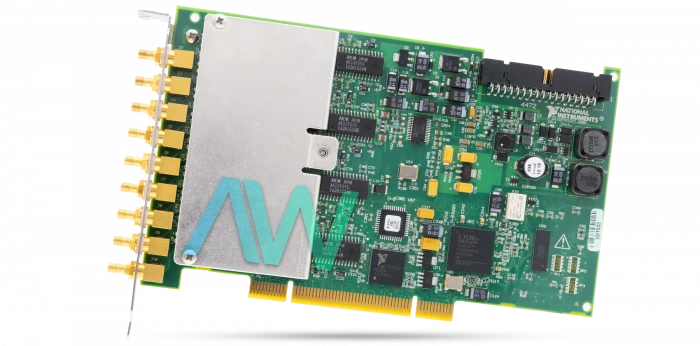

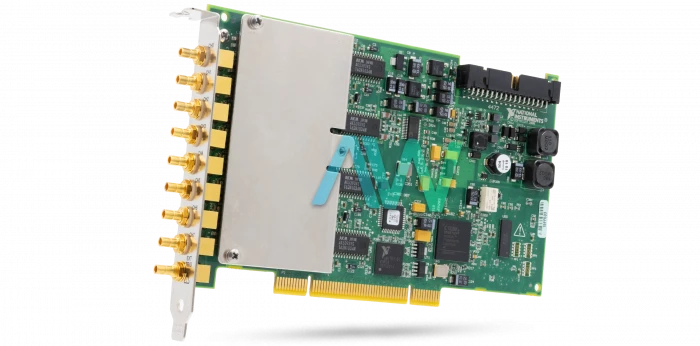

National Instruments PCI-4472B Sound and Vibration Device

National Instruments' PCI-4472B (Part Numbers: 779683-01, 779682-01) is a data acquisition module designed specifically for applications involving sound and vibration. Accurate frequency-domain measurements are made possible by its eight dynamic signal acquisition channels. With its software-configurable AC/DC coupling and integrated electronic piezoelectric (IEPE) conditioning, the device guarantees precision when used with transducers such as accelerometers and microphones.

Applications include monitoring machine condition, noise and vibration diagnostics, and audio testing and measuring. The PCI-4472B is an appropriate choice for high-fidelity signal acquisition due to its 102.4 kS/s sampling rate, 110 dB dynamic range, and 0.5 Hz AC/DC cutoff frequency. It makes use of delta-sigma modulating A/D converters (ADCs) with oversampling to ensure linearity and reduce noise and distortion. Accurate measurements for vibration and audio analysis are made possible by the ADCs' 24-bit resolution.

With its eight analog input channels, this device allows for simultaneous sampling. It supports multiple triggering modes, including external digital triggering, essential for acquiring transient signals such as vibrations resulting from mechanical impacts. Furthermore, the ability to synchronize allows several PCI-4472B devices to work together precisely in terms of timing and phase matching. The channel features of the PCI-4472B include a 1 MΩ positive input impedance and an unbalanced differential input arrangement. Its amplifier attributes include an AC/DC software-selectable input coupling and gain accuracy of ±0.1 dB.

Minimal interference is ensured by crosstalk values between neighboring channels being below -90 dB. A software-enabled constant current source that provides 4 mA with ±5% precision and 24 V compliance facilitates signal conditioning. Signal integrity is guaranteed by the output impedance exceeding 250 kΩ at 1 kHz and current noise staying below 500 pA.

ModelPCI-4472B
ManufacturerNational Instruments
Part Numbers779682-01 and 779683-01
TypeSound and Vibration Device
Differential Analog Input Channels8
Maximum Sample Rate102.4 kS/s
Analog Input CouplingAC/DC
Dimensions6.9 x 4.2 in.
Weight7 oz.
WarrantyThree Year Warranty
PCI-4472B ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PCI-4472B:

187611H-02, 187611J-02L, 187611L-02L, 187611M-02L, 779682-01, 779683-01

National Instruments PCI-4472B Frequently Asked Questions



Question: Which accessories are required for the PCI-4472B?

Answer: The PCI-4472B requires an SMB cable.



Question: What is the difference between the two part numbers for the NI PCI-4472B?

Answer: Part number 779682-01 is only the NI PCI-4472B device and part number 779683-01 is the device with the Sound and Vibration Toolkit.



Question: What is the input signal range of the PCI 4472B device?

Answer: The input signal range of the PCI 4472B device is ±10 V peak.



Question: What is the life cycle status of the NI PCI 4472B?

Answer: The NI PCI 4472B is in the mature stage of the life cycle status.
