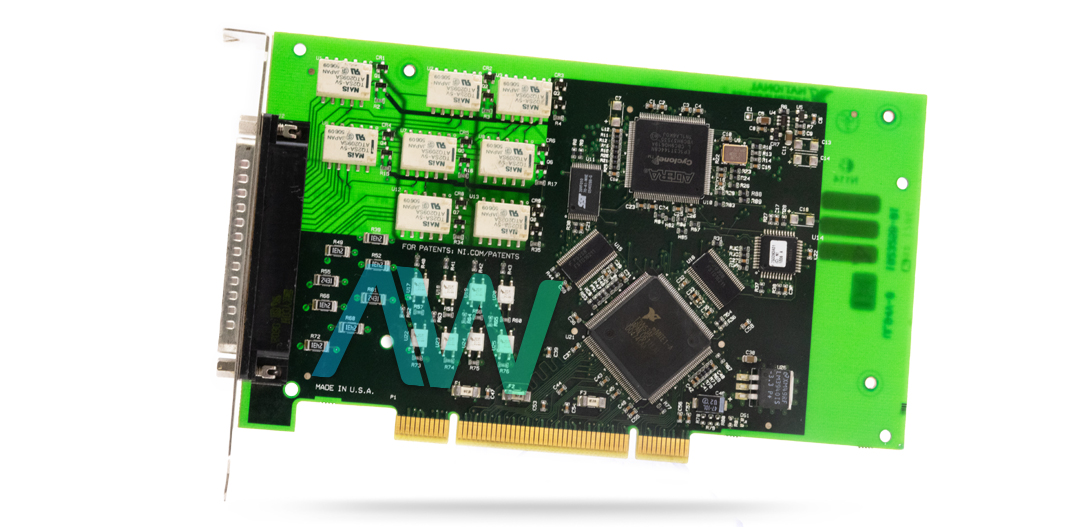

PCI-6521 National Instruments Digital I/O Device | Apex Waves | Image PCI-6521 National Instruments Digital I/O Device | Apex Waves | Image

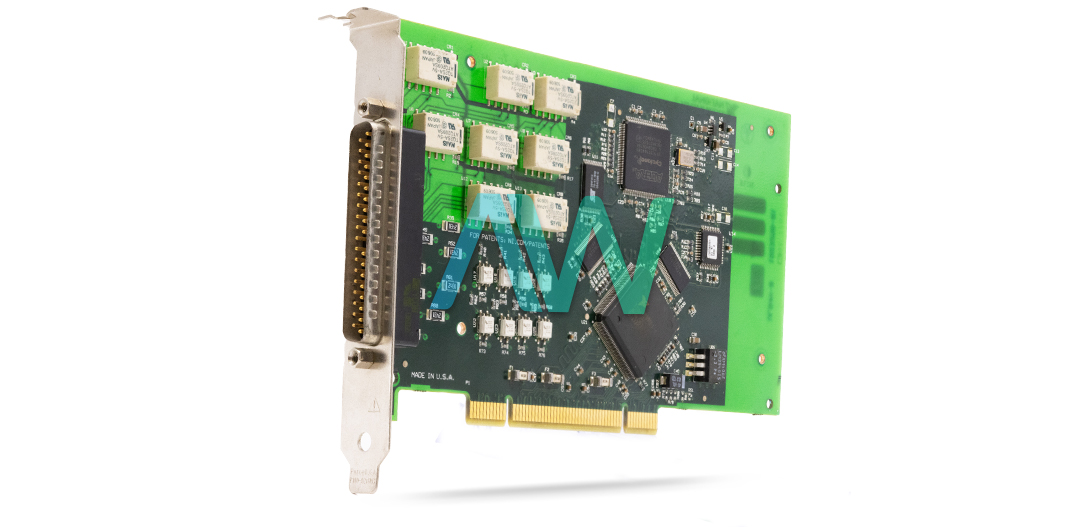

PCI-6521 National Instruments Digital I/O Device | Apex Waves | Image
PCI-6521 National Instruments Digital I/O Device | Apex Waves | Image
Rate the PCI-6521
Rated 5/5 based on 7 ratings.

PCI-6521

Modular Systems > National Instruments > DIO Series

Part Number PCI-6521
Manufacturer/Brand National Instruments
Description PCI-6521 16-Channel, 8 Sink/Source Inputs, 8 Relay Outputs, Isolated Digital I/O Device
In Stock - Ships Today
In Stock | Ships Today

Speak to a sales representative for pricing & lead time:


National Instruments PCI-6521 Digital I/O Device

The PCI-6521 (Part Number: 779312-01) is an Industrial Digital I/O Device that comes with a great channel count and logic levels of 24 V. This instrument can use computerized I/O watchdogs if a mistake happens. In this manner, the watchdogs will change to a customizable safe output state and this will guarantee the model a safe recuperation from discovery and mistake conditions. It additionally includes programmable catalyst states, computerized separating, and change discovery for ideal control over the user’s application. Specialists can utilize NI PCI-6521 relays to change up to 150 Vac/Vcc with a greatest exchanging intensity of 60 W and control high-voltage gadgets straightforwardly from the card. Likewise, specialists can exploit the exceptionally dependable arrangement of mechanical highlights- including watchdog clocks, programmable power states, advanced separating, and change recognition for coordinating a sensor network. This gives solid activity in a Windows working framework, regardless of whether there is a working framework error that requires a product restart.

Not at all like other mechanical transfer embeds available, the NI PCI-6521 is ensured and perceived by UL. Autonomous security confirmation associations, such as UL assess items in view of set up models that guarantee that the utilization of the item is protected. The NI PCI 6521 Digital I/O Device offers a keyed connector to keep the client from coincidentally associating a high voltage link to a low voltage gadget. Furthermore, the PCI-6521 offers protection covers on the two sides of the card, which keeps engineers at a sheltered separation from electrical cables.

ModelPCI-6521
ManufacturerNational Instruments
Part Number779312-01
TypeDigital I/O Module
Input Lines8 Source/Sink
Output Lines8 Electromechanical Relays
Maximum Input Voltage±30 VDC
Maximum Input Current12.5 mA/line
Propagation Delay45 μs
I/O Connector37-pin keyed male D-SUB
Power Requirements+5 VDC - 600 mA
Dimensions6.9 in. × 3.9 in.
Weight0.37 lb.
Driver SoftwareNI-DAQ 7.5, NI-DAQmx
WarrantyOne Year Warranty
PCI-6521 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6521 Frequently Asked Questions



Question: Can I use my NI PCI-6521 to output 120 V AC to control a solenoid valve?



Answer: No, the NI PCI-6521 only supports outputting a DC voltage. A solid state relay is recommended to convert DC to AC.



Question: Which driver software should be used with the NI PCI 6521?



Answer: NI-DAQmx driver software Version 7.5 or later should be used with the NI PCI 6521.



Question: Which safety certifications apply to the PCI-6521?



Answer: The PCI-6521 is UL listed: UL 61010-1 (IEC 61010-1).



Question: What is the maximum power of the PCI 6521?



Answer: The maximum power of the PCI 6521 is 60 W.

PCI-6521 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-6521
Part Number:779312-01
Type:Digital I/O Device
Repair Evaluation:$150
