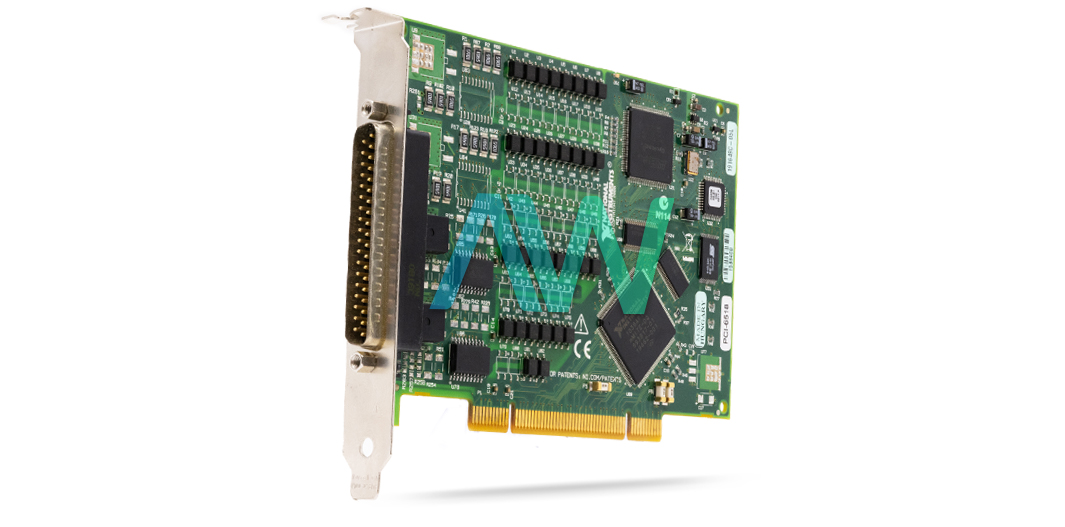

PCI-6518 National Instruments Digital I/O Device | Apex Waves | Image PCI-6518 National Instruments Digital I/O Device | Apex Waves | Image

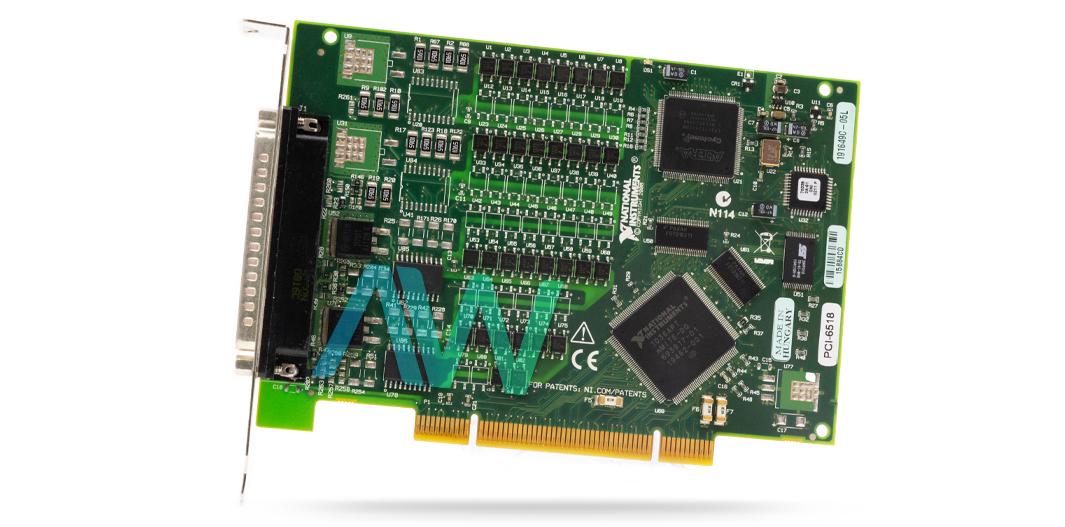

PCI-6518 National Instruments Digital I/O Device | Apex Waves | Image
PCI-6518 National Instruments Digital I/O Device | Apex Waves | Image
Rate the PCI-6518
Rated 4.5/5 based on 19 ratings.

PCI-6518

Modular Systems > National Instruments > DIO Series

Part Number PCI-6518
Manufacturer/Brand National Instruments
Description PCI-6518 32-Channel, 16 Sink/Source Inputs, 16 Source Outputs, Digital I/O Device
In Stock - Ships Today
In Stock | Ships Today

Speak to a sales representative for pricing & lead time:


National Instruments PCI-6518 Digital I/O Device

The PCI-6518 (Part Number: 779084-01) comes with an option for synchronous I/O (or blocking I/O) that would leave the procedure/undertaking in a holding up state until the I/O ends. All things considered, it will let framework assets sit without moving. When a procedure makes numerous I/O tasks, this implies the processor can invest most of its energy for I/O activities to finish. Numerous mechanical applications offer more important normal mode noise dismissal in electrically uproarious events and seclusion to cover the gadgets from transient voltage spikes containing hardware and inductive loads. In bank-to-bank segregated models, like the case of an NI PCI-6518, every bank or gathering that comes with a couple channels has a similar ground but is isolated from other banks.

The PCI 6518 NI Digital I/O Device has simple signal ways that have been carefully composed, tried, and adjusted to guarantee the most astounding conceivable precision is accomplished over all information channels. Considering this careful plan and-test theory, NI can give recorded precision details to permit an entire comprehension of gadget execution under a scope of conceivable working conditions. The determination documentation for every gadget gives an area dedicated to understanding the calculation of AI supreme precision, nearby an abundance of other execution subtle elements.

The PCI 6518 requires installed timing hardware to control simple, advanced, and counter I/O lines. This Digital I/O Device includes the NI-STC3 chipset to give up to four improved counters, a 100 MHz timebase, and extra choices for I/O timing and activating.

ModelPCI-6518
ManufacturerNational Instruments
Part Number779084-01
TypeDigital I/O Device
Input Lines16 Source/Sink
Output Lines16 Source
IsolationBank
Maximum Input Voltage±30 VDC
Maximum Input Current12.5 mA/line
Propagation Delay75 μs
I/O Connector37-pin male D-SUB
Power Requirements+5 , +3.3 VDC - 250, 300 mA
Dimensions5.54 in × 4.47 in.
Weight2.5 oz.
Driver SoftwareNI-DAQmx
WarrantyOne Year Warranty
PCI-6518 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6518 Frequently Asked Questions



Question: What is the power consumption of the PCI 6518?



Answer: The power consumption of the PCI 6518 is 250 mA, typical at +5 VDC (±5%) and 300 mA, typical at +3.3 VDC (±5%).



Question: What is the digital input voltage range of the PCI-6518?



Answer: The digital input voltage range of the PCI-6518 is -30 V to 30 V.



Question: What is the power-on state of the NI PCI 6518?



Answer: The power-on state of the NI PCI 6518 is 0 (open), default; user-programmable to 0 or 1.



Question: What is the output current of the NI PCI-6518?



Answer: The output current of the NI PCI-6518 is 350 (75) mA.

PCI-6518 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-6518
Part Number:779084-01
Type:Digital I/O Device
Repair Evaluation:$150
