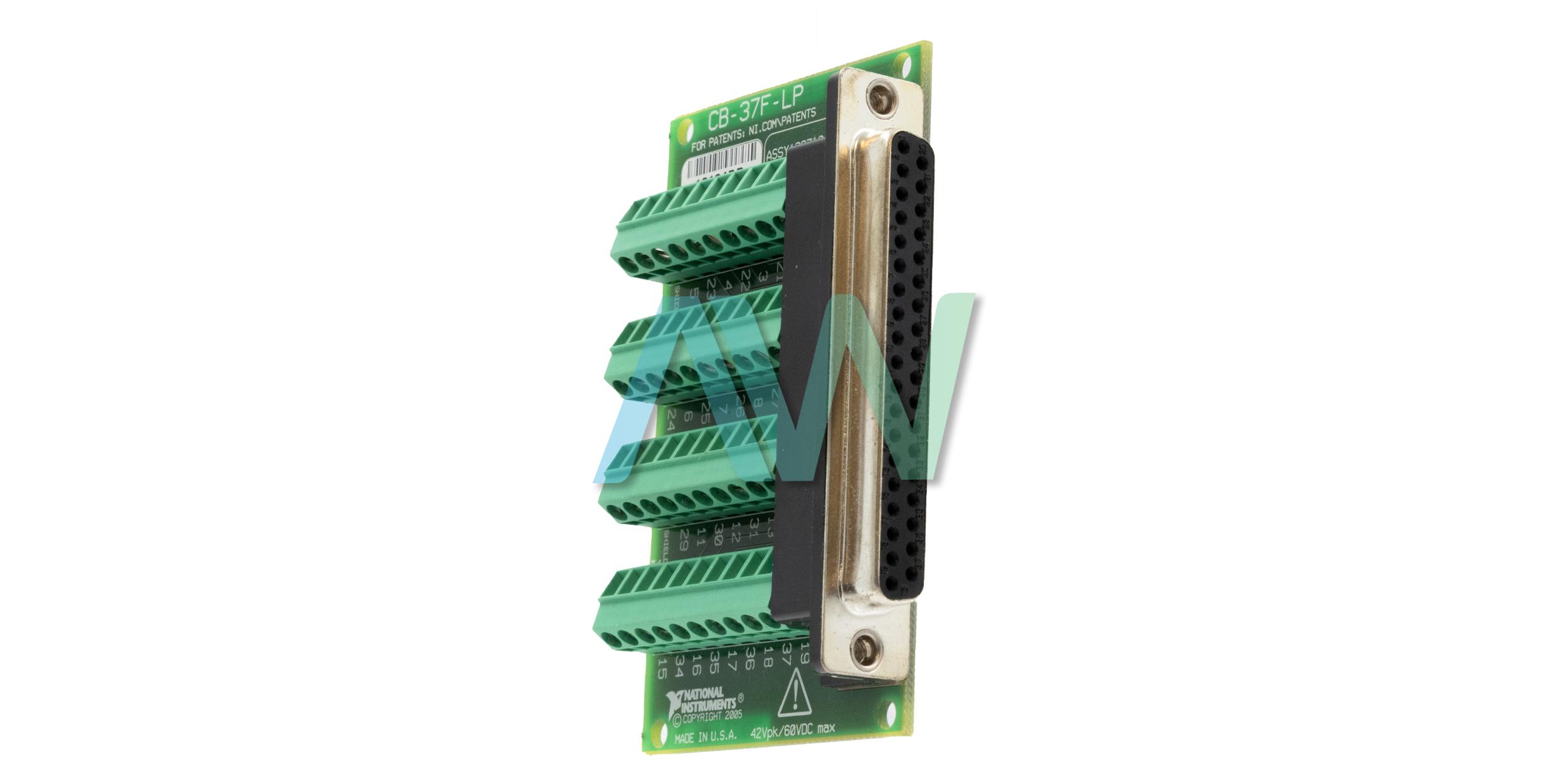

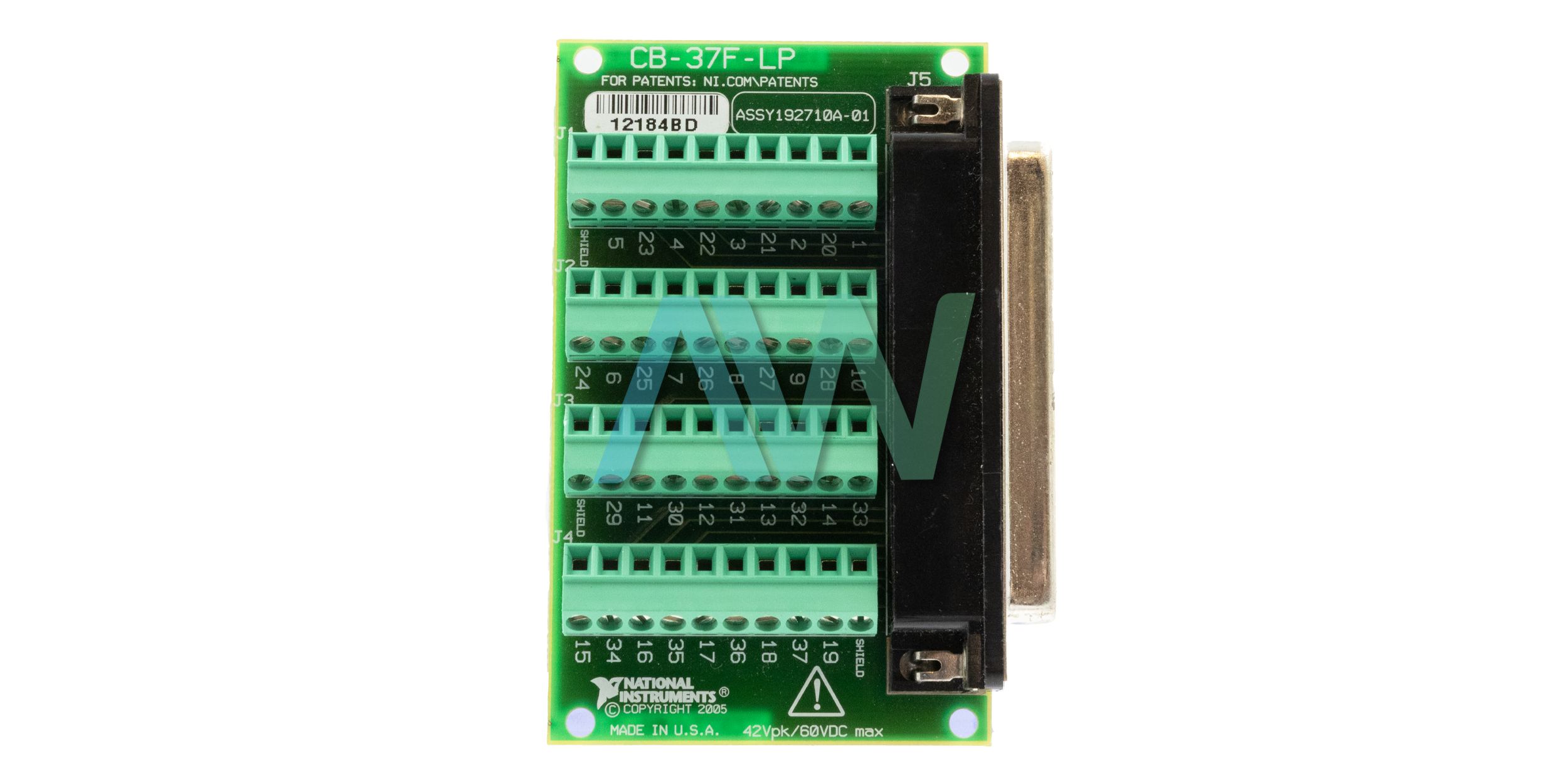

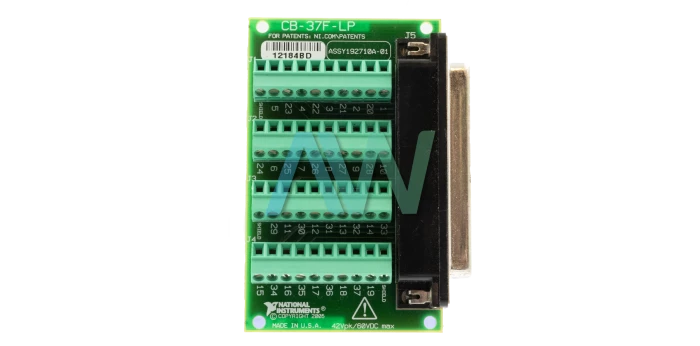

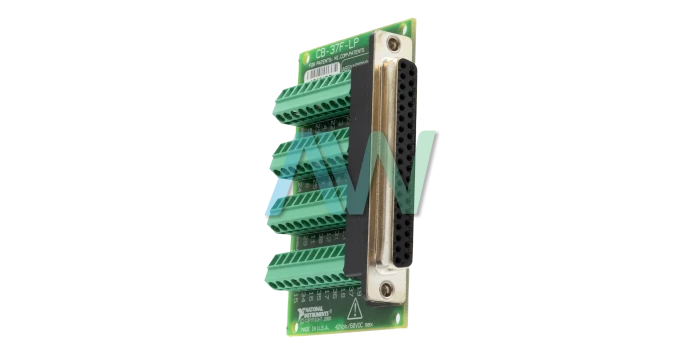

National Instruments CB-37F-LP Terminal Block
Featured with 40 screw terminals, the NI CB-37F-LP (Part Number: 779353-01) is a Terminal Block. The CB-37F-LP is designed to be used with National Instruments devices that come with 37-pin D-SUB connectors. The NI CB-37F-LP connects to the front panel of the host device. Thus, it does not require an additional cable– a feature that helps you reduce the cost and time required for extending signals from your data acquisition devices.
This Terminal Block allows you to connect analog input, analog output, and digital I/O and counter/timer signals to your National Instruments device. 40 screw terminals on the CB-37F-LP allow access to relevant pins on the connector. Moreover, this Terminal Block has 3 shielded screw terminals to be used with a shielded cable. This Terminal Block is designed for applications where voltages do not exceed beyond 42 Volts. The NI CB-37F-LP can easily be mounted on PCI devices. However, you can also use a cable to connect this Terminal Block to the target PCI device via a cable.
The screw terminals on the National Instruments CB-37F-LP Terminal Block have a unique angle entry orientation. This Terminal Block consists of a PCB (printed circuit board) and 40 screw terminals. The NI CB-37F-LP is a desktop mount terminal block and cannot be mounted on a DIN rail. More often, users mount the NI CB-37F-LP Terminal Block directly on the host PCI card or module. You can install this accessory in locations where the ambient temperature remains within the range of 0 to 55 °C.
| Model | CB-37F-LP |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779353-01 |
| Type | Terminal Block |
| Back End Connection | 37-Pin, Female D-SUB |
| Front End Connection | 40-Pin, Female Screw Terminal |
| Mounting Configuration | Desktop Mount |
| Screw Terminals | 40 |
| Screw Terminal Type | Angled entry, 3.91 mm pitch |
| Dimensions | 2.257 × 3.194 × 0.558 in. |
| CB-37F-LP Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
