PCI-6510

Modular Systems > National Instruments > DIO Series

Part Number PCI-6510
Manufacturer/Brand National Instruments
Description PCI-6510 32-Channel, Sink/Source Inputs Digital I/O Device

Speak to a sales representative for pricing & lead time:

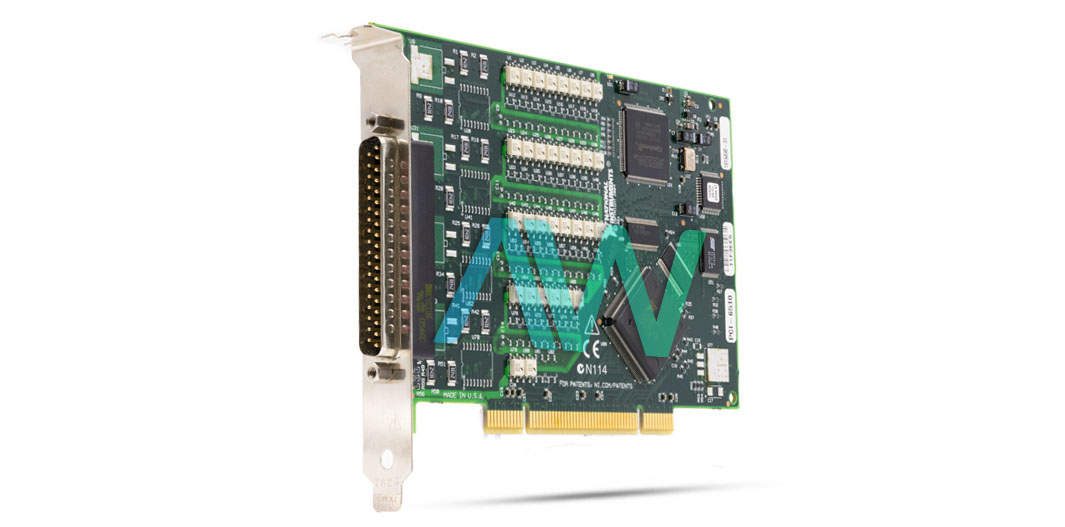

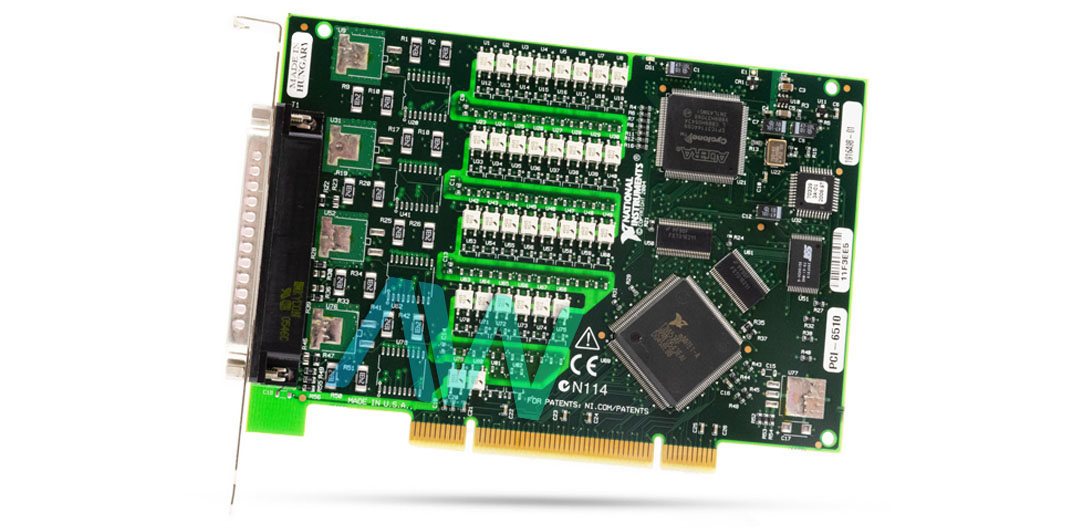

National Instruments PCI-6510 Digital I/O Device

The PCI-6510 (Part Number: 779081-01) is a modern advanced information interface, with a single bank of disconnected channels. If a PC or application error happens, the PCI-6510 can utilize computerized I/O watchdogs to change to a configurable safe output state to guarantee discovery and safe recuperation from failure conditions. Programmable information channels wipe out glitches/spikes and give debouncing to advanced switches/transfers through a product selectable computerized channel. Separation enhances signal quality and ensures PC hardware. It physically and electrically isolates two sections of a circuit, which breaks things off circles, enhances normal mode voltage and clamor dismissal, and grants the two sections of the circuit to remain at various voltage levels.

Numerous modern applications expect seclusion to shield the gadgets from transient voltage spikes and give more noteworthy normal mode noise dismissal in electrically noisy situations containing hardware and inductive loads. In bank-to-bank confined gadgets, such as an NI PCI-6510, each bank (or gathering) of a few channels has a similar ground yet is disengaged from different banks.

Glitch-Free Startup with programmable Power-Up States comes with programmable catalyst states. The user can arrange the underlying output conditions of the computerized I/O gadget in programming to guarantee glitch-free tasks when associated with modern actuators, such as pumps, valves, engines, and transfers. The advanced I/O gadget holds these I/O states in the wake of accepting force, so the PC can boot and your product application can start running. The user can design each advanced line as high-output or low-output. The computerized I/O gadget stores the settings in a locally available nonvolatile memory and actualizes the catalyst states consequently after power is connected to the gadget.

ModelPCI-6510
ManufacturerNational Instruments
Part Number779081-01
TypeDigital I/O Device
Input Lines32 Source/Sink
Output Lines0
IsolationBank
Maximum Input Voltage±30 VDC
Maximum Input Current12.5 mA/line
Propagation Delay75 μs
I/O Connector37-pin male D-SUB
Power Requirements+5 , +3.3 VDC - 250, 300 mA
Dimensions5.94 in × 4.75 in.
Weight3.1 oz.
Driver SoftwareNI-DAQmx
WarrantyOne Year Warranty
PCI-6510 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6510 Frequently Asked Questions



Question: Are any accessories required for the PCI 6510?



Answer: No, the PCI 6510 does not require any accessories, but it can be used with the 1 meter USB 2.0 Cable (Part Number: 184125-01).



Question: Which type of I/O connector does the NI PCI 6510 have?



Answer: The NI PCI 6510 has a 37-pin male D-SUB I/O connector.



Question: What is the maximum switching voltage of the PCI-6510?



Answer: The maximum switching voltage of the PCI-6510 is 30 VDC.



Question: What power is available at the I/O connector for the NI PCI-6510?



Answer: The NI PCI-6510 has a voltage of +4.3 to +6.3 VDC and 20 mA/port, typical for the power available at the I/O connector.

PCI-6510 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-6510
Part Number:779081-01
Type:Digital I/O Device
Repair Evaluation:$150
