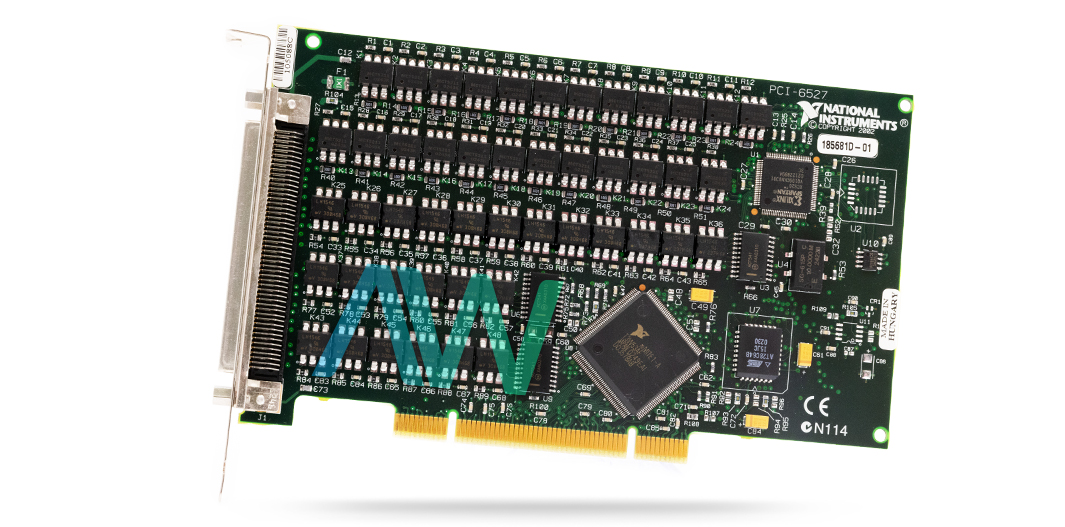

National Instruments PCI-6527 Digital I/O Device

The National Instruments PCI-6527 (Part Number: 777810-01) is a parallel Isolated Digital I/O Device for compact PCI Chassis, PXI, or PCI bus computers. This 48-bit device comes featured with 48 channels, which can acquire isolated digital data. Twenty-four of the channels are solid-state relay outputs, whereas the remaining 24 channels are optocoupled inputs. Every input channel has two differential isolated terminals: one for the signal and one for the reference. A difference of 2 to 28 VDC is possible between the two terminals registers as a logic high. However, the logic low is between 0 and 1 V. With this model, the user can sense up to 28 VDC digital levels and switch currents to 120 mA maximum.

The PCI 6527 National Instruments features digital filtering to eliminate glitches or spikes on the input lines. In addition, all the input lines can generate interrupts on rising/falling edges to notify the user about changing data. This Digital I/O Interface is a jumperless DAQ device, which comes equipped with the National Instruments proprietary PCI MITE interface. The NI PCI-6527 is considered an ideal solution for low voltage switching and isolation in both laboratory and industrial environments.

To read the status of external digital logic at non-TTL and TTL levels, users can utilize optically-isolated digital lines. The solid-state relay outputs on this device can be used in the switching of external devices and to control logic levels at either TTL or non-TTL levels. With this device, the user can decouple the harsh ground and noise of the computer from any external signal because of its isolated nature. There are several software programs to choose from when programming the NI PCI 6527, such as Visual C++, Visual C++, LabWindows/CVI, or Visual Basic.

ModelPCI-6527
ManufacturerNational Instruments
Part Number777810-01
TypeDigital I/O Device
Digital I/O Inputs24
Digital I/O Outputs24
I/O Connector100-pin female connector
Dimensions6.9 × 4.2 in.
DriverNI-DAQ 7
WarrantyOne Year Warranty
PCI-6527 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6527 Frequently Asked Questions



Question: Where can I find the PCI-6527 manual?



Answer: The PCI-6527 manual is available for download on the apexwaves.com website.



Question: What type of driver does the NI PCI-6527 have?



Answer: The NI PCI-6527 driver software included is NI-DAQ 7.



Question: Which connector block and shielded cable are recommended for shielded screw-terminal connections to the NI PCI-6527?



Answer: The SCB-100 connector block and the shielded SH100-100-F cable should be used for shielded screw-terminal connections to the NI PCI-6527.



Question: Where can I look at the pin-out for the PCI-6527 I/O connectors?



Answer: The pin-out for the PCI-6527 I/O connectors is in the PCI-6527 manual.


PCI-6527 Technical Specifications:

Manufacturer:National Instruments
Model:PCI-6527
Part Number:777810-01
Type:Digital I/O Device
Repair Evaluation:$150
