PCI-6528

Modular Systems > National Instruments > DIO Series

Part Number PCI-6528
Manufacturer/Brand National Instruments
Description PCI-6528 48-Channel, 24 Sink/Source Inputs, 24 Sink/Source Outputs, Digital I/O Device
Available

Speak to a sales representative for pricing & lead time:


National Instruments PCI-6528 Digital I/O Device

The NI PCI-6528 (Part Number: 778833-01) Digital I/O Device is an industrial channel-to-channel isolated Digital I/O Device for PCI. The user can utilize the optically isolated inputs of the PCI NI 6528 to examine the status of sensors, actuators, and logic gadgets. The NI PCI 6528 has 24 sink/source outputs to switch gadgets with input streams up to 150 mA. Since this device has high current drive and isolation, the NI PCI-6528 device is perfect for an assortment of uses from automotive outline, modern industrial facility computerization, and machine control to aviation, lab research, and biomedical applications. This Digital I/O Device is created to utilize the most recent technology for applications requiring convenience, dependability, and execution. The PCI 6528 card is jumper-free and allows the user to utilize NI-DAQmx driver software programming to accelerate application improvement with highlights such as the DAQ Assistant, programmed code generation, and superior multithreaded streaming innovation.

The National Instruments NI PCI-6528 device gives channel-to-channel confinement where each channel is physically and electrically isolated from the others and earth ground. Optical isolators isolate the high-voltage front end from the low-voltage back end, breaking ground loops, enhancing basic mode voltage dismissal, and shielding PC hardware from dangerous voltages. Modern conditions containing hardware and inductive burdens expect segregation to shield the gadgets from transient voltage spikes and give more noteworthy normal mode commotion dismissal.

Other useful features of this Industrial Digital I/O Device include: programmable power-up states, programmable input filters to get rid of glitches and noise, change detection, digital I/O watchdog timers, isolation with a massive voltage range for linking to industrial actuators and sensors, and industrial certifications from CDE, CE, UL, C-Tick, and FCC which guarantee compliance with EMI in many areas of the world.

ModelPCI-6528
ManufacturerNational Instruments
Part Number778833-01
TypeDigital I/O Device
Digital Inputs24
Digital Outputs24
DriverNI-DAQmx
Dimensions6.9 in. × 4.2 in.
Weight3.8 oz.
WarrantyOne Year Warranty
PCI-6528 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6528 Frequently Asked Questions



Question: Which type of I/O connector does the NI PCI 6528 have?



Answer: The NI PCI 6528 has a 100-pin female .050 series D-Type connector.



Question: Which accessories are required for the PCI NI 6528?



Answer: The PCI NI 6528 has the following required accessories: the SCB-100A Noise Rejecting, Shielded I/O Connector Block and the 1 or 2 m Cable Assembly, Type SH100-100-FLEX.



Question: What is the power available at the I/O connector for the National Instruments NI PCI-6528?



Answer: The power available at the I/O connector for the National Instruments NI PCI-6528 is +4.0 to +5.25 VDC, 1 A max.



Question: Which type of relay does the NI PCI-6528 have?



Answer: The NI PCI-6528 has normally open form A solid-state relays.

PCI-6528 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-6528
Part Number:778833-01
Type:Digital I/O Device
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PCI-6528

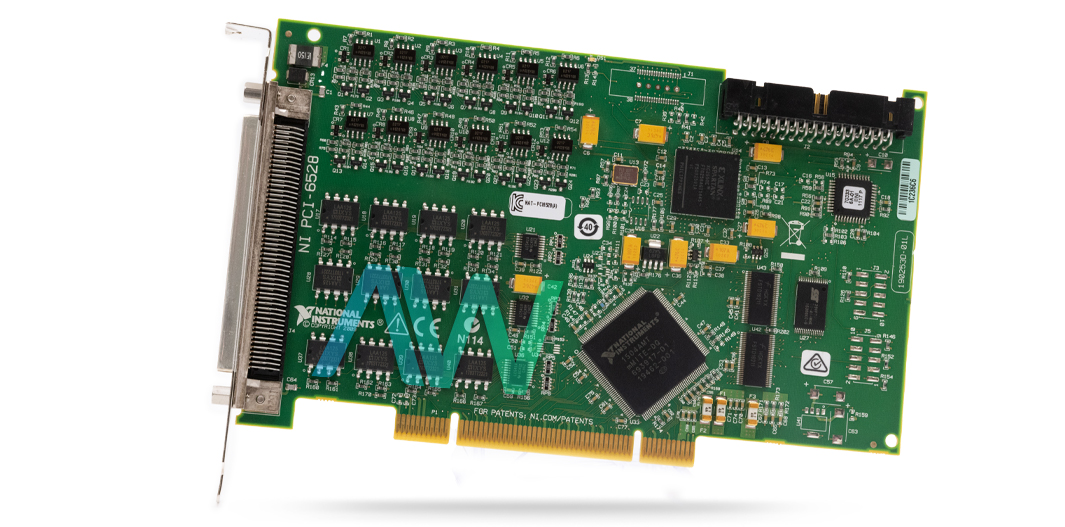

PCI-6528 National Instruments Digital I/O Device | Apex Waves | Image

Main Image

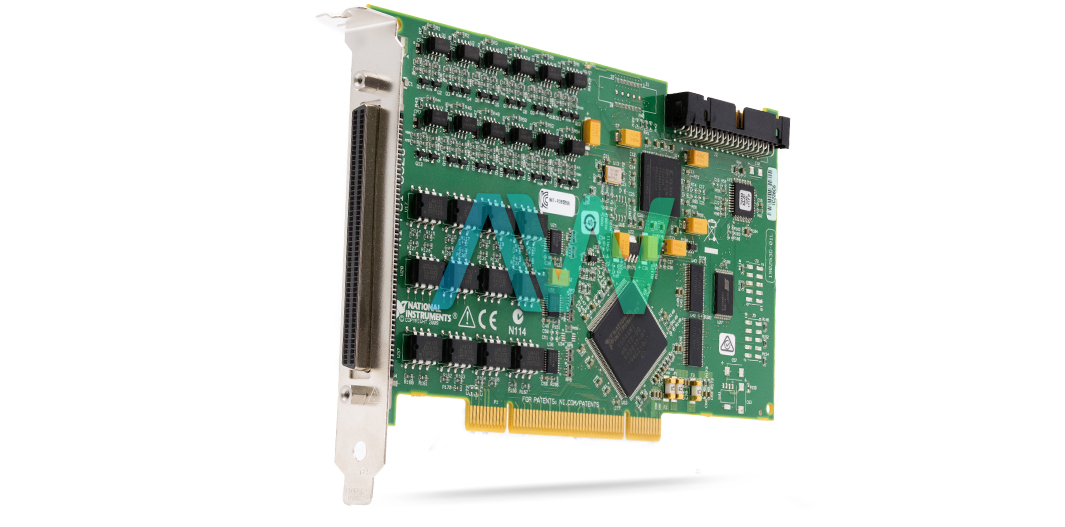

PCI-6528 National Instruments Digital I/O Device | Apex Waves | Image
