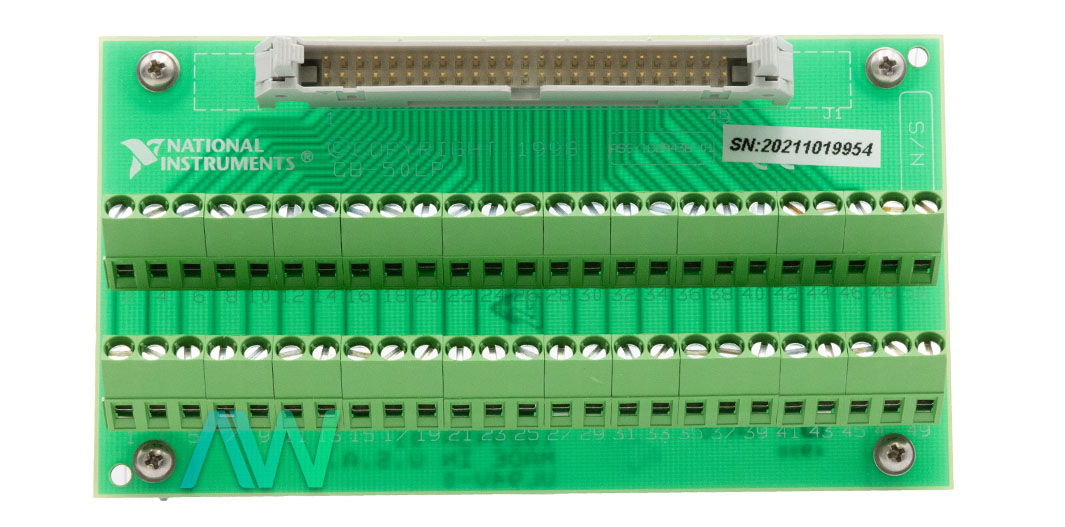

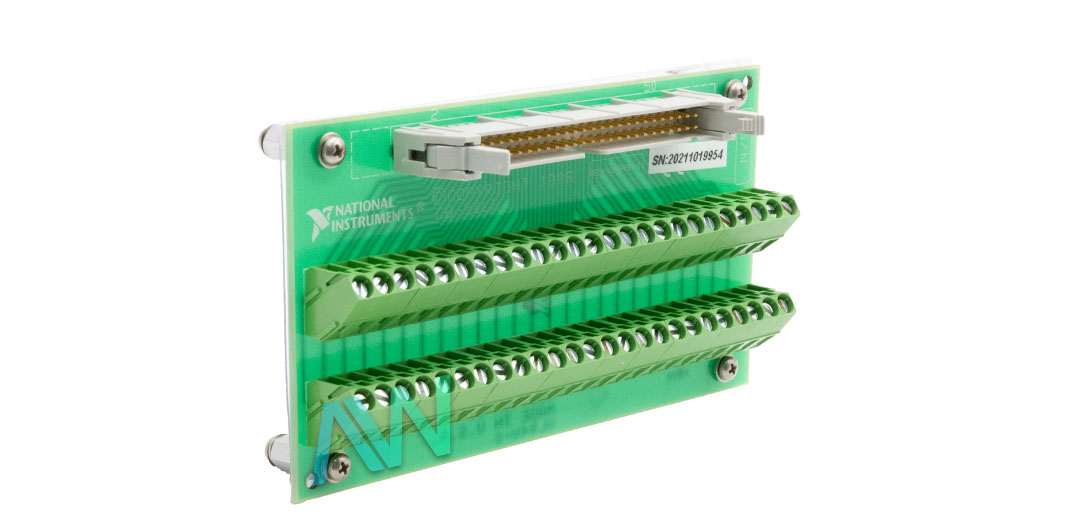

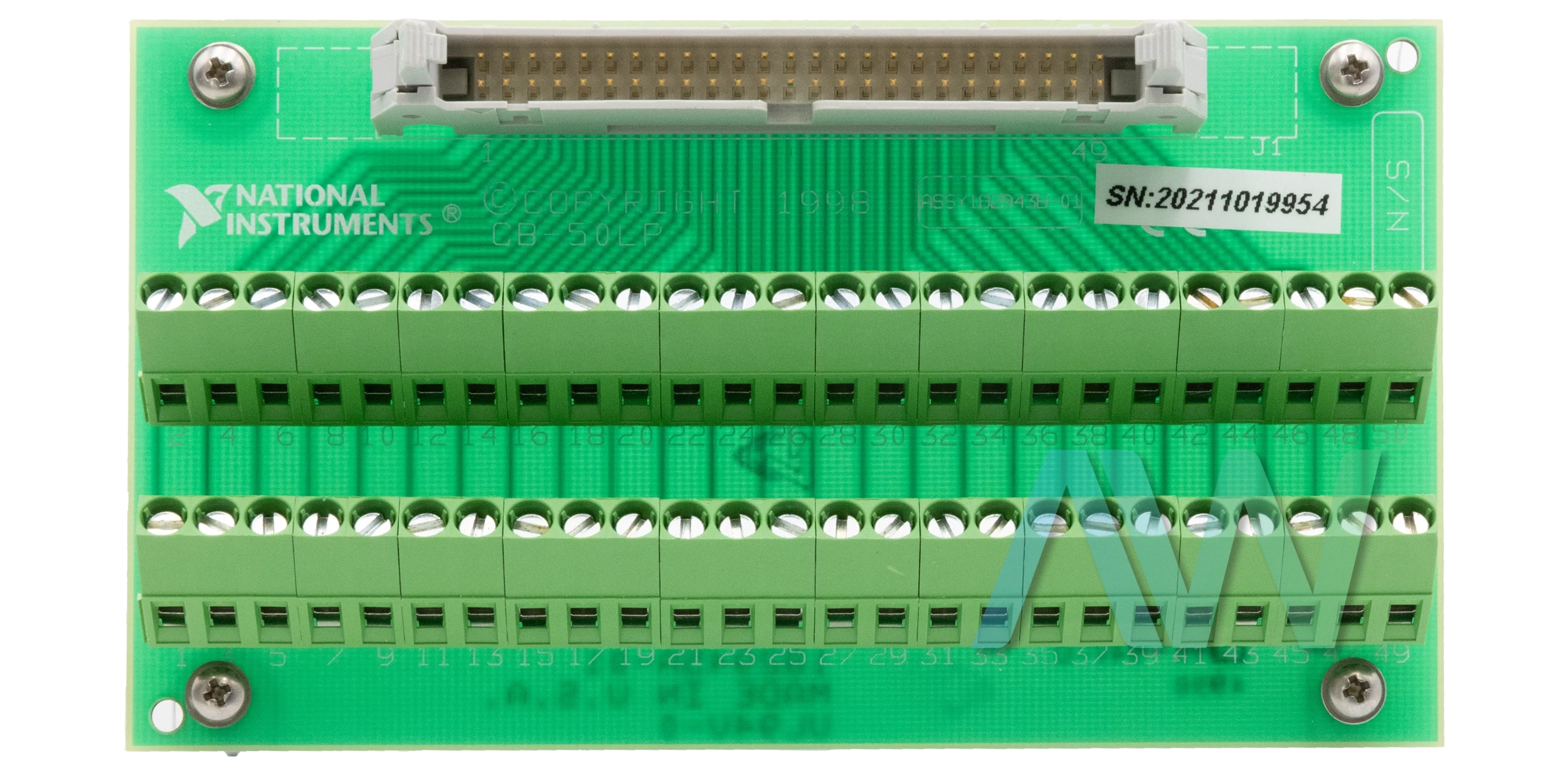

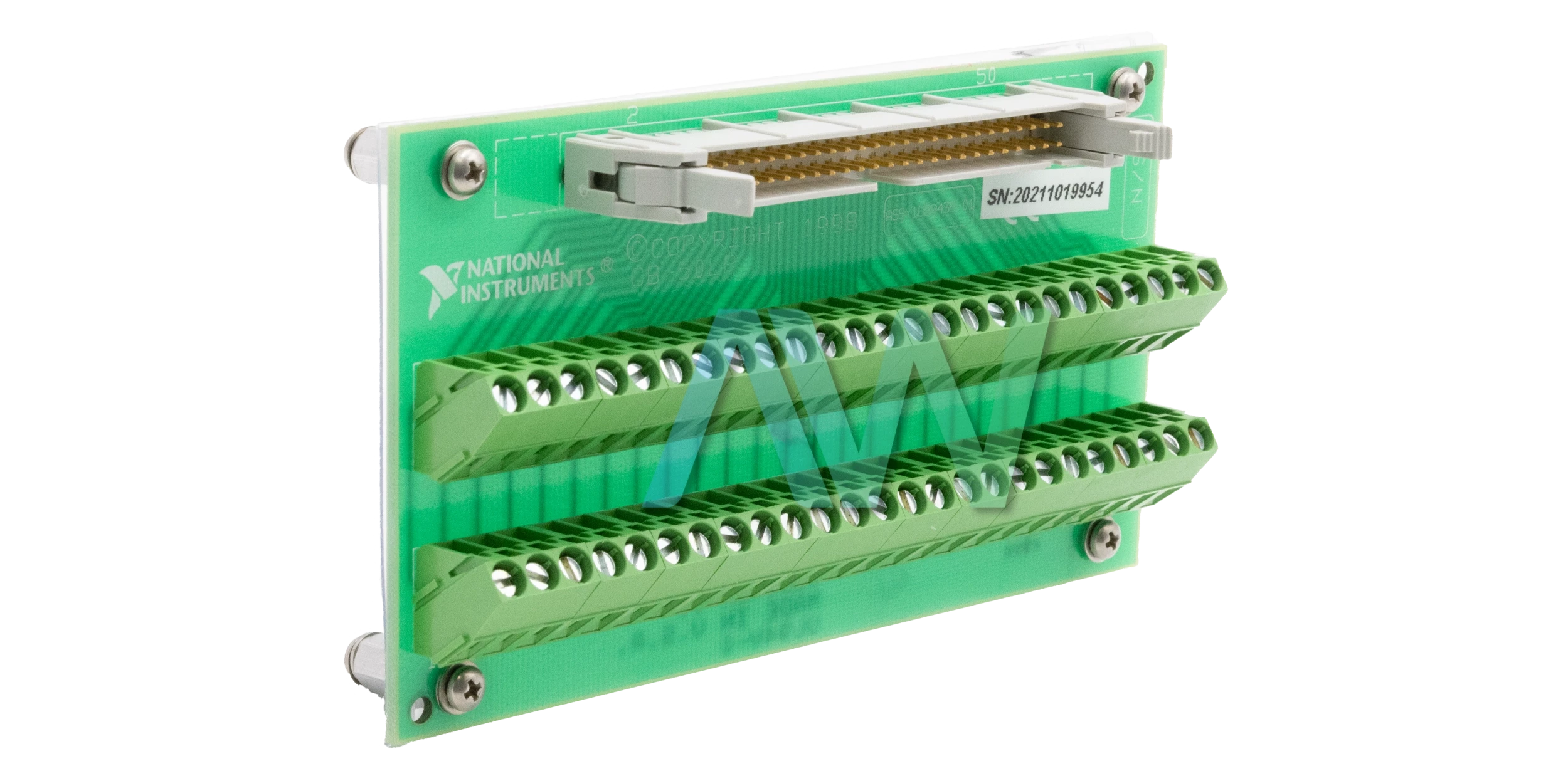

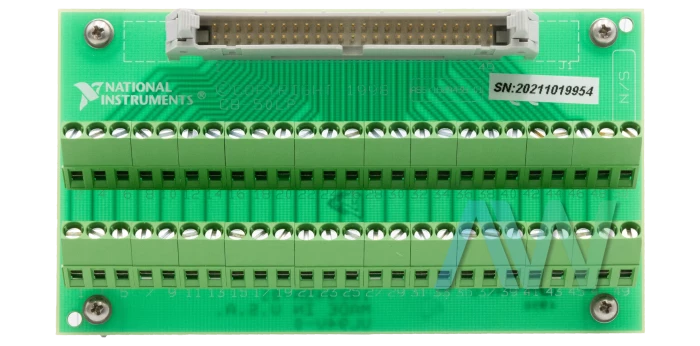

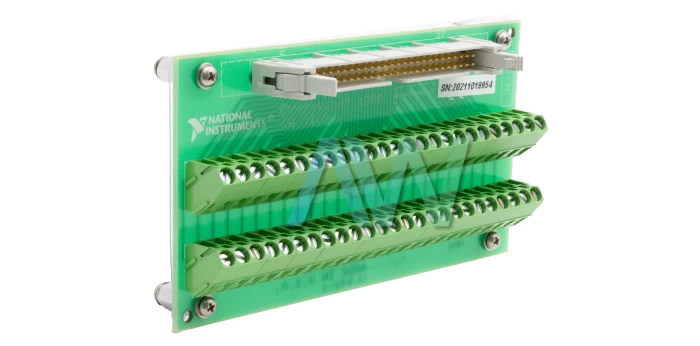

National Instruments CB-50LP Terminal Block
Featured with 50-Pin male IDC (for back end connections) to 50-Pin screw terminal connectivity (for front end connections), the NI CB-50LP (Part Number: 777101-01) is a Terminal Block from National Instruments. The CB-50LP is designed to be mounted in a panel or mounted on a customized panel with the metal standoffs that come with the Terminal Block. The NI CB-50LP comes with 50 screw terminals, which can connect to I/O signals from 50-pin National Instruments DAQ devices. The NI CB-50LP allows you to resolve your male IDA signals to achieve fifty terminations on the incorporated screw terminals. This Terminal Block is widely used with National Instruments data acquisition devices that have 50-pin connectivity.
The CB-50LP has a 50-pin header to provide direct connectivity to 50-pin cables. The NI CB-50LP Terminal Block offers easy connection of field input/output signals to NI-6527 and NI-650x DAQ devices.
The National Instruments CB-50LP is an unshielded accessory. The main difference between shielded and unshielded accessories is between the applied sealing mechanisms. Shielded accessories come enclosed in properly designed containers. However, unshielded accessories are built without any kind of protection against electrical noise or electromagnetic interference. Thus, you should consider the CB-50LP for your application only after ensuring that a shielded accessory and shielded cables are not required. You can be assured your signals carrying cables will not be allowed to shake. The National Instruments CB-50LP Terminal Block is an ideal solution for novice users or for students who have minimal experience and expertise for handling and cabling data signals.
The CB-50LP measures 5.22 x 2.83 in. in physical dimensions.
| Model | CB-50LP |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777101-01 |
| Type | Terminal Block |
| Back End Connection | 50-Pin Male IDA |
| Front End Connection | 50-Pin, Female Screw Terminal |
| Mounting Configuration | Panel Mount |
| Screw Terminals | 50 |
| Dimensions | 5.22 x 2.83 in. |
| CB-50LP Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for CB-50LP:
National Instruments CB-50LP Frequently Asked Questions
Question: What are the mounting options for the CB-50LP?
Answer: The Terminal Block can be mounted with metal standoff mounting hardware.
Question: What are the front and back end connections of the CB-50LP?
Answer: The front end connection is a 50-Pin female screw terminal connection, while the back end has a 50-Pin Male IDC connection.
Question: What cables can the CB-50LP Terminal Block be used with?
Answer: The R1005050 ribbon cable can be utilized with the terminal block
