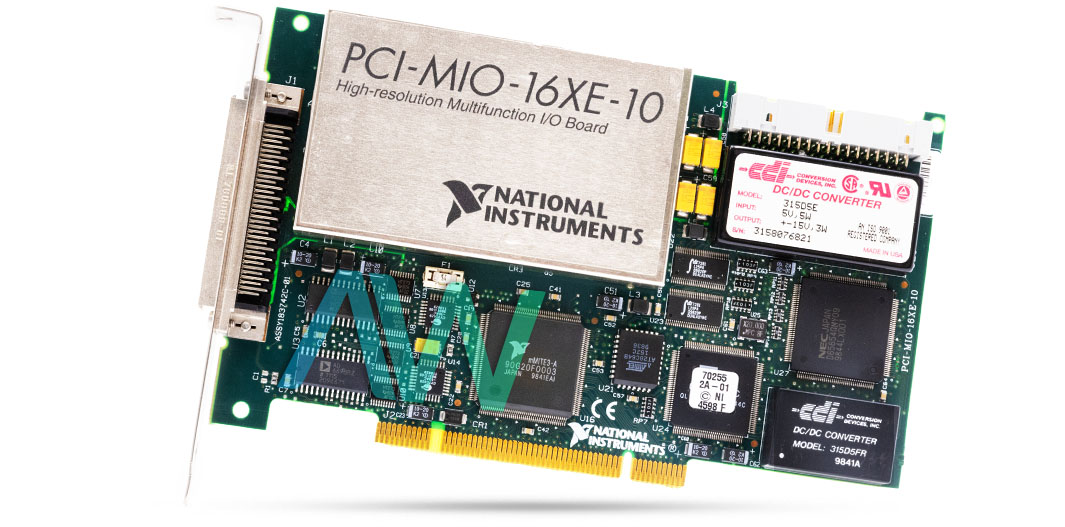

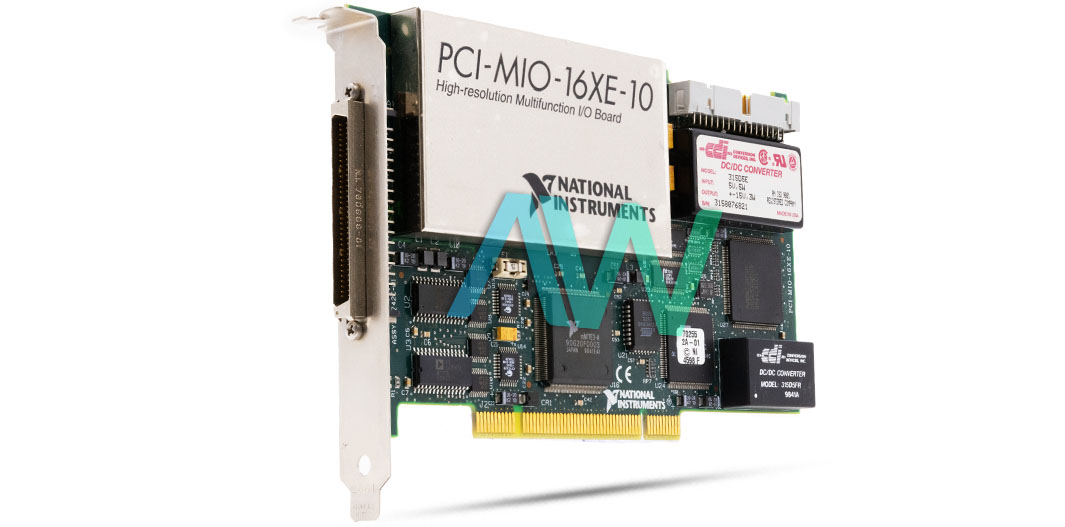

National Instruments PCI-MIO-16XE-10 Multifunction I/O Device
Featured with eight 5 V CMOS/TTL compatible DIO lines and two 24-bit up/down counters, the National Instruments PCI-MIO-16XE-10 (Part Numbers: PCI-6030E and 777384-01) is a Multifunction DAQ. This DAQ comes with a self-calibration feature that does not require external reference. The NI PCI-MIO-16XE-10 has 2 voltage outputs, 16 analog inputs, and 2 counters. The analog input channels provided on this board can be configured to operate in either differential or single-ended mode. In single-ended mode, all 16 analog inputs can be used. However, in differential input mode, up to 8 input channels can be used.
The NI PCI-MIO-16XE-10 receives the required power from its host PCI slot. Thus, no additional power supply is needed to operate this device. This PCI based, Multifunction DAQ typically acquires 100 thousand samples per second. The PCI-MIO-16XE-10 features a powerful analog-to-digital converter for seamless acquisitions. All the analog inputs and the AI SENSE Input of this DAQ device operate under continuous monitoring for overvoltage conditions. The actuation of the integrated overvoltage protection results in immediate tripping of the unit to protect the board, host computer as well as any connected load.
The voltage output channels of the PCI-MIO-16XE-10 are equipped with a FIFO buffer that is 2,048 samples. This data acquisition device has onboard self-calibration which is software controlled. The DAQ requires calibration every year. The PCI-MIO-16XE-10 is offered with a powerful and user-friendly application. Moreover, the installation and configuration of this board does not involve any switches or jumpers.
Model | PCI-MIO-16XE-10 |
---|---|
Manufacturer | National Instruments |
Part Numbers | PCI-6030E and 777384-01 |
Series | E Series |
Type | Multifunction I/O Device |
Analog Inputs | 16 SE/8 DI |
Input Resolution | 16 bits |
Maximum Sampling Rate | 100 kS/s |
Analog Outputs | 2 |
Output Resolution | 16 bits |
Output Rate | 100 kS/s |
Driver Software | NI-DAQ 7 |
Counters/Timers | 2, 24-bit |
Input Coupling | DC |
Calibration Interval | 1 year |
Dimensions | 6.9 by 4.2 in. |
I/O Connector | 68-pin male SCSI-II type |
Warranty | One Year Warranty |
PCI-MIO-16XE-10 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
National Instruments PCI-MIO-16XE-10 Frequently Asked Questions
Question: What is the power available at the I/O connector for the National Instruments PCI-MIO-16XE-10?
Answer: The power available at the I/O connector for the National Instruments PCI-MIO-16XE-10 is +4.65 to +5.25 VDC at 1 A.
Question: Which type of A/D converter does the NI PCI-MIO-16XE-10 have?
Answer: The NI PCI-MIO-16XE-10 has a successive approximation A/D converter.
Question: How much does the PCI-MIO-16XE-10 weigh?
Answer: The PCI-MIO-16XE-10 weighs 7.4 oz.
Question: What is the size of the analog input FIFO buffer on the NI PCI-MIO-16XE-10?
Answer: The analog input FIFO buffer on the NI PCI-MIO-16XE-10 is 512 samples.
PCI-MIO-16XE-10 PDF Manuals
ARCHIVED E SERIES CALIBRATION PROCEDURE FOR TRADITIONAL NI DAQ 5BLEGACY5D .PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED LABVIEW FUNCTION AND VI REFERENCE MANUAL.PDF
ARCHIVED MEASURE DATA ACQUISITION USER MANUAL.PDF
ARCHIVED NI DAQ FOR MAC OS RELEASE NOTES.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED PCI E SERIES REGISTER LEVEL PROGRAMMER MANUAL.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
BNC 2111 INSTALLATION GUIDE.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
DAQ MULTIFUNCTION I O MIO AND SIMULTANEOUS MULTIFUNCTION I O SMIO DEVICES CALIBRATION PROCEDURE.PDF
GUIDE D_INITIATION DAQ POUR PCI PCI EXPRESS.PDF
