FP-DO-400

In Stock | Ships Today

FP-DO-400, 8 Sourcing Outputs, Digital Output Module

Rated 4.8/5  |  18 ratings

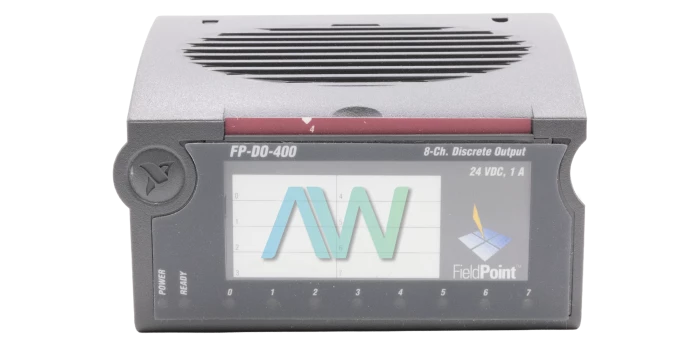

FP-DO-400 National Instruments Digital Output Module | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

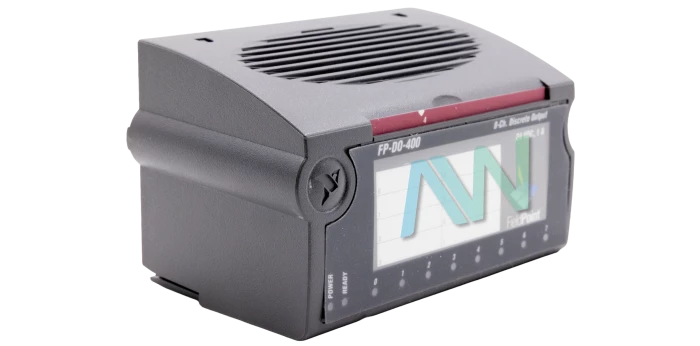

FP-DO-400 National Instruments Digital Output Module | Apex Waves | Image
FP-DO-400 National Instruments Digital Output Module | Apex Waves | Image
FP-DO-400 New
FP-DO-400 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the FP-DO-400

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships Today

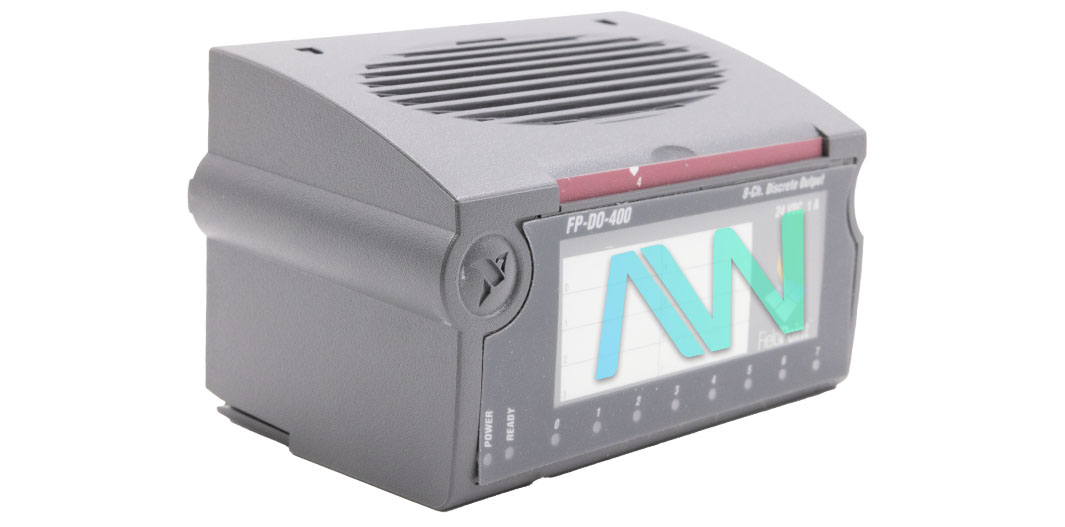

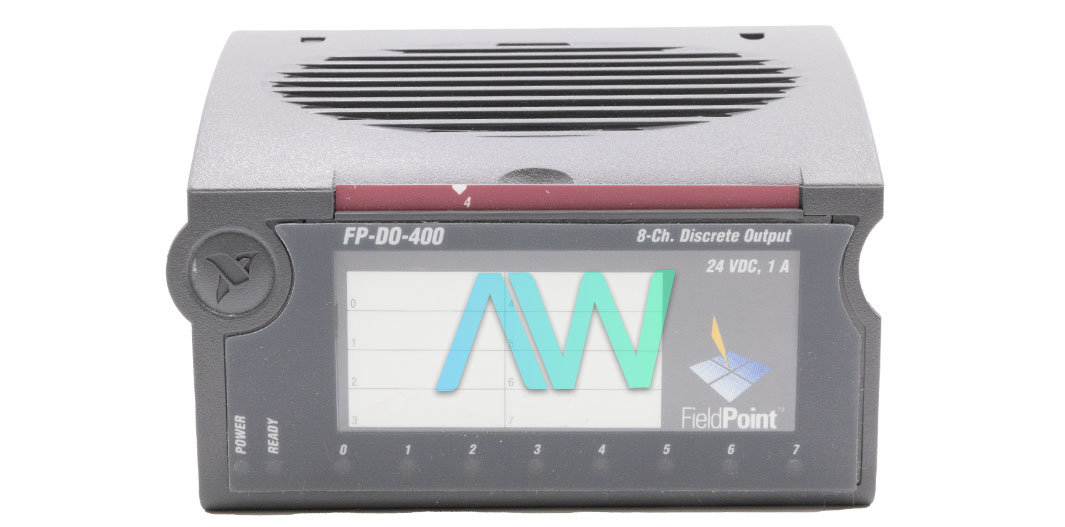

National Instruments FP-DO-400 Digital Output Module

The FP-DO-400 is a FieldPoint Digital Output Module. The manufacturer of this module is National Instruments. This module is available under part number 777518-400. This Digital Output Module mounts on a FieldPoint terminal base, FP-TB-x, which results in delivering operating power to the NI FP-DO-400. This module can function in the operating temperature range of -40°C to 70° C.

This Digital Output Module features 8 digital output channels with individual LED indicators for the channel states. There are two green status LEDs with POWER and READY lights. The module is compatible with voltages from 5 to 30 VDC. The NI FP-DO-400 is mainly used for CMOS and TTL devices, as well as for external relays and indicator lights. The main advantage of using the FP-DO-400 Digital Output Module is easy installation and trouble-free maintenance because of the onboard diagnostics. The FP-DO-400 also has a hot swapping (HotPnP) feature available, which allows the module to communicate or detach from the system while the system is running without affecting the system performance. There are also user-configurable startup states on this module.

The NI FP-DO-400 buildup on some field point terminal base (FP-TB-x) which gives operating power to the module. The digital output channels of this Digital Output Module are optically isolated from the remainder of the FieldPoint bank. Since the channels are sourcing outputs, the output terminal offers a path to a voltage supply. The user should make sure the load on each channel does not draw over 1.5 A or over 8 A squared total.

Model FP-DO-400
Manufacturer National Instruments
Part Number 777518-400
Type Digital Output Module
Output Channels 8
Output Type Sourcing
Voltage Range 5–30 VDC
Power Requirements 365 mW
Weight 4.8 oz.
FP-DO-400 Manual User Manual and Maintenance Manual Available for Download
