PXI-7952

4.8/5 | 10 ratings

Modular Systems > National Instruments > FlexRIO

Part Number PXI-7952
Manufacturer/Brand National Instruments
Description: PXI-7952, Virtex-5 LX50 FPGA, PXI FPGA Module for FlexRIO
In Stock | Ships 3-5 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

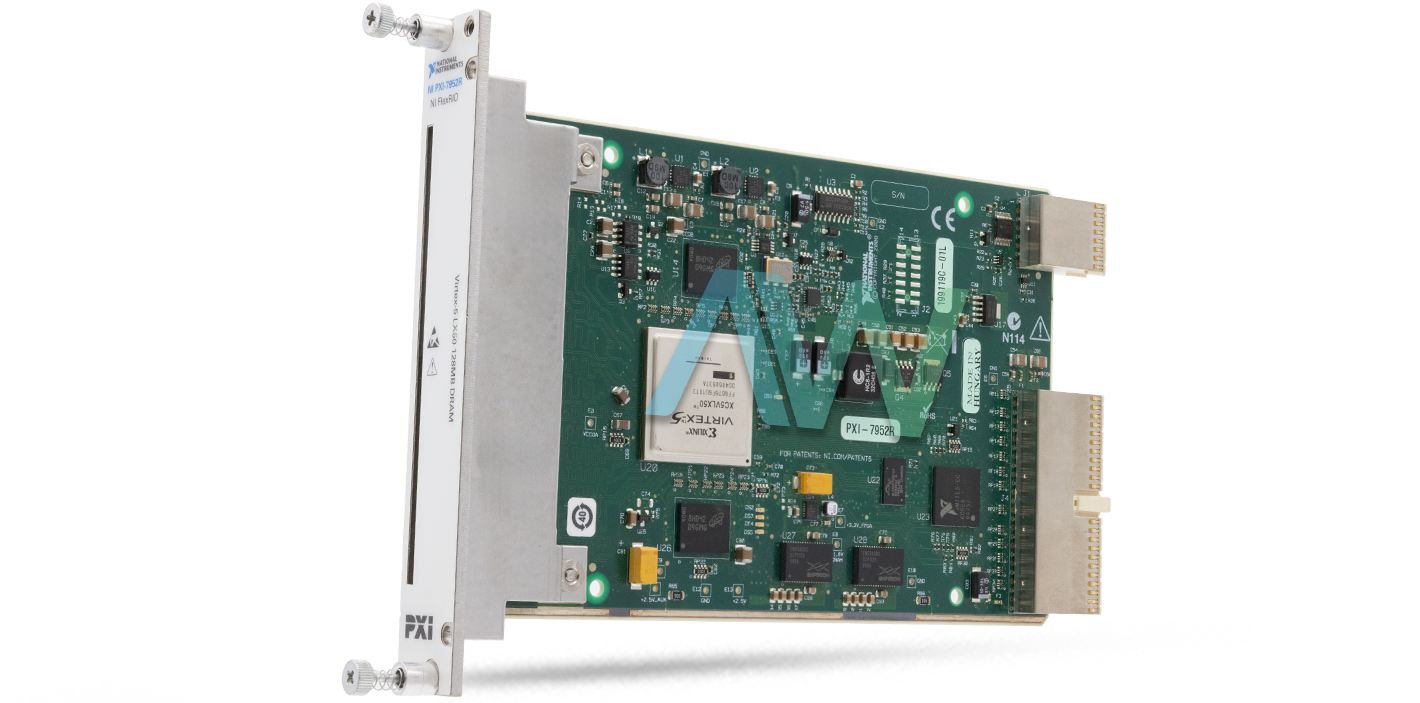

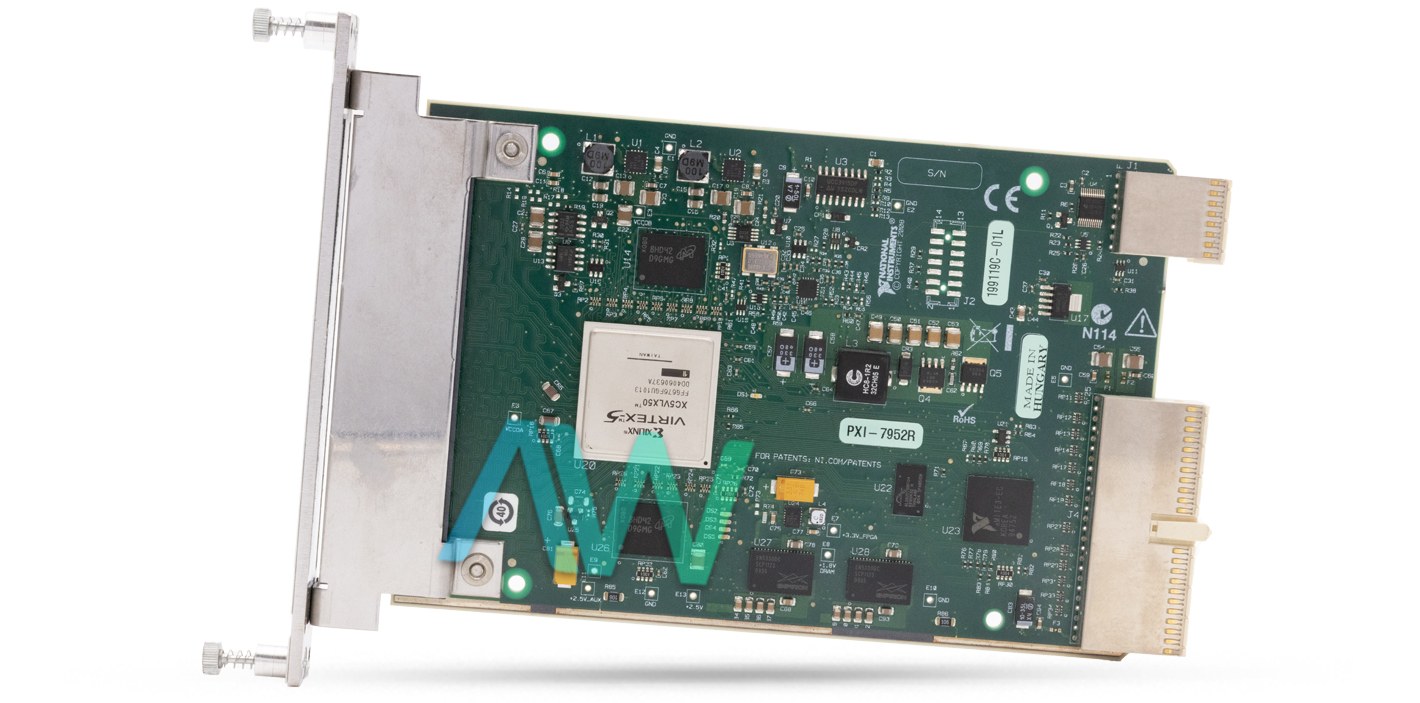

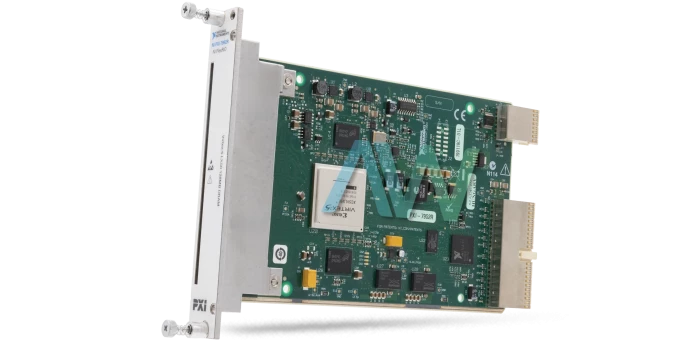

National Instruments PXI-7952 PXI FPGA Module for FlexRIO

The PXI-7952 (Part Number: 780561-01) FPGA Module for FlexRIO has 128 MB DRAM, FPGA Virtex 5 LX50, and can be used with NI connector modules. The NI FlexRIO connector modules give elite I/O that can be customized with the NI FlexRIO FPGA module. With these connector modules, National Instruments incorporates the module-particular component-level node (CLIP), which characterizes the interface amongst LabVIEW and the connector module. This allows the user to begin programming their application instantly, without a low level of comprehension of the design or usefulness of the connector module.

While LabVIEW is a powerful instrument for FPGA programming for the NI PXI-7952, the user can have the intellectual property (IP) of the existing hardware description language (HDL) that should be incorporated into NI FlexRIO hardware applications. There are three ways to accomplish this: The first is the IP Integration Node; this node gives a straightforward online interface to HDL IP and Xilinx CORE Generator XCO records and has the programmed generation of LabVIEW interface, as well as the capacity to produce precise reproduction models for host execution. The user can run their LabVIEW FPGA VI on the host to guarantee appropriate usefulness before ordering it for the FPGA.

The PXI 7952 FPGA Module for FlexRIO contains a PCI backplane link, 48 DSP slices, 1,728 Block RAM (BRAM), 7,200 FPGA slices, 28,800 flip-flops, a 40 MHz default timebase, and 132 general-purpose channels, which can be single-ended, differential, or an arrangement of both types.

PXI-7952 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-7952
Part Number780561-01
ManufacturerNational Instruments
TypePXI FPGA Module for FlexRIO
FPGAVirtex-5 LX50
FPGA Slices7,200
Block RAM1,728 kbit
Dimensions7.4 x 5.1 in.
Weight6.7 oz.
WarrantyOne Year Warranty
PXI-7952 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-7952 Frequently Asked Questions



Question: What is the size of the Dynamic RAM (DRAM) on the PXI-7952?



Answer: The PXI-7952 has a 128 MB DRAM size.



Question: How many DSP slices are on the NI PXI-7952?



Answer: The NI PXI-7952 has 48 DSP slices.



Question: How many DMA channels does the PXI 7952 have?



Answer: The PXI 7952 has 3 DMA channels.



Question: What driver software is meant for use with the PXI-7952 module?



Answer: The driver software for the PXI-7952 is the NI-RIO driver.
