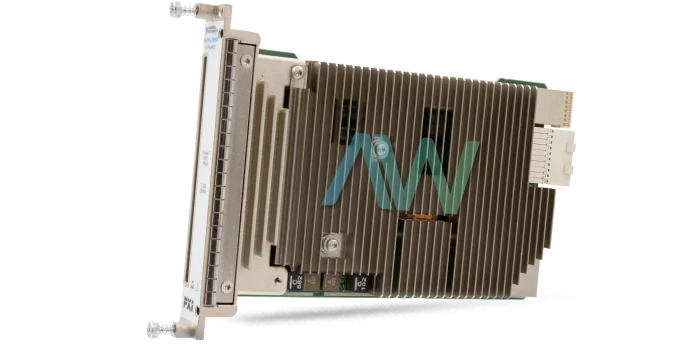

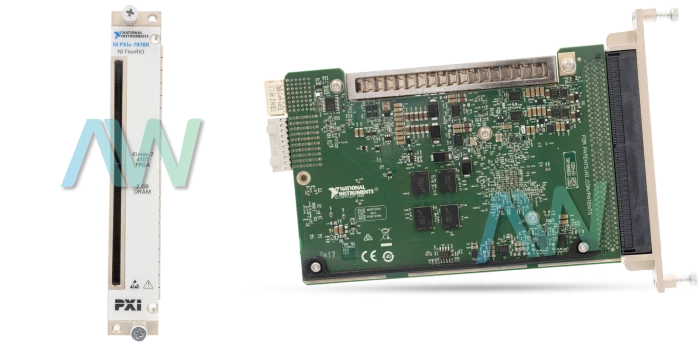

PXIe-7976 National Instruments PXI FPGA Module for FlexRIO | Apex Waves | Image PXIe-7976 National Instruments PXI FPGA Module for FlexRIO | Apex Waves - Wiring Diagram ImagePXIe-7976PXIe-7976 | Legacy, Refurbished and New Surplus
PXIe-7976 National Instruments PXI FPGA Module for FlexRIO | Apex Waves | Image
PXIe-7976 National Instruments PXI FPGA Module for FlexRIO | Apex Waves - Wiring Diagram Image
PXIe-7976 New
PXIe-7976 | Legacy, Refurbished and New Surplus

PXIe-7976

4.6/5 | 9 ratings

Modular Systems > National Instruments > FlexRIO

Part Number PXIe-7976
Manufacturer/Brand National Instruments
Description: PXIe-7976, K410T FPGA, PXI FPGA Module for FlexRIO
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

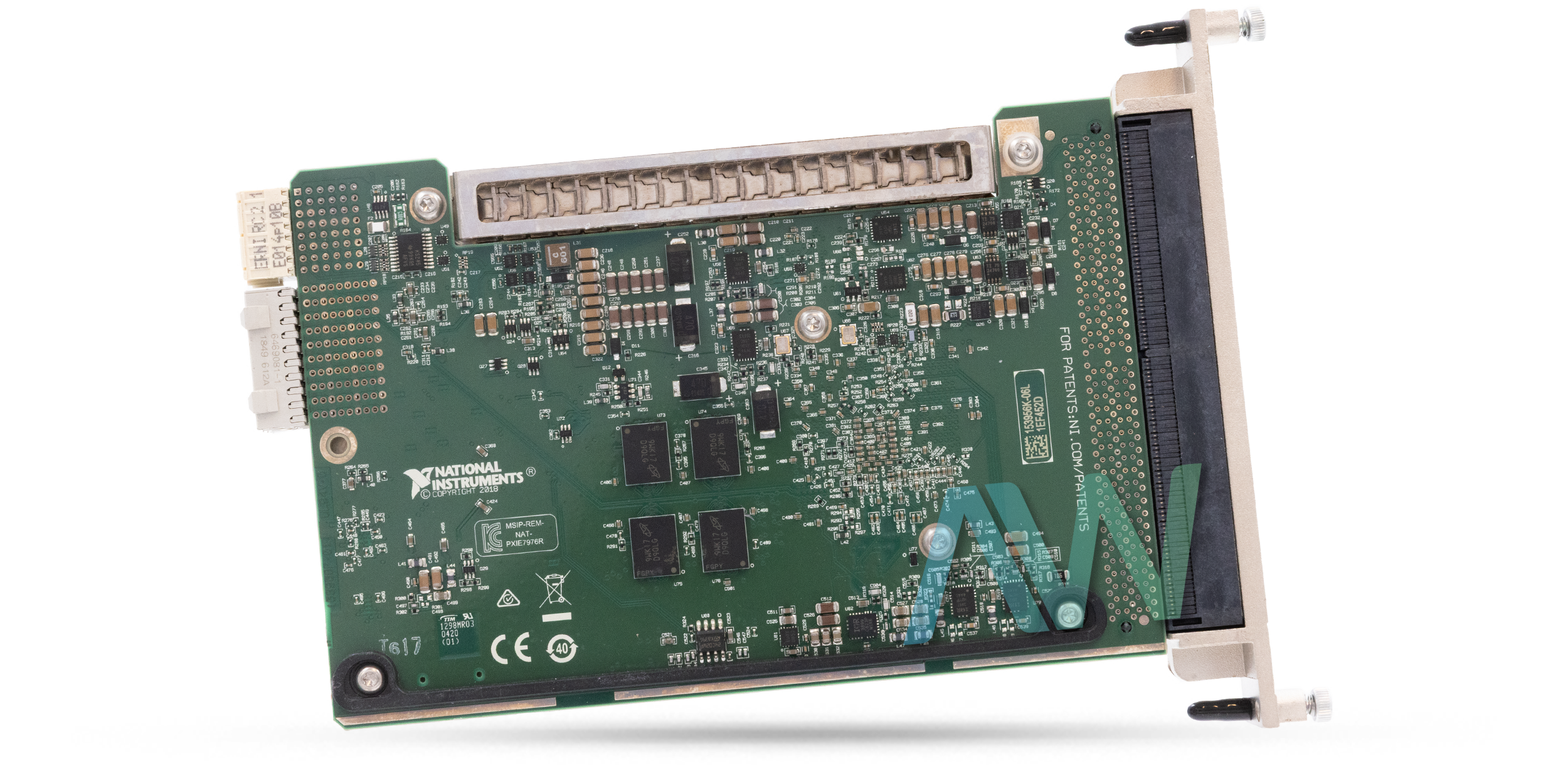

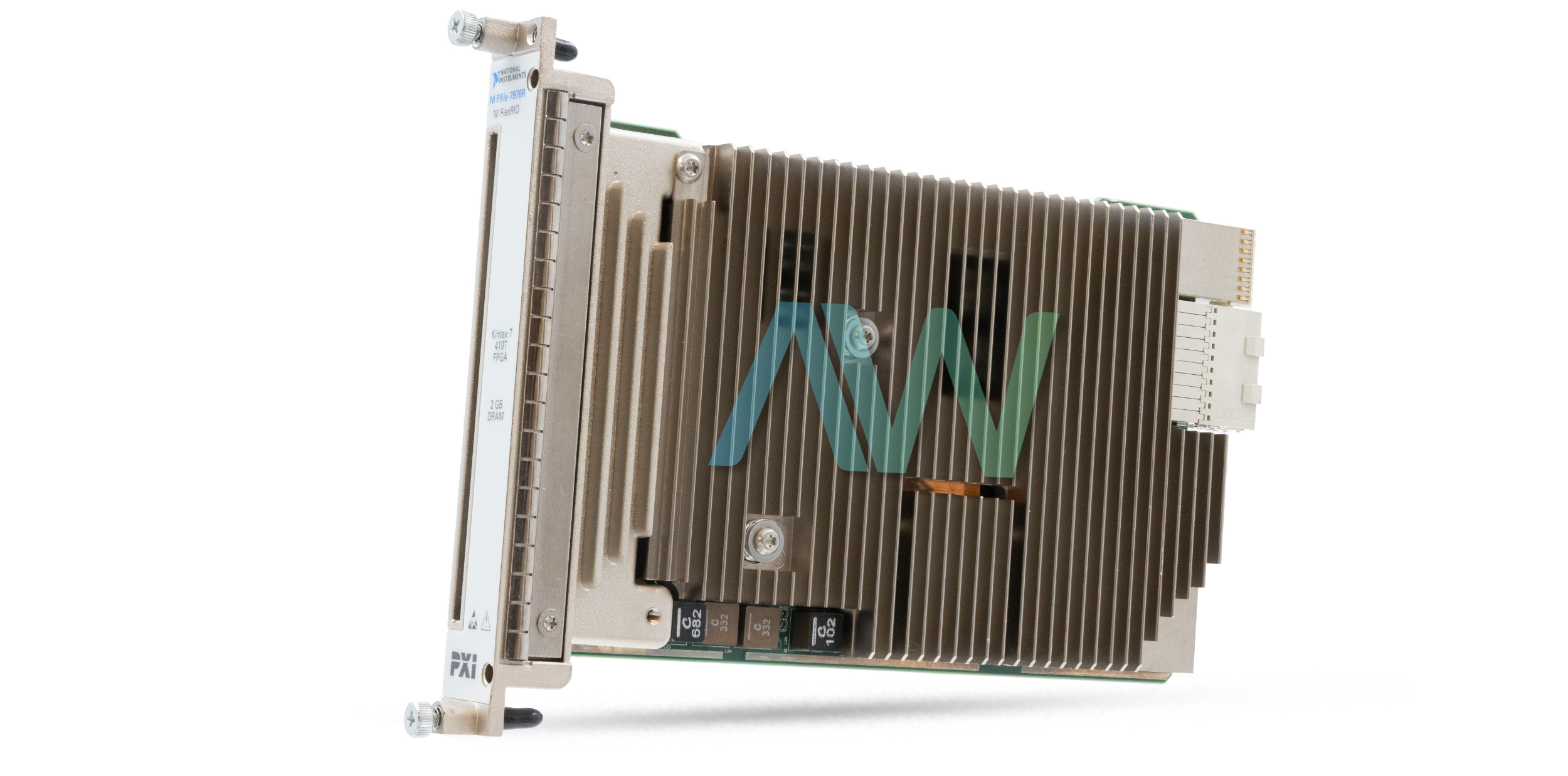

National Instruments PXIe-7976 PXI FPGA Module for FlexRIO

The K410T FPGA, 3.2 GB/s, 2 GB DRAM PXIe-7976 (Part Number: 783625-01) is an FPGA Module designed for FlexRIO. The accompanying LabVIEW FPGA IP center permits lossless information compression in view of the modified Lempel-Ziv-Ross-Williams-1 algorithm. The focus is on high throughput of uncompressed information at the cost of a fairly bring down compression ratio. Two bytes of uncompressed data can be processed at each clock cycle. An example with coder and decoder is incorporated for one channel and two channel compressions (suitable for RF Data streaming). The core is completely pipelined to permit high clock speeds. 100 MHz can easily be accomplished on the NI PXIe-7976. This results in a maximum compression throughput of almost 200 MBytes/sec.

With the PXIe-7976 FlexRIO FPGA Module, the user can access eight trigger lines, named PXI_Trig <0..7>, on the PXI Express backplane. These trigger lines can be used to communicate between numerous gadgets in a similar chassis.

When developing a high-level VI on the NI PXIe 7976 that uses triggers, users can hold the trigger lines to utilize and, to guarantee similarity with other FlexRIO gadgets, configure trigger pulses to keep going for no less than two clock cycles of the clock on the receiving device. For example, if the clock on the receiving gadget is 80 MHz, which is a clock time of 12.5 nanoseconds, the trigger line must be consistent for no less than 25 nanoseconds, which is two cycles of an 80 MHz clock.

ModelPXIe-7976
Part Number783625-01
ManufacturerNational Instruments
TypePXI FPGA Module for FlexRIO
FPGAKintex-7 410T
FPGA Slices63550
Block RAM (BRAM)28620 kbit
Dimensions7.4 x 5.1 in.
Weight6.7 oz.
WarrantyOne Year Warranty
PXIe-7976 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-7976 Frequently Asked Questions



Question: What type of PXI Backplane Link does the PXIe-7976 have?



Answer: The PXIe-7976 has a PCI-Express Gen2 x 8 PXI Backplane Link.



Question: What is the timebase accuracy for the NI PXIe-7976 FlexRIO FPGA Module?



Answer: The timebase accuracy for the NI PXIe-7976 FlexRIO FPGA Module is ±100 ppm, 250 ps peak-to-peak jitter.



Question: What are the LVDS rates for the NI PXIe-7976?



Answer: The LVDS rates for the NI PXIe-7976 are 1 GB/s.



Question: How many clock inputs does the PXIe-7976 have?



Answer: The PXIe-7976 has 6 multi-region clock inputs and 5 single-region clock inputs.

  PXIe-7976 PDF Manuals
