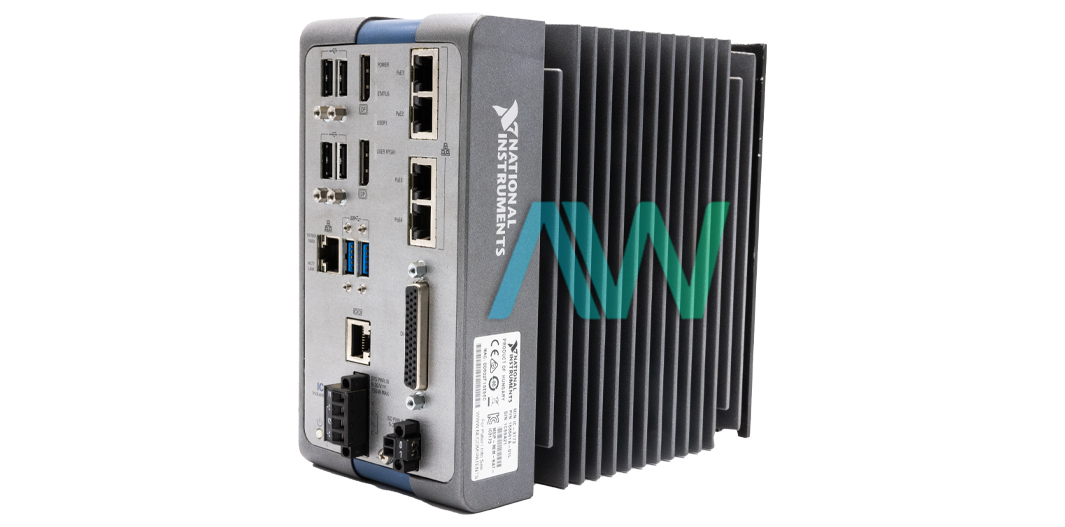

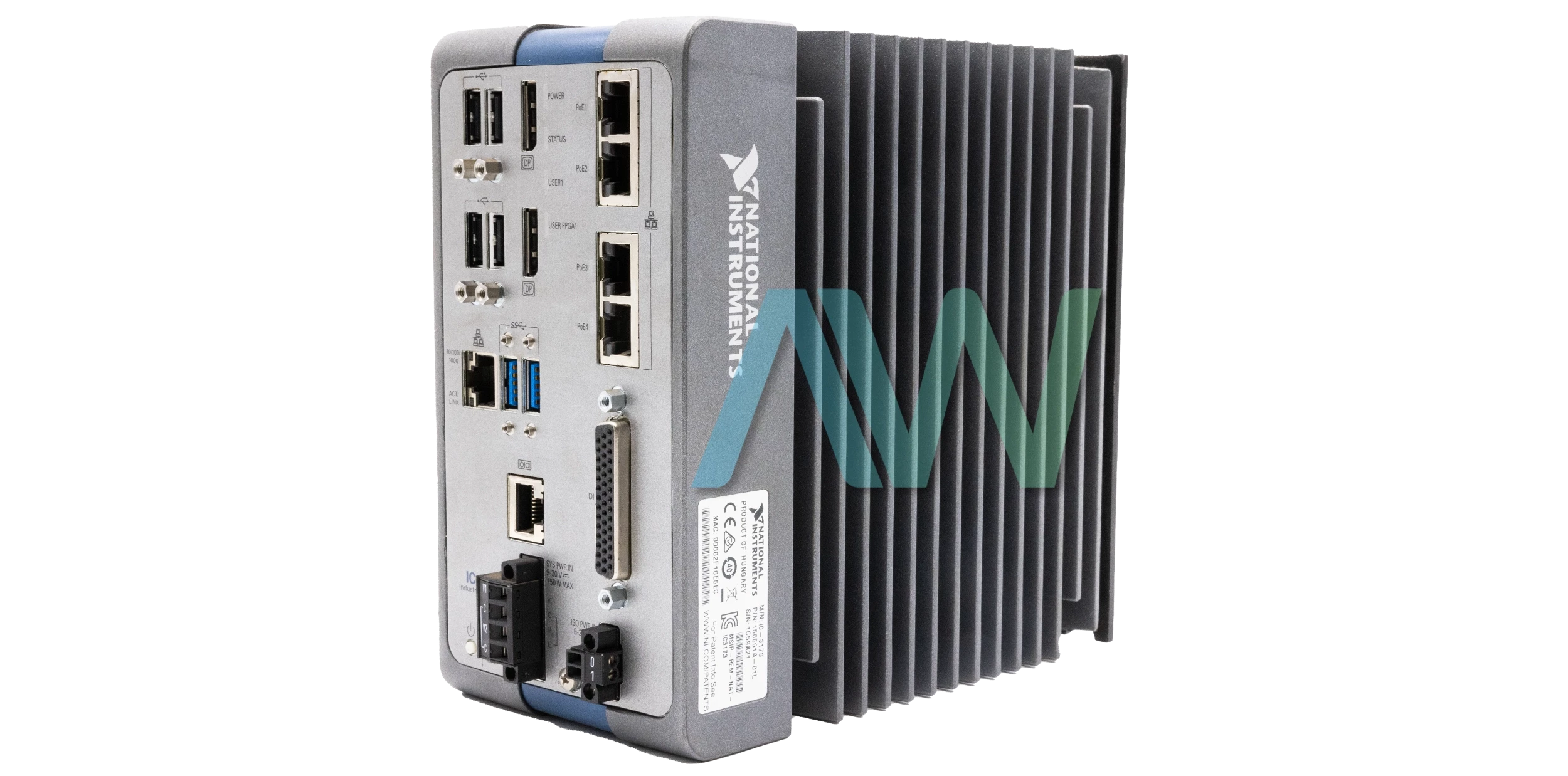

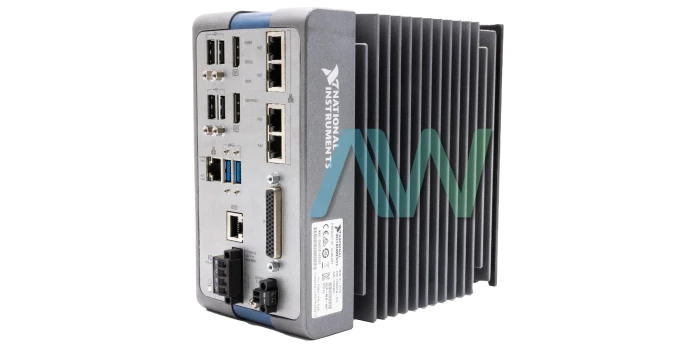

National Instruments IC-3173 Industrial Controller
Featured with a Dual-Core Intel Core-i7 Processor, the NI IC-3173 (Part Numbers: 784227-01, 784970-01, 784965-01, 784966-01, and 785270-01) is a compact Industrial Controller. This high-performance, fanless model is designed to provide a comprehensive range of connectivity opportunities and an alleviated level of processing power- always desired for complicated control and automation applications in challenging industrial environments.

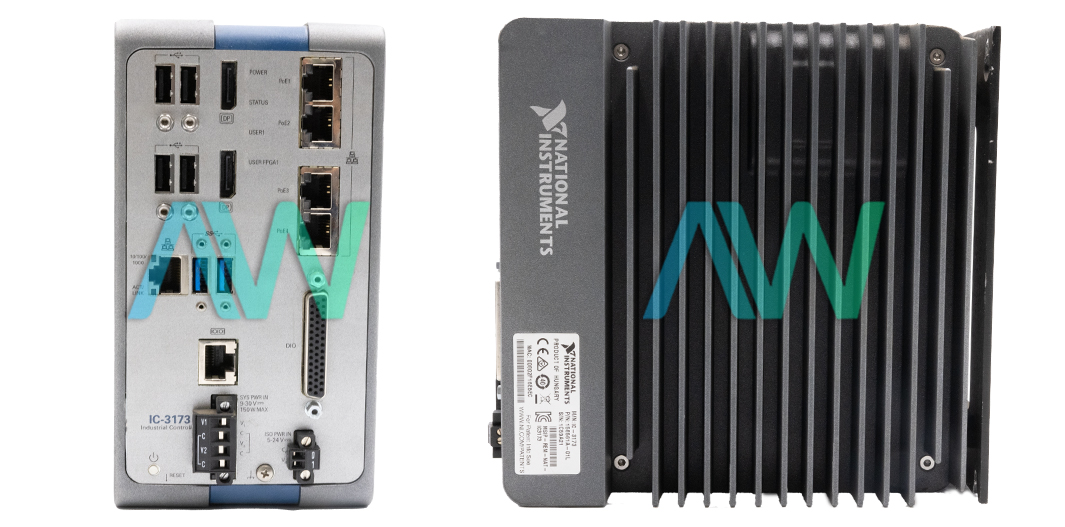

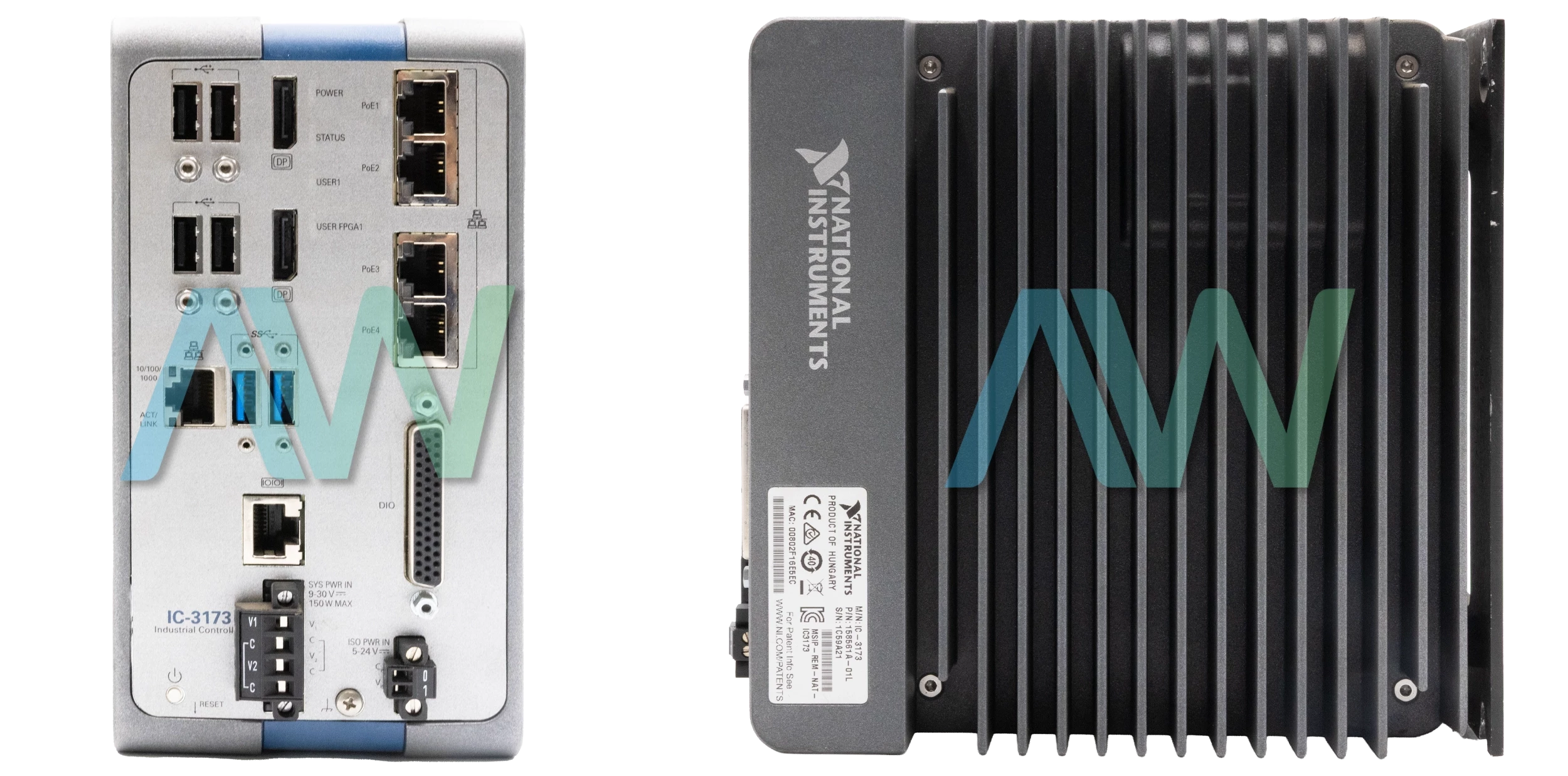

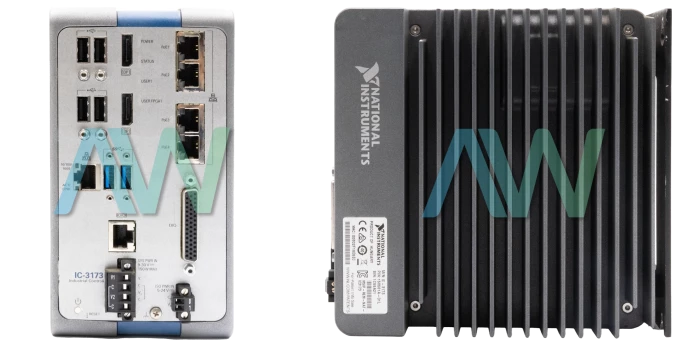

The real power of the IC-3173 Industrial Controller resides on the front panel that contains four PoE (Power over Ethernet) compatible Gigabit Ethernet ports, one RS-232/RS-485 serial port, one standard Gigabit Ethernet Port, two USB 3.0 ports, two DisplayPort connectors, and four USB 2.0 ports. In addition, a 44-pin Digital I/O port is provided on the front panel.
The power DisplayPort connectors incorporated in this model can easily be used to connect multiple monitors for the implementation of a local human machine interface (HMI) for the Industrial Controller. Through a suitable adaptor cable, the user can link each one of the two DisplayPort connectors to a DVI or VGA connector.
The NI IC-3173 automatically supplies power through the PoE ports when a PoE capable is detected as plugged. However, non-PoE Ethernet devices can still be used with the PoE Ethernet ports incorporated in this Industrial Controller. This controller comes equipped with a Kintex-7 160T FPGA. The IC 3173 is available in two versions by ruggedness: IP 20 or IP 67. The dimensions of the IP20 rated version are 17.4 cm × 9.3 cm × 16.8 cm., whereas the dimensions of the IP67 rated version are 32.1 cm x 9.3 cm x 19.3 cm.
| Model | IC-3173 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 784227-01, 784970-01, 784965-01, 784966-01, 785270-01 |
| Type | Industrial Controller |
| Processor Core | Intel Core i7 |
| FPGA | Kintex-7 160T |
| RAM Size | 8 GB |
| Dimensions | 6.9 in. × 3.7 in. × 6.6 in. |
| Weight | 6 lbs, 11 oz. |
| Warranty | 2-3 Year Warranty |
| IC-3173 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the IC-3173:
143703A-01L, 143703B-01L, 146501A-01L, 146541A-01L, 146541B-01L, 157244A-01L, 157244B-01L, 157244D-01L, 157247A-01L, 157247B-01L, 157247C-01L, 158561A-01L, 158561A-04L, 158561A-07L, 158561A-10L, 158561A-13L, 158561A-16L, 158561B-01L, 158561B-04L, 158561B-07L, 158561B-13L, 784227-01, 784965-01, 784966-01, 784970-01, 785270-01, 785724-01, 785750-01
National Instruments IC-3173 Frequently Asked Questions
Question: Why does the IC-3173 have so many part numbers?
Answer: The IC-3173 has varying Controller OS hard drive memory sizes, USB Port counts, and IP Ratings available. There are also some variations of the IC-3173 with synchronization enabled. The first part number, 784227-01, has NI Linux Real Time Controller OS, 4 GB hard drive memory size, 4 USB ports, IP 20 IP Rating, and synchronization enabled. Next, part number 784970-01 has NI Linux Real Time Controller OS, 32 GB hard drive memory size, 4 USB ports, IP 20 IP Rating, and synchronization enabled. Part number 784965-01 has Windows Embedded Standard 7 Controller OS, 32 Gb hard drive memory size, 4 USB ports, IP 20 IP Rating, and does not have synchronization enabled. Part number 784966-01 has Windows Embedded Standard 7 Controller OS, 64 GB hard drive memory size, 4 USB ports, IP 20 IP Rating, and does not have synchronization enabled. Lastly, part number 785270-01 has NI Linux Real Time Controller OS, 4 GB hard drive memory size, 3 USB ports, IP 67 IP Rating, and synchronization enabled.
Question: What is the IC 3173 driver?
Answer: The IC 3173 driver is NI Industrial Controller Device Drivers 15.5 or later.
Question: What is the maximum power input of the IC-3173 Industrial Controller?
Answer: The maximum power input of the IC-3173 Industrial Controller is 150 W.
Question: What is the RAM size of the NI IC-3173?
Answer: The NI IC-3173 has 8 GB of RAM.
