NI-3110XP
Modular Systems > National Instruments > Industrial Controllers
| Description: | NI-3110 XP, 2 GB, Core-duo L2400, Windows XP, Industrial Controller |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

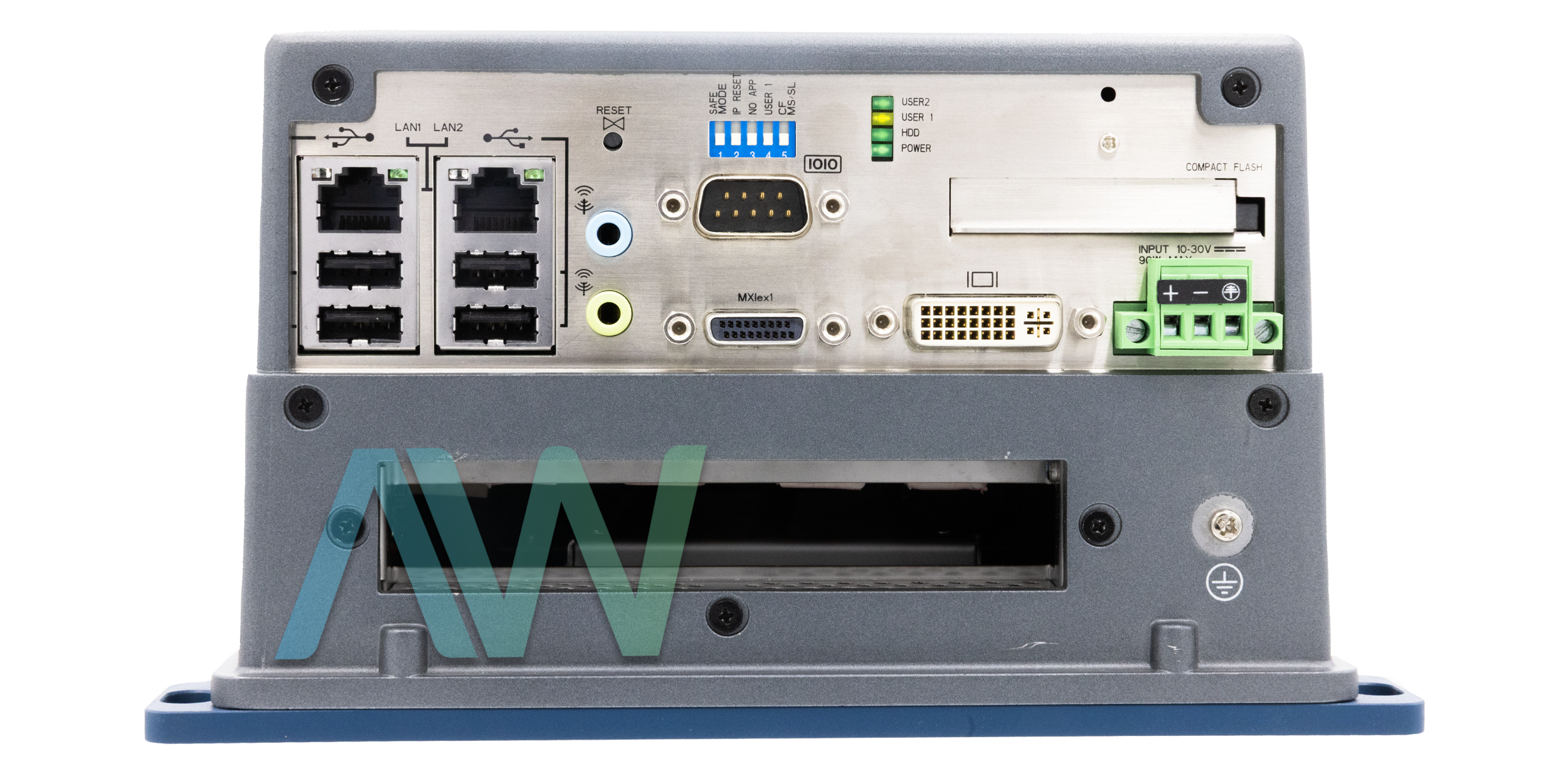

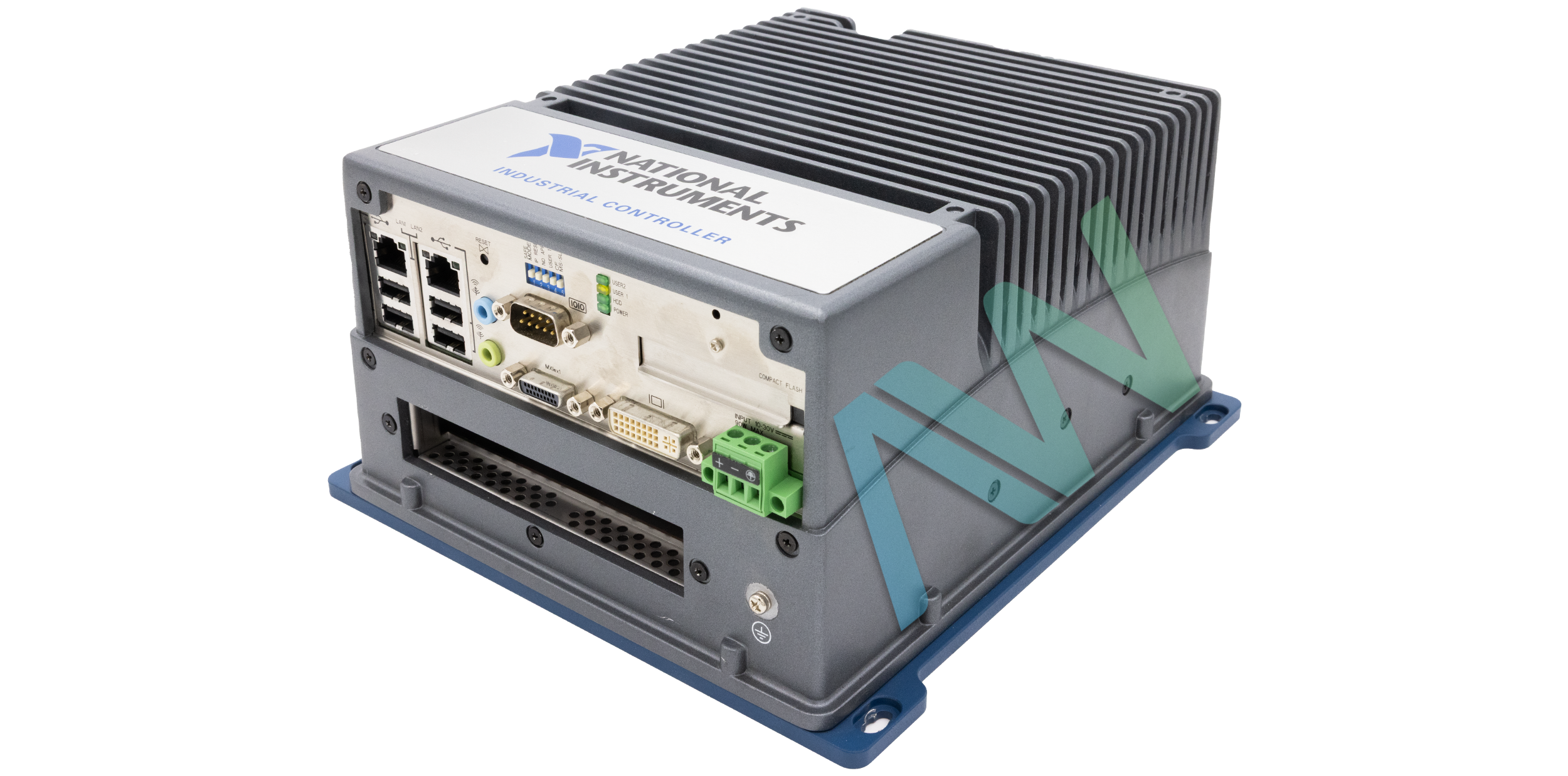

National Instruments NI-3110 XP Industrial Controller
The National Instruments NI-3110 XP (part number: 780310-02), is a rugged and reliable industrial controller device designed to meet the demanding requirements of industrial environments. With its impressive expansion capabilities and robust features, this controller is a valuable addition to any platform. Equipped with a powerful 1.66 GHz Intel Core Duo processor and made for use with the Windows XP operating system, the NI-3110 XP ensures efficient and seamless performance in your industrial applications. Its fanless design guarantees silent operation and eliminates the risk of dust or debris interfering with the system's functionality.
The NI-3110 XP industrial controller is specifically engineered to effortlessly integrate with half-length PCI or PCI Express boards that have a power consumption of less than 10 W. This makes it a great solution for optimizing power usage and ensuring smooth compatibility with your system. In the case of a PCI or PCI Express board dissipating less than 10 W of heat, the operating temperature remains within a range of 0 to 45 °C. Even without a PCI board installed, it can operate within a temperature range of 0 to 50 °C. However, when equipped with a PCI or PCI Express board, the operating temperature is contingent upon the specifications and heat dissipation capabilities of the board itself.
The NI-3110 XP controller is made to deploy LabVIEW software in a diverse array of applications. Whether you're conducting research, developing cutting-edge technologies, or streamlining industrial processes, this controller offers the flexibility and adaptability to meet your unique needs.
In terms of connectivity, the NI-3110 XP boasts an array of standard PC connectivity options, including four Hi-Speed USB ports which enables effortless data transfer and device connectivity. Additionally, the controller features two gigabit Ethernet ports, one PCI or PCI Express slot, and an integrated MXI Express x1 controller.
If your work demands a multi-monitor setup, the NI-3110 XP has got you covered. With dual monitor support and one DVI connection, you can extend your workspace, compare data sets, or visualize complex systems with exceptional clarity and efficiency.
| Model Name | NI-3110 XP |
|---|---|
| Part Number | 780310-02 |
| Part Type | Industrial Controller |
| Voltage | 10 to 30 VDC |
| Power | 40 W Max |
| Dimensions | 4.3in x 7.9in x 8.66in |
| Weight | 8 lbs |
| Warranty | Three Year Warranty |
| NI-3110 XP Manuals | PDFs Available for Download |
National Instruments NI-3110 XP Frequently Asked Questions
Question: Does the NI-3110 XP require a PC?
Answer: No. The NI-3110 XP is a fully functional PC-based controller, equipped with a powerful 1.66 GHz Intel Core Duo processor. It also has 1 GB DDR 2 memory, an 80 GB SATA hard disk drive (HDD), and Windows XP.
Question: Can I connect peripheral devices to the NI-3110 XP?
Answer: Yes, the NI-3110 XP features numerous ports for connecting peripheral devices like monitors, mice, speakers, microphones, and keyboards among others.
Question: What connectors/ports are available on the NI-3110 XP?
Answer: The NI-3110 XP? features a DVI-I video port, a COM I serial port, two RJ5 Ethernet ports, four USB ports, a CompactFlash port, two 3.5 mm jack audio ports, and an MXI Express port.
Question: What PXI/PXIe boards can I connect to the NI-3110 XP?
Answer: The NI-3110 XP is compatible with half-length PCI or PCI Express boards that have a power consumption of less than 10 W.
Question: What devices can I boot the NI-3110 XP from?
Answer: The NI 3100/3110 can boot from the following devices: • The internal hard drive • CompactFlash drive • A network PXE server on the same subnet • An external USB mass storage device such as a USB hard drive, USB memory stick, or CD-ROM • An external USB floppy drive • Most PCI-based boards that provide an Option ROM
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
NI-3110XP
Modular Systems > National Instruments > Industrial Controllers
NI-3110 XP, 2 GB, Core-duo L2400, Windows XP, Industrial Controller
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

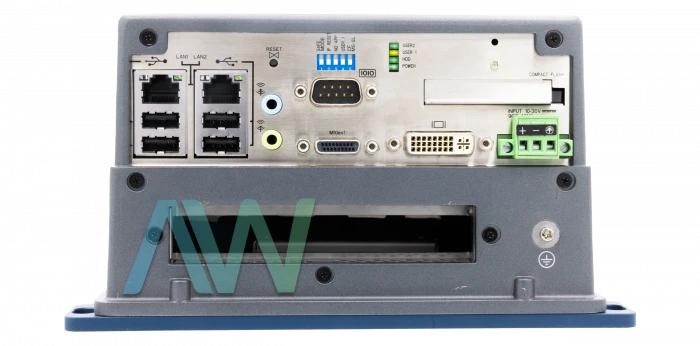

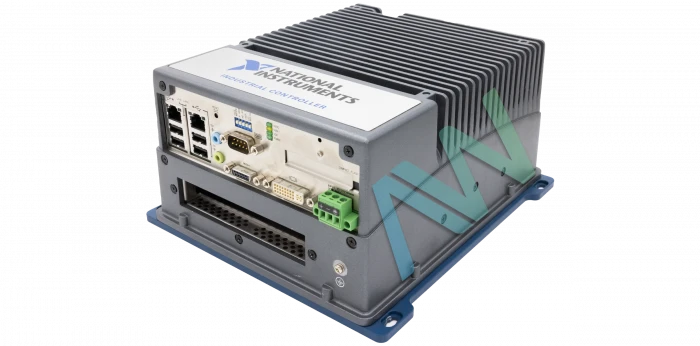

National Instruments NI-3110 XP Industrial Controller
