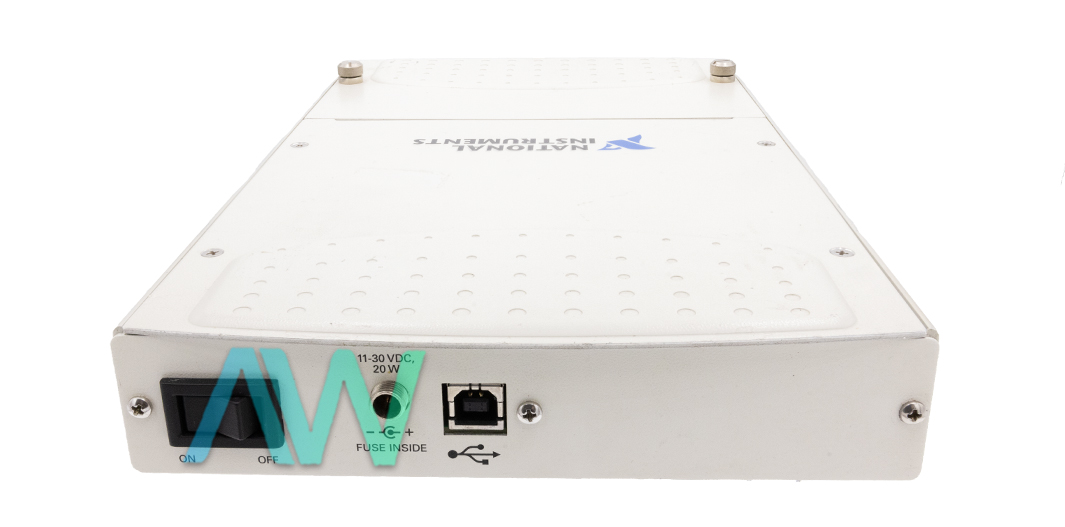

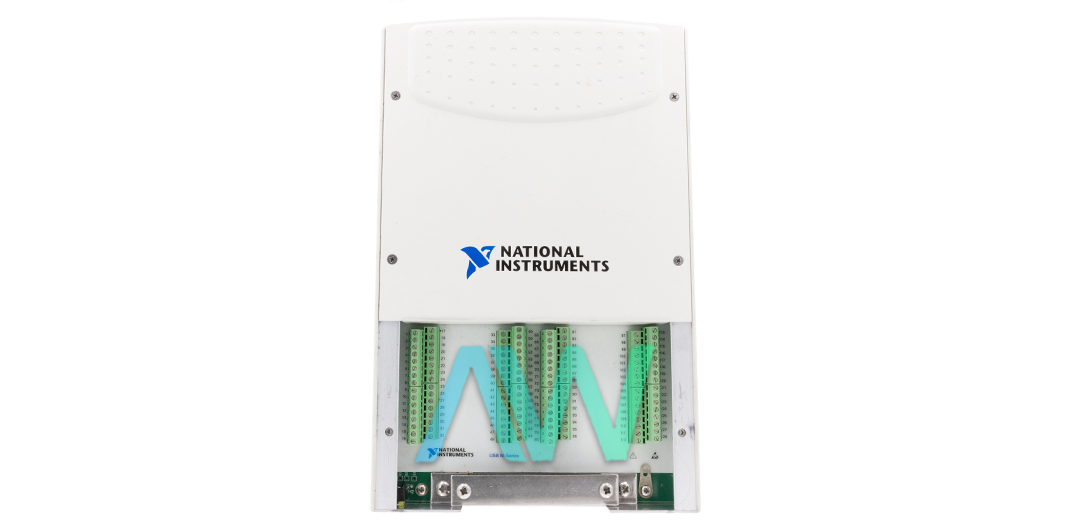

National Instruments 780055-01 Multifunction I/O Device

National Instruments part number 780055-01 is an identifying part number for the USB-6289, a DIO USB Multifunction I/O Device. The NI 780055-01 has 32 Analog Inputs (18-bit, 526 kS/s), 4 Analog Outputs (2.86 MS/s), and 48 Digital Inputs Outputs. It has cost-effective, dependable data acquisition (DAQ) capabilities, suitable for a wide range of applications, including laboratory automation, research, design verification/testing, and manufacturing testing.

Users can enhance the device with sensor and high-voltage measurement capabilities using SCC or SCXI signal conditioning modules. The included NI-DAQmx driver and configuration utility streamline the process of configuration and measurement. The 780055-01 offers DC input coupling that allows direct current measurements. The input range of this device is adjustable and can accommodate voltages from ±0.1 V to ±10 V, providing flexibility for various signal amplitudes. In terms of sampling rates, it can reach a maximum rate of 625 kS/s for single-channel measurements and 500 kS/s for multichannel measurements when aggregating data from multiple channels.

The NI 780055-01 comes with two versatile counters/timers with a 32-bit resolution, providing precise measurements for Edge Counting, Pulse, and Two-Edge Separation. These counters operate with internal base clocks at frequencies of 80 MHz, 20 MHz, and 0.1 MHz, while also supporting external base clock frequencies ranging from 0 MHz to 20 MHz.

Additionally, the device includes a 10-bit resolution analog trigger with Analog Edge Triggering and Analog Window Triggering modes for enhanced triggering capabilities. This model range comes with multiple variants. Each part has a distinction from other variants in terms of its Supported Power Input and Front Connection Type.
