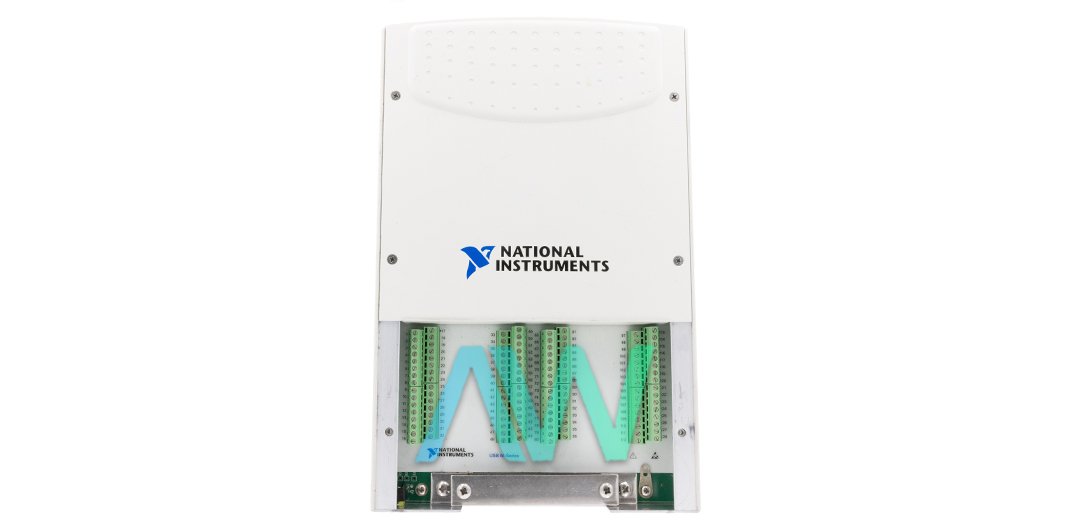

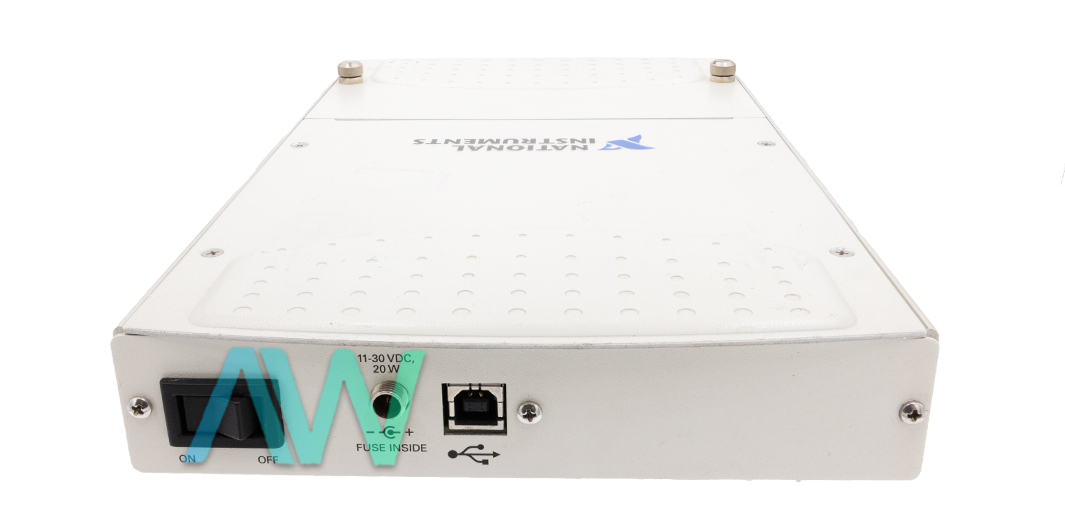

National Instruments USB-6289 Multifunction I/O Device

The NI USB-6289 (Part Numbers: 780055-01, 780056-06, 780056-01, 780055-04, 780056-04) is a Multifunction I/O Device from National Instruments. This device connects to the user’s PC or other portable systems through a Hi-Speed USB port. The warm-up time for this USB device is 30 minutes. The calibration interval for optimal performance is 2 years. This device supports the maximum working voltage to 11 V. This working voltage includes the signal voltage and common mode voltage. The power supply requirement of this device is 11 to 30 VDC. The USB 6289 NI uses four Signal Streams. These signal streams provide analog input and analog output, along with digital input and digital output.

The USB 6289 has two general-purpose counters/timers with 32-bit resolution. These counters offer measurements for Edge Counting, Pulse, and Two-Edge Separation. The internal base clocks of these counters have 80 MHz, 20 MHz, and 0.1 MHz frequencies. The external base clock frequency for these counters is 0 MHz to 20 MHz. This device also has one analog trigger with 10-bits resolution. The analog trigger has Analog Edge Triggering and Analog Window Triggering modes.

The NI USB 6289 has 16 differential or 32 single-ended analog input channels and 4 analog output channels. The input channels offer an ADC resolution of 18-bits. The output channels provide a DAC resolution of 16-bits. The sample rate for a single channel is 625 kS/s and for multiple channels is 500 kS/s. This Multifunction I/O Device ensures all analog input and sense channels are protected against overvoltage condition.

ModelUSB-6289
ManufacturerNational Instruments
Part Numbers780055-01, 780056-06, 780056-01, 780055-04, 780056-04
TypeMultifunction I/O Device
Analog Input Channels32 single-ended or 16 differential
Analog Output Channels4
Analog Input Resolution18 bits
DimensionsScrew Terminal: 10.5 in. × 6.73 in. × 1.75 in.;
Mass Termination: 7.4 in. × 6.73 in. × 1.75 in.
WeightScrew Terminal: 3 lb 5.5 oz; Mass Termination: 2 lb 5.5 oz.
Warranty2-3 Year Warranty
USB-6289 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the USB-6289:

197593A-01L, 197593B-01L, 197593C-01L, 197593D-01L, 197593E-01L, 197596-01, 197596A-01L, 197596A-02L, 197596B-01L, 197596B-02L, 197596C-01L, 197596C-02L, 197596D-01L, 197596D-02L, 198105A-06L, 198105B-06L, 198105C-06L, 780055-01, 780055-02, 780055-03, 780055-04, 780055-06, 780055-07, 780055-09, 780055-10, 780055-11, 780055-12, 780056-01, 780056-02, 780056-03, 780056-04, 780056-06, 780056-07, 780056-09, 780056-10, 780056-11, 780056-12

National Instruments USB-6289 Frequently Asked Questions



Question: What are the differences between the five part numbers for the USB-6289?



Answer: The USB-6289 has two front connector types available and several supported power input types as well. Part number 780055-01 has a screw terminal front connector and United States 120 VAC supported power input. Part number 780056-06 has an SCSI front connector and United Kingdom 240 VAC supported power input. The next part number, 780056-01, has an SCSI front connector and United States 120 VAC supported power input. Part number 780055-04 has a screw terminal front connector and Universal Euro 240 VAC supported power input. Finally, part number 780056-04 has an SCSI front connector and Universal Euro 240 VAC supported power input.



Question: How many bidirectional digital channels does the NI USB-6289 have?



Answer: The NI USB-6289 has 48 bidirectional digital channels.



Question: What is the NI USB 6289 driver called?



Answer: The NI USB 6289 driver is NI-DAQmx.



Question: Does the USB 6289 NI have simultaneous sampling?



Answer: No, the USB 6289 NI does not have simultaneous sampling.
