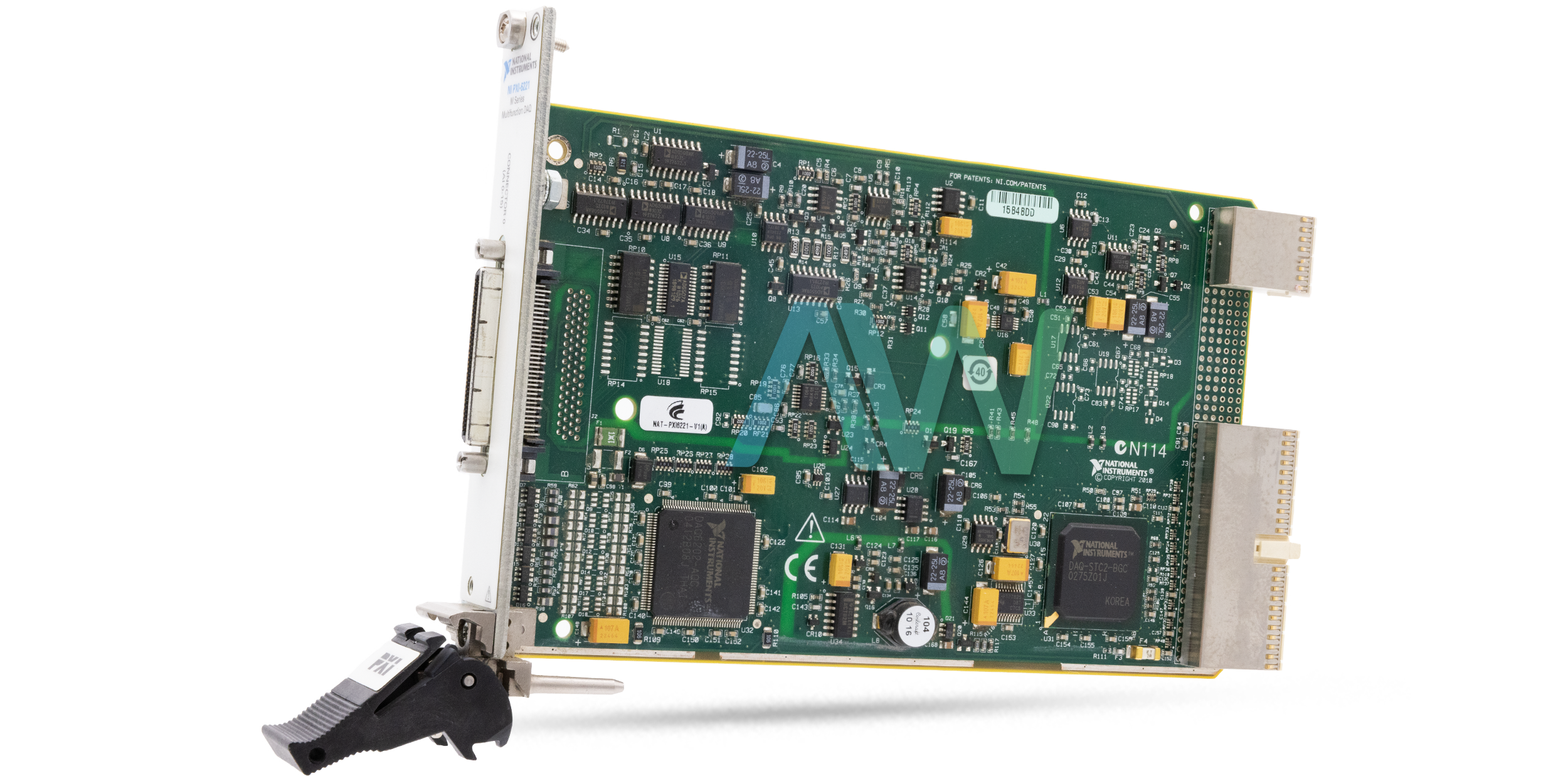

PX-6221 National Instruments PXI Multifunction I/O Module | Apex Waves | Image PX-6221 National Instruments PXI Multifunction I/O Module | Apex Waves | ImagePXI-6221PXI-6221 | Legacy, Refurbished and New Surplus

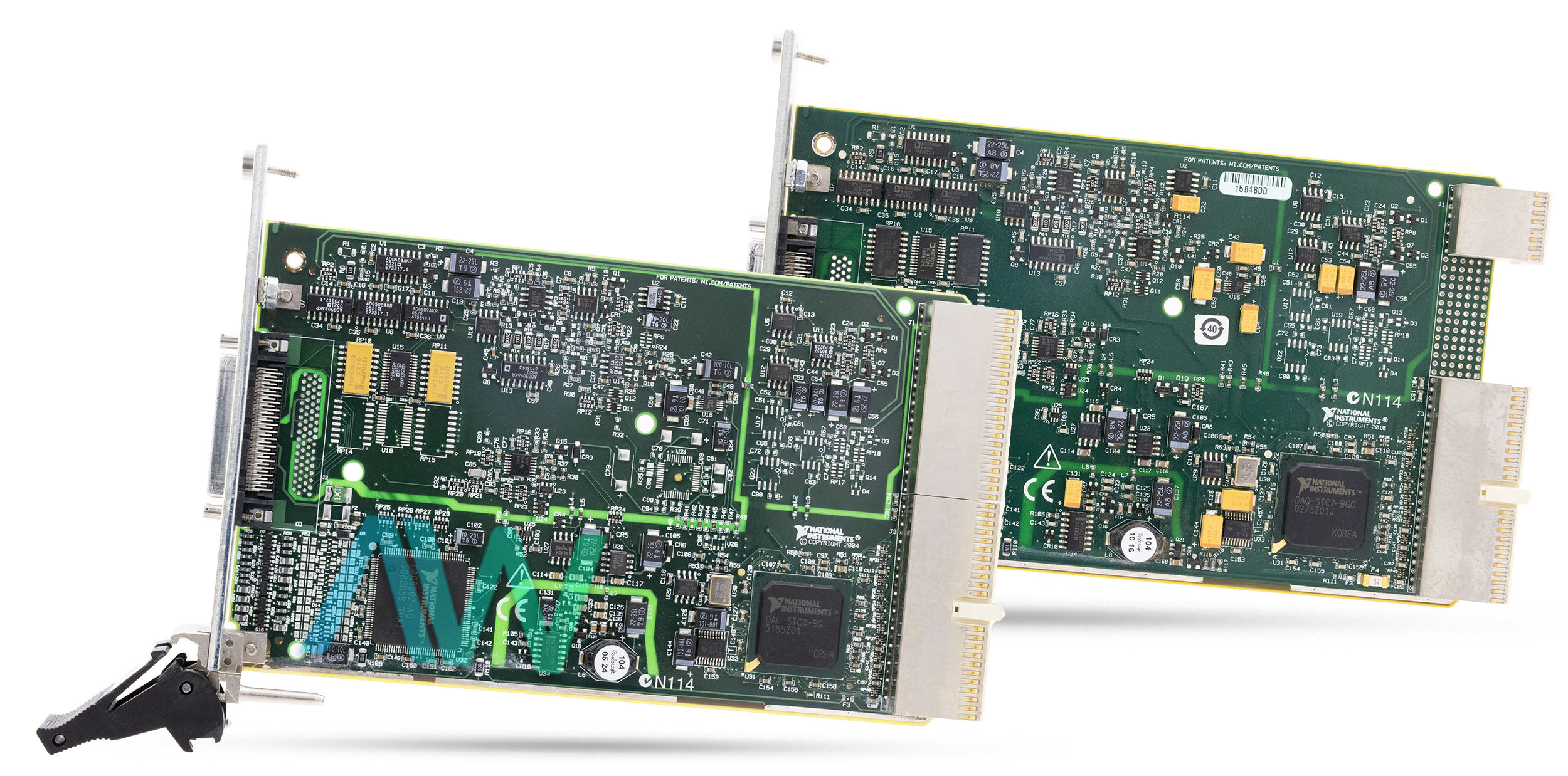

PX-6221 National Instruments PXI Multifunction I/O Module | Apex Waves | Image

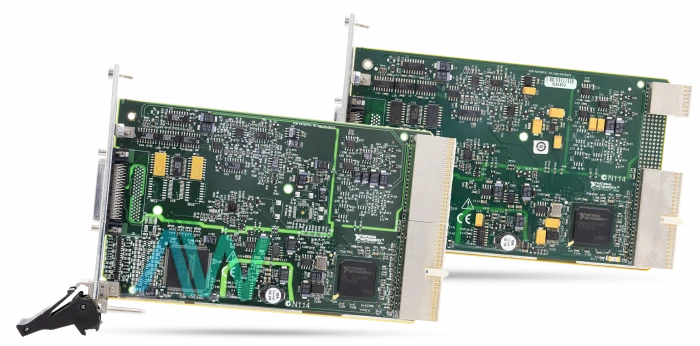

PX-6221 National Instruments PXI Multifunction I/O Module | Apex Waves | Image
PXI-6221 New
PXI-6221 | Legacy, Refurbished and New Surplus

PXI-6221

4.9/5 | 16 ratings

Modular Systems > National Instruments > M Series

Part Number PXI-6221
Manufacturer/Brand National Instruments
Description: PXI-6221, 16 AI, 2 AO, 24 DIO, PXI Multifunction I/O Module
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-6221 PXI Multifunction I/O Module

The PXI-6221 (Part number: 779629-01) is a PXI Multifunction I/O Module with16 AI (16 Bits, 250 kS/s), 2 AO, and 24 DIO. The NI PXI-6221 offers simple I/O, communication computerized I/O, two 32-bit counters/timers, and digital shots. The PXI 6221 requires 1 shielded or unshielded cable and 1 connector block (either screw terminals or BNC termination) for operation. This Multifunction I/O Module has solid, minimal effort DAQ capacities in an extensive variety of uses, from basic applications in lab computerization, research, design verification/testing, and manufacturing testing. The user can also add the capacity for high voltage estimations and sensors to a gadget with SCC or SCXI signal conditioning modules. The NI-DAQmx driver and the included setup utility aid in making configurations and estimations easier.

When the user requires execution and precision from a data acquisition gadget in an electrically noisy or harsh environment, the National Instruments PXI-6221 and other digital I/O gadgets from the M Series are the answer. The National Instruments M Series modules are additionally an affordable solution for any user. Mechanical DAQ gadgets offer an arrangement of high-reliability highlights, which includes isolation, ± 20 mA current I/O, 24 V digital Iogic levels, and digital debounce filters. Isolation prevents ground loops, rejects high common-mode voltages, and protects clients and gear from high-voltage transients.

PXI-6221 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-6221
Part Number779629-01
ManufacturerNational Instruments
SeriesM Series
TypePXI Multifunction I/O Module
Analog Inputs16
Analog Outputs16
Digital I/O24
Dimensions3U PXI
WarrantyOne Year Warranty
PXI-6221 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6221 Frequently Asked Questions



Question: How do you calculate the maximum frequency of the PXI NI 6221 module?



Answer: The formula to calculate the maximum frequency of the PXI NI 6221 is dividing the update rate (833 kS/s) by Samples/Period.



Question: What type of connector is on the NI PXI-6221?



Answer: The NI PXI-6221 has one 68-pin female VHDCI connector.



Question: Which accessories can be used with the PXI 6221?



Answer: A shielded SHC68-68-EPM 2 m cable (Part number: 192061-02) and the SCB-68 Screw Terminals (Part number: 776844-01) can be used with the PXI 6221.



Question: What type of input coupling does the PXI-6221 have?



Answer: The PXI-6221 has DC input coupling.

  PXI-6221 PDF Manuals

  PXI-6221 Diagrams
