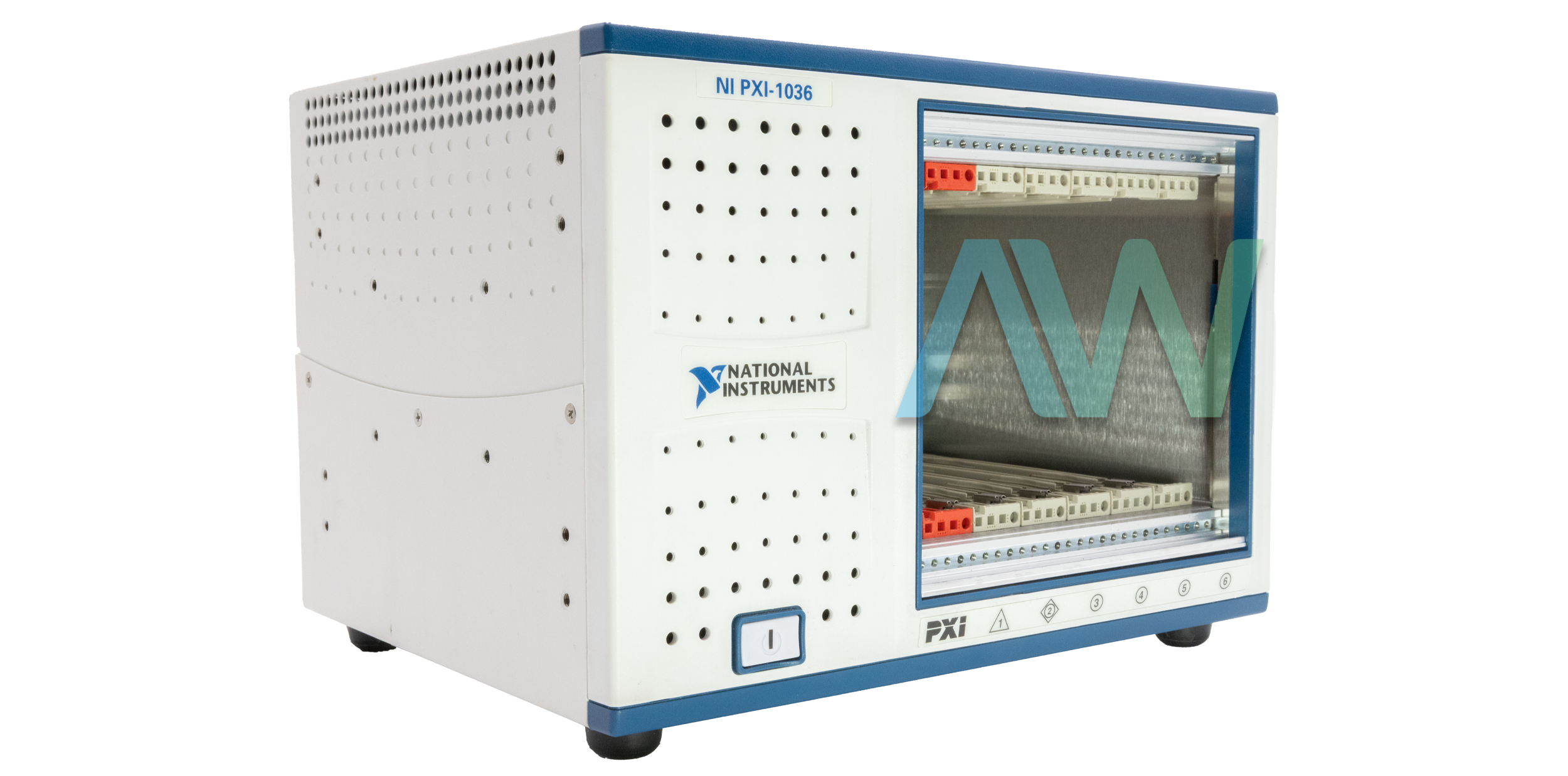

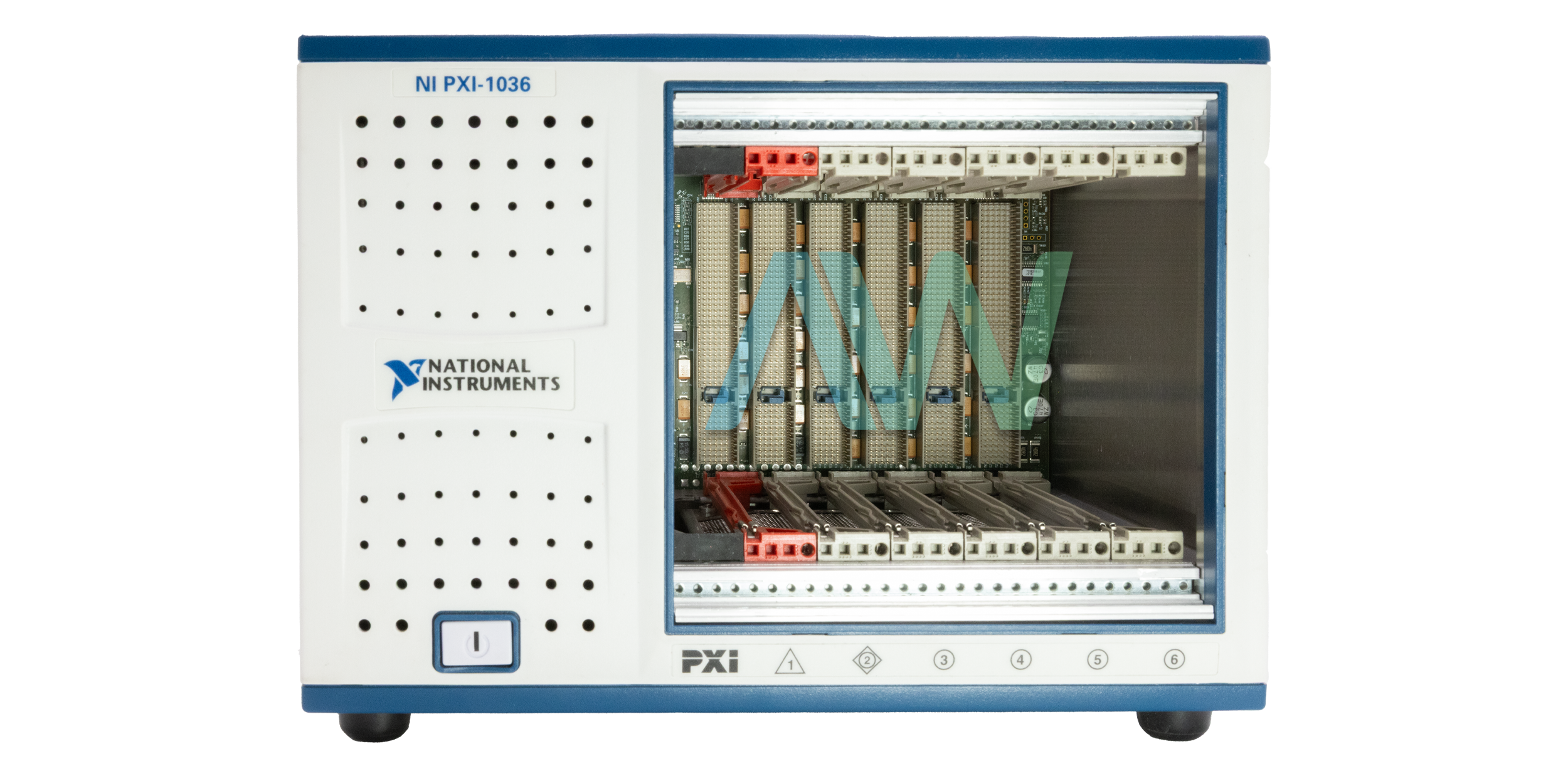

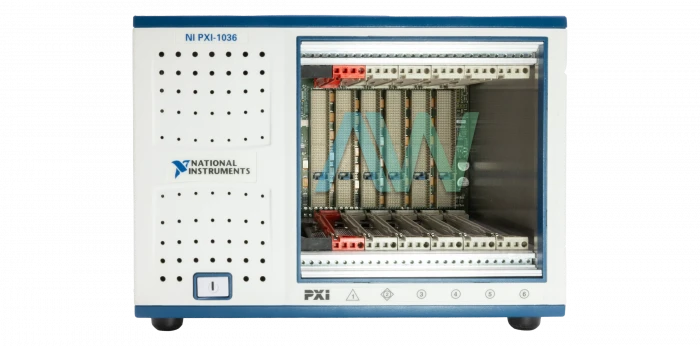

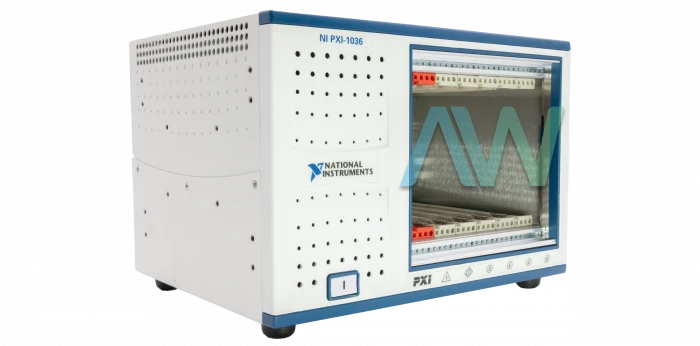

PXI-1036, 6-Slot, PXI Chassis
Need an Official Quote?
National Instruments PXI-1036 Chassis
The NI PXI-1036 (Part Number: 779382-01) Chassis meets the requesting cooling and power necessities of the present PXI applications. This chassis is perfect for remote, ongoing, and data acquisition applications. The National Instruments PXI-1036 low cost chassis is intended for remote control applications that require five openings for estimation modules. The tiny bundle works with either a remote controller or 2-space inserted controller. For modular instrumentation frameworks, power planning might be required. The AC and DC powered PXI-1036 Chassis offers more openings works with all PXI and CompactPCI modules accessible today. It has a maximum system bandwidth of 132 MB per second, and a slot cooling capacity of 30 W.
This PXI Chassis incorporates a star trigger (ST) function, where the slot is slot 2. This slot has dedicated equivalent length trigger lines between slot 2 and peripheral slots 3 through 6. Slot 2 is proposed for modules with ST usefulness that can give singular triggers to all other peripheral modules. In addition, if the user does not require advanced trigger usefulness, they can introduce any standard peripheral module in this space. The device has an AC input voltage range of 100 to 240 VAC, an input frequency of 50/60 Hz, and an input current rating of 4-2 A.
All slots on the NI PXI-1036 Chassis share eight PXI trigger lines, so the user can utilize these trigger lines in an assortment of ways. For instance, the user can employ triggers to synchronize the tasks of a few diverse PXI peripheral modules. In different applications, one module situated in slot 2 can control precisely timed sequences of operations performed on different modules in the framework. Modules can pass triggers to each other, enabling definitely timed reactions to asynchronous outer events that the framework is monitoring or controlling. The PXI system can be configured using the Measurement & Automation Explorer (MAX) tool. The AC powered device has a weight of 11 lbs., and measures 6.97 x 10.12 x 8.38 in. in dimensions.
PXI-1036 Mature Status has been announced by National Instruments, but the chassis will still be available for purchase and repairs by Apex Waves.
Model | PXI-1036 |
---|---|
Part Number | 779382-01 |
Manufacturer | National Instruments |
Type | Chassis |
Slots | 6 |
Maximum System Bandwidth | 132 MB/s |
Slot Cooling Capacity | 30 W |
Power Supply Type | AC |
Dimensions | 6.97 in. (H) x 10.12 in. (W) x 8.38 in. (D) |
Weight | 11 lbs. |
Warranty | Three Year Warranty |
PXI-1036 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
