National Instruments PXIe-PCIe8361 Remote PCI Express Control of PXI Express

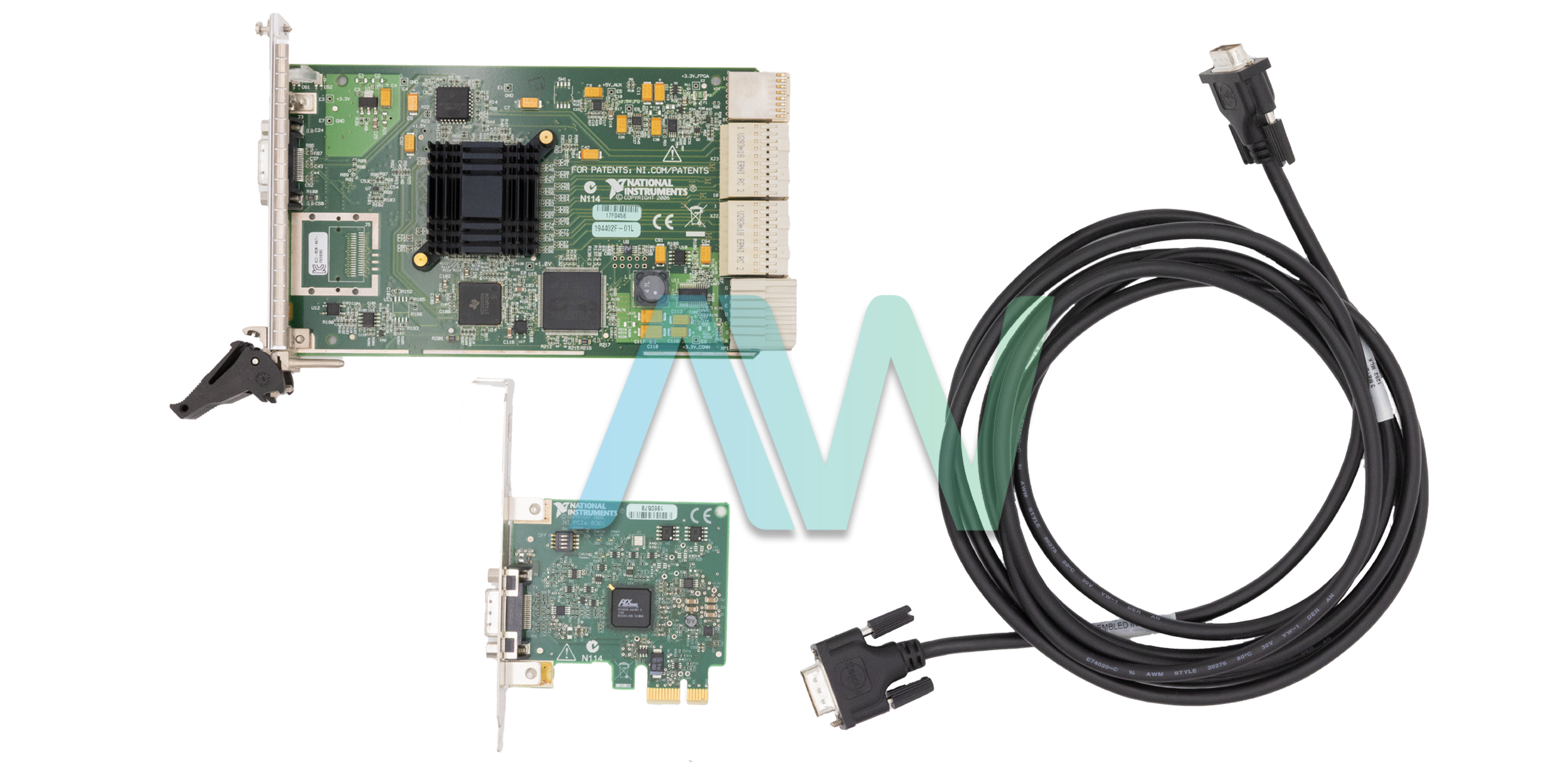

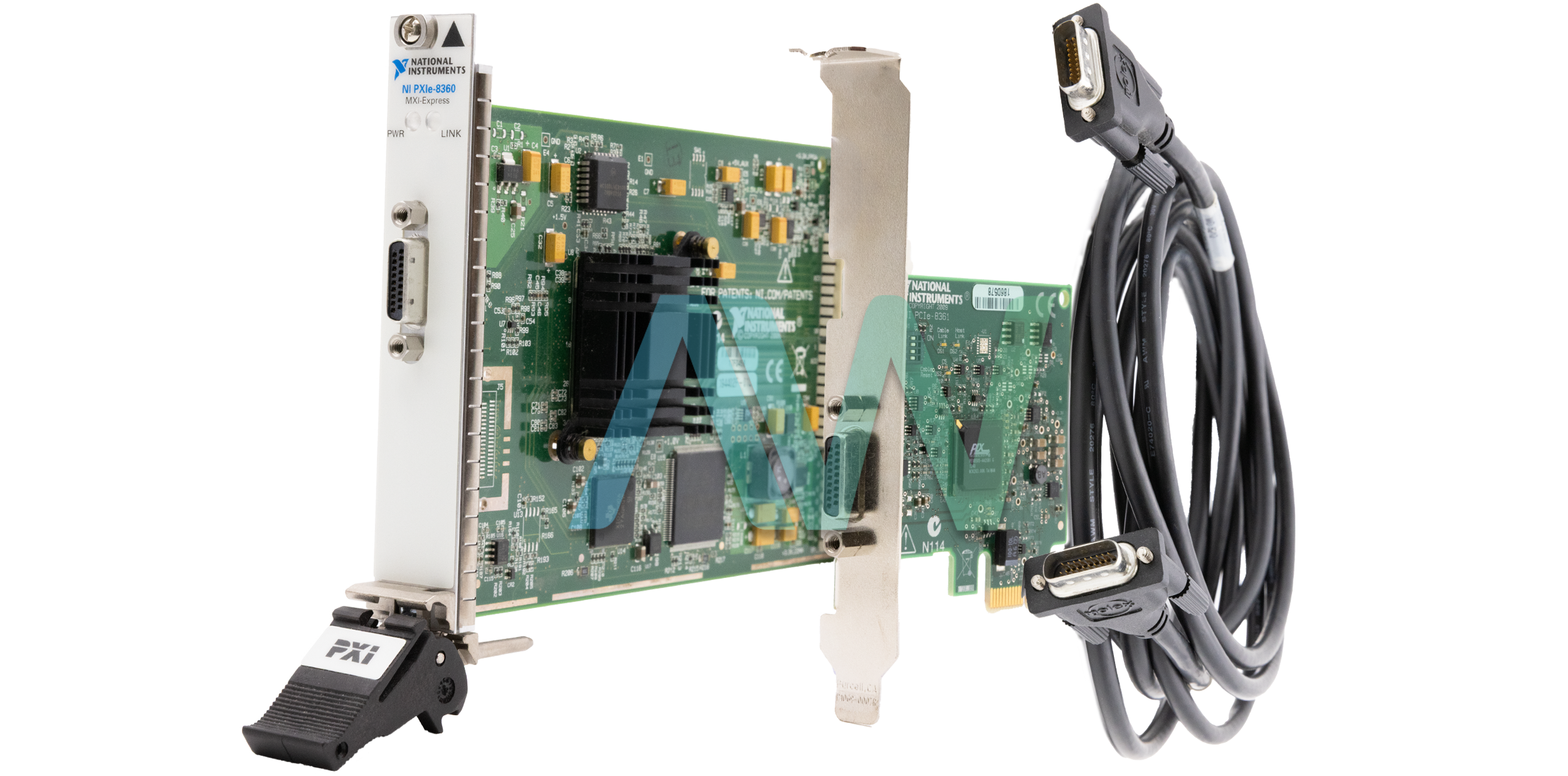

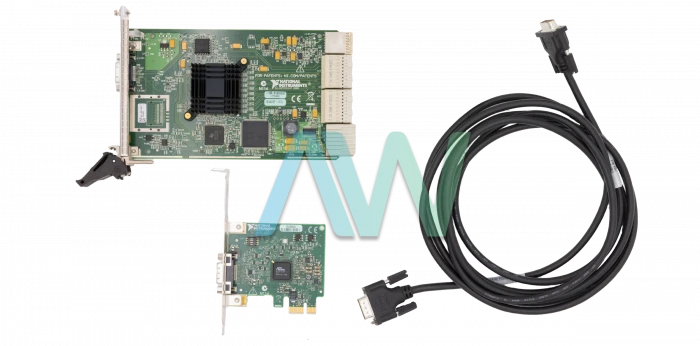

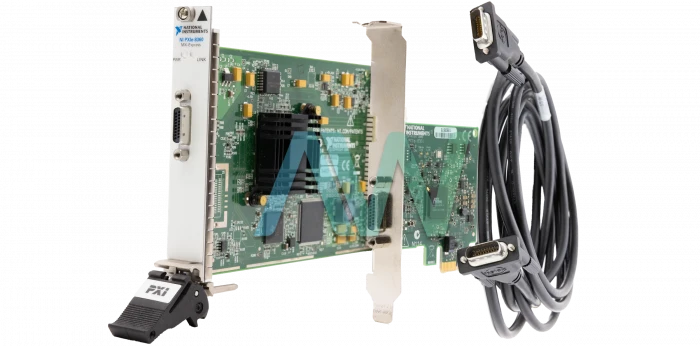

The NI PXIe-PCIe8361 (Part Number: 779701-03) comes with many valuable features, such as a sustained throughput of 92 MB/s for one chassis, durable connectivity, cabling of 7 meters maximum, power and cooling for each slot, synchronization features offered by PXI, and much more. The PXIe-PCIe 8361 MXI-Express Kit contains a PCIe-8361 board in a PC that is linked through an MXI-Express cable to a PXIe-8360 module in slot 1 of a PXI Express chassis. The PCIe-8361 board offers a single PCI Express link, which can be cabled to a PXIe-8360 module in a PXI Express chassis. The user has the option to buy the MXI-Express Kit with all the parts needed or they can buy a PCI Express board, a PXI Express module, and a cable separately. The NI PXIe-PCIe8361 can be used with a 1 m MXI-Express Cable, which can be ordered under part number 779500-01, a 3 m MXI-Express cable with part number 779500-03, or a 7 m MXI-Express cable with part number 779500-07.
The PXIe-PCIe8361 enables PCI Express control of PXI Express/CompactPCI Express and has a software-transparent link which does not involve programming. This MXI-Express Kit has the capability to control a PCI Express system from a PCI Express slot. This means that the user can utilize desktop computers, servers, or workstations to regulate PXI Express systems. The link has x1 lane width. The PXIe-8360 links the PCI Express link to the PCI Express bus utilized in the PXI Express chassis backplane. This results in the PXI and PXI Express modules showing up as PCI boards in the computer. This MXI-Express Kit can be used with a 1 meter or 3 meter MXI cable as well.
The PXIe-PCIe8361 has recommended operating and storage temperature ranges of 0 to 55 °C and -20 to 70 °C respectively, operating and storage humidity ranges of 10 to 90% and 5 to 95% respectively, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a random vibration of 5 to 500 Hz. The NI device is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CAN/CSA-C22.2 No. 61010-1.
The PXIe-PCIe8361 is no longer available directly from the manufacturer National Instruments, but the MXI-Express Kit will remain available in perpetuity for both purchase and repairs with Apex Waves!
| Model | PXIe-PCIe8361 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779701-03 |
| Type | MXI-Express Kit |
| Sustained Throughput | 92 MB/s |
| Maximum Cable Length | 7 m |
| Form Factor | x1 PCI Express |
| PXIe-PCIe8361 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Information |
Associated part numbers for PXIe-PCIe8361:
National Instruments PXIe-PCIe8361 Frequently Asked Questions
Question: What is the slot compatibility for the PXIe-PCIe8361?
Answer: The slot compatibility is x1, x4, x8, and x16.
Question: What are the physical dimensions of the PXIe-PCIe 8361?
Answer: The PXIe-8360 is 3.9 x 6.3 inches and the PCIe-8361 is 4.4 x 6.9 inches.
Question: What are the slot requirements for the NI PXIe-PCIe 8361?
Answer: The PXIe-8360 requires a single 3U PXI Express system controller slot and the PCIe-8361 requires a single PCI Express slot.
| Part Number | Kit Type | Modules Used | Cable Type |
|---|---|---|---|
| 785587-01 | MXI-Express Kit | PCIe-8361 PXI Remote Control Device | 3 Meter MXI-Express Cable |
| PXIe-8360 PXI Remote Control Module |
