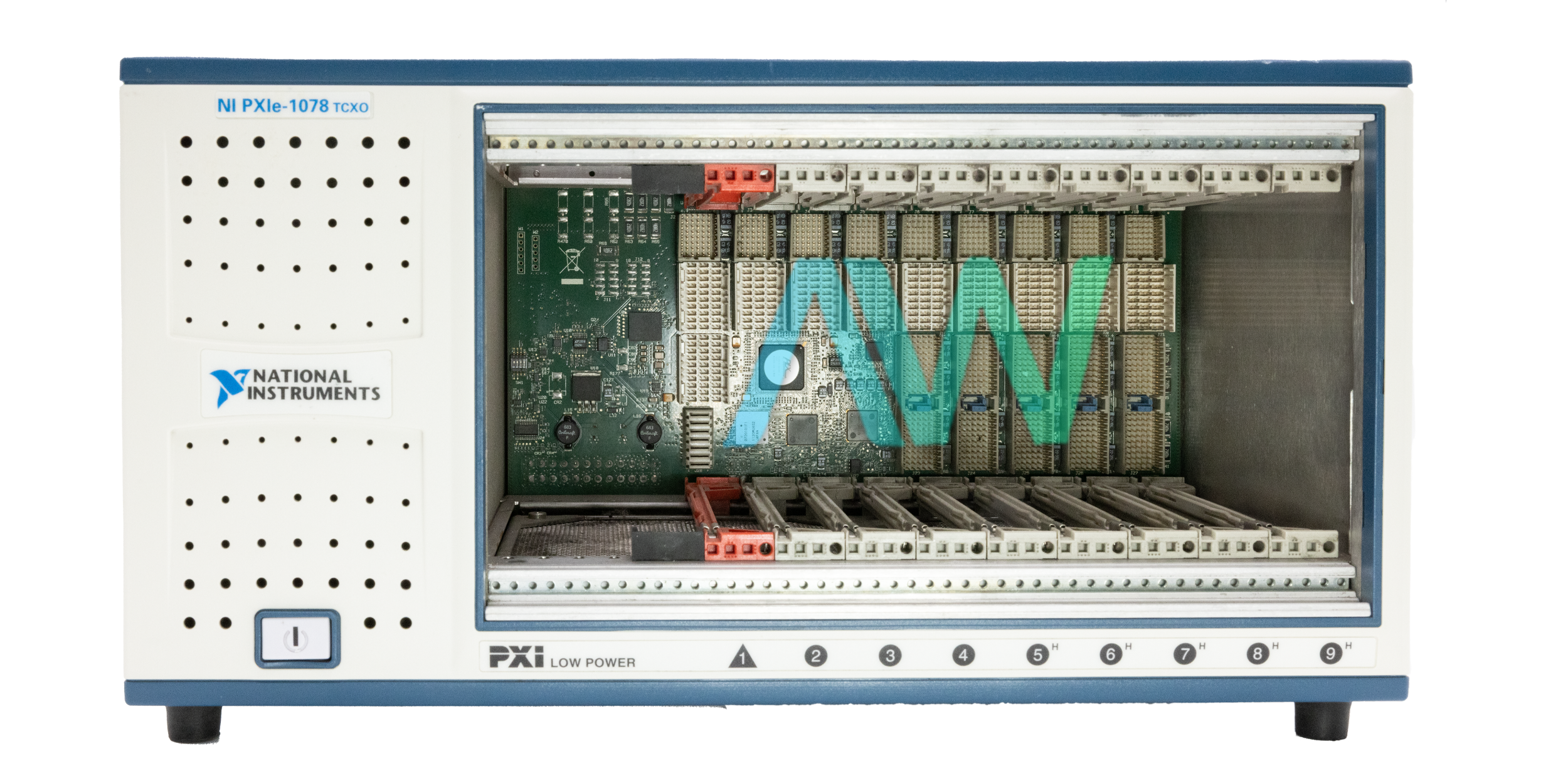

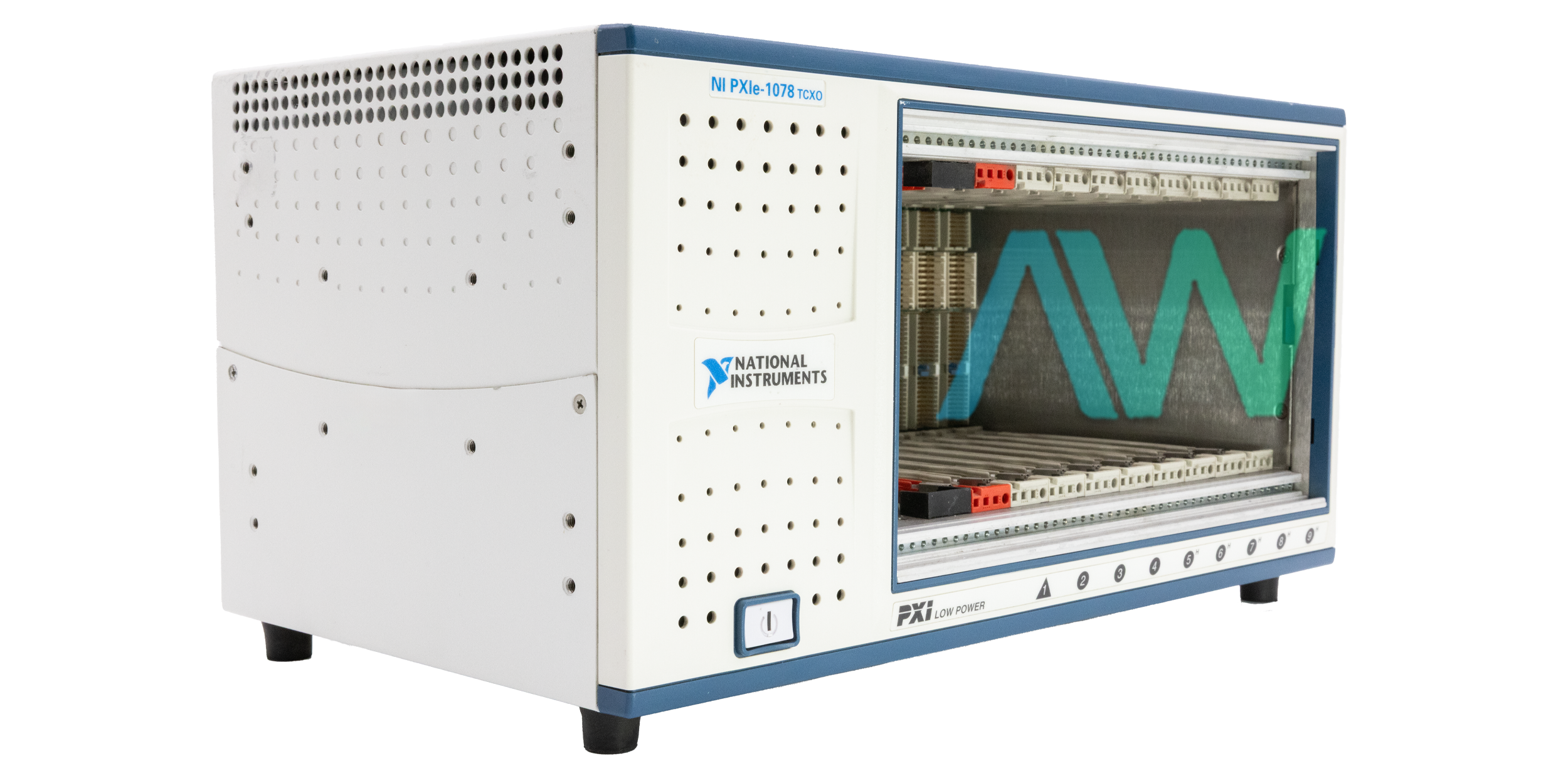

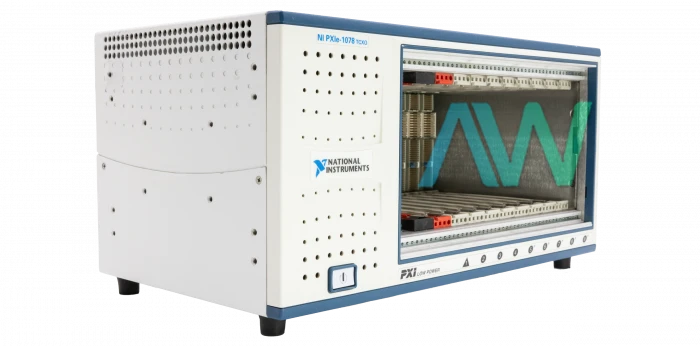

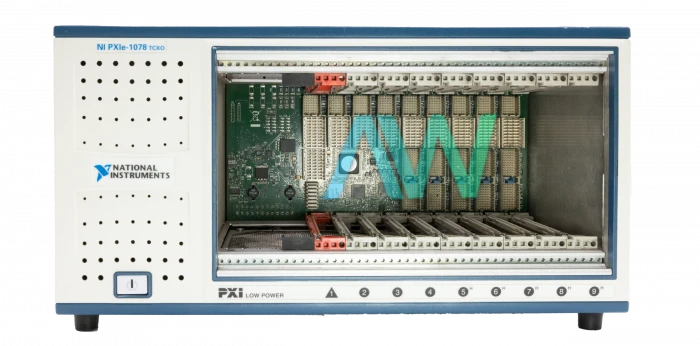

National Instruments PXIe-1078 PXI Chassis

The NI PXIe-1078 (Part Numbers: 763068-01, 781622-01, 781482-01, 781634-01, 763000-01, 199485F-01L) is a low-cost, 9-slot, AC Chassis that features a 4-slot wide system controller slot that accepts an embedded controller, remote controller, and has 8 peripheral slots. The PXIe-1078 Chassis provides users with the flexibility to combine the operations of both PXI and PXI Express modules. This model features three PXI Express slots and five PXI hybrid slots. The PXI hybrid-compatible slots can work with PXI Express modules or standard PXI modules.

The National Instruments PXIe-1078 has a backplane which routes 3 PCI Express links of the system slot to peripheral slots at 250 MB/s single direction per link. The backplane also features one x1 PCIe link to a PCIe to PCI translation bridge. The PXI Express hybrid slots deliver connectivity to a x1 PCI Express link, and to the 32-bit, 33 MHz PCI bus for PXI Express modules and PXI hybrid compatible modules, respectively. Also, the device accepts a 4-slot wide PXI Express embedded controller. The PXI Express system configuration is carried out through the Measurement and Automation Explorer (MAX) tool. The device requires a software media with PXI Platform Services 2.0 or higher to operate, which is contained in the chassis kit.

The complete list of accessories for the National Instruments NI PXIe-1078 PXI Chassis includes the following part numbers: 763068-01 (a 240V, 10A power cord), 781622-01 (a 9- slot PXI Express Chassis), 781482-01 (PXI-103x and PXIe- 107x side handle rubber kit), 781634-01 (Rack Mount Kit), and 763000-01 (Power Cord, A.C., U.S. 120 VAC).

Fully compliant with PXI timing and synchronization standards, this Chassis features a 10 MHz reference clock with an accuracy of +/-25 ppm, less than 3 ps, and a maximum slot to slot skew of 100 ps. Filler panels can be inserted into the NI PXIe 1078 in any empty slots to sustain cooling for the modules. The filler panels can be held in place with captive mounting screws. Also, an AUTO/HIGH fan speed selector provides a high fan-speed that maximizes cooling and minimizes acoustic emissions. The PXIe 1078 weighs 16.6 lb and has the dimensions: 6.97 x 14 x 8.43 in.
