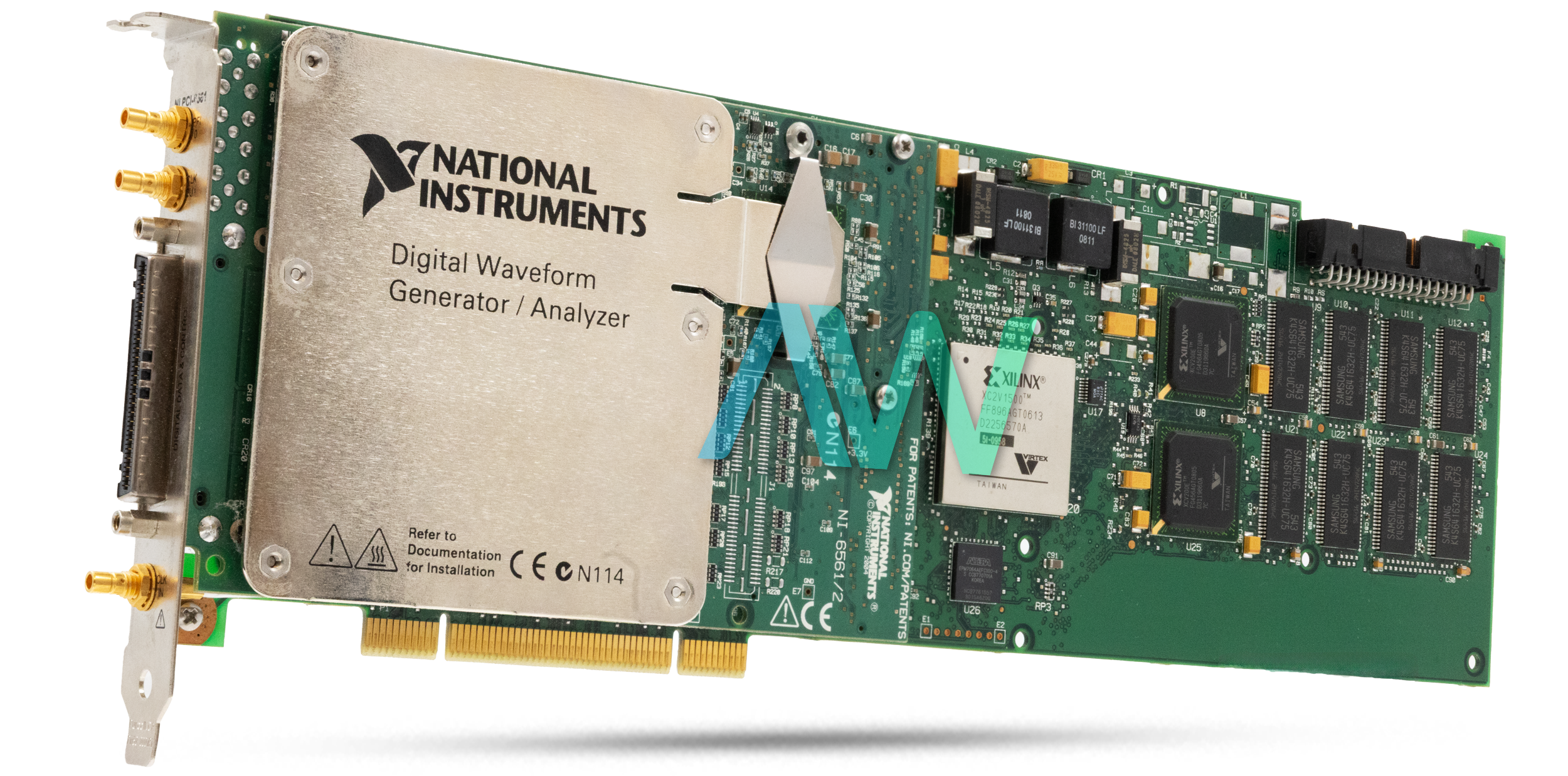

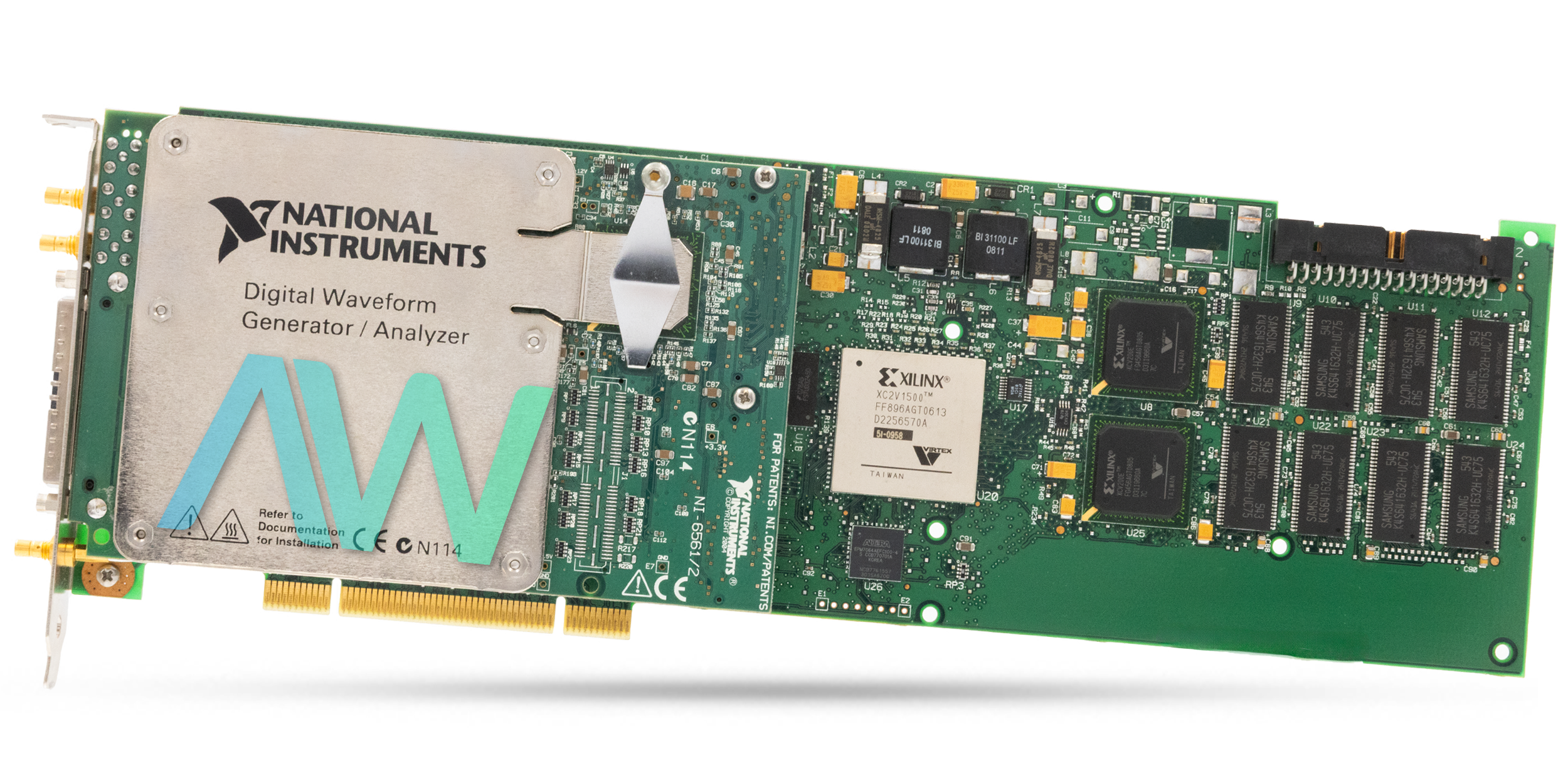

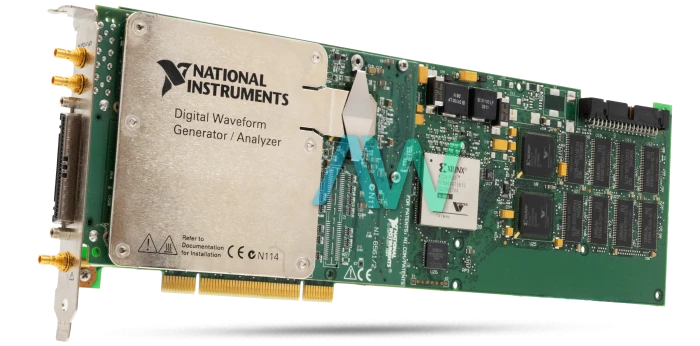

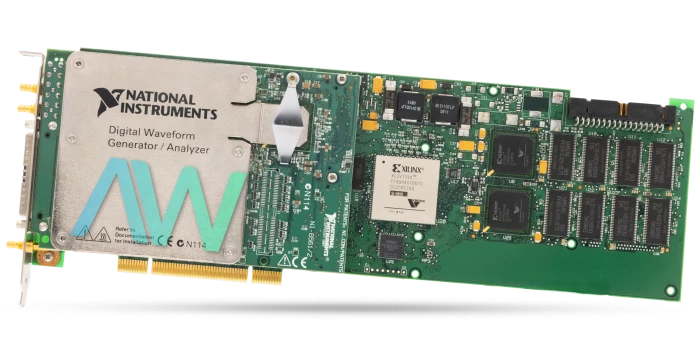

PCI-6561 National Instruments Digital Waveform Generator | Apex Waves | Image PCI-6561 National Instruments Digital Waveform Generator | Apex Waves | ImagePCI-6561PCI-6561 | Legacy, Refurbished and New Surplus
PCI-6561 National Instruments Digital Waveform Generator | Apex Waves | Image
PCI-6561 National Instruments Digital Waveform Generator | Apex Waves | Image
PCI-6561 New
PCI-6561 | Legacy, Refurbished and New Surplus

PCI-6561

5/5 | 13 ratings

Modular Systems > National Instruments > NI-656x Series

Part Number PCI-6561
Manufacturer/Brand National Instruments
Description: PCI-6561, 16-Channel, Digital Waveform Generator
Request for Availablility
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


National Instruments PCI-6561 Digital Waveform Generator

The PCI-6561 (Part Numbers: 778991-01, 778991-02, and 778991-03) is a 100 MHz Digital Waveform Generator from National Instruments. This model comes equipped with sixteen built-in data channels. The National Instruments PCI-6561 Digital Waveform Generator has synchronization capabilities, which enables the analysis capability by interfacing 16 low-voltage differential signaling digital pins. There are also generation and acquisition channels for help with fulfilling various testing and analysis procedures for R&D requirements. Various sources of generation are provided for the sample clock, including: On Board clock, CLK IN, and STROBE mechanism. The On-Board clock is generated through an internal voltage-controlled crystal oscillator and comes with a divider.

The NI PCI-6561 Waveform Generator has different frequency ranges for different sources. The range is 48 Hz to 100 MHz for the On-Board clock source. The input frequency range from CLK IN terminal is 20 kHz to 100 MHz. The STROBE option comes with the frequency range of 48 Hz to 100 MHz. These CLK sources offer the resolution of 10 ps. This model also has a typical lock time of 400 milliseconds. The frequency range for the reference clock is 10 MHz ± 50 ppm and the duty cycle range is 25 % to 75 %.

The National Instruments PCI-6561 Digital Waveform Generator offers various trigger modes to further enhance the operational capabilities of the instrument. This model has a typical warm time of fifteen minutes. It also offers an exceptional accuracy for frequency measurements, with a typical value of ± 100 ppm. The National Instruments PCI-6561 Digital Waveform Generator weighs around 410 grams and has physical dimensions of 4.96 x 13.9 inches.

ModelPCI-6561
ManufacturerNational Instruments
Part Numbers778991-01, 778991-02, and 778991-03
SeriesNI-656x Series
TypeDigital Waveform Generator
Channels16
STROBE Frequency Range48 Hz to 100 MHz
Memory2, 16, or 128 Mbit/channel
Dimensions4.96 × 13.9 in.
Weight14.5 oz.
WarrantyOne Year Warranty
PCI-6561 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6561 Frequently Asked Questions



Question: At what rate can the PCI-6561 sample digital waveforms?



Answer: The PCI-6561 can sample digital waveforms at up to 100 MHz.



Question: Does the PCI 6561 provide LVDS signaling?


Answer: Yes, the PCI 6561 provides LVDA signaling.



Question: How is data clocked when using the NI PCI-6561?



Answer: When using the NI PCI-6561, data is clocked using the rising or falling edge of the sample clock while using SDR. Using DDR, data is clocked using both edges of the sample clock.



Question: What is the output protection per channel on the NI PCI-6561?



Answer: The output protection per channel on the NI PCI-6561 is 0 V to 5 V, with an indefinite duration.

  PCI-6561 PDF Manuals

Driver Downloads for PCI-6561






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version
