PXI-7354

Modular Systems > National Instruments > NI-73xx Series

Part Number PXI-7354
Manufacturer/Brand National Instruments
Description PXI-7354, 64 digital I/O channels, Stepper/Servo Motion Controller Module

Speak to a sales representative for pricing & lead time:


National Instruments PXI-7354 Stepper/Servo Motion Controller Module

The NI PXI-7354 (Part Number: 778540-04) is a Sinusoidal Commutation, 4-Axis, Stepper/Servo PXI Motion Controller Module. This model features eight 16-bit analog-to-digital converters. These converters can be used for onboard acquisition, as well as a host of triggering and advanced motion trajectory features. The NI PXI-7354 comes with an integrated nonvolatile memory, which is implemented with flash ROM. The user can have their onboard firmware contents upgraded in the field as the DSP code, RTOS, and the FPGA configuration file of the PXI-7354 are stored in its flash memory.

The NI PXI-7354 Controller supports encoders or secondary feedback resources for axes defined as a servo. In the implementation of dual-loop control, two feedback resources are used such as in backlash compensation. To handle all signals to and from the external motion system, this module has two 68-pin motion I/O connectors and two 68-pin digital I/O connectors. The motion I/O connectors provided in this module contain all the required signals to control servo and stepper motion, such as trigger inputs, inhibit outputs, encoder feedback inputs, motor command analog, stepper outputs, breakpoint outputs, etc.

The NI PXI-7354 comes with a sturdy yet straightforward high-level API (application programming interface) that makes it an easy to program device. With this model, the user can execute all motion control and setup functions by calling into a DLL or dynamically linked library. In addition, the user can use the full function set implementations for LabWindows/CVI and LabVIEW or call the NI-Motion libraries from Visual Basic and C.

PXI-7354 Obsolete Status has been announced by National Instruments, but the motion controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-7354, 778540-04
ManufacturerNational Instruments
SeriesNI-73xx Series
TypeStepper/Servo Motion Controller Module
Digital I/O Channels64
Input Resolution16 bits
Axes4
WarrantyOne Year Warranty
PXI-7354 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-7354 Frequently Asked Questions



Question: How many axes of motion does the NI PXI-7354 have?



Answer: The NI PXI-7354 has up to 4 axes of motion.



Question: Is the PXI 7354 able to start all axes at once?



Answer: The PXI 7354 can be used with driver software that allows all axes to start at once.



Question: Is the PXI-7354 recommended for working with hexapods?



Answer: The PXI-7354 is ideal for working with parallel mechanisms, such as hexapods.

PXI-7354 Technical Specifications:


Manufacturer:National Instruments
Model:PXI-7354
Part Number:778540-04
Type:Stepper/Servo Motion Controller Module
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PXI-7354

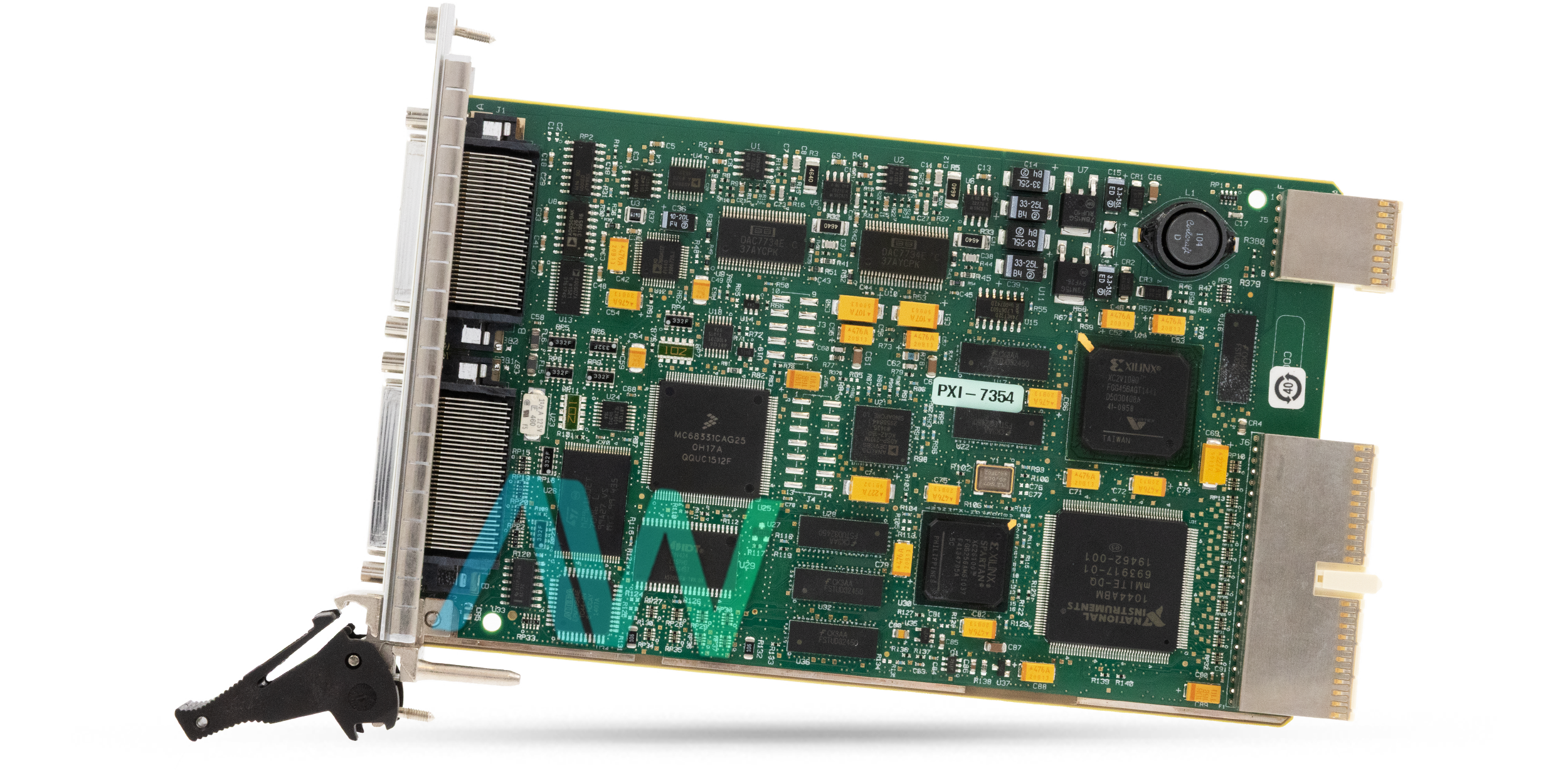

PXI-7354 National Instruments Stepper/Servo Motion Controller Module | Apex Waves | Image

Main Image

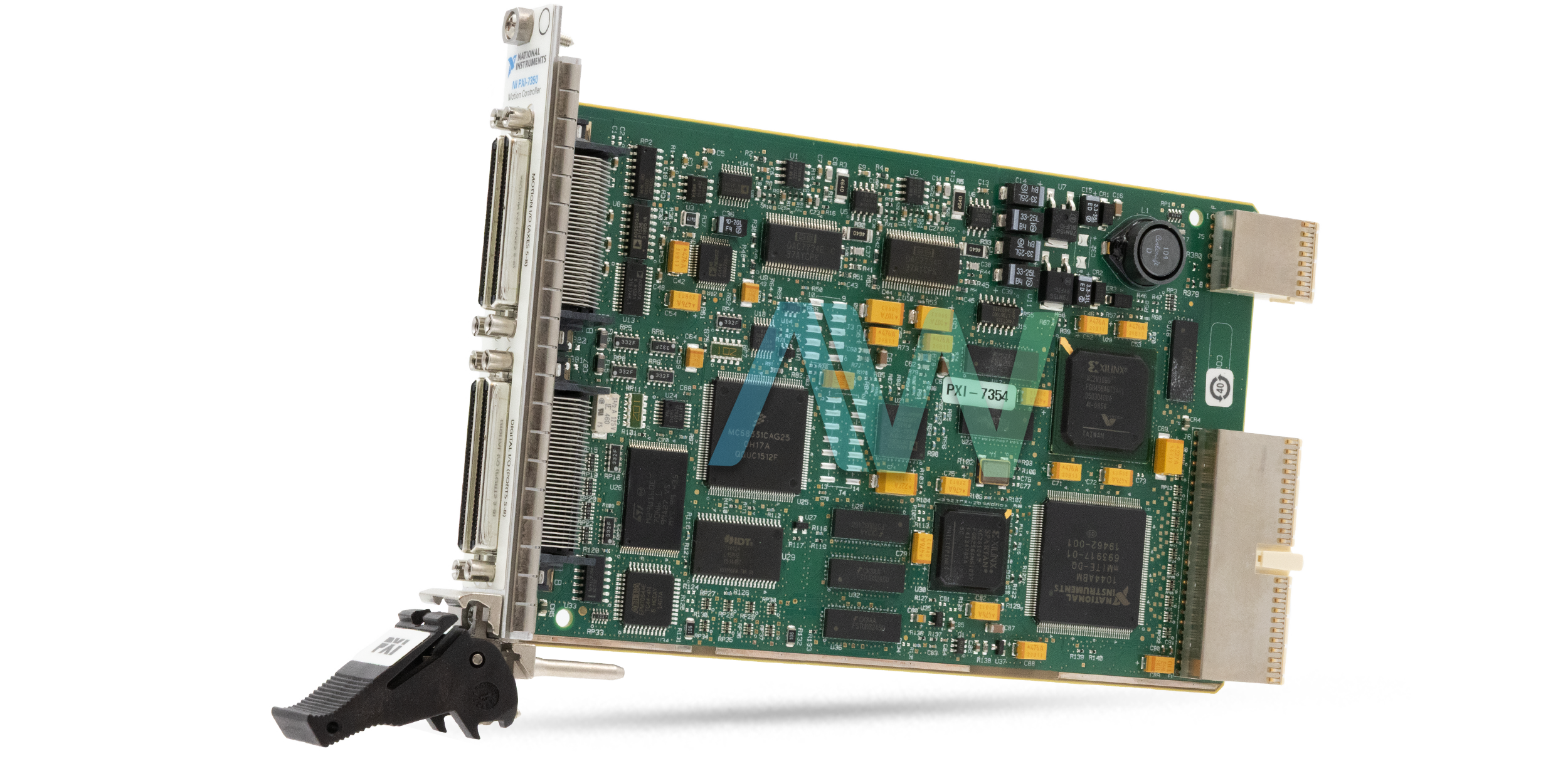

PXI-7354 National Instruments Stepper/Servo Motion Controller Module | Apex Waves | Image
