PXI-7358

Modular Systems > National Instruments > NI-73xx Series

Part Number PXI-7358
Manufacturer/Brand National Instruments
Description PXI-7358, 64 digital I/O channels, Stepper/Servo Motion Controller Module

Speak to a sales representative for pricing & lead time:

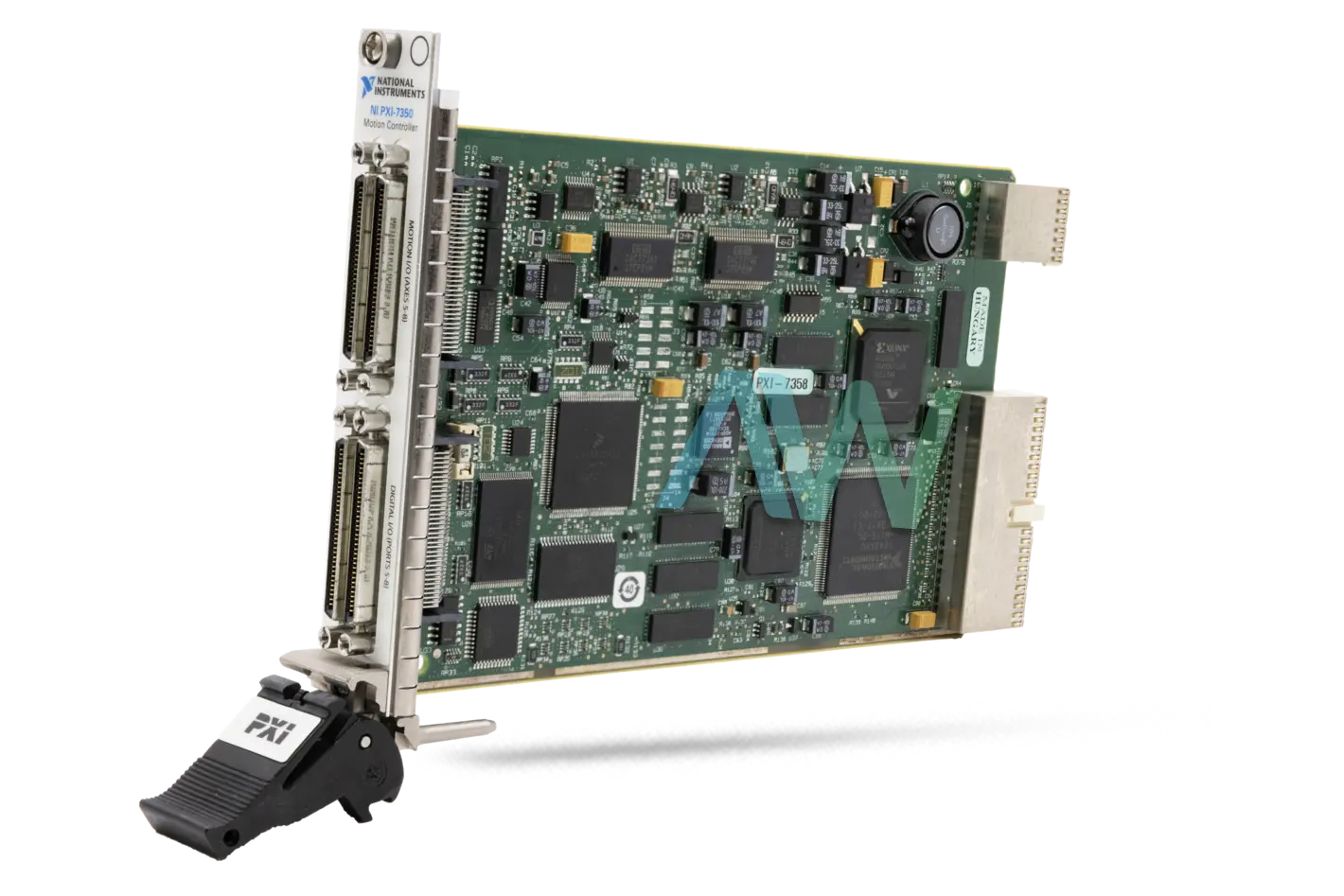

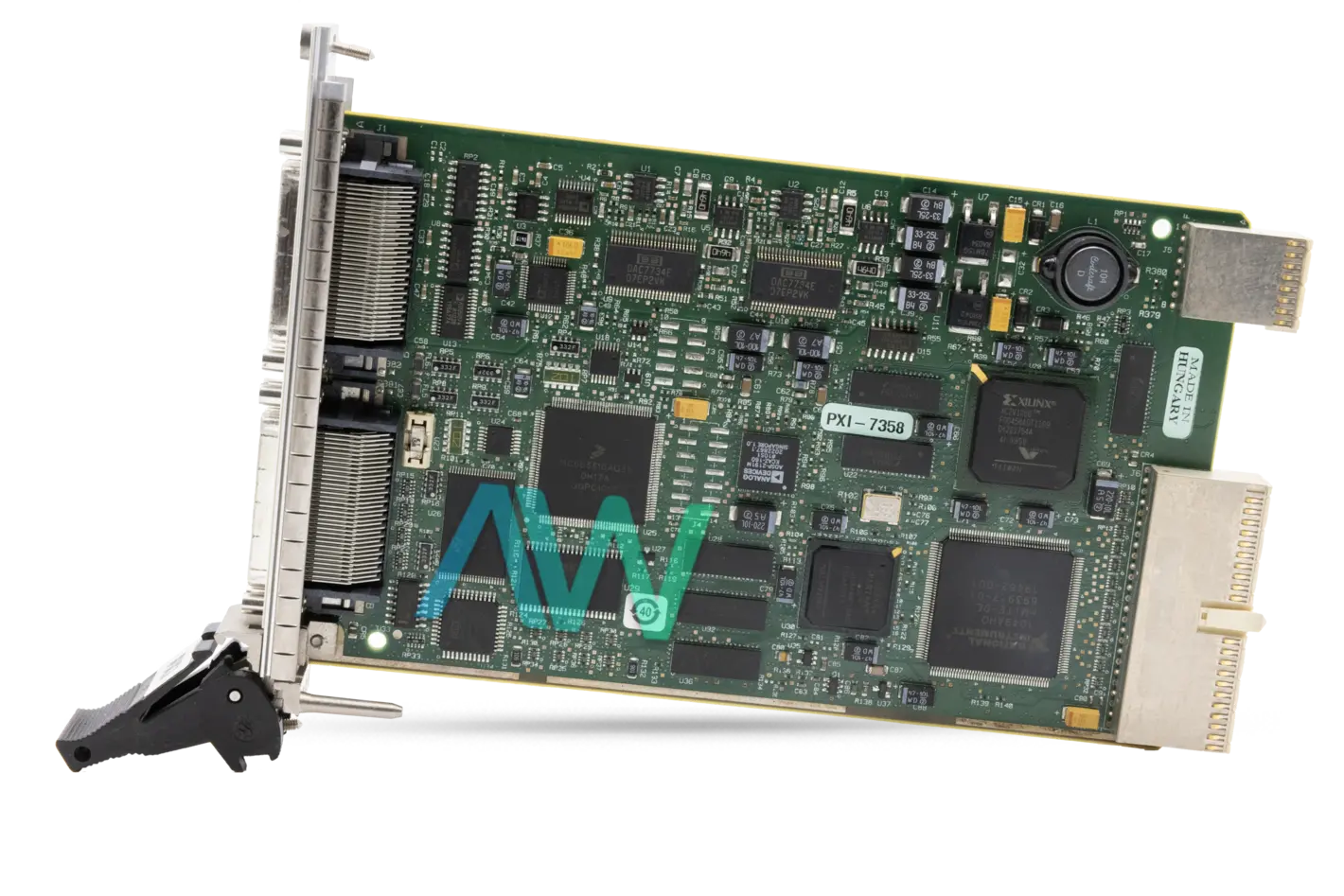

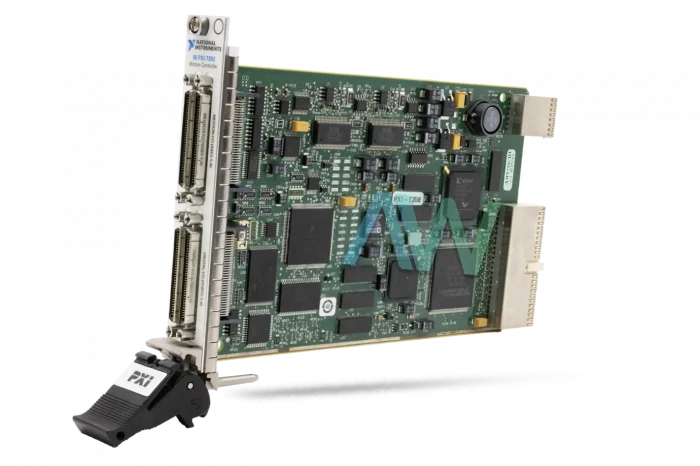

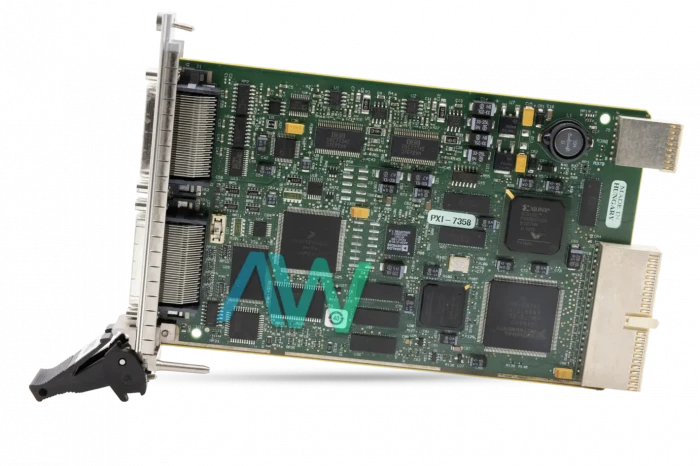

National Instruments PXI-7358 Stepper/Servo Motion Controller Module

The National Instrument PXI-7358 (Part Number: 778540-08) Stepper/Servo Controller is the most effective NI motion controller in the PXI platform. With eight axes, this motion controller is suggested for a wide assortment of both simple and complex motion applications. The user can independently arrange every axis for stepper control or brushed servo control. This module additionally incorporates eight 16-bit-analog-to-digital converters for locally available information acquisition and a few advanced motion trajectories and triggering highlights.

This module offers +/- 10 V of voltage range, positive limit, negative limit, and programmable offset, 16 bits of resolution, a velocity range between 1 to 8,000,000 steps/s, +/- 1,200,000 steps/s of acceleration, +/- 256,000 revolutions of RPS/s range, a watchdog timeout between 63 or 256 rms, a voltage range between 0 to 5 V, an input low voltage of 0.8 V, an input high voltage of 2 V, and 100 mA at 5V of host.

The PXI-7358 motion controller incorporates buffered breakpoints for exact timing amongst motion and estimations or vision. Utilizing this element, the user can send a buffer of position breakpoints to the controller that trigger an advanced signal after achieving the positions in the support. Buffered breakpoints can trigger at rates as high as 2 kHz and for similarly spaced positions, the user can utilize periodic breakpoints to accomplish significantly higher rates of up to 4 MHz. With these periodic breakpoints, the user can supply a position modulus each time the position achieves the modulus position.

PXI-7358 Obsolete Status has been announced by National Instruments, but the motion controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-7358 (778540-08)
ManufacturerNational Instruments
SeriesNI-73xx Series
TypeStepper/Servo Motion Controller Module
Digital I/O Channels64
Input Resolution16 bits
Axes8
WarrantyOne Year Warranty
PXI-7358 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-7358 Frequently Asked Questions



Question: Why does my stepper system using the NI PXI-7358 not move to the location that I have specified?



Answer: If your NI PXI-7358 stepper system does not move to the location specified, it usually means it has a higher resolution than the encoder.



Question: Is data acquisition built in to the PXI 7358?



Answer: The PXI 7358 has built-in data acquisition with 16-bit analog inputs.



Question: Can the ATI force/torque sensor be used with the PXI-7358?



Answer: The PXI-7358 needs a breakout to separate the pins that are the analog output pins of the torque sensor first, then you can use the PXI-7358 to connect them.

PXI-7358 Technical Specifications:


Manufacturer:National Instruments
Model:PXI-7358
Part Number:778540-08
Type:Stepper/Servo Motion Controller Module
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
