DB9F-DB9F
Modular Systems > National Instruments > NI Cables
| Description: | DB9F-DB9F, 9-Pin, Female D-SUB, CAN and LIN Cable |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

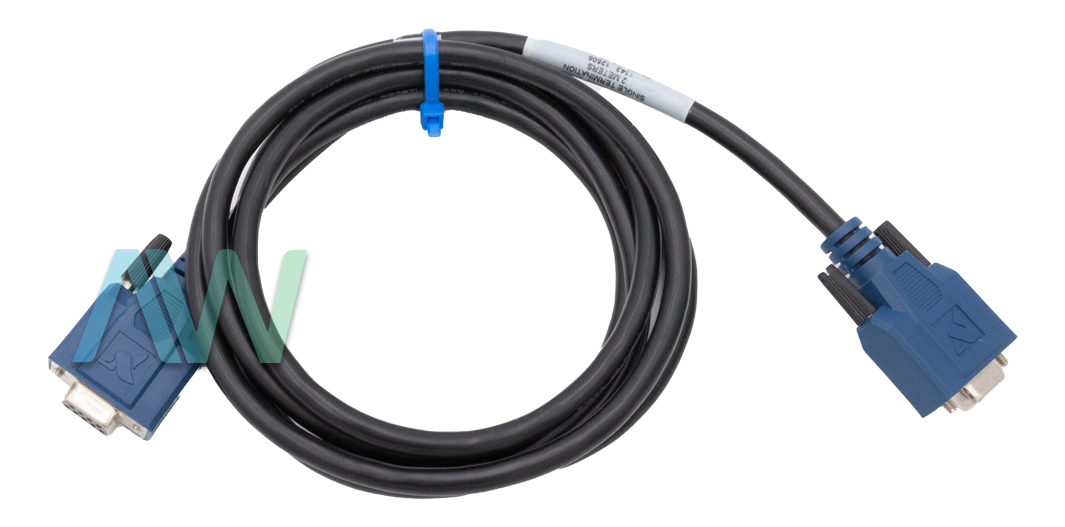

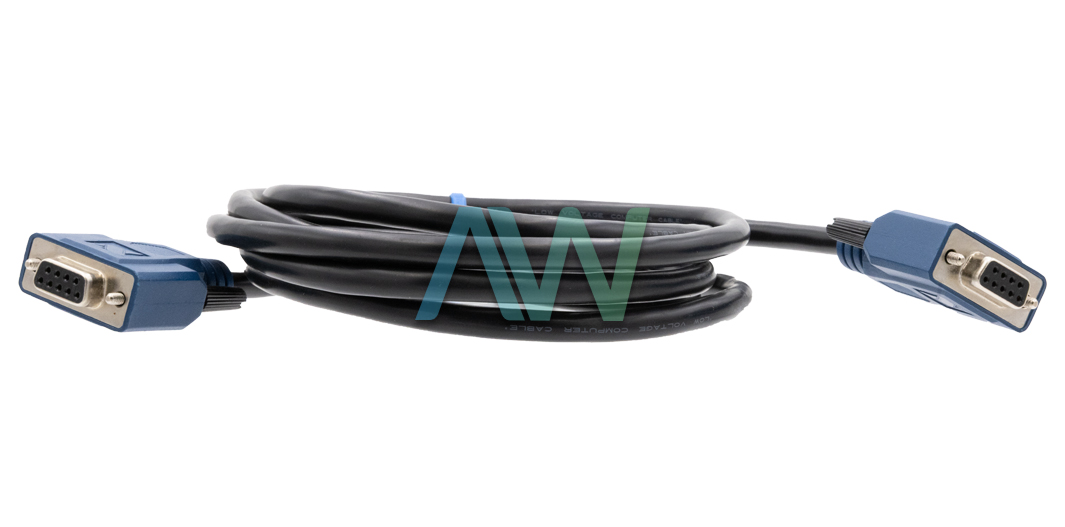

National Instruments DB9F-DB9F CAN and LIN Cable
Designed to work with High-Speed, Low-Speed/Fault-Tolerant, and Flexible Data-Rate CAN signals, the DB9F-DB9F (Part Numbers: 193128-01, 193128-02, and 192017-02) is a CAN Cable. The NI DB9F-DB9F is available as a 1 or 2-meter cable with or without termination. This cable can work with a variety of National Instruments CAN, Multiprotocol, and LIN C Series modules. The DB9F-DB9F Cable comes with 9-Pin, Female D-SUB connectors on both ends. This cable is designed to comply with all the specifications as defined in ISO 11898.
With this cable, you can construct a flexible CAN-based system since it is designed to support various data transmission modes. The DB9F-DB9F can also be used with software-selectable LIN or CAN interfaces. The wire utilized in the construction of this cable is designed to operate at a resistance of 93 Ω/km. This CAN Cable comes equipped with a dedicated, twisted 24 AWG pair for CAN_L and CAN_H. A separate twisted pair is also provided for V+ and V-. However, you can only use this cable with the device powered CAN ports.
| Model | DB9F-DB9F |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 193128-01, 193128-02, 192017-02 |
| Type | 1 m or 2 m |
| Cable Length | CAN and LIN Cable |
| Back-End Connection | 9-Pin, Female D-SUB |
| Front-End Connection | 9-Pin, Female D-SUB |
| CAN Physical Layer | Flexible Data-Rate, High-Speed, Low-Speed/Fault-Tolerant |
| Supported Serial Protocol | CAN and LIN |
| Warranty | 2-3 Year Warranty |
| DB9F-DB9F Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
DB9F-DB9F PDF Manuals
CAN POWER CABLE WIRING NOTE TO USERS.PDF
DB9F-DB9F DECLARATION OF CONFORMITY 192017 02.PDF
DB9F-DB9F DECLARATION OF CONFORMITY 193128 01.PDF
DB9F-DB9F DECLARATION OF CONFORMITY 193128 02.PDF
