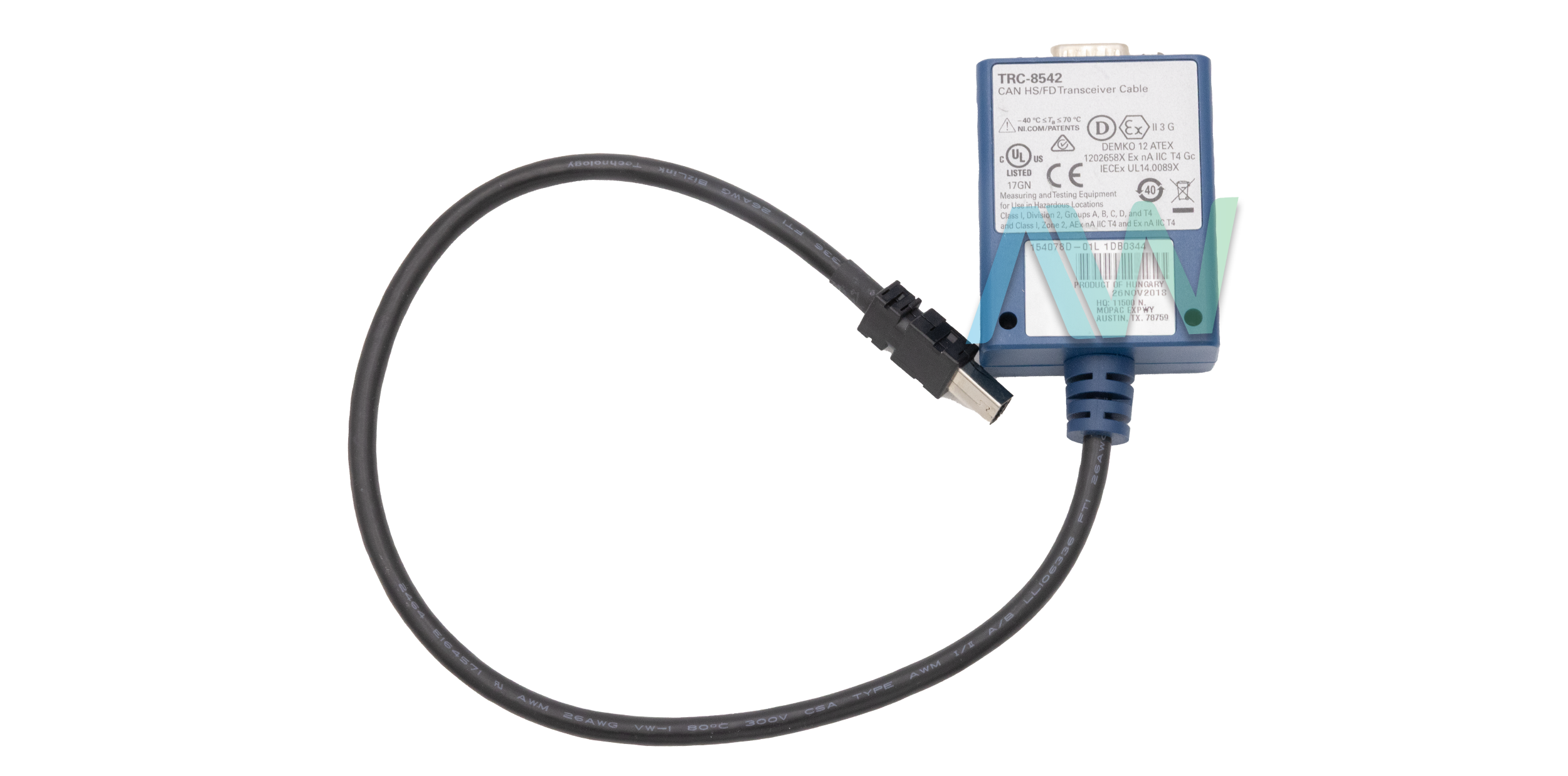

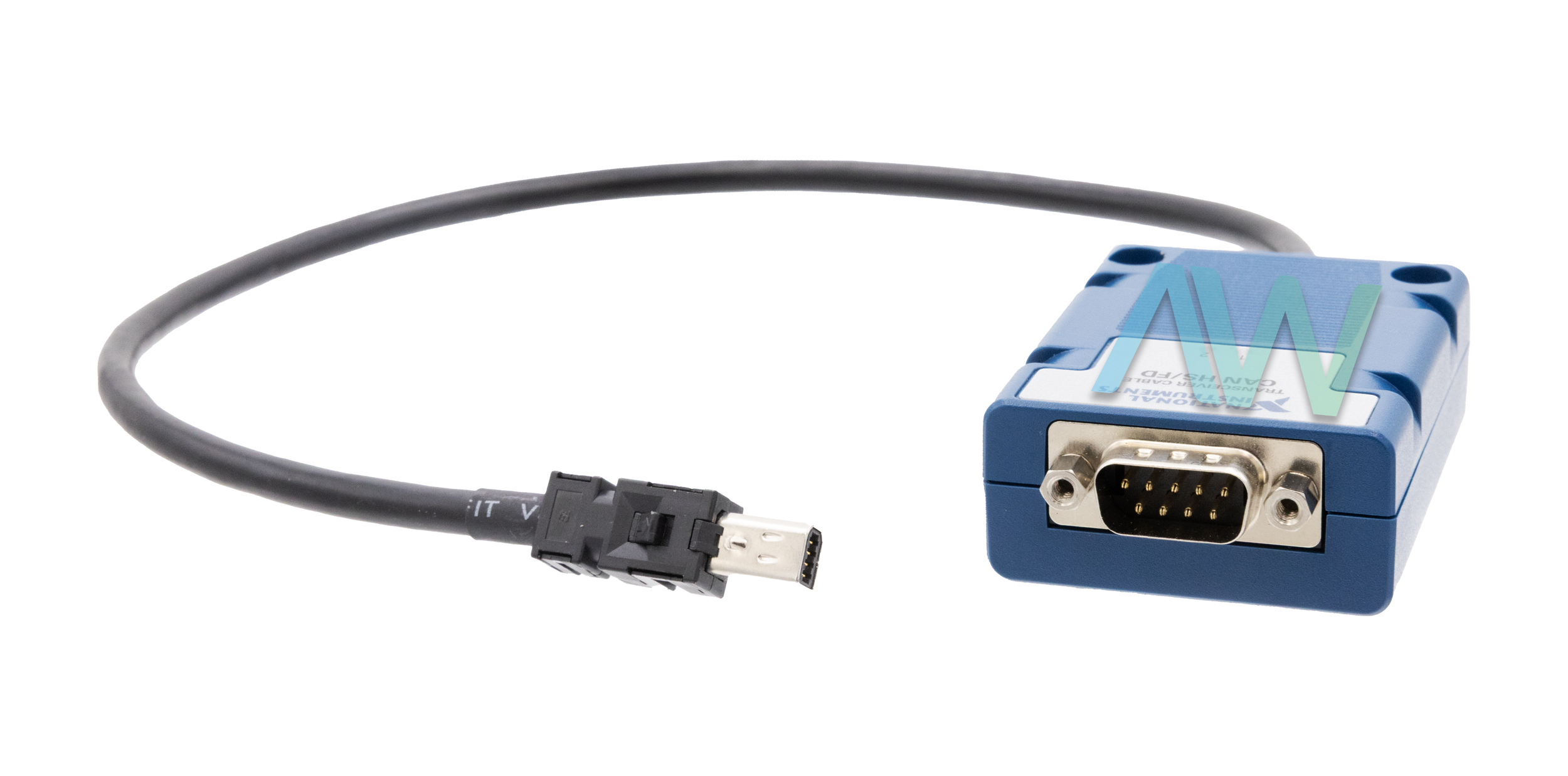

NI TRC-8542 Transceiver Cable
The TRC-8542 (Part Numbers: 142689-01L, 154066-02, 783699-02, and 783699-03) is a CAN HS/FD (High-Speed/Flexible Data-Rate) Transceiver Cable from National Instruments. This Transceiver Cable brings great flexibility for the construction of a system where a CAN bus must be connected to the National Instruments PXIe-8510, NI-9860, or an XNET port on a CompactDAQ Controller. This cable comes equipped with an integrated transceiver (NXP TJA1043T). With this cable, you can achieve up to 5 Mbps maximum baud rate. The transceiver incorporated in this cable has -27 to +40 VDC input voltage limits for CAN_H (CAN HIGH) and CAN_L (CAN LOW) bus lines.
The output voltage limit for CAN HIGH and CAN LOW is 5 VDC. This Transceiver Cable does not require an external power source and does not draw power from the CAN bus since it is powered internally by the host. The NI TRC-8542 is intended to be used for measurement CAT I signals only. This Transceiver Cable consumes around 50 mW of maximum power in active mode.
| Model | TRC-8542 |
|---|---|
| Manufacturer | NI |
| Part Numbers | 142689-01L, 154066-02, 783699-02, and 783699-03 |
| Type | Transceiver Cable |
| Conformal Coating Available | Yes |
| CAN Physical Layer | High-Speed, Flexible Data-Rate |
| Transceiver | NXP TJA1043T |
| Maximum Certified Baud Rate | 5 Mbps |
| Length | 17.6 to 18.2 in. |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| TRC-8542 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the TRC-8542:
142689A-01L, 154066-02, 154066E-02L, 154078A-01L, 154078B-01L, 154078C-01L, 154078D-01L, 154078D-12L, 154078E-01L, 154860A-H18, 154860B-H18, 783699-01, 783699-02, 783699-03
TRC-8542 PDF Manuals
NI XNET CAN HS FD TRANSCEIVER CABLE GETTING STARTED GUIDE.PDF
NI XNET CAN HS FD TRANSCEIVER CABLE OPERATING INSTRUCTIONS.PDF
TRC-8542 GETTING STARTED GUIDE.PDF
TRC-8542TRC 8543TRC 8546 LETTER OF VOLATILITY.PDF
Driver Downloads for TRC-8542
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
TRC-8542
Modular Systems > National Instruments > NI Cables
TRC-8542, High-Speed, Flexible Data-Rate, Transceiver Cable
(expedited shipping options available)
1-800-915-6216
- Description
- Technical Specifications
- Manuals & PDFs
- Drivers

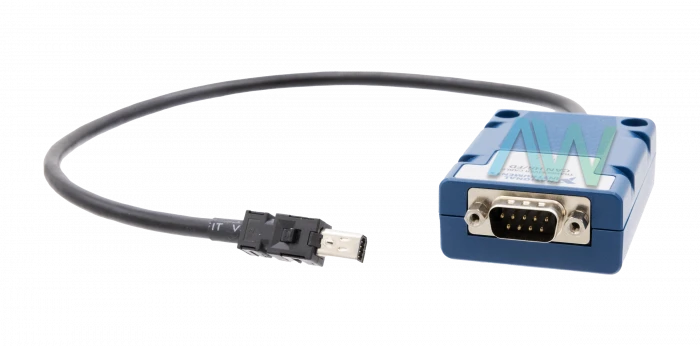

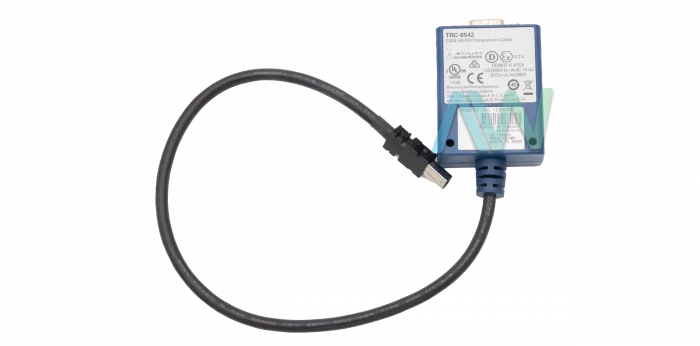

NI TRC-8542 Transceiver Cable
