TRC-8546
Modular Systems > National Instruments > NI Cables
| Description: | TRC-8546, LIN 2.2, Transceiver Cable |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com
NI TRC-8546 Transceiver Cable

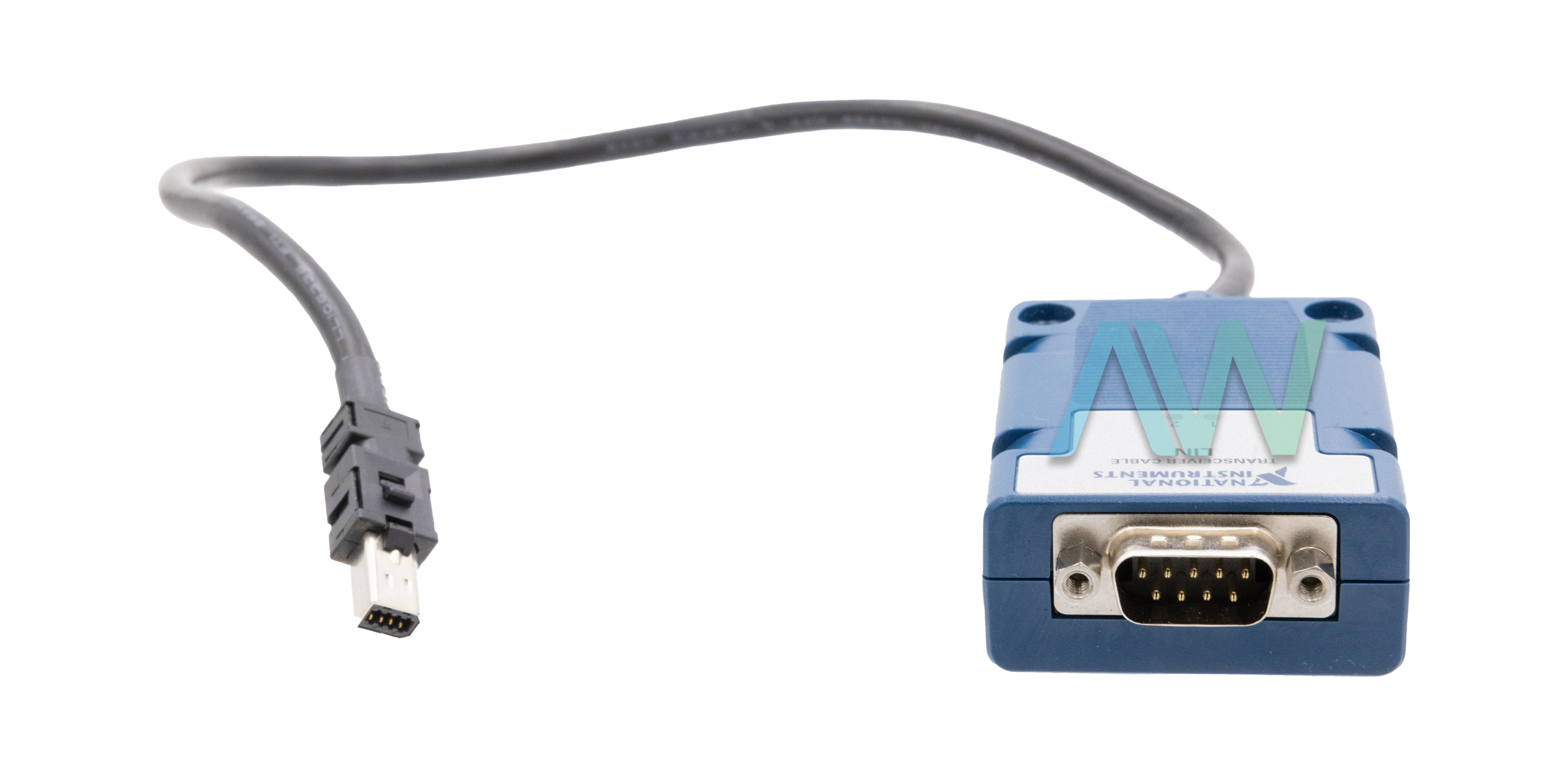

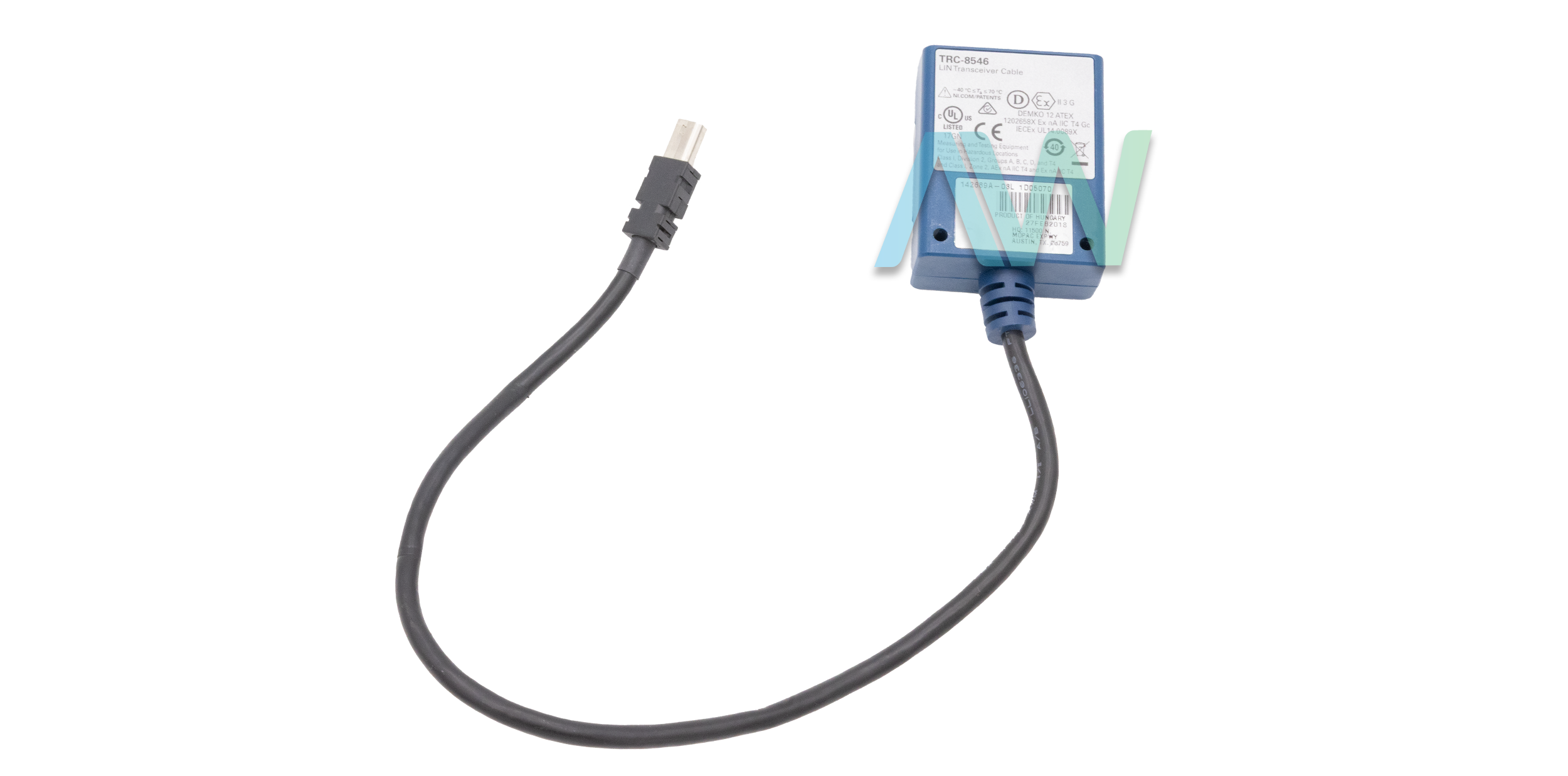

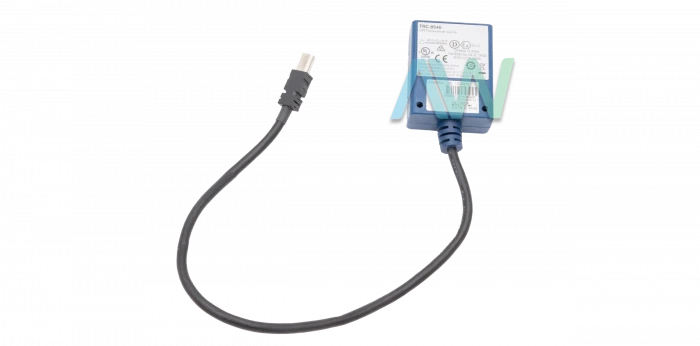

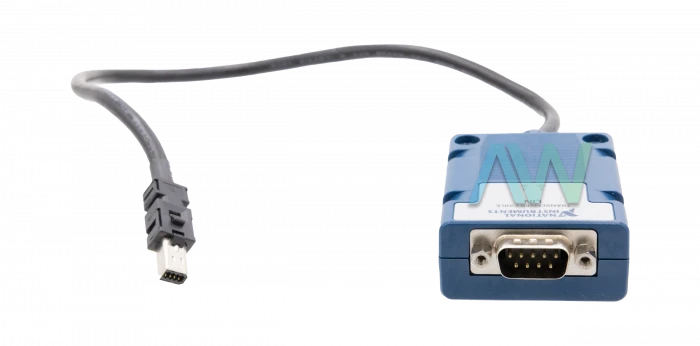

The TRC-8546 (Part Numbers: 154081-02, 783702-01, 783702-02, 783702-03) is a LIN Transceiver Cable from National Instruments. The NI TRC-8546 provides flexible connections between the LIN bus to the PXIe-8510 or NI-9860. Moreover, the TRC-8546 Transceiver Cable can also be considered for data communication between the LIN bus and the native National Instruments XNET port on the cDAQ-9134 or cRIO-9135 Controllers. The TRC-8546 is an isolated cable, which comes with the required transceiver for the specified bus type.
The transceiver used in the TRC-8546 supports a LIN 2.2 physical layer. With this Transceiver Cable, a baud rate of 20 kbps (maximum) is possible. The NI TRC-8546 Transceiver Cable weighs 2.5 oz. and is 17.6 to 18.2 in. in length. The transceiver of the TRC-8546 (NXP TJA1028) comes with internal voltage regulation. This LIN Transceiver Cable is designed to work at bus line voltages between -40 to +40 VDC and consumes up to 180 mW of power in typical operating conditions.
| Model | TRC-8546 |
|---|---|
| Manufacturer | NI |
| part Numbers | 154081-02, 783702-01, 783702-02, and 783702-03 |
| Type | Transceiver Cable |
| LIN Physical Layer | LIN 2.2 |
| Conformal Coating Available | Yes |
| CAN Physical Layer | N/A |
| Transceiver | NXP TJA1028 |
| Length | 17.6 to 18.2 in. |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| TRC-8546 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the TRC-8546:
142689A-03L, 154081-02, 154081B-02L, 154081D-02L, 154081E-02L, 154081E-12L, 154860A-N18, 154860B-N18, 200527B-01, 200668A-01, 783702-01, 783702-02, 783702-03
TRC-8546 PDF Manuals
NI XNET LIN TRANSCEIVER CABLE GETTING STARTED GUIDE.PDF
NI XNET LIN TRANSCEIVER CABLE OPERATING INSTRUCTIONS.PDF
TRC 8542TRC 8543TRC-8546 LETTER OF VOLATILITY.PDF
TRC-8546 GETTING STARTED GUIDE.PDF
Driver Downloads for TRC-8546
