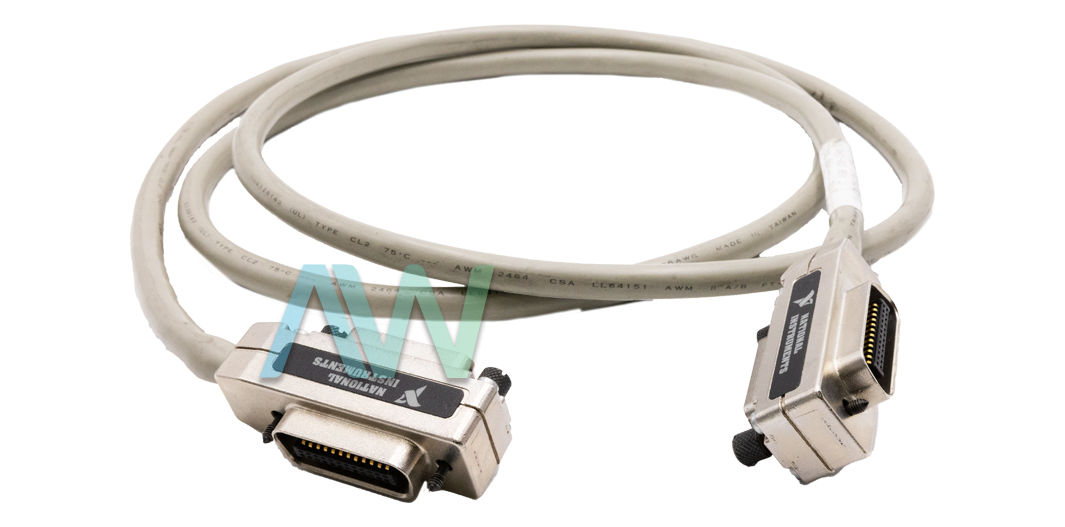

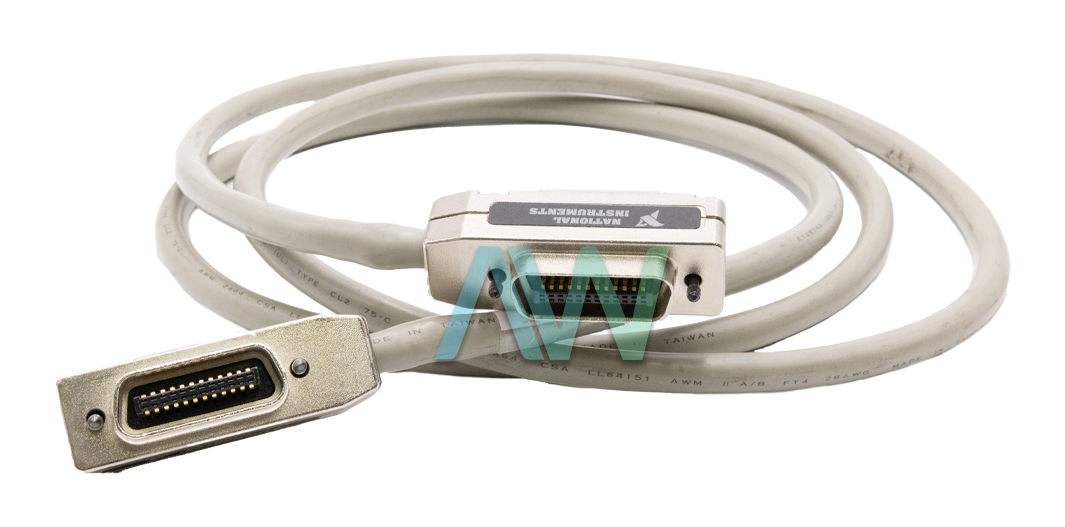

National Instruments X2 GPIB Cable
The National Instruments X2 (also referred to as 24M/F-24M/F X2) is a Double-Shielded GPIB Cable designed for instrument control and monitoring applications. This cable is a robust solution for demanding industrial applications. You can use this cable to connect to any field instrument or controller which comes with a GPIB port. The X2 Cable is a male-to-female type cable, which comes with a standard GPIB male connector on one end and a standard GPIB female connector on the other end. In addition to the cable, the receptacles incorporated in this cable are shielded.
The NI X2 GPIB Cable is available in several different lengths with different part numbers. These include 0.5 m (Part Number: 763061-005), 1 m (Part Number: 763061-01), 2 m (Part Number: 763061-02), 4 m (Part Number: 763061-03), 8 m (Part Number: 763061-04), 10 m (Part Number: 763061-10), 16 m (Part Number: 763061-16), and a 5 pack of the 2 m version (Part Number: 777781-25).
| Model | X2 (24M/F-24M/F X2) |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 763061-005, 763061-01, 763061-02, 763061-03, 763061-04, 763061-10, 763061-16, 777781-25 |
| Type | GPIB Cable |
| Cable Length | 0.5 m, 1 m, 2 m, 4 m, 10 m, or 16 m |
| Shielded | Yes |
| Warranty | 2-3 Year Warranty |
| X2 Manual | User Manual and Maintenance Manual Available for Download |
Associated NSNs for the X2:
6150-01-577-0553 (6150015770553), 6150-01-501-8581 (6150015018581), 6150-01-483-6119 (6150014836119), 6150-01-655-6461 (6150016556461)
Driver Downloads for X2
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
