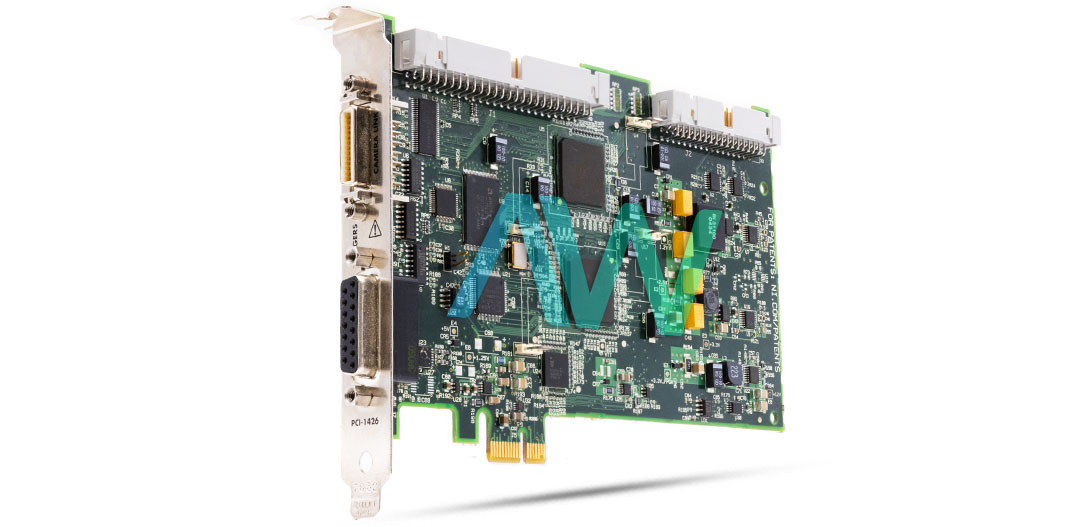

PCIe-1427 National Instruments Frame Grabber | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

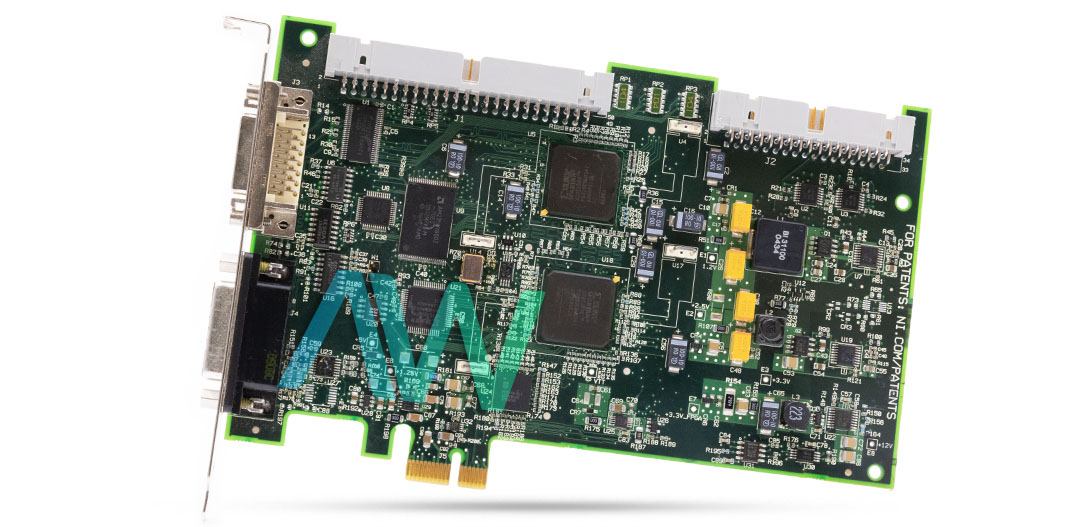

PCIe-1427 National Instruments Frame Grabber | Apex Waves | Image
PCIe-1427 National Instruments Frame Grabber | Apex Waves | Image
PCIe-1427 New
PCIe-1427 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the PCIe-1427

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
Check Availability Get Current Lead Time

National Instruments PCIe-1427 Frame Grabber

The PCIe-1427 (Part Number: 779706-01, 192823-01) is a Camera Link image acquisition device manufactured by National Instruments. It is intended for use in scientific and machine vision applications that need digital images with high resolution and simple cabling. With its onboard programmable region of interest, picture binarization, and separated digital I/O, it interfaces with any base-configuration Camera Link camera with ease. Real-time digital image acquisition and direct system memory transfer are supported by this incredibly adaptable device for Base configuration Camera Link-compatible cameras. Scientific and industrial environments equally benefit greatly from the PCIe-1427's fast data channel.

Installation and configuration are made easy with the included NI Vision Acquisition Software, featuring NI-IMAQ driver software. This software allows direct control of the device without needing to program at the register level. Camera files, validated by National Instruments, come pre-installed with the driver software, configuring the PCIe-1427 with camera output format information. With Camera Link compatible cameras, the gadget has an MDR 26-pin connector. For triggers or high-speed digital I/O, four extra TTL input/output lines are furthermore provided via a 15-pin D-SUB connector. Additionally, two optically isolated inputs and two RS-422 inputs are available through the D-SUB connection when not in use. These inputs can be utilized individually as single-ended or differential lines, or combined to form a quadrature encoder port.The NI Camera Link I/O Extension Board provides more I/O lines and is available for sophisticated triggering and isolated digital I/O requirements.

The PCIe-1427 makes use of the Real-Time System Integration (RTSI) bus to synchronize several devices, including data acquisition and motion control devices. This bus routes timing and trigger signals between the PCIe-1427 and up to four National Instruments Vision, DAQ, or Motion Control devices. It is made possible by the National Instruments RTSI bus interface and ribbon cable.The NI-IMAQ driver software is needed in order to program the PCIe-1427. National Instruments provides software packages such as NI Vision Builder for Automated Inspection and NI Vision Development Module that enable customized control over hardware and algorithms for additional analysis and processing of obtained pictures.

ModelPCIe-1427
ManufacturerNational Instruments
Part Number779706-01, 192823-01
TypeFrame Grabber Device
Camera InterfaceCamera Link
Camera CompatibilitySony, Basler, and Others
Pixel Clock Frequency Range20 to 80 MHz
Onboard Memory0
External Trigger I/O Lines4 (ISO/TTL)
I/O ConnectorSmall 15-Pin Connector
Bandwidth225 MB/s
Power Requirements+3.3 VDC, +12 VDC -- 1.5 A, 250 mA
Dimensions4.4 in. by 6.6 in.
Weight0.30 lb.
Software DriverVision Acquisition
PCIe-1427 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCIe-1427:

National Instruments PCIe-1427 Frequently Asked Questions



Question: What are the valid combinations of taps and bit depth for the NI PCIe-1427?

Answer: For one tap on the NI PCIe-1427, the bit depth can be 8, 10, 12, 14, 16, or 24 (RGB). For two taps, the bit depth can be 8, 10, or 12.



Question: What type of camera will the NI PCIe-1427 Frame Grabber work with?

Answer: The Frame Grabber works with any base-configuration Camera Link camera.



Question: What should I do if I get an error message when trying to upgrade my Windows software?

Answer: If you’re getting an error or your computer does not detect the device, you need a firmware upgrade. The drivers that are used are NI-IMAQ and NI-IMAQ I/O, from the Vision Acquisition Software.



Question: Does the PCIe-1427 have image binarization?

Answer: Yes, the Frame Grabber Device features image binarization, along with an onboard programmable region of interest and isolated digital I/O.
