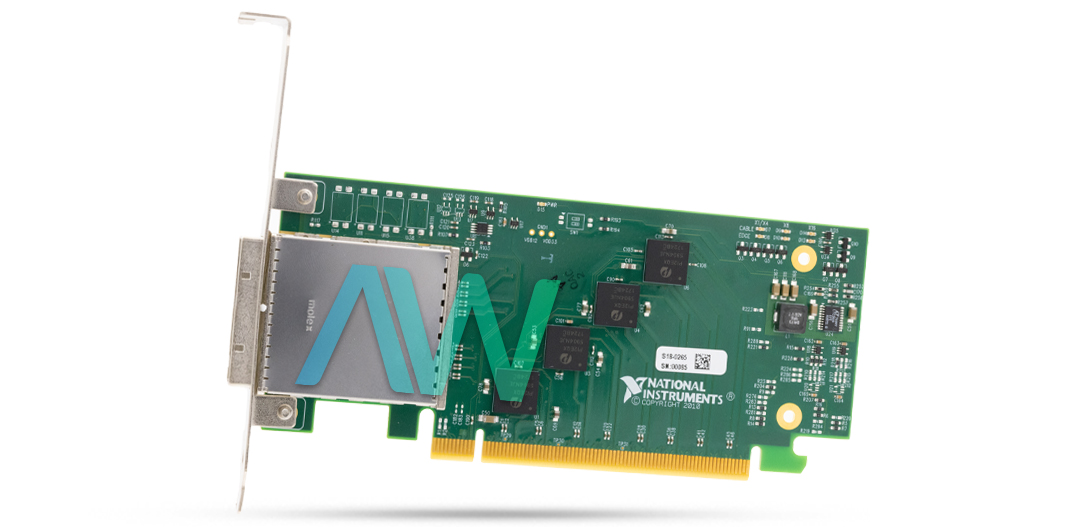

PCIe-8388 National Instruments Device for PXI Remote Control  | Apex Waves | Image PCIe-8388 National Instruments Device for PXI Remote Control  | Apex Waves - Wiring Diagram Image

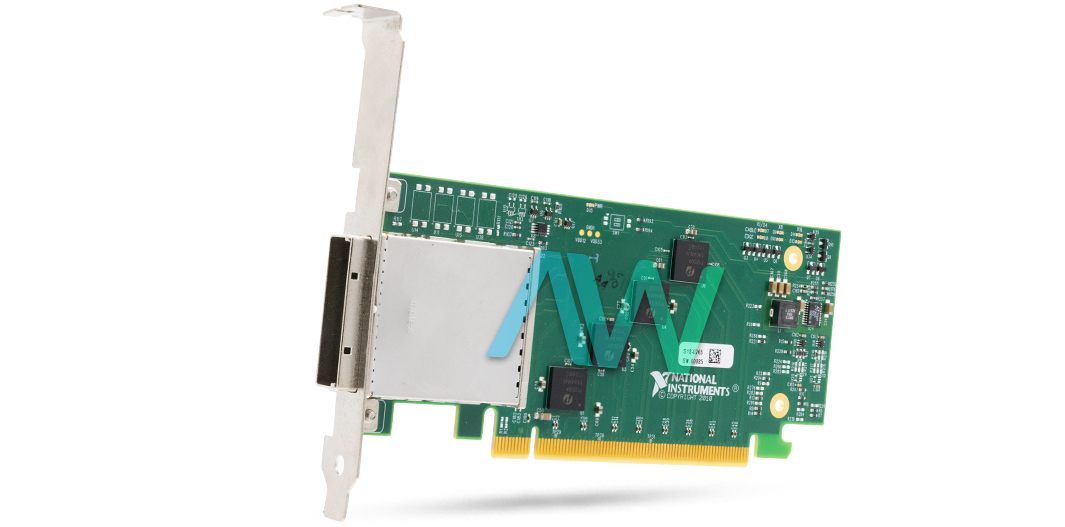

PCIe-8388 National Instruments Device for PXI Remote Control  | Apex Waves | Image
PCIe-8388 National Instruments Device for PXI Remote Control  | Apex Waves - Wiring Diagram Image
Rate the PCIe-8388
Rated 4.6/5 based on 12 ratings.

PCIe-8388

Modular Systems > National Instruments > PCI Controllers

Part Number PCIe-8388
Manufacturer/Brand National Instruments
Description PCIe-8388 Copper Cable MXI-Express Device for PXI Remote Control

Speak to a sales representative for pricing & lead time:


National Instruments PCIe-8388 MXI-Express Remote Controller

The PCIe-8388 (Part Number: 781762-01) is an MXI-Express Remote Controller for PCI-wired frameworks from a NI rackmount controller. The PCIe-8388 remote controller offers a PCI Express x16 copper link interface with the PCIe-8388 remote control module for PXI control.

The NI PCIe-8388 utilizes a link connect to associate the NI RMC-8354 rack-mount controller with PXI Express suspension. This pack incorporates a model board that is in the computer that is associated to x16 Gen2 cabled PCI Express copper link to either NI PCIe-8388 module in opening 1 of a PXI Express chassis. For accommodation, the user can buy either a total unit with every vital part or buy the board, module, and link independently. This module includes a downstream slot that works at x16 Gen2 PCI Express information rates. With the NI PCIe-8388 unit, the user can interface a sum of three PXI Express frames to a similar PC (NI RMC-8354). Other than interfacing to PXI Express chassis, the NI PCIe-8388 can interface outer GP-GPU walled in areas, including nVIDIA Tesla S2050 to PXI Express frameworks.

This controller offers x16 Gen2 PCI Express control of PXI Express (hypothetical greatest throughput of 8 GB/s/bearing), sustained pragmatic throughput of up to 5.6 GB/s, is compatible with NI rack-mount controllers (NI RMC-8354), supports multi-chassis setups for PXI Express frameworks with the NI PXIe-8388, supports distributed information exchanges between suspension, and has 1 m or 3 m copper link choices.

PCIe-8388 Mature Status has been declared by National Instruments, but the controller will still be available for purchase and repairs at Apex Waves.

ModelPCIe-8388
ManufacturerNational Instruments
Part Number781762-01
SeriesMXI-Express x16 Series
TypeMXI-Express Remote Controller
Slot TypePCI Express x16
Slot RequirementsOne PCI Express x16 slot (approved hosts only)
Cable SupportMXI-Express x16
Maximum Distance3 m
CompatibilityFully compatible with the PCI Express Specification,  Revision 2.0
Sustained Throughput3.2 GB/s
LED Indicators1 Tri-color LED
Dimensions2.72 in. × 6.06 in.
Weight0.21 lb.
WarrantyOne Year Warranty
PCIe-8388 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCIe-8388 Frequently Asked Questions



Question: Are rack-mount controllers compatible with the PCIe-8388?



Answer: The PCIe-8388 is compatible with rack-mount controllers and will allow them to control PXI Express systems with no additional programming required.



Question: What kind of link is provided with the NI PCIe-8388?



Answer: The NI PCIe-8388 provides a x16 PCI Express link over a copper cable.



Question: What does it mean when the PCIe-8388 module is blinking amber/green?



Answer: The PCIe-8388 LED blinking amber/green is from the motherboard 100MHZ clock jitter.

PCIe-8388 Technical Specifications:


Manufacturer:National Instruments
Model:PCIe-8388
Part Number:781762-01
Type:Device for PXI Remote Control
Repair Evaluation:$150
