PXIe-8388 In Stock | Ships Today

PXIe-8388, 2-Port, MXI-Express Interface, PXI Remote Control Module

Rated 5/5 | 20 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

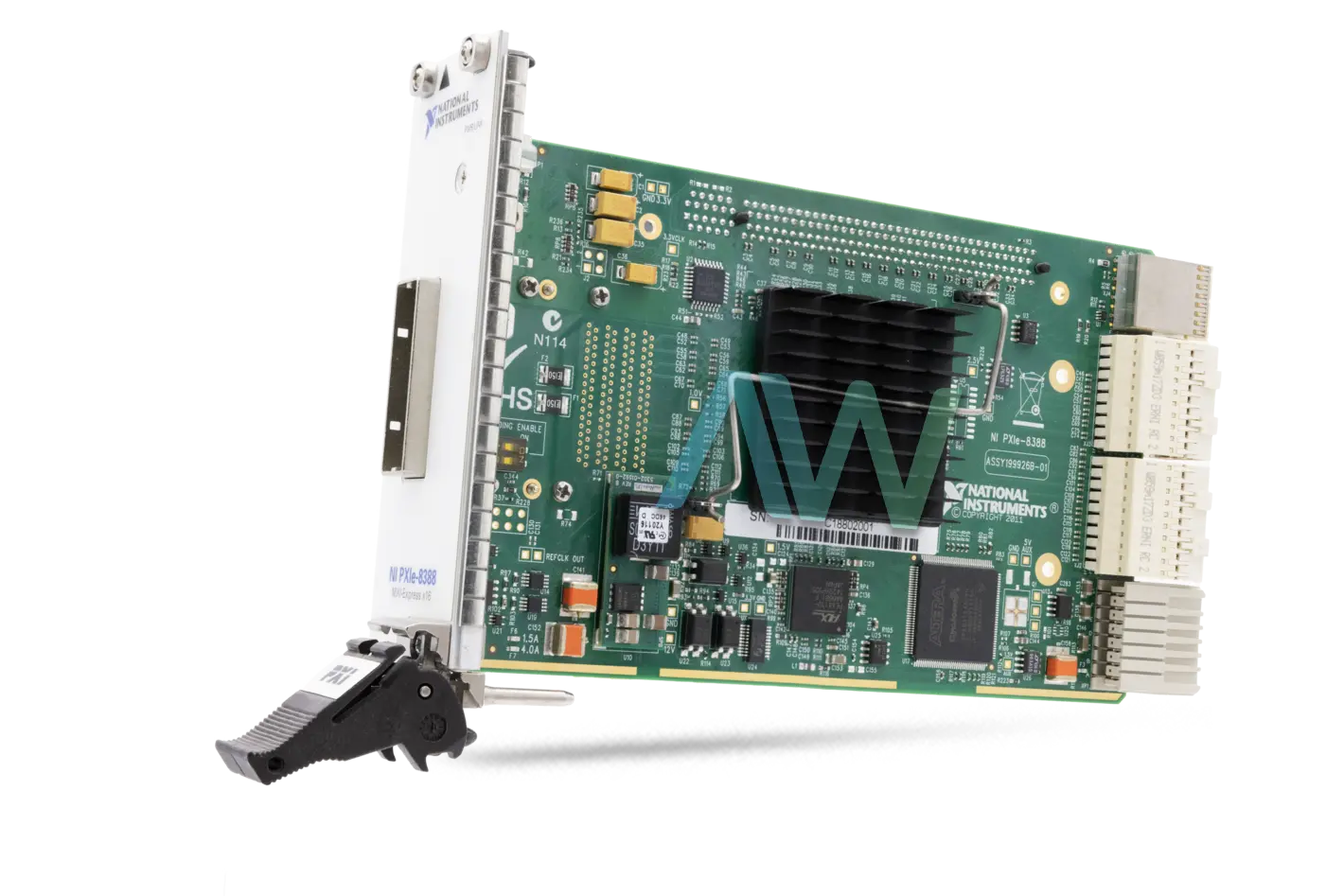

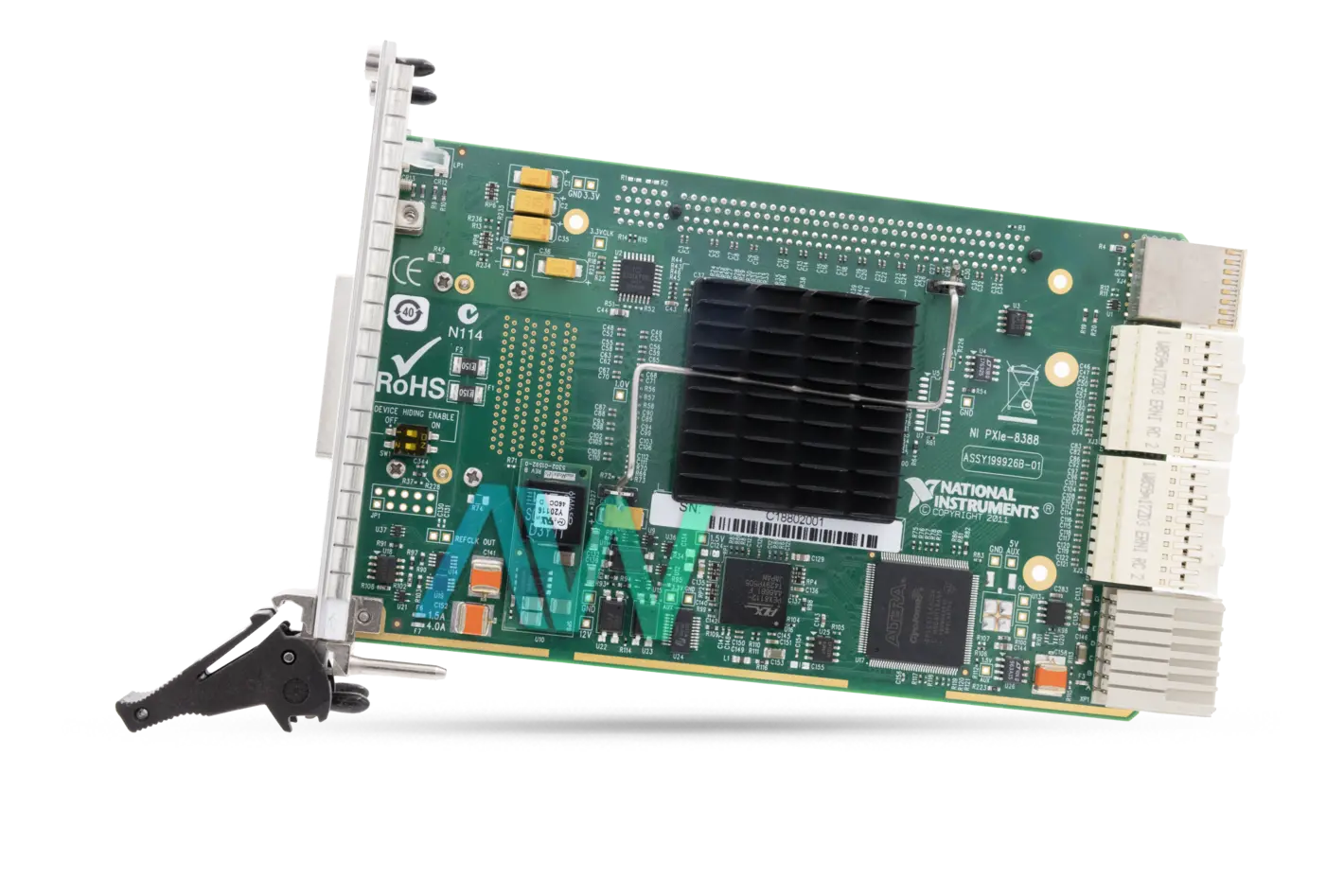

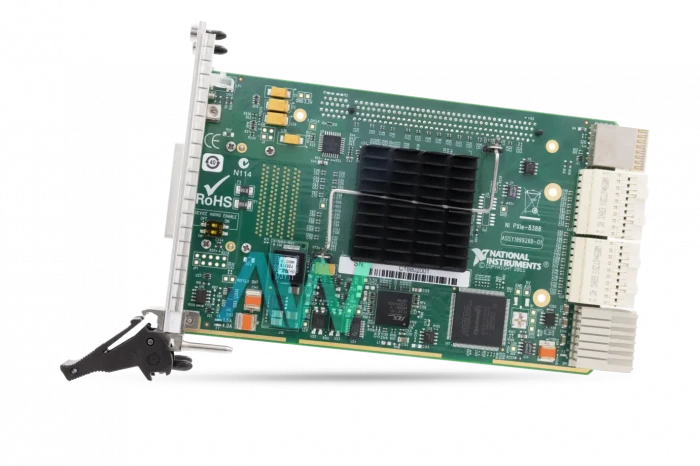

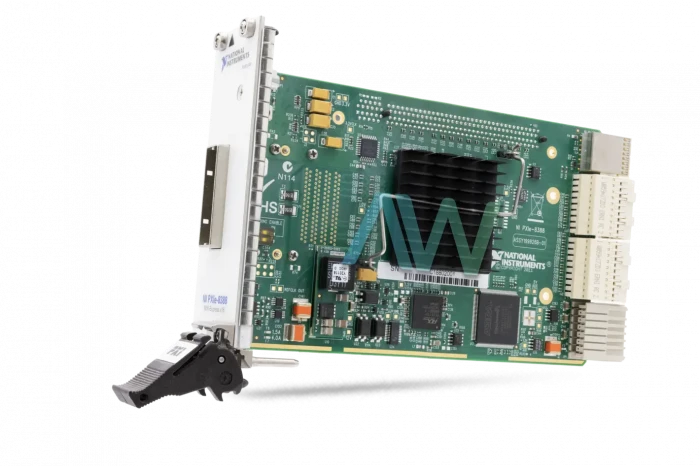

National Instruments PXIe-8388 PXI Remote Control Module

The PXIe-8388 (Part Number: 781760-01) is a Remote Control Module designed by National Instruments.  This module is an x16 Gen 2 PXI Express module This module is capable of sustained throughput ranged up to 5.6 GB/s unidirectional and can also sustain throughput up to 2.8 GB/s bidirectional. The NI PXIe-8388 also features multi-chassis configuration for PXI Express Systems. This Remote Control Module is installed in a PXI Chassis.

The PXIe-8388 module has a high-lane-count PCI Express switch, which enables peer-to-peer data transfers from one PXI Express slot to any other slot. There is a downstream port in this module to allow peer-to-peer data transfers between all the daisy-chained chassis. It helps the user control PXI and Compact PCI systems from a PC. There is no additional software required for this module. The NI PXIe-8388 Remote Control Module uses a completely transparent MXI-Express link. It also installs the PCIe-8388 through a copper, x16 MXI-Express cable. The cable length is 3 m maximum.

The NI PXIe-8388 module has physical dimensions of 3.9 x 6.3 inches. The module weighs 9.2 oz. (261 g). This module is a one slot system and can expand up to two controllers. This module is fully attuned with the PXI Express Hardware Specification. The pollution degree is 2. The PXIe-8388 has a random vibration range from 5 Hz up to 500 Hz and fulfills the IEC 61010-1 and UL 61010-1 standards of safety for IT equipment. This module also meets the EMC standards for electrical equipment. This module can be utilized for measurement, control, and laboratory use.

PXIe-8388 End of Life Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXIe-8388
Part Number781760-01
ManufacturerNational Instruments
TypePXI Remote Control Module
MXI Communication LevelMXI-Express Gen2 x16
Supported Cable TypeCopper
MXI Bandwidth8 GB/s
Dimensions3.9 x 6.3 in.
Weight9.2 oz.
Warranty2-3 Year Warranty
PXIe-8388 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-8388:

National Instruments PXIe-8388 Frequently Asked Questions



Question: Does the NI PXIe 8388 support daisy chaining?



Answer: No, the NI PXIe 8388 does not support daisy chaining.



Question: What are the slot requirements for the PXIe-8388 module?



Answer: The PXIe-8388 module requires one system slot and one or two controller expansion slots (PXI Express of CompactPCI Express).



Question: What does a basic MXI-Express x16 system with the NI PXIe-8388 contain?



Answer: A basic MXI-Express x16 system involves a PCIe-8388 in a compatible PC linked to a PXIe-8388 in the controller slot of a PXI Express or CompactPCI Express Chassis.



Question: How many LEDs are on the front panel of the PXIe-8388?



Answer: The PXIe-8388 has one tri-color LED on the front panel.
