PCIe-6343 In Stock | Ships Today
PCIe-6343, Analog and Digital I/O, Onboard NI‑STC3, 32 Bit Counter/Timers, NI Multifunction I/O Device
Need an Official Quote?

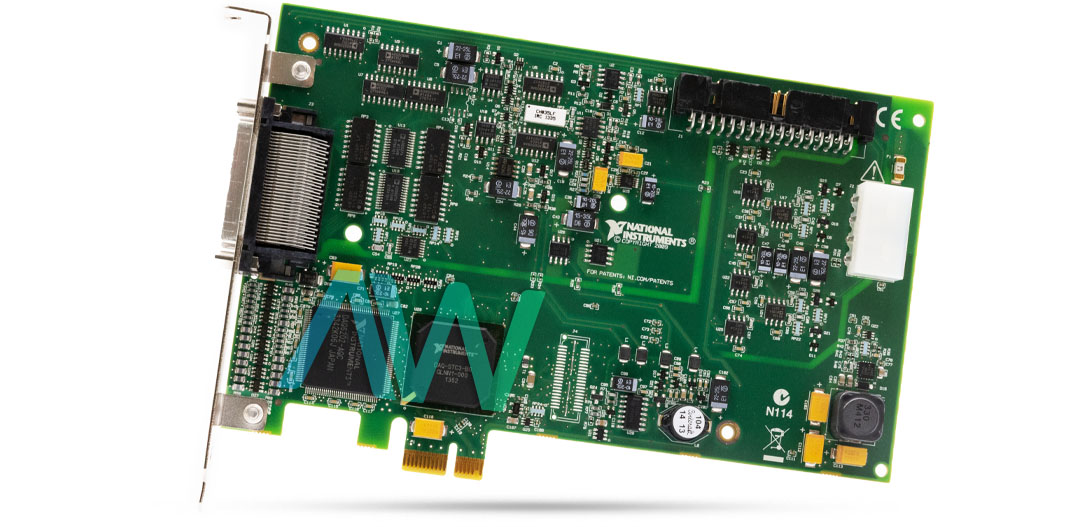

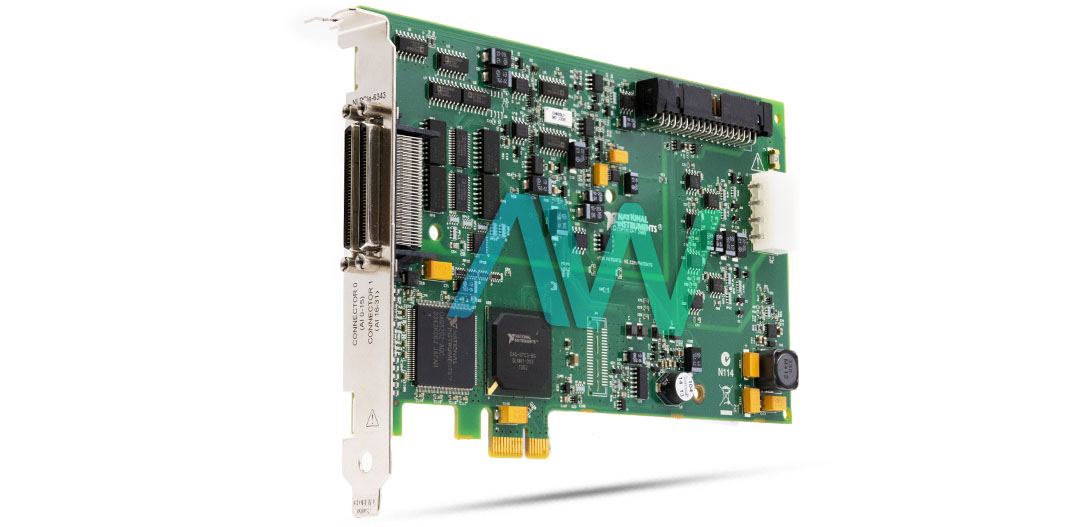

National Instruments PCIe-6343 Multifunction I/O Device
The PCIe-6343 (Part Number: 781047-01) is a Multifunction I/O Device manufactured by National Instruments. This versatile device offers high performance capabilities for applications such as advanced timing functions and retriggering measurement assignments. Equipped with a variety of channels, the NI PCIe-6343 features 16 differential analog inputs that can also be used as 32 single ended inputs. Additionally, the device features 4 analog output channels and 48 digital I/O channels. Each input channel of the device features 16 bits of ADC resolution of the input channels is 16 bits. With a bandwidth of 1.2 MHz and a FIFO buffer size of 2,047 samples, the PCIe-6343 provides a high-speed performance for applications of all sizes.
The sampling rate of the NI PCIe-6343 has no minimum, and goes up to 500 kS/sec for both single and multi-channels. This multifunction device also offers various options Analog Input, with an input range that can be adjusted to +0.2 V, +1V, +5 V, or +10V. However, the working voltage must not increase beyond +11 V. The analog input channels of the PCIe-6343 multifunction I/O device are protected against overvoltage, featuring protection of ±25 V for up to two AI pins when the device is on, and protection of ±15 V for up to two AI pins when the device is off.
The 4 output channels of the PCIe-6343 I/O device feature 16 bits of resolution and support multichannel sampling. When a single channel is used, this rate of sampling is 900 kS/sec. If 4 channels are sampled, the maximum rate reduces to 719 kS/sec/ch. The output voltage of the PCIe-6343 is in the range of +10 V. The NI PCIe-6343 boasts 48 digital PFI channels, each functioning independently and configurable as either input or output. The printed circuit board of the NI PCIe-6343 has dimensions of 9.9 cm × 16.8 cm (3.9 in. × 6.6 in.), with the device weighing 114 g (4.0 oz)
Model | PCIe-6343 |
---|---|
Manufacturer | National Instruments |
Part Number | 781047-01 |
Series | X Series |
Type | Multifunction I/O Device |
Analog Input Channels | 32 (16-Bit, 500 kS/s) or 16 differential |
Analog Output Channels | 4 (16-Bit, 900 kS/s) |
Digital Inputs | 16 |
Digital Outputs | 32 |
Timing I/O | 4 Counter/Timer I/O (32 bits, 100 MHz) |
Frequency Generator Channels | 1 |
Phase-Locked Loop (PLL) | 1 |
I/O Connectors | 2 68-pin VHDCI |
Power Requirements | +3.3 V, +12 V -- 1A, 1.4 W, 8.6 W |
Dimensions | 3.9 in. × 6.6 in. |
Weight | 0.25 lb. |
Driver Software | NI-DAQmx 9.0 |
Warranty | 2-3 Year Warranty |
PCIe-6343 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PCIe-6343:
194986A-01L, 194986B-01L, 194986C-01L, 194986D-01L, 194986E-01L, 194986F-01L, 781047-01
National Instruments PCIe-6343 Frequently Asked Questions
Question: What do the small high frequency spikes on the NI PCIe-6343 mean?
Answer: This is called glitching and can be eliminated by disabling multiplexing on the NI PCIe-6343 and sampling a single channel or migrating to a different data acquisition device that does not multiplex the channels.
Question: Can I have individual, unique outputs on separate DAC channels on the NI PCIe-6343 X Series DAQ?
Answer: Only one task can be set to be timed via hardware on the NI PCIe-6343 X Series DAQ. You cannot set a trigger or clock multiple channels independent from each other.
Question: Can the PCIe-6343 help with test automation?
Answer: The PCIe-6343 can complete control and test automation, as well as basic data logging.
PCIe-6343 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
