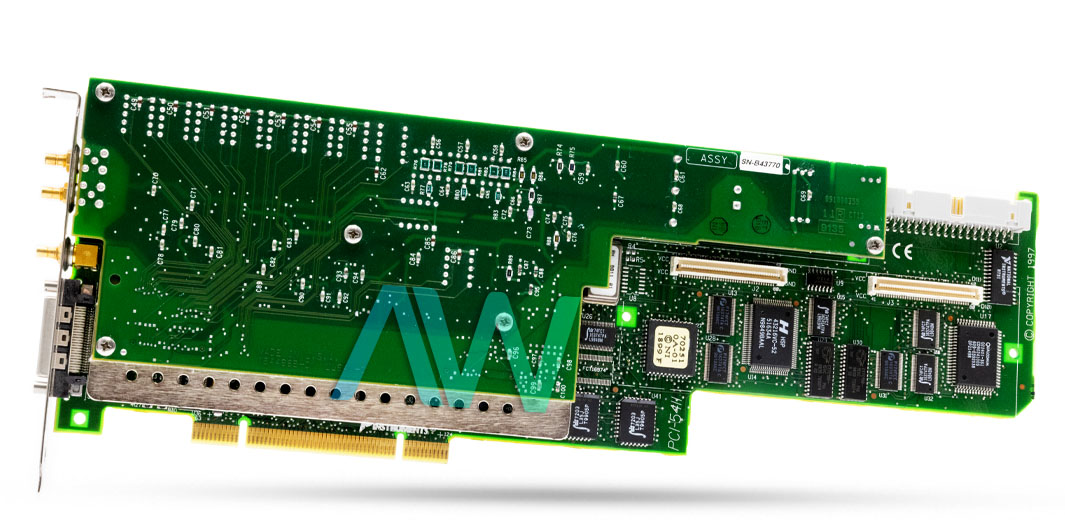

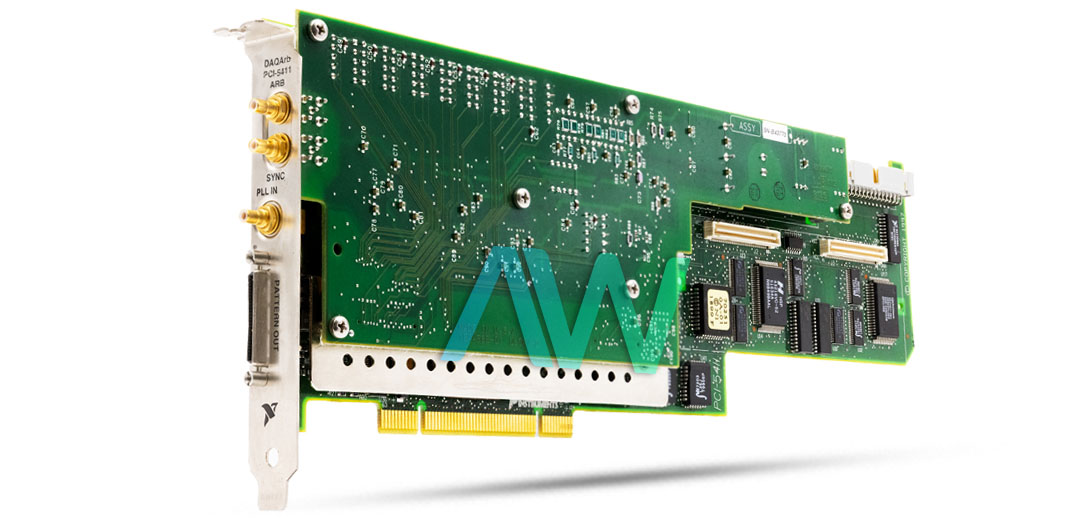

National Instruments PCI-5411 Waveform Generator Device

The PCI-5411 is a high-speed Waveform Generator Device developed by National Instruments. The PCI-5411 device works on the principle of the DDS method for signal generation. This device supports real-time system integration (RTSI). The PCI-5411 can be synchronized with external clocks through the PLL method. This device also features waveform linking and looping.

The PCI-5411 Waveform Generator Device has one 12-bit analog output channel. This output channel is DC-coupled. The maximum frequency of the PCI-5411 device is 16 MHz for TTL waveform output. The maximum frequency for square, ramp, and triangle signals is 1 MHz. The PCI-5411 Waveform Generator Device has a frequency resolution of 9.31 MHz in DDS mode. The resolution of the DDS accumulator is 32 bits. The sampling rate of the output channel is up to 40 MS/sec. The PCI-5411 has two selectable options for output impedance. These options are 50 Ω nominal or 75 Ω high impedance. The voltage output depends upon the selected impedance value. The voltage output of the PCI-5411 is +5V or +10V respectively.

The PCI-5411 Waveform Generator Device can generate both FM and AM waveforms.  The FM waveform is created in a DLL. The AM waveform is created using a simple amplitude modulation equation. The PCI 5411 is controlled using the built-in software or the NI-FGEN driver software. The built-in software is VirtualBench-FG or VirtualBench-ARB soft front panel software. To use NI-FGEN, an application development environment is required. The NI PCI-5411 supports various ADEs, including: LabVIEW, VB, or any C/C++ environment.

PCI-5411 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-5411
ManufacturerNational Instruments
TypeHigh-Speed Arbitrary Waveform Generator
Channels1
Channel Resolution12 bits
Frequency Range16 MHz Sine Wave Generation
1 MHz Ramp, Square and Triangle Wave Generation
Frequency Resolution9.31 mHz
Maximum Sample Rate40 MS/s
Output Voltage10 Vpp into 50 ohm
Power Requirements5-12V, 3.5-125mA
WarrantyOne Year Warranty
PCI-5411 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-5411 Frequently Asked Questions



Question: Does the PCI-5412 have a Digital Data Connector (DDC) like the PCI-5411?



Answer: No, the PCI-5412 does not have a Digital Data Connector (DDC) like the PCI-5411. Although the PCI-5411 is now obsolete, Apex Waves sells obsolete and discontinued NI devices.



Question: How do I modify the update rate of the NI PCI-5411?



Answer: The update rate of the NI PCI-5411 can be modified by using the niFgen Set Sample Rate.vi (niFgen_ConfigureSampleRate).



Question: Which operating systems are the PCI 5411 compatible with?



Answer: The PCI 5411 is compatible with Windows XP.



Question: What are the voltage output ranges of the NI PCI-5411?



Answer: The voltage output ranges of the NI PCI-5411 are ±5 V into a 50 Ω load and ±10 V into a high-impedance load.
