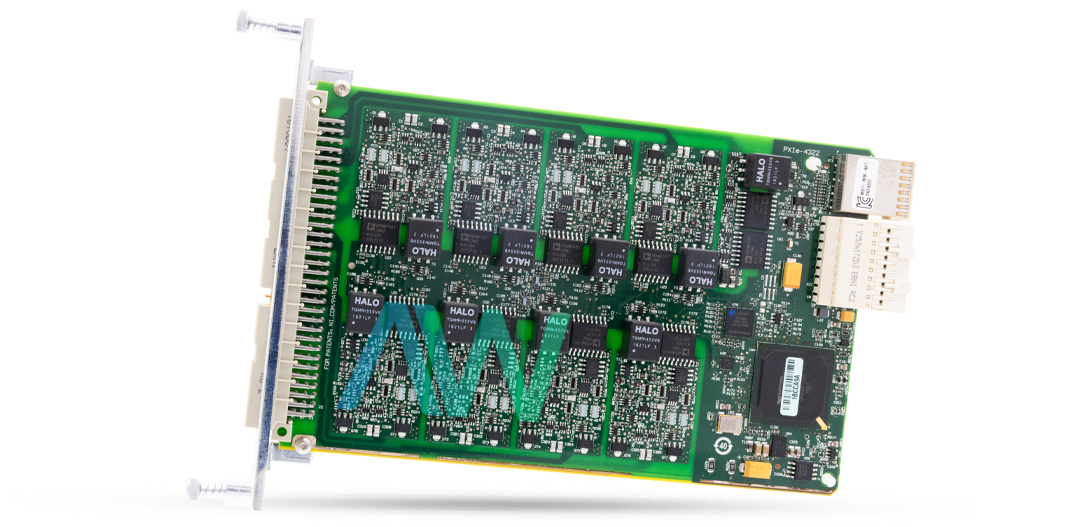

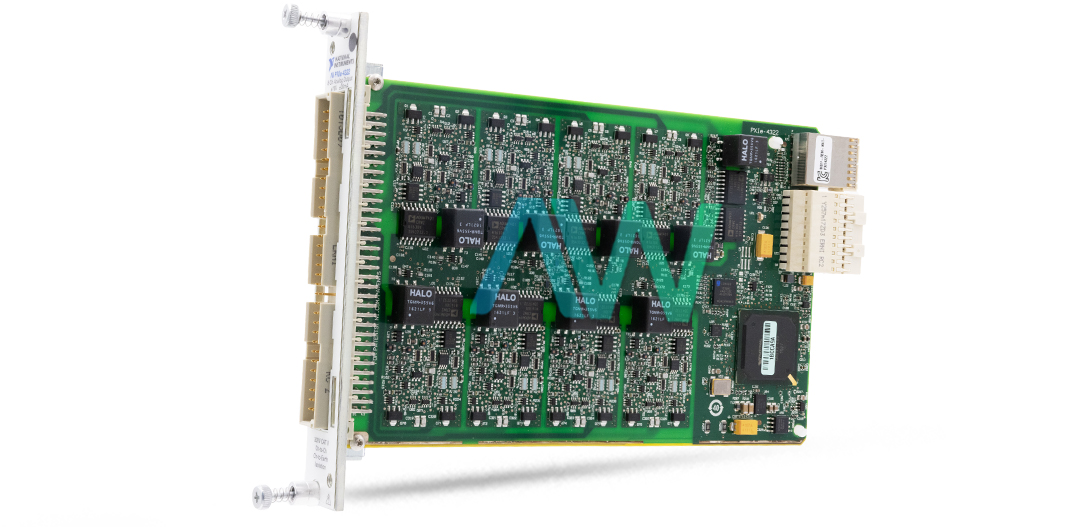

National Instruments 782882-01 PXI-Express Analog Output Module
National Instruments part number 782882-01 is an identifying part number of the PXIe-4322, a high-performance PXI-Express Analog Output Module designed for precise voltage generation across multiple channels. This module features 16-bit resolution on all channels, ensuring highly accurate and stable voltage output, essential for precision applications.
The 782882-01 includes four independent analog output channels, each capable of outputting voltages from -16V to +16V, allowing for simultaneous control of multiple processes or devices. It supports a maximum update rate of 1 MS/s per channel, facilitating fast signal generation and real-time adjustments suitable for dynamic testing scenarios.
With software-configurable output ranges, the 782882-01 offers flexibility to adapt to specific application requirements without hardware changes. It supports multi-device synchronization through the PXI Express chassis backplane, enabling coordinated operation with other PXI modules for complex systems. Protection features include overvoltage and short-circuit safeguards on all output channels, protecting both the device and connected equipment. The 782882-01's compact and modular design integrates seamlessly into existing PXI systems, conserving rack space. This module is ideal for signal generation in device characterization, sensor signal simulation, automated test equipment, control system R&D, and precision industrial automation. Compatible with a range of National Instruments software tools, including LabVIEW, the 782882-01 integrates easily into comprehensive testing and measurement systems.
| Model | 782882-01 |
|---|---|
| Model Name | PXIe-4322 |
| Part Type | PXI-Express Analog Output Module |
| Resolution | 16-bit |
| Number of Channels | 4 |
| Output Voltage Range | -16V to +16V |
| Update Rate | 1 MS/s per channel |
| Output Range Configuration | Software-configurable |
| Synchronization | Multi-device synchronization through PXI Express chassis backplane |
| Protection Features | Overvoltage and short-circuit protection |
