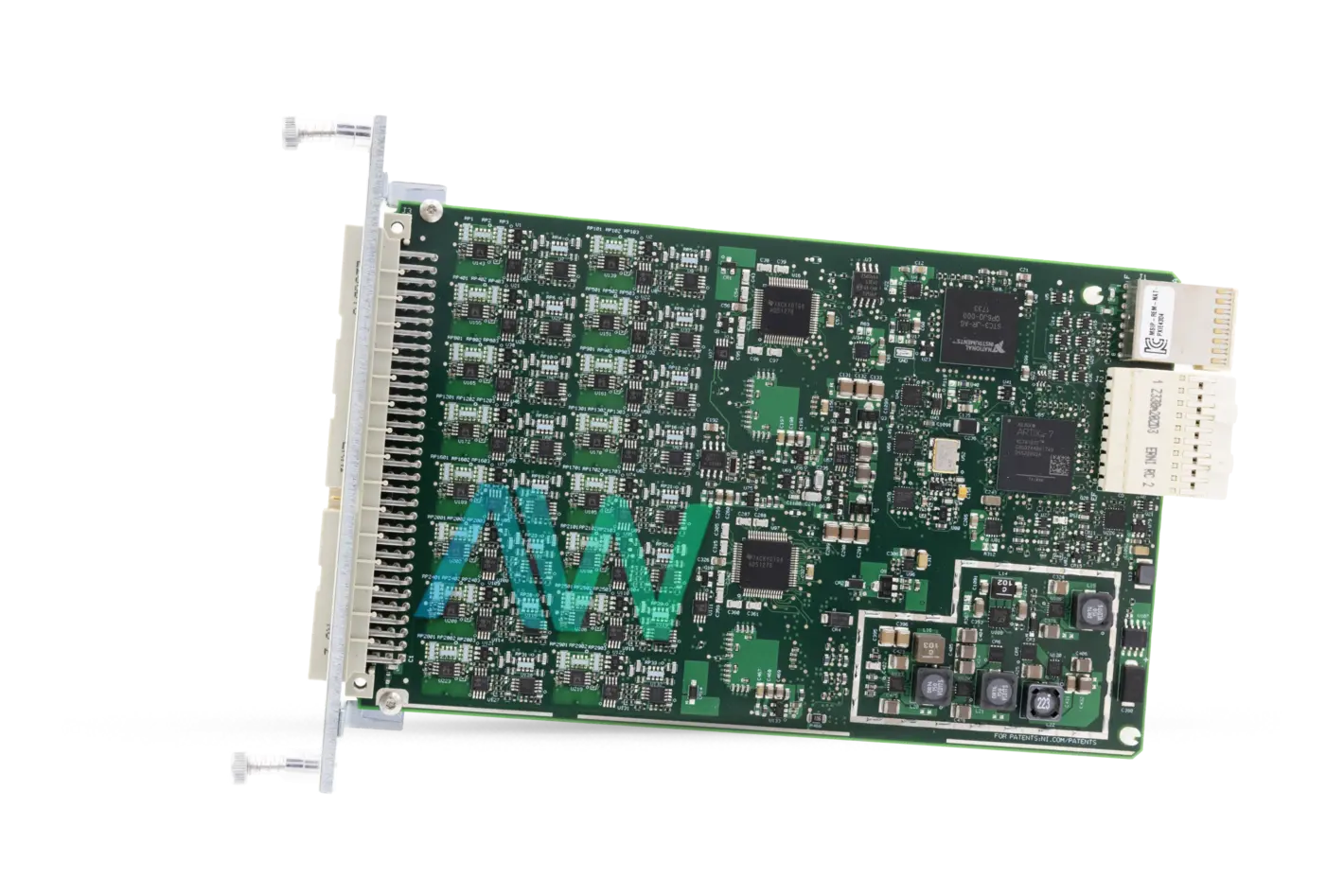

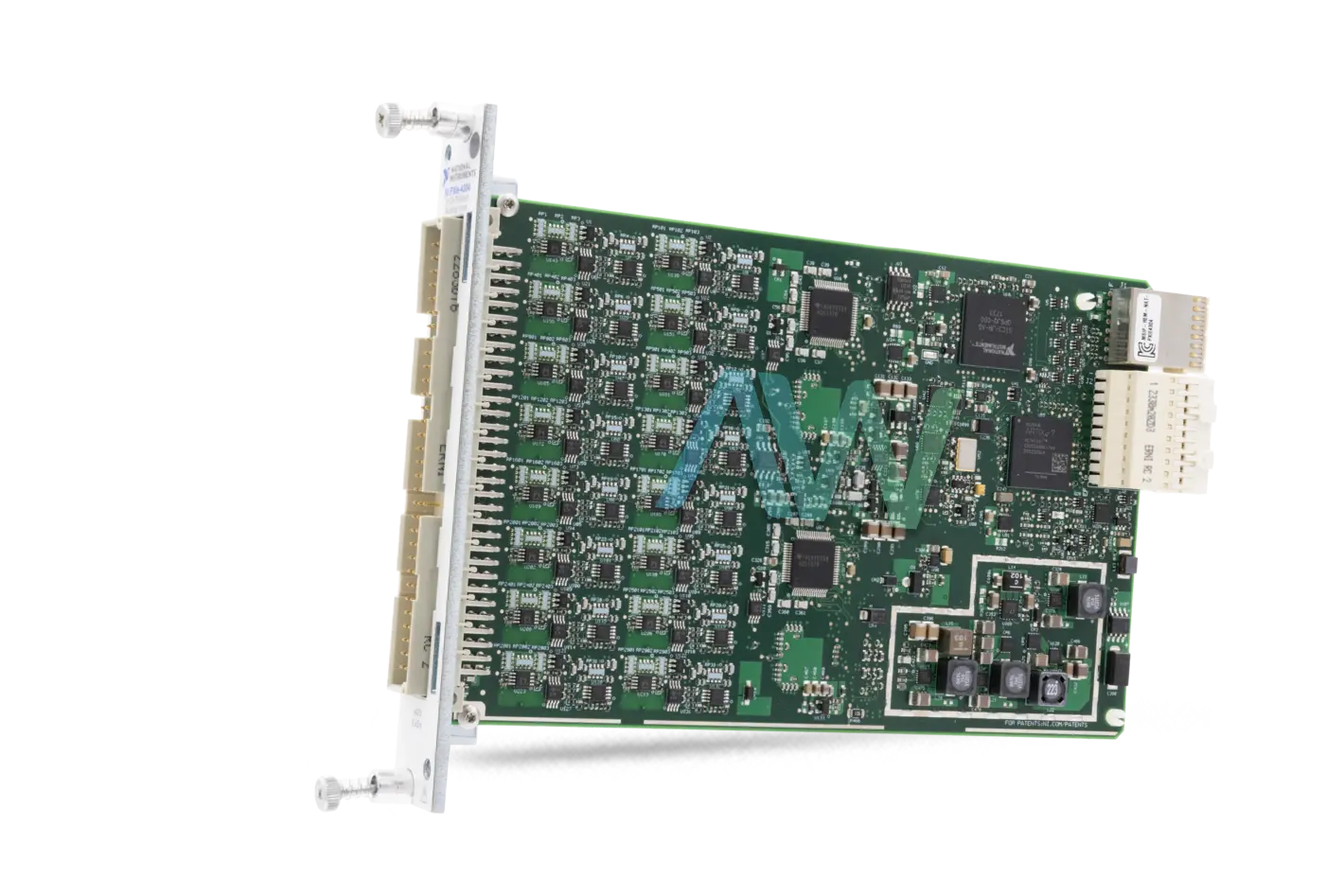

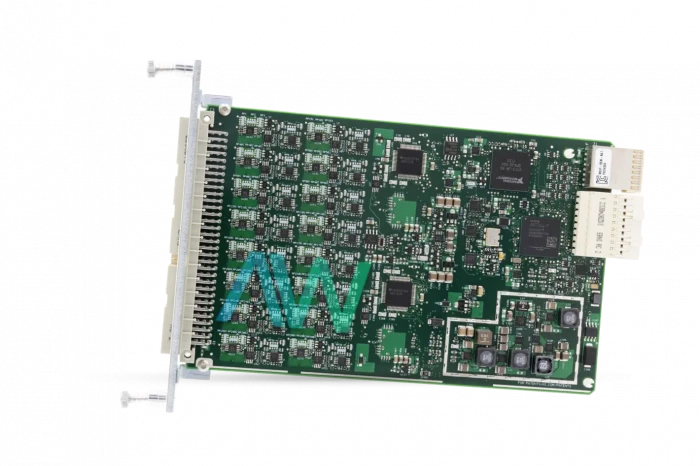

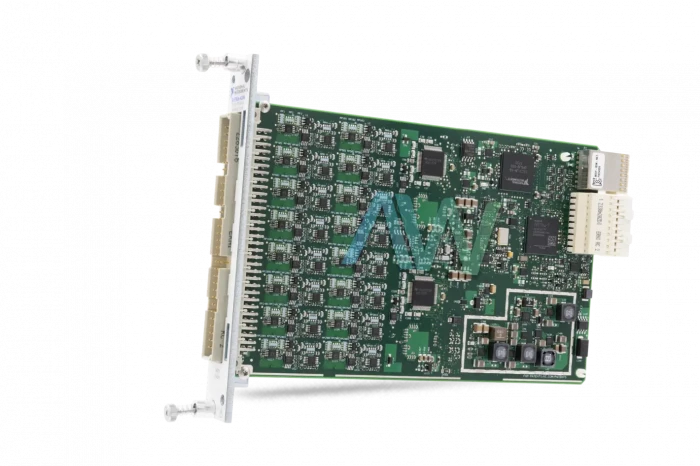

National Instruments PXIe-4304 PXI Analog Input Module

The PXIe4304 (Part Number: 783867-01) is an Analog Input Module from NI, which enables the users to carry out measurements involving high voltage applications. The module comes with a built-in ADC with 24-bit resolution. The sample rate ranges from 1S per second up to 5kS per second. The NI PXIe-4302 Analog Input Module also incorporates 32 channels. These channels enable users to input the signal for various testing requirements. The module offers high measurement accuracy to achieve optimum results at the industrial level.

The PXIe-4304 has the capacity to operate up to four different sample rates. This module can also trigger the configurations simultaneously, which helps verify the measurement of any required sensor. The NI PXIe-4304 is capable of measuring the voltage ranges from -42V up to 42V. The built-in TB-4304 is used to assist with it. The PXIe-4304 module offers two modes of operation: Buffered Mode and Hardware-Timed Signal Point Mode. In Buffer Mode, the digital and analog filters operate in conjunction with each other. The NI PXIe-4304 Analog Input Module delivers a precise representation of in-band signals. At the same time, it drops out-of-band signals.

The National Instruments PXIe-4304 Analog Input Module has the capability to either import or generate signals internally. In Buffered acquisitions, it takes time to transfer data to a host machine. This is accomplished by building larger bus transactions and optimized throughput. In HWTSP acquisitions, the NI PXIe 4304 sends data to a host machine in response to every sample clock. This helps optimize latency. These qualities enable the HWTSP feature to be suitable for real-time control applications.

Associated Part Numbers: 783867-01

ModelPXIe-4304
Part Number783867-01
ManufacturerNational Instruments
TypePXI Analog Input Module
Differential Analog Input Channels32
Maximum Sample Rate5 kS/s
Analog Input Resolution24 bits
Dimensions6.3 x 3.9 in.
Weight5.5 oz.
Warranty2-3 Year Warranty
PXIe-4304 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-4304 Frequently Asked Questions



Question: What is the analog input voltage range of the PXIe-4304 module?



Answer: The PXIe-4304 has an analog input voltage range of -42 V to 42 V.



Question: What are the power requirements for the PXIe-4304?



Answer: The power requirements for the PXIe-4304 are 1.3 A at +12 V and 1.1 A at +3.3 V.



Question: What is the slot compatibility of the NI PXIe-4304?



Answer: The NI PXIe-4304 is compatible with PXI Express or PXI Express hybrid slots.



Question: Which types of external sources can the PXIe-4304 ADCs not be clocked from?



Answer: The PXIe-4304 ADCs can be clocked from various types of external sources, but this does not include encoders and tachometers.
