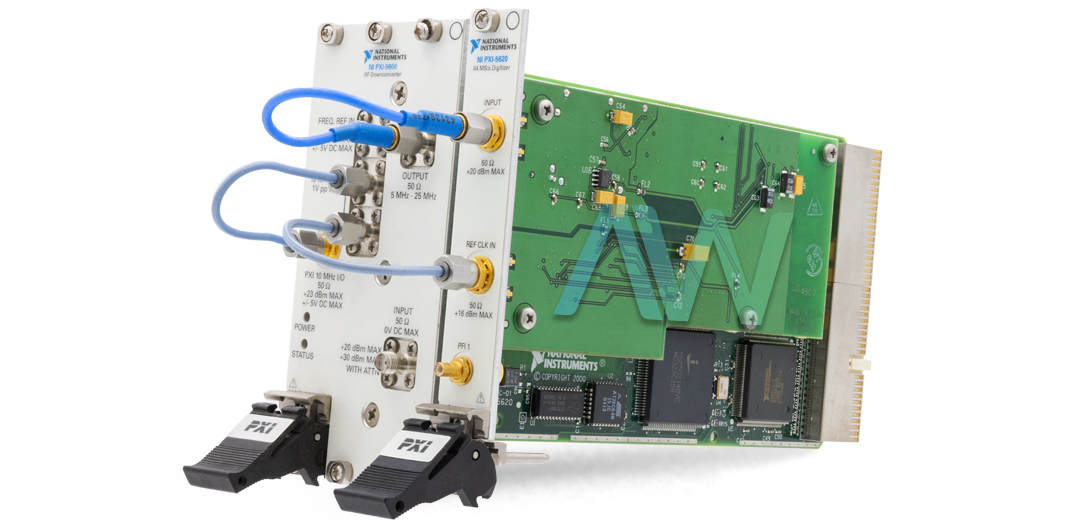

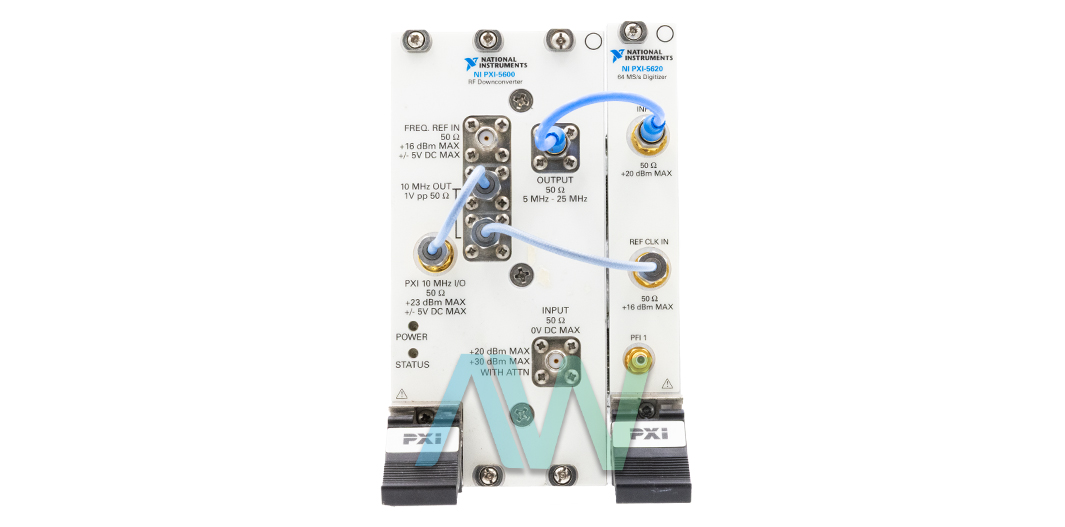

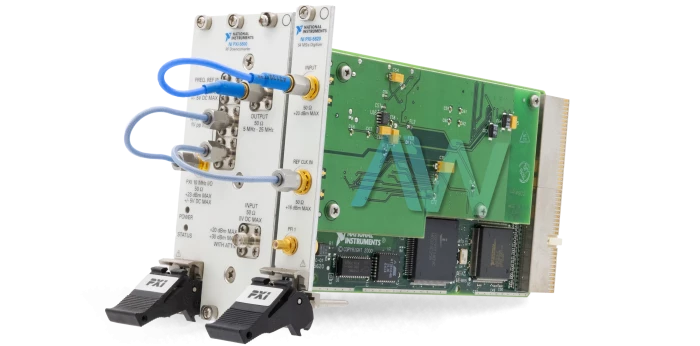

National Instruments PXI-5660 PXI Vector Signal Analyzer

The National Instruments PXI-5660 PXI Vector Signal Analyzer is a modular analyzer of 2.7 GHz upgraded for automated testing. This module gives elite RF estimations in a minimal 3U PXI bundle. The NI PXI-5660 gives a wide data transfer capacity progressively, a profoundly stable time base, and adaptable programming devices that can deal with estimation applications running from portrayal of R and D segments to the remote checking of RF route frameworks deployed in the countryside. The PXI-5660 has two part numbers with different memory capacities: 778284-02 with 64 MB memory and 778284-01 with 32 MB memory.

The NI Spectral Measurement Toolkit for LabVIEW and LabWindows/CVI is incorporated with the NI PXI-5660 and gives regular estimations, including control range, control peak and frequency, band control, contiguous channel power, and bandwidth.

The most significant advantage of the PXI-5660 and the Spectral Measurements Toolkit gives a profoundly adaptable and capable answer for logical research applications, communications, consumer gadgets, aviation/safeguard, and semiconductor testing, as well as rising areas, such as software defined radio (SDR), radio frequency identification (RFID), and remote sensor systems. This model offers an unrivaled measurement throughput; the most important advantage of the PXI-5660 over conventional RF instrumentation is estimation throughput.

With the NI PXI-5660 Signal Analyzer, the user can obtain an extensive variety of signal levels, from +30 dBm to less than -130 dBm and can accomplish up to 50 dB of input attenuation, which is selectable in 10 dB steps.

ModelPXI-5660 (778284-02, 778284-01)
ManufacturerNational Instruments
TypePXI Vector Signal Analyzer
Bandwidth20 MHz
Resolution14-bit
Frequency Range9 kHz to 2.7 GHz
Dimensions8.5 x 2.4 x 5.1 in.
WarrantyOne Year Warranty
PXI-5660 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-5660 Frequently Asked Questions



Question: Why does the NI PXI-5660 RF Signal Analyzer have two different part numbers?



Answer: The NI PXI-5660 RF Signal Analyzer has two memory options, with two different part numbers: the 778284-01 with 32 MB memory and the 778284-02 with 64 MB memory.



Question: Which driver software is included with the PXI-5660?



Answer: The PXI-5660 comes with NI-TUNER and NI-SCOPE driver software.



Question: What is the signal level range of the NI PXI-5660?



Answer: The NI PXI-5660 has a signal level range from -130 to +30 dBm.



Question: What is the dynamic range of the PXI-5660?



Answer: The dynamic range of the PXI-5660 is over 80 dB.
