PXI-5610 In Stock | Ships Today
PXI-5610, 2.7 GHz, PXI RF Signal Upconverter
Need an Official Quote?

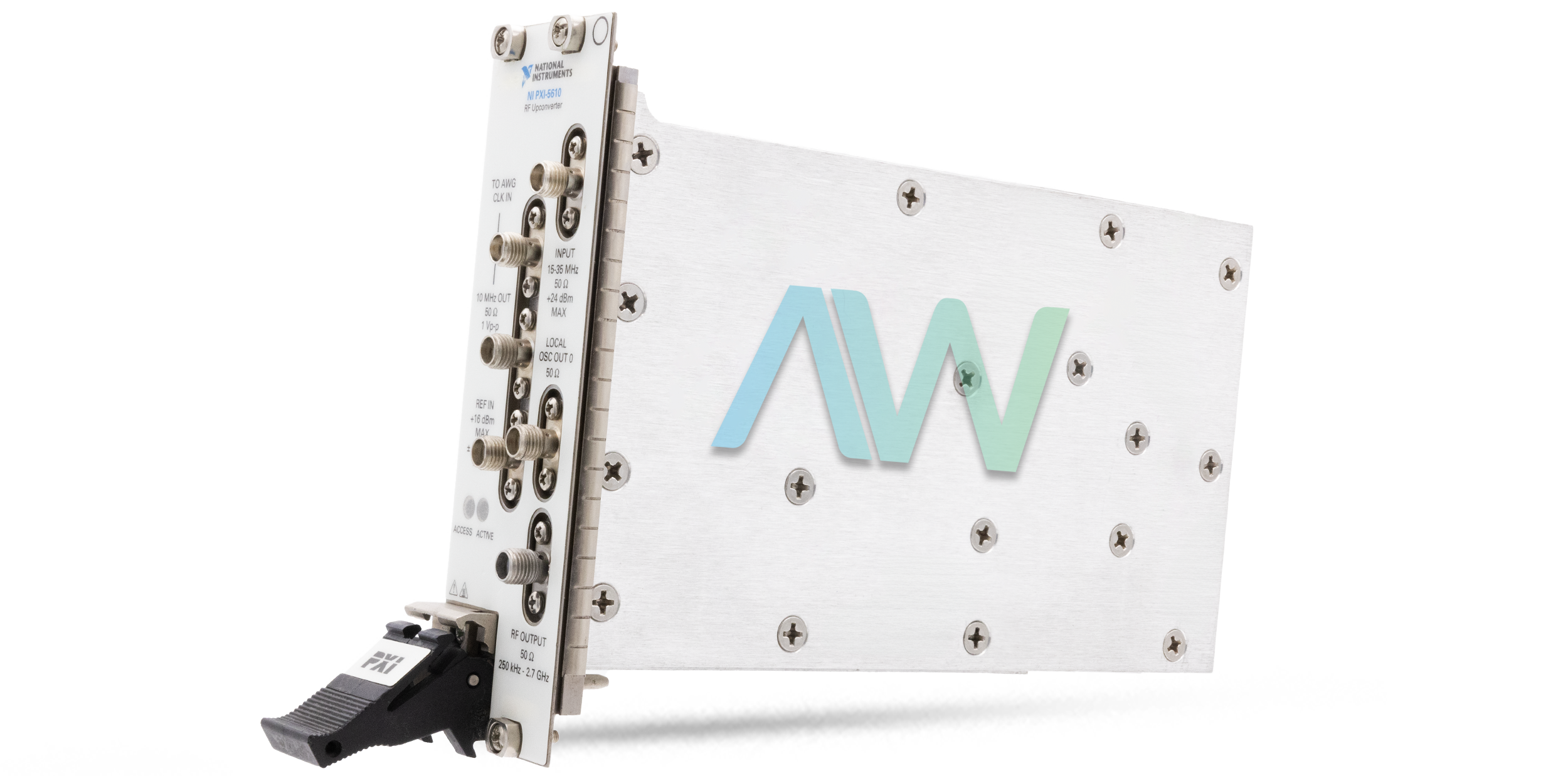

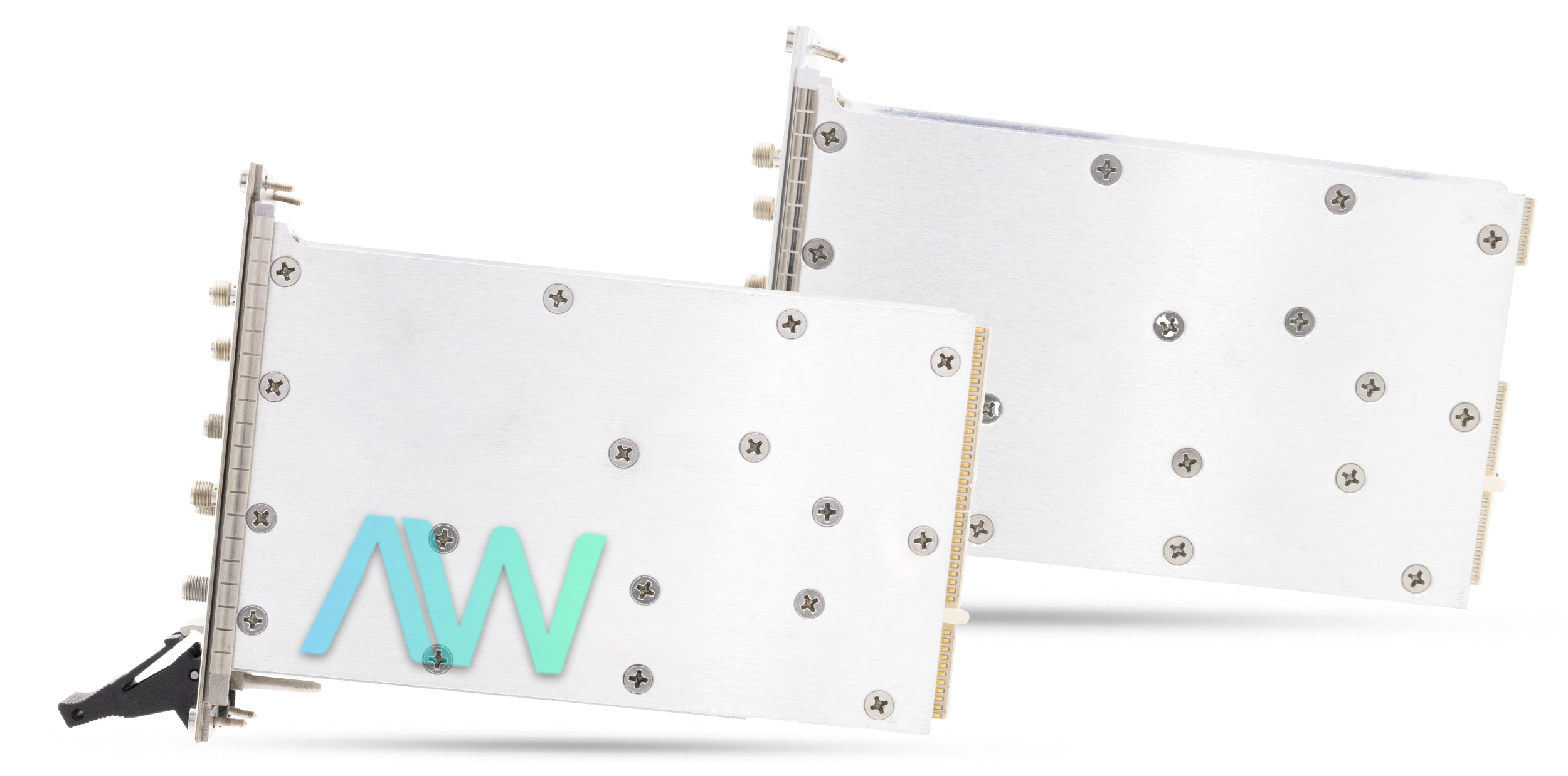

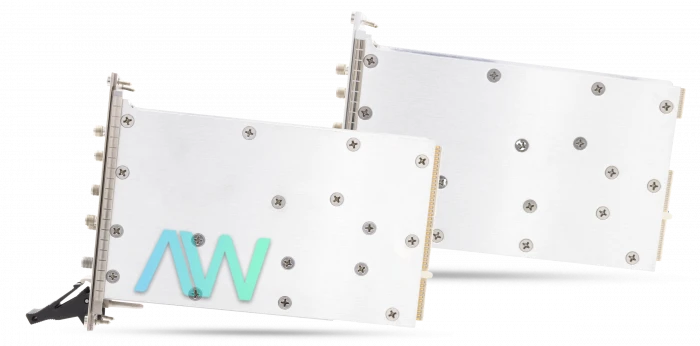

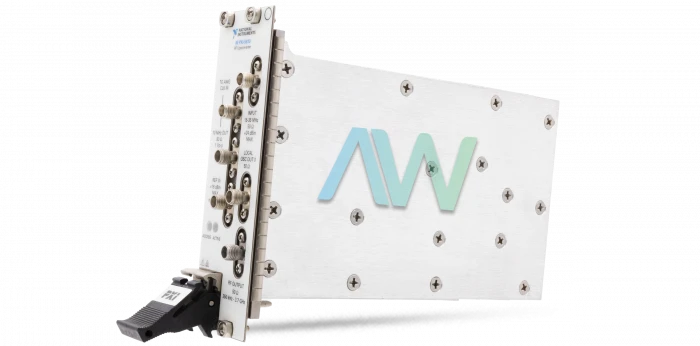

National Instruments PXI-5610 PXI RF Signal Upconverter
The NI PXI-5610 (Part Number: 778737-01) is a 2.7 GHz Upconverter in a 2-slot, 3U PXI module. The PXI-5610 highlights a wide continuous bandwidth and a very steady timebase, accurate to within ±50 ppb. It gives astounding integration with modular function generators for RF generation applications. The NI PXI-5610 can import and export triggers from the PXI trigger bus, the PXI star trigger line, or the front board SMA connector. The PXI trigger bus extraordinarily rearranges synchronizing RF estimations with other PXI modules, such as DMMs, sound analyzers, and machine vision modules.
The NI PXI-5610 RF Signal Upconverter can have the amplitude exactness of the analog input be calibrated. Temperature variations are adjusted and corrected amid typical operation, resulting in high stability and repeatability. The device operates using the NI-RFSG driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW and LabWindows/CVI. This model also has the National Instruments NI-TUNER programming incorporated; NI-TUNER gives a driver-level interface that integrates with your choice ADE. The device hardware can be configured using the Measurement & Automation Explorer tool.
The 10 MHz reference clock on the PXI-5610 can synchronize to any of three sources – the installed high-accuracy OCXO reference clock, an outer reference clock, or the PXI backplane. By utilizing the PXI backplane, the user can synchronize the PXI-5610 and other PXI modules without utilizing any cables. The user can also synchronize the PXI-5610 to an outer source by utilizing its 6 SMA type front panel connector: the 10 MHz OUT, TO AWG CLK IN, REF IN, INPUT, LOCAL OSC OUT 0, and the RF OUTPUT connectors. It has a warm-up time of 30 minutes, a temperature range of 0 °C to 55 °C, and a recommended calibration interval of one year.
The NI PXI-5610 Upconverter works with Windows 2000/NT/XP, uses the LabVIEW and LabWindows/CVI Driver Software, offers a frequency range between 250 kHz to 2.7 GHz, 20 MHz of continuous transmission capacity, an output power range of -145 dBm to +10 dBm. 130 dB of flexible gain, and a High-stability OCXO timebase. The device has a weight of 41.1 oz., with the dimensions: 8.5 x 1.6 x 5.2 in.
Model | PXI-5610 (778737-01) |
---|---|
Manufacturer | National Instruments |
Type | PXI RF Signal Upconverter |
Frequency Range | 250 kHz to 2.7 GHz |
Real-Time Bandwidth | 20 MHz |
Output Power Range | -145 dBm to +10 dBm |
Dimensions | 8.5 x 1.6 x 5.1 in. |
Weight | 41.1 oz. |
Warranty | Three Year Warranty |
PXI-5610 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-5610:
186126B-30, 186126C-34, 187718Y-02, 187718Y-03, 187718Y-04, 187718Y-05, 187718Y-06, 187718Y-07, 1885.58, 18855.8, 188555A-01, 188558A-01, 188558B-01, 188558C-01, 188558D-01, 188558F-01, 188558F-02, 188558G-01, 188558G-01L, 188558G-02, 188558H-01L, 188558J-01L, 188558K-01L, 18856.1, 18856.4, 188561A-01, 188561B-01, 188561C-01, 188561D-01, 188561F-01, 188561G-01, 188561G-02, 188561G-02L, 188561H-01L, 188564A-01, 188564B-01, 188564C-01, 188564D-01, 188564F-01, 188564G-01, 188564H-01, 188564J-01, 188564K-01, 188564K-01L, 188564L-01, 188564L-01L, 188564M-01L, 189527A-01, 18971.8, 189718A-01, 189718B-01, 189718C-01, 189718D-01, 189718F-01, 189718G-01, 189718H-01, 189718J-01, 189718K-01, 189718L-01, 189718M-01, 189718M-01L, 189718M-02, 189718M-03, 189718N-01, 189718R-01L, 189718T-01L, 189718U-01L, 189718V-01L, 189718W-01L, 189718Y-01, 189718Y-01L, 189718Y-02, 189718Y-03, 189718Y-04, 189718Y-05, 189718Y-06, 189718Y-07, 189718Y-08, 189718Y-09, 191192A-01, 191307A-01, 198465A-01, 198465B-01, 198465C-01, 198465D-01, 198466A-01, 198466B-01, 778737-01, 778737-02, 778737-03
Associated NSNs for the PXI-5610:
5963-01-626-2480 (5963016262480)
National Instruments PXI-5610 Frequently Asked Questions
Question: What is the adjustable gain of the NI PXI-5610 RF Upconverter?
Answer: The adjustable gain of the NI PXI-5610 RF Upconverter is 130 dB.
Question: How many slots does the NI PXI-5610 Upconverter have?
Answer: The NI PXI-5610 Upconverter has 2 slots.
Question: Where can I find the NI PXI-5610 specifications?
Answer: The NI PXI-5610 specifications can be located under the Technical Specifications tab on the product page.
Question: What type of front panel connectors are on the PXI-5610?
Answer: The PXI-5610 has SMA connectors on the front panel.
PXI-5610 PDF Manuals
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI PXI-5610 LETTER OF VOLATILITY.PDF
NI PXI 5670 5671 SPECIFICATIONS.PDF
NI PXI 5670 GETTING STARTED GUIDE.PDF
NI PXI 5671 GETTING STARTED GUIDE.PDF
NI PXIE 5672 GETTING STARTED GUIDE.PDF
NI PXIE 5672 SPECIFICATIONS.PDF
PXI 5670 LETTER OF VOLATILITY.PDF
PXI 5671 LETTER OF VOLATILITY.PDF
PXIE 5672 LETTER OF VOLATILITY.PDF
PXI-5610 Diagrams
