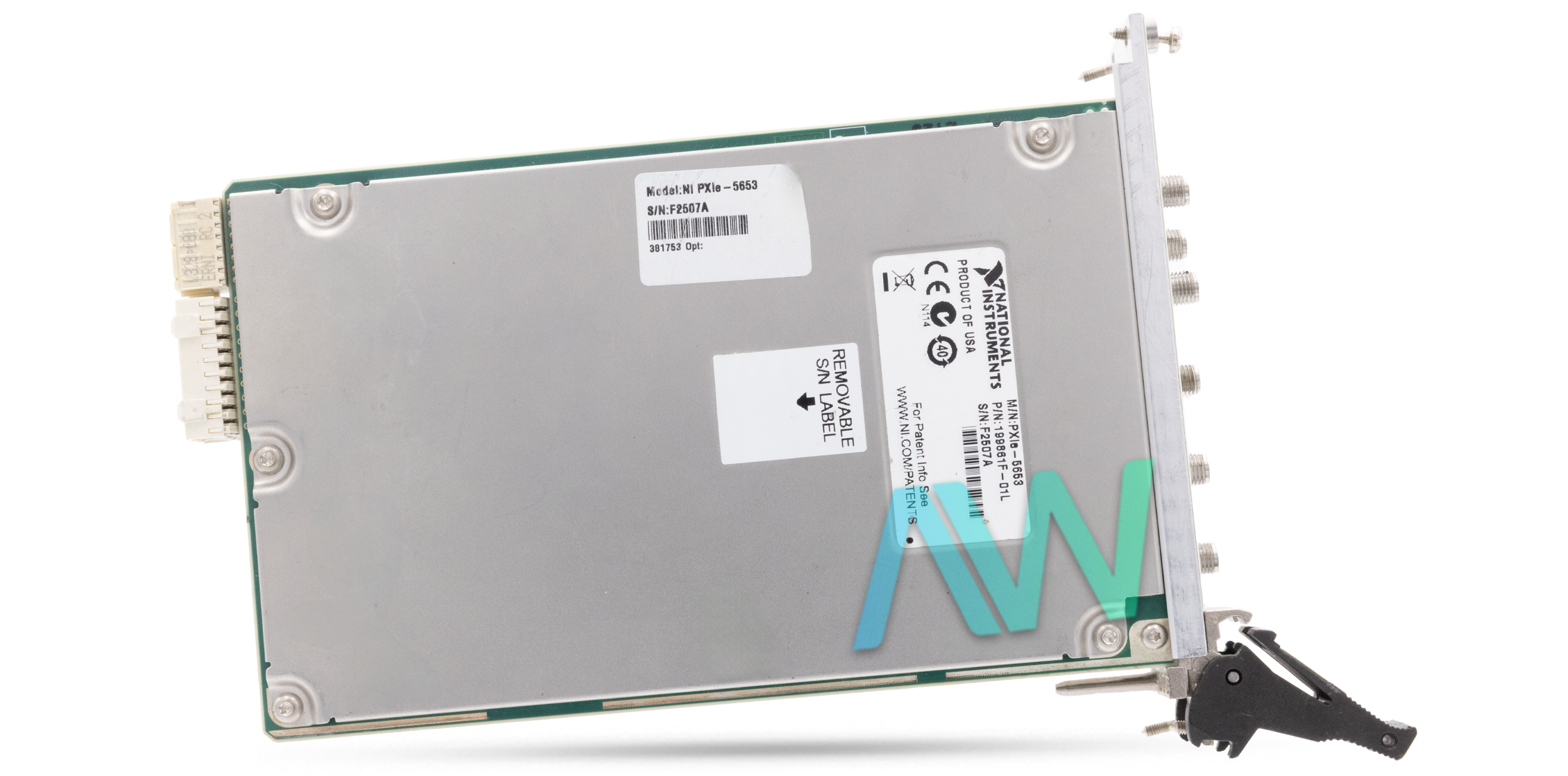

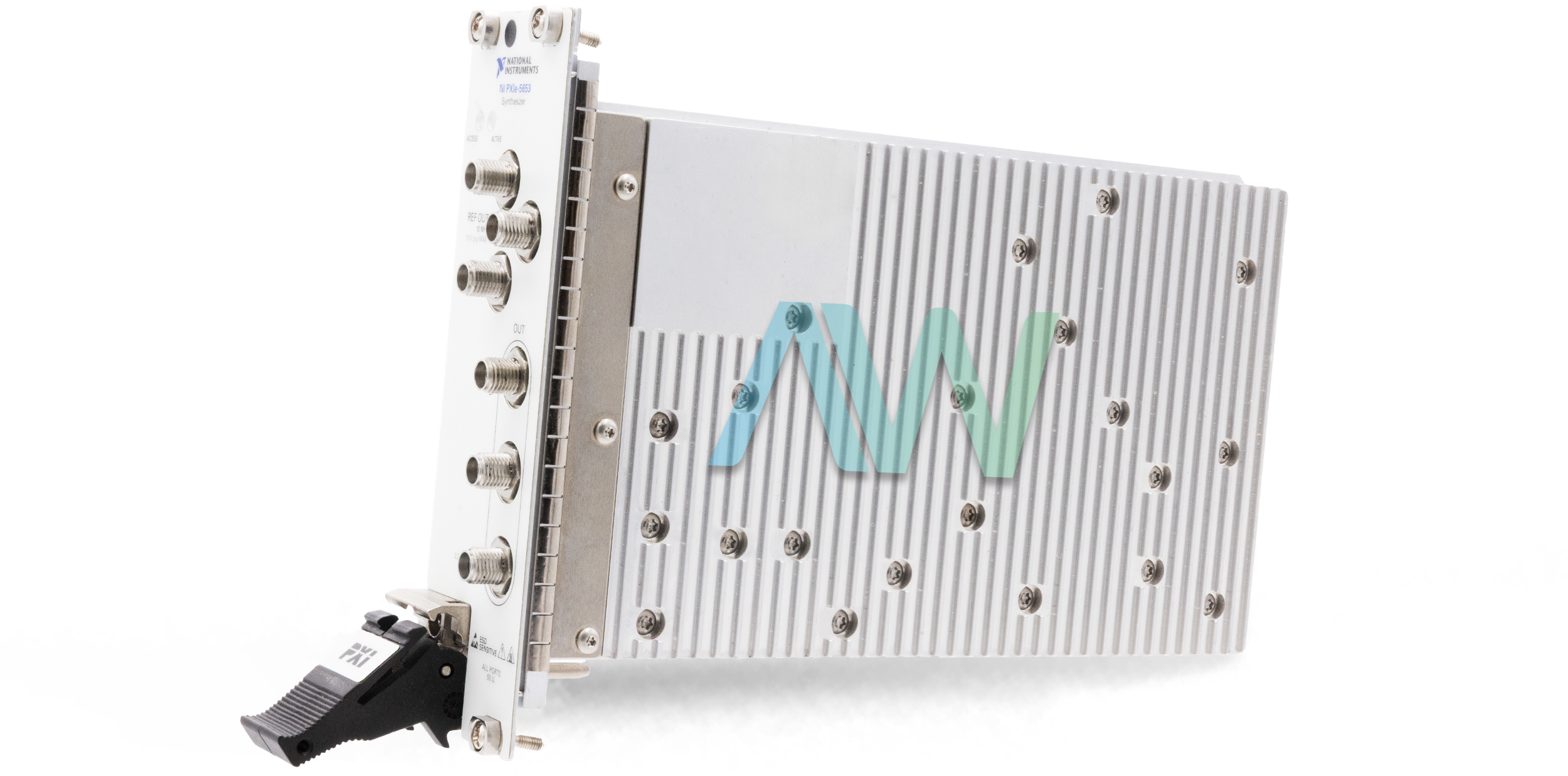

PXIe-5653

4.8/5 | 6 ratings

Modular Systems > National Instruments > PXI Analyzers

Part Number PXIe-5653
Manufacturer/Brand National Instruments
Description: PXIe-5653, Frequency Range of 800 MHz to 8.3 GHz, LO Module
Request for Availablility
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


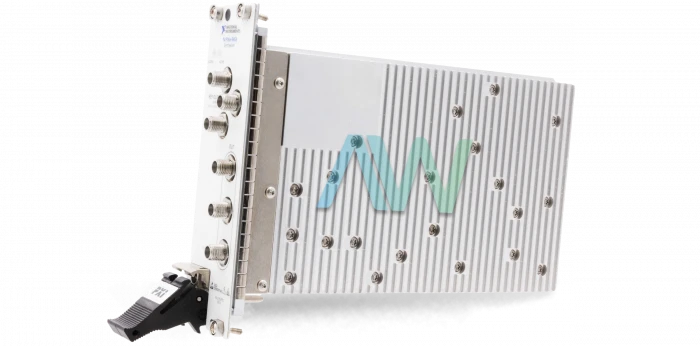

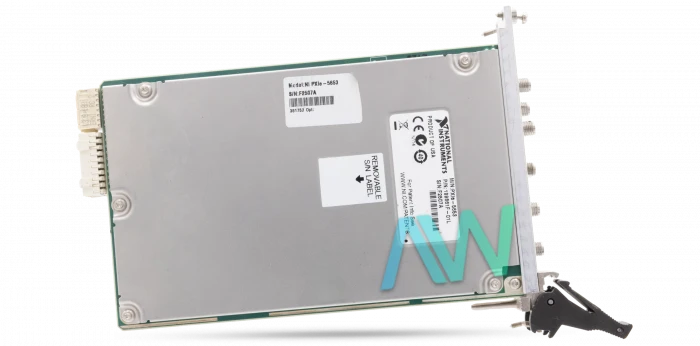

National Instruments PXIe-5653 LO Module

The PXIe-5653 is a LO Module from National Instruments. This module is utilized as an integral part of the PXIe-5665 Vector Signal Analyzer. This module is installed on the immediate right side of the NI-5603 RF Downconverter. In the PXIe-5665, the 100 MHz onboard reference clock of the PXIe-5653 is daisy chained to its slave digitizer modules. The LO (1, 2, 3) connectors provided on this module are connected to the associated (LO 1/2/3 IN) connectors provided on the front panel of the National Instruments NI-5603. It has a LO1 nominal frequency range of 3.2 GHz to 8.3 GHz, a LO2 nominal frequency of 4.0 GHz, and a LO3 nominal frequency of 800 MHz. The 100 MHz REF OUT connector provide on this module is connected on the CLK IN (Clock In) connector of the NI-5622 IF Digitizer.

This LO Module is used in various other National Instruments VSA models. The 10 MHz REF OUT connector of this module is connected to the REF IN connector of the PXIe-5694. In other words, the internal clock of the NI PXIe 5653 is used as the chassis reference input. The PXIe-5653 is a 3U PXI Express module. For its deployment, you must have 2 slots available in the chassis.

The NI PXIe 5653 is considered a powerful LO module for vector signal analyzers and widely used in a variety of test and measurement setups. This module takes around 30 minutes to warm up for use, and should be externally calibrated at least once every 2 years. The device has a power requirement of 3.63 W (1.10 A) at +3.3 VDC, and 48 W at +12 VDC. The NI device weighs 37.8 oz, and measures 8.5 x 1.6 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -41 °C to 71 °C, an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency of 5 Hz to 500 Hz.

PXIe-5653 Obsolete Status has been announced by National Instruments, but the LO module will still be available for purchase and repairs by Apex Waves.

The PXIe-5653 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXIe-5653 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXIe-5653 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXIe-5653!

ModelPXIe-5653
ManufacturerNational Instruments
TypeLO Module
LO1 Frequency3.2 GHz to 8.3 GHz (nominal)
LO2 Frequency4.0 GHz (nominal)
LO3 Frequency800 MHz (nominal)
+12 VDC4.00 A (48.00 W)
+3.3 VDC1.10 A (3.63 W)
Calibration Interval2 years
Dimensions8.5 in. × 1.6 in. × 5.1 in.
Weight37.8 oz.
WarrantyThree Year Warranty
PXIe-5653 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-5653 LO Module Frequently Asked Questions



Question: With what systems is the PXIe-5653 compatible with?



Answer: The PXIe-5653 is often used within the Vector Signal Analyzer Systems of the PXIe-5665, PXIe-5667, or the PXIe-5668.



Question: What do the LED colors indicated about the active state of the PXIe-5653



Answer: If the LED of the PXIe-5653 is not on, it means that there is no signal being generated by the module .If the LED is amber, it indicates that the PLLs are attempting to lock. If the LED is green, it indicates that the module has a signal and the applicable PLLs are locked. If the LED is red, it indicates that the PXIe-5653 has encountered an error, either with the operating temperature or failed power supply.



Question: What is the frequency range of the PXIe-5653



Answer: The frequency range of the PXIe-5653 is 800 MHz to 8.3 GHz.
