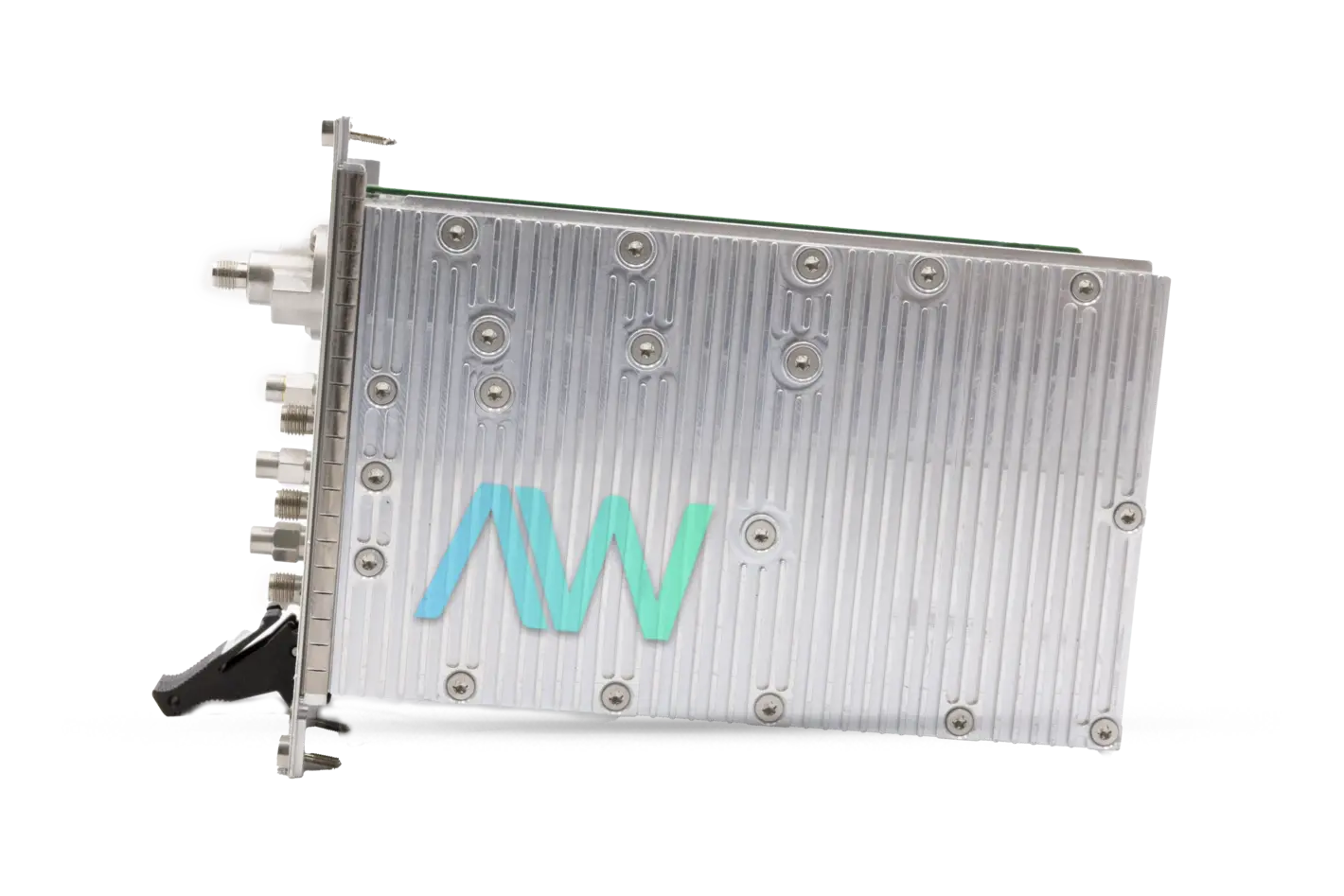

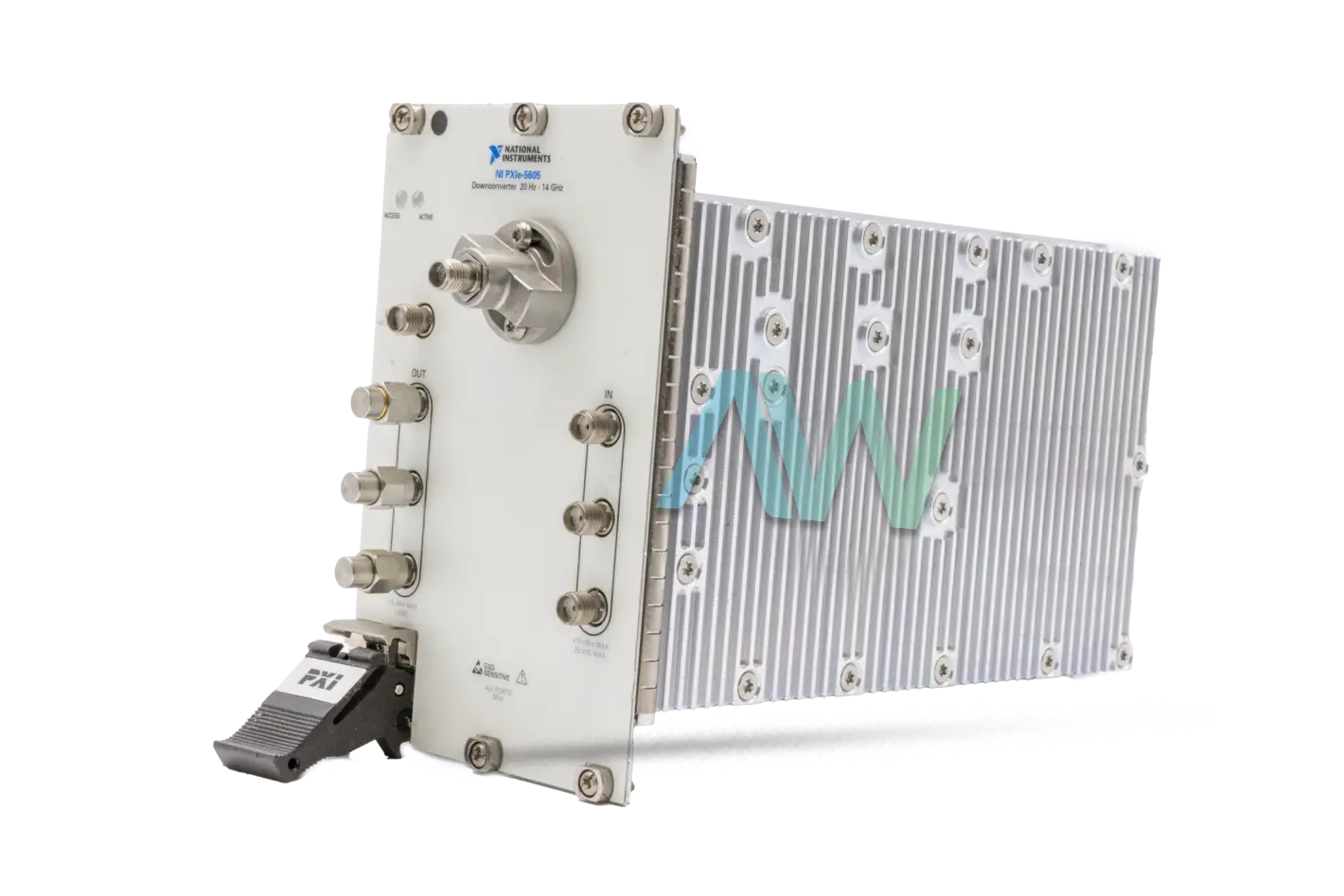

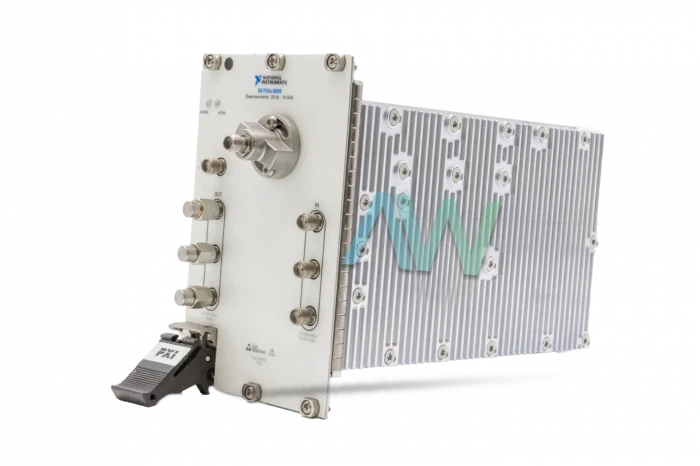

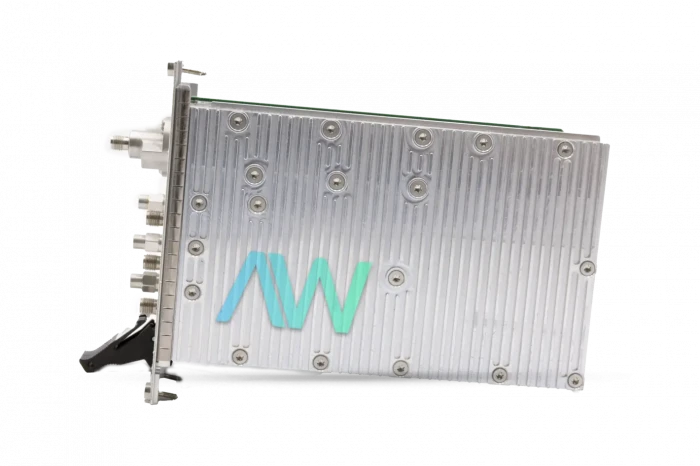

National Instruments PXIe-5605 RF Signal Downconverter Module

Featured with a wide frequency range (20 Hz to 14 GHz) and automated testing provisions, the National Instruments PXIe-5605 is a Downconverter Module. This module is known for its accuracy and industry-leading performance. The NI PXIe-5605 can be used as part of the PXIe-5665 RF Vector Signal Analyzer, along with the PXIe-5653 Analog Signal Generator and PXIe-5622 IF Digitizer. The NI PXIe-5605 offers up to -165 dBm/Hz average noise level at a 1 GHz carrier frequency and phase noise of -129 dBc/Hz. With this module, you can employ NI-RFSA to control IF filtering automatically. In addition, manual selection of IF filters is possible.

The NI PXIe-5605 supports three types of IF bandpass filters: 5 MHz, 300 kHz, and Through. At -6 dB, the Through IP bandpass filter offers 80 MHz (nominal) bandwidth. When the unit operates with pre-selector enabled, the Through bandpass filter functions at 47 MHz typical limited bandwidth. The 5 MHz filter offers 5 MHz (nominal bandwidth) at – 3 dB and offers a nominal output IF frequency of 190 MHz, whereas the 300 kHz filter offers 199 MHz (nominal) IF output frequency at – 3 dB.

The National Instruments PXIe-5605 RF Signal Downconverter Module comes with one RF IN connector, one IF OUT connector, one LO1 IN connector, one LO2 IN connector, one LO3 IN connector, and three connectors for LO OUT (LO1 OUT, LO2 OUT, LO3 OUT). This module comes with an external DC block, since it can be used with an SMA DC block. This block is used at the RF IN connector and protects the device in the presence of the DC signal.

PXIe-5605 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXIe-5605
ManufacturerNational Instruments
TypeRF Signal Downconverter Module
+3.3 VDC1.20 A (3.96 W)
Calibration Interval2 years
CouplingAC and DC
Driver SoftwareNI-RFSA
ConnectorSMA female
Dimensions8.5 in. × 3.2 in. × 5.1 in.
Weight66.4 oz.
WarrantyOne Year Warranty
PXIe-5605 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
