Part Number 778303-01
Manufacturer/Brand National Instruments
Description: 778303-01, 18 Slot, 47 to 63 Hz, PXI-1006, PXI Chassis
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


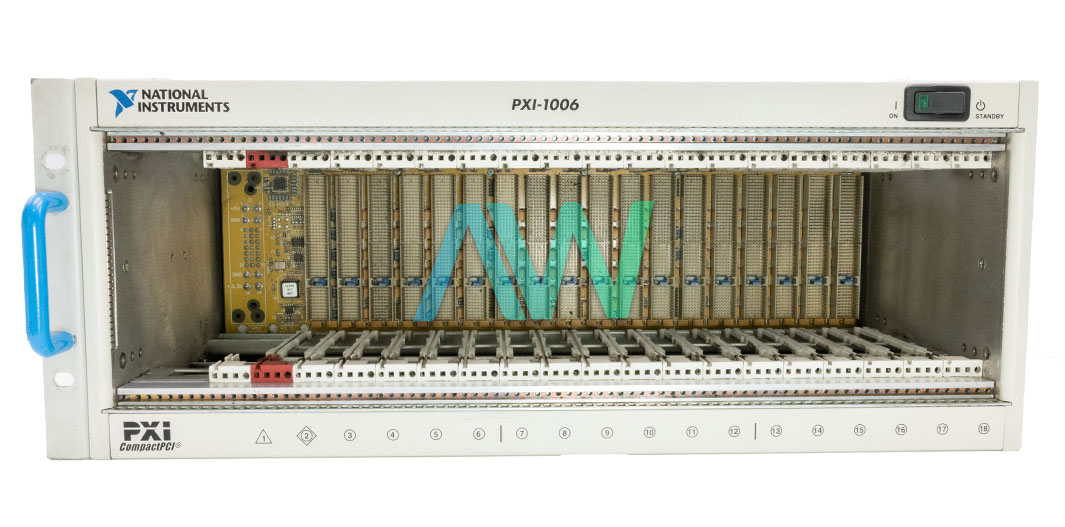

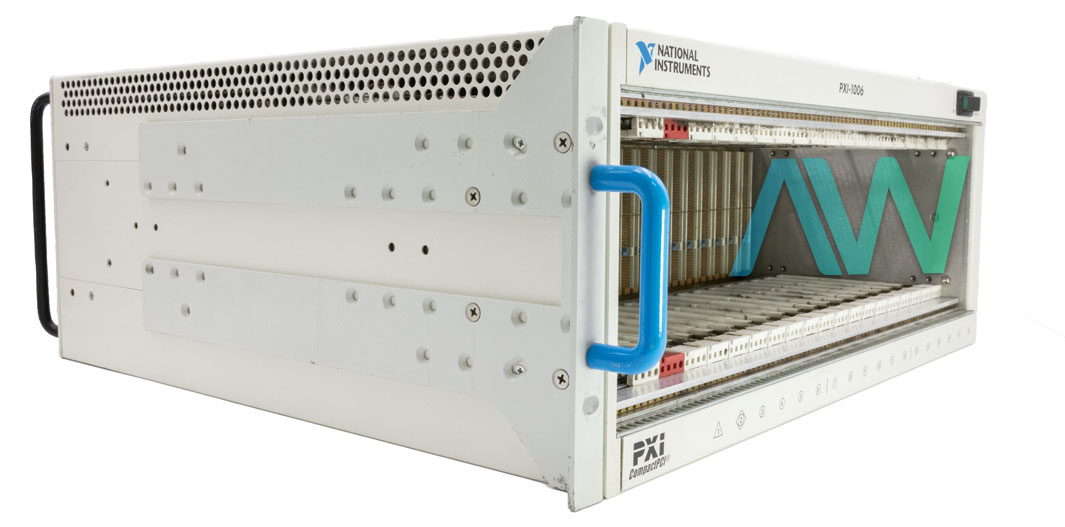

National Instruments 778303-01 PXI Chassis

The part number 778303-01 from National Instruments is the identifying part number for the PXI-1006 PXI Chassis. The 778303-01 PXI Chassis combines a high-performance 18-slot PXI backplane with a high-output power supply and a structural design that has been optimized for maximum usability in a wide range of applications. The chassis’ modular design ensures the highest level of maintainability resulting in a very low mean time to repair (MTTR). The 778303-01 PXI Chassis fully complies with the PXI Specification. This chassis has an input voltage rating of 90 to 264 Volts AC with an input frequency range of 47 to 63 Hz. This chassis has an efficiency of 70 to 80%

The 778303-01 PXI Chassis offers PXI and CompactPCI (PICMG 2.0 R 3.0) module compatibility. It features 18 3U-sized slots and provides 600 Watts of usable power to PXI modules. The chassis supports universal AC input with auto-voltage and auto-frequency ranging. In case of overcurrent, the chassis features a push-reset circuit breaker for overcurrent protection. The chassis also has a modular power supply unit installed with power status and inhibition via a rear panel connector. For internal cooling, the 778303-01 PXI Chassis features a fan with selectable speed for maximum cooling or quiet operation.

The PXI-specific signals are located on P2 and are found on only the signals that are reserved or not used in the CompactPCI 64-bit specification. Therefore, all modules that meet the requirements of the CompactPCI 64-bit specification will function in the 778303-01 PXI Chassis. The 778303-01 PXI Chassis has three PCI bus segments linked via two 64-bit PCI-to-PCI bridges. The PCI bus segment divisions are represented on the front of the chassis by vertical bars.

The PXI backplane’s local bus is a daisy-chained bus that connects each peripheral slot with its adjacent peripheral slots to the left and right. For example, a given peripheral slot’s right local bus connects to the adjacent slot’s left local bus, and so on. Each local bus is 13 lines wide and can pass analog signals between cards or provide a high-speed side-band communication path that does not affect the PXI bandwidth

Part Number778303-01
Model NamePXI-1006
Part TypePXI Chassis
Slots18
Input Voltage90–264 VAC
Input Frequency47 to 63 Hz
Over-Current Protection10 Amperes
Efficiency70-80% typical
Weight13.2 kg (29.2 lb.)
Dimensions177mm x 445.5mm x 100 mm
