National Instruments PXI-8175 PXI Controller

Featured with a Celeron 866 MHz processor, Internal PXI Trigger Bus routing, and Full 132 MBps PCI bandwidth, the National Instruments PXI-8175 (Part Numbers: 778467-01 and 778467-00) is a low-cost embedded PXI Controller packaged in a PXI 3U-size form factor. This module comes equipped with a COM1 RS-232 Serial Port (9-pin DSUB type), a Parallel Port (IEEE 1284), two 4-pin Series A receptacle-type USB Ports, a 10/100 Ethernet Port, a 15-pin DSUB (standard VGA), and PS/2 mouse and keyboard ports.

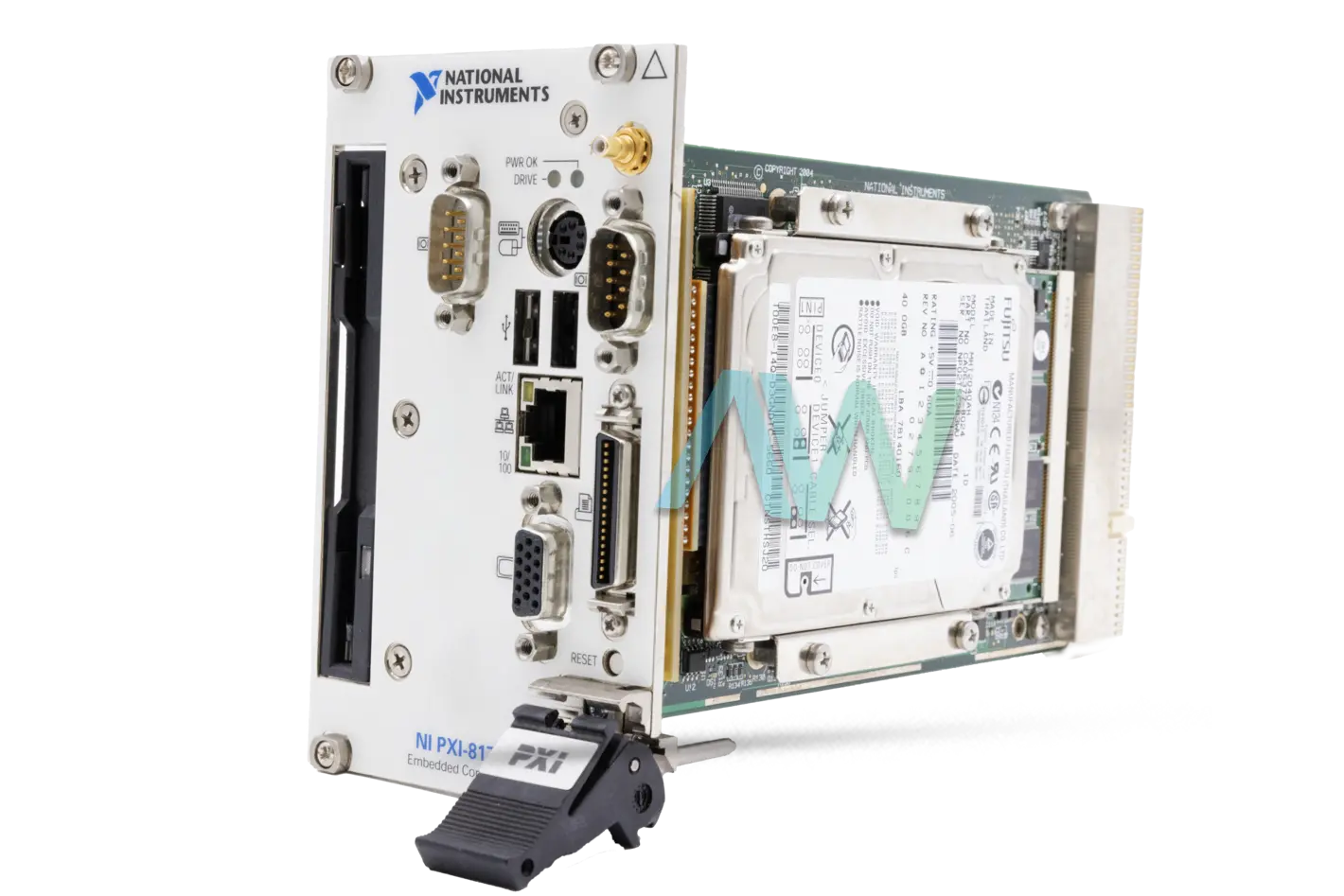

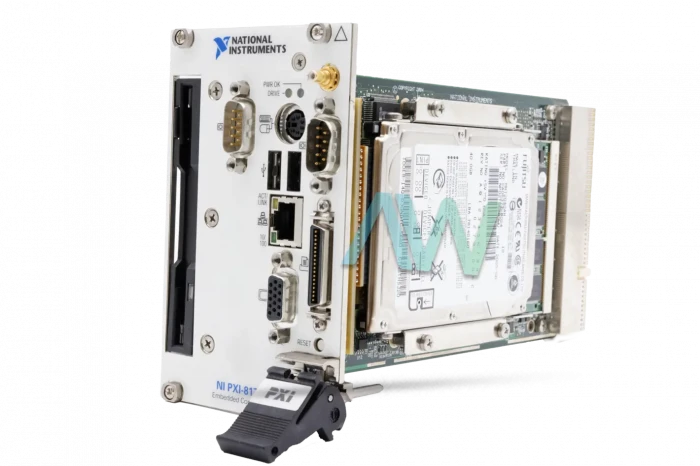

The front panel of the NI PXI-8175 Embedded Controller comes equipped with a system reset push button that can be used for quick resetting on the controller. In addition, two LEDs (POWER OK LED and DRIVE LED) are provided to keep users informed about the controller`s status. This PXI Controller requires 1 system plus 3 controller expansion slots for its deployment. As far as its physical characteristics are concerned, the NI PXI 8175 weighs around 0.64 Kg (1.41 lb) and its physical dimensions are 6.1 by 13 by 21.6 cm.

Since this model has an impressive 226,000 h MTBF, the PXI 8175 can be considered a reliable device. Additionally, the PXI-8175 Controller is well suited for automation, data acquisition, and instrumentation applications as the PXI controls the PCI bus – the existing standard for today`s robust desktop computer hardware and software designs. The combination of this Embedded Controller and a PXI-compatible chassis like the PXI-1000B bring a powerful, compact, and fully PC-compatible computer in a rugged package.

PXI-8175 Obsolete Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-8175
Part Numbers778467-01 and 778467-00
ManufacturerNational Instruments
TypePXI Controller
CPU866 MHz Intel Pentium III
On-Die Cache256 KB
Hard Drive15 GB, minimum
Dimensions3.2 x 5.1 x 8.5 in.
Weight2.4 lb.
WarrantyOne Year Warranty
PXI-8175 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8175 Frequently Asked Questions



Question: How many serial ports does the PXI-8175 have?



Answer: There are two RS-232 serial ports on the PXI-8175.



Question: Why are there two part numbers for the NI PXI-8175?



Answer: The NI PXI-8175 has two part numbers, each with a different operating system available. For example, part number 778467-01 has the Windows 2000 (English) operating system and part number 778467-00 can have another operating system installed, such as Windows 2000 in Japanese or a different language.



Question: What is the size of the synchronous DRAM on the PXI-8175?



Answer: The synchronous DRAM on the PXI-8175 is 128 MB standard and 512 MB maximum.



Question: How can video connections be made on the NI PXI 8175?



Answer: On the NI PXI 8175, video connections can be made via a standard 15-pin D-Sub connector.
