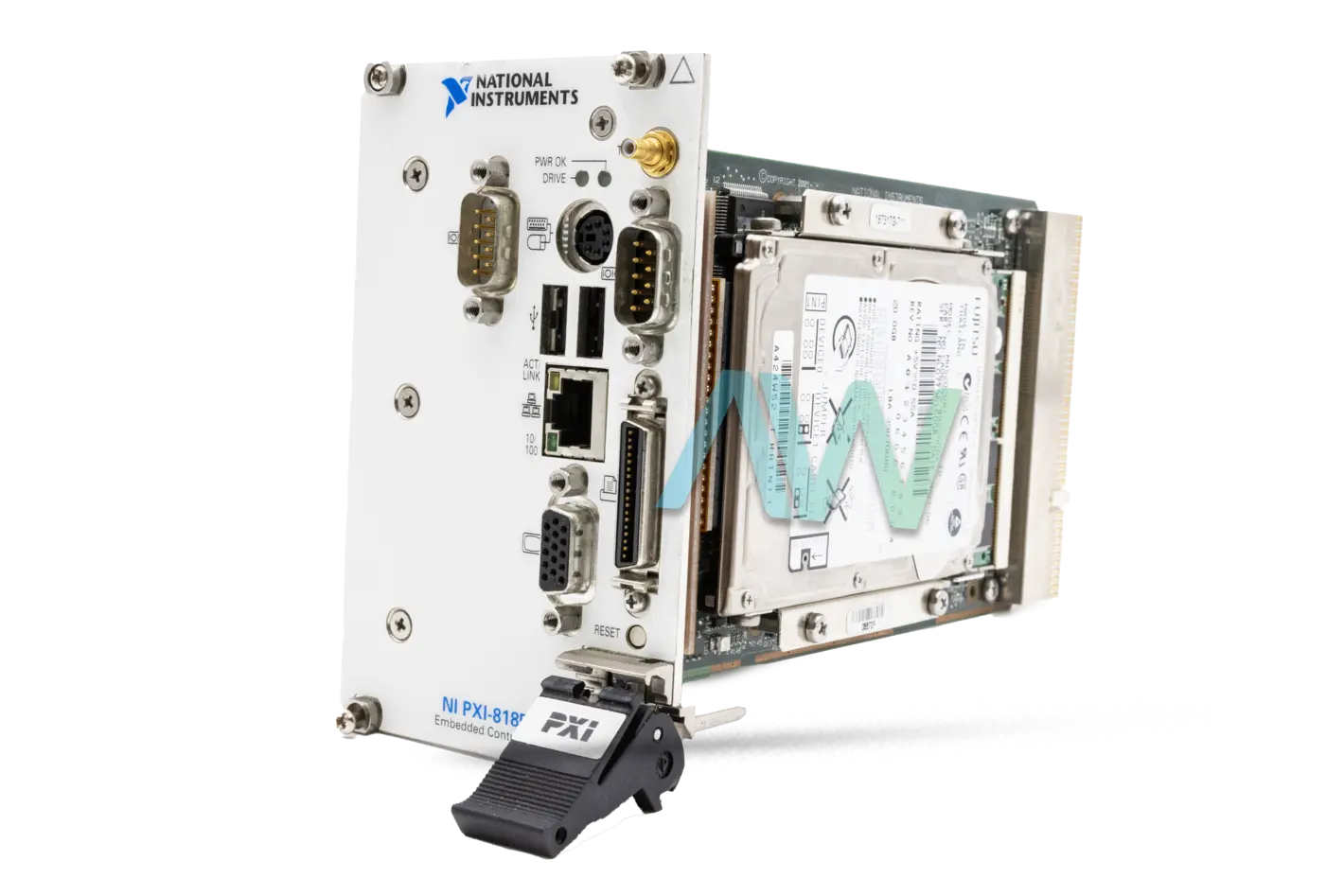

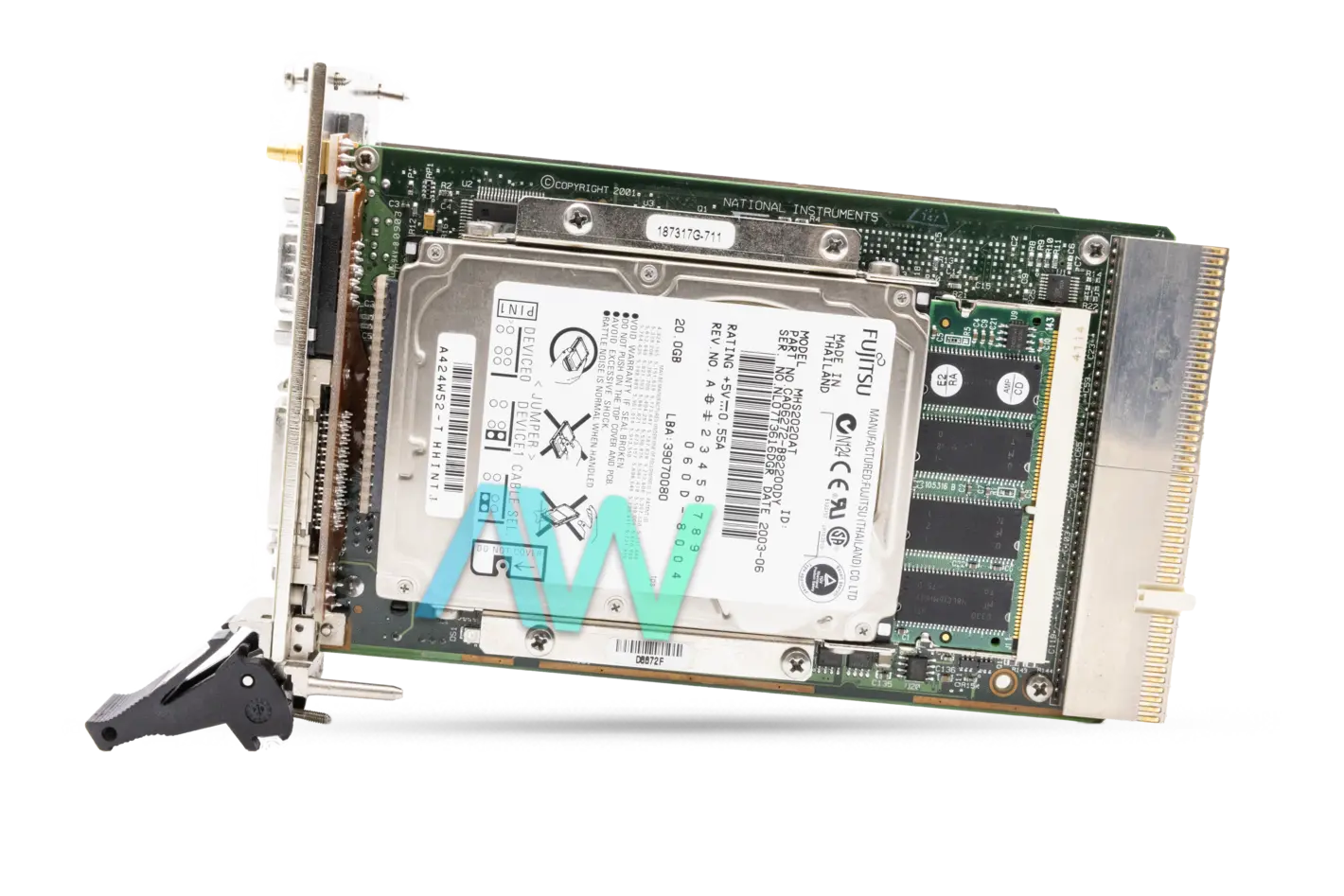

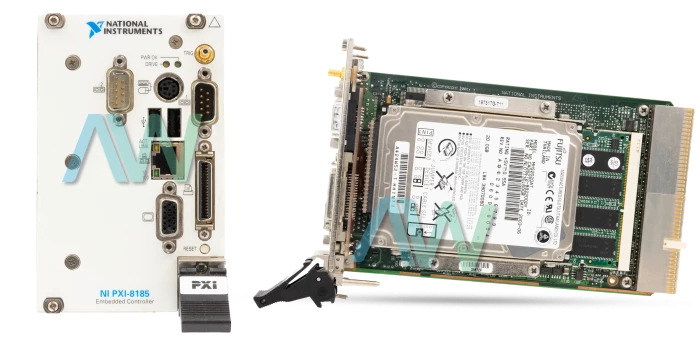

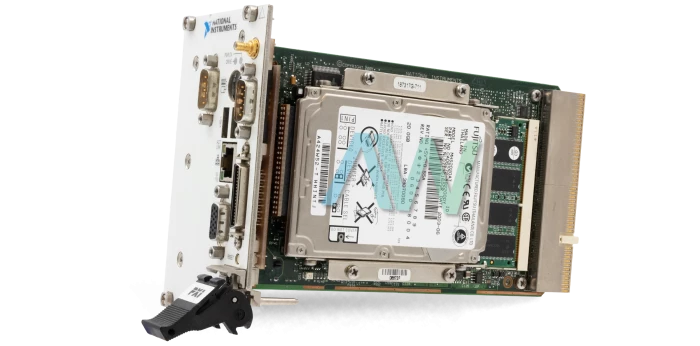

PXI-8185
PXI-8185 alt2
PXI-8185 New small
PXI-8185 Refurb small

Pictures shown are a representation. Actual item may vary if no part number is provided on quote request.

Same Day Calibration Available

2-3 Year Warranty Included

Free Ground Shipping

Or speak to a sales representative for additional information:

PXI-8185 In Stock | Ships Today

PXI-8185, 30 GB, 1.2 GHz Celeron, PXI Controller

Rated 4.63/5 | 14 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-8185 PXI Controller

Designed to be used in any PXI or CompactPCI system, the National Instruments PXI-8185 (Part numbers: 778825-02, 778825-00, 778825-01) is a Celeron based Embedded PXI Controller. This model comes equipped with a 1.2 GHz Intel Celeron processor, 256 MB of RAM, and a 30 GB HDD (upgradeable). The NI PXI 8185 is known for its extensive range of extended I/O provided for secure connectivity to other peripherals or instruments.  The National Instruments PXI-8185 has a single socket for SDRAM with the power to hold up to 512 MB memory. The device is equipped with 1 system slot and 3 controller expansion slots.

This model comes featured with a Serial port, two USB 1.1 ports, 30 GB Hard drive (expandable), a parallel port, and a 10/100BaseTX Ethernet port. The two USB ports available onboard can be used for connection to standard PC peripherals, such as printers, memory sticks, etc. The USB ports can be used for connection to an extended CD drive for easy and quick software installation. In its standard configuration, the NI PXI-8185 is offered with a pre-installed operating system. However, the user can always switch over to another compatible operating system whenever they want.

The PXI-8185 is run using the NI-DAQ driver software which is compatible with software packages like NI-VISA, LabVIEW, LabWindows/CVI, or Measurement Studio. This Embedded Controller offers excellent graphics and memory performance since it uses Dynamic Memory Video Technology (DMVT) by Intel®. The National Instruments PXI-8185 can be deployed and operated in a harsh operating environment because it can work in a broad range of ambient temperatures, i.e. 5 to 50 °C. As far as its reliability is concerned, this model`s predicted Mean Time Between Failures (MTBF) is 180,000 h.

The NI device weighs 2.26 lb, and measures 3.2 x 5.1 x 8.5 in. in physical dimensions, and has an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively – all at a frequency range of 5 to 500 Hz.

PXI-8185 Obsolete Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-8185
Part Numbers778825-01, 778825-02, 778825-00
ManufacturerNational Instruments
TypePXI Controller
Slot Requirements1 system slot and 3 controller expansion slots to the left of the system slot
CPU1.2 GHz Intel Celeron
Standard RAM256 MB
Dimensions3.2 x 5.1 x 8.5 in.
Weight2.26 lb.
WarrantyThree Year Warranty
PXI-8185 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-8185:

National Instruments PXI-8185 Frequently Asked Questions



Question: Why does the PXI-8185 have three part numbers?



Answer: The PXI-8185 has various operating systems available. Part number 778825-01 has Windows XP (English) installed. Part number 778825-02 has Windows 2000 (English) installed. Part number 778825-00 has a Localized Operating System installed.



Question: What type of serial ports does the NI PXI-8185 have?



Answer: The NI PXI-8185 has two RS-232 serial ports.



Question: Does the PXI-8185 have a PXI trigger bus input/output?



Answer: Yes, the PXI-8185 has a PXI trigger bus input/output.



Question: How do I find the configuration of the hard drive, memory, etc. on the NI PXI-8185?



Answer: On the NI PXI-8185, the hard drive, memory, and other settings can be viewed in the BIOS setup.
