National Instruments PXI-6031E Multifunction DAQ

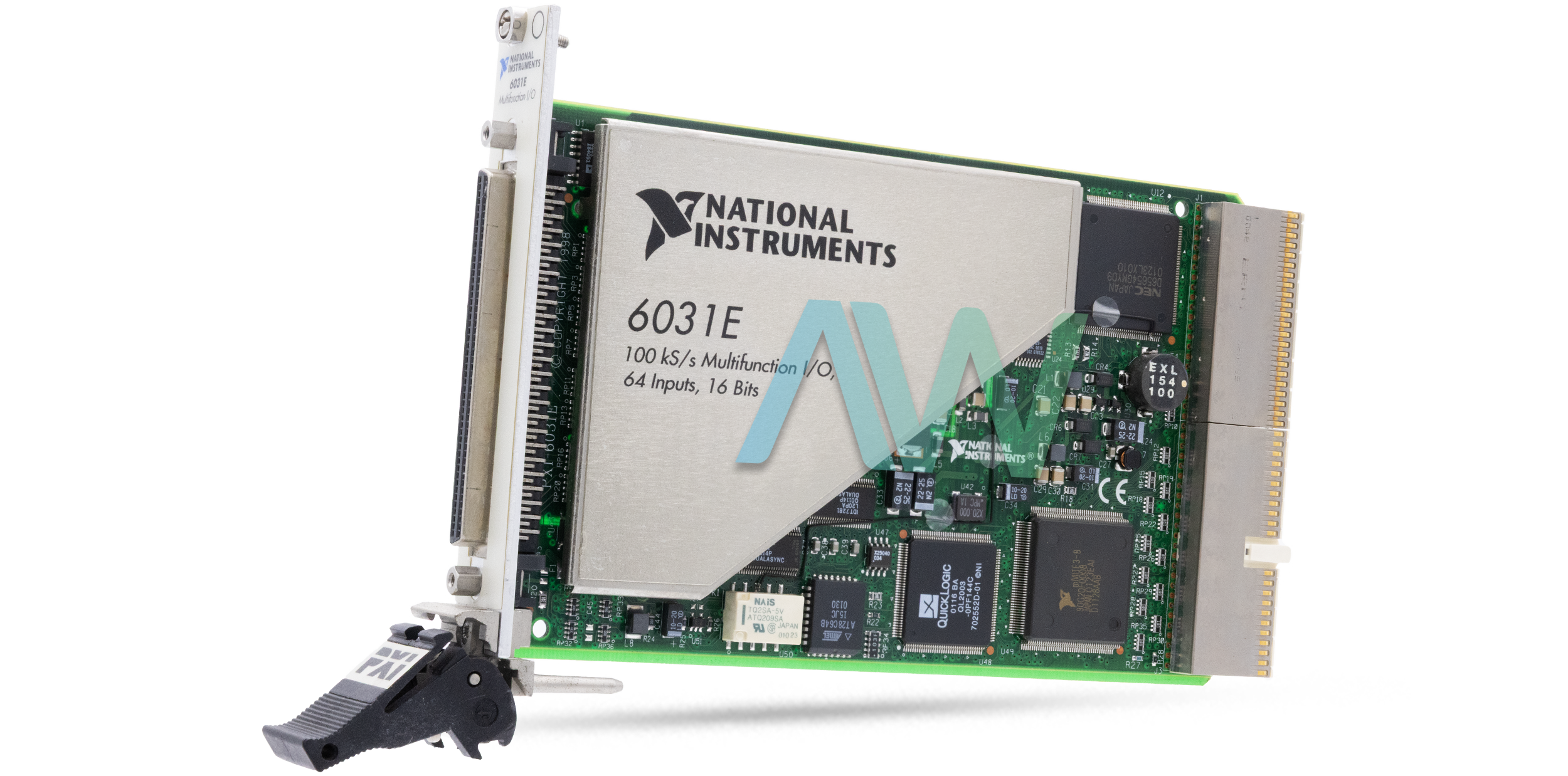

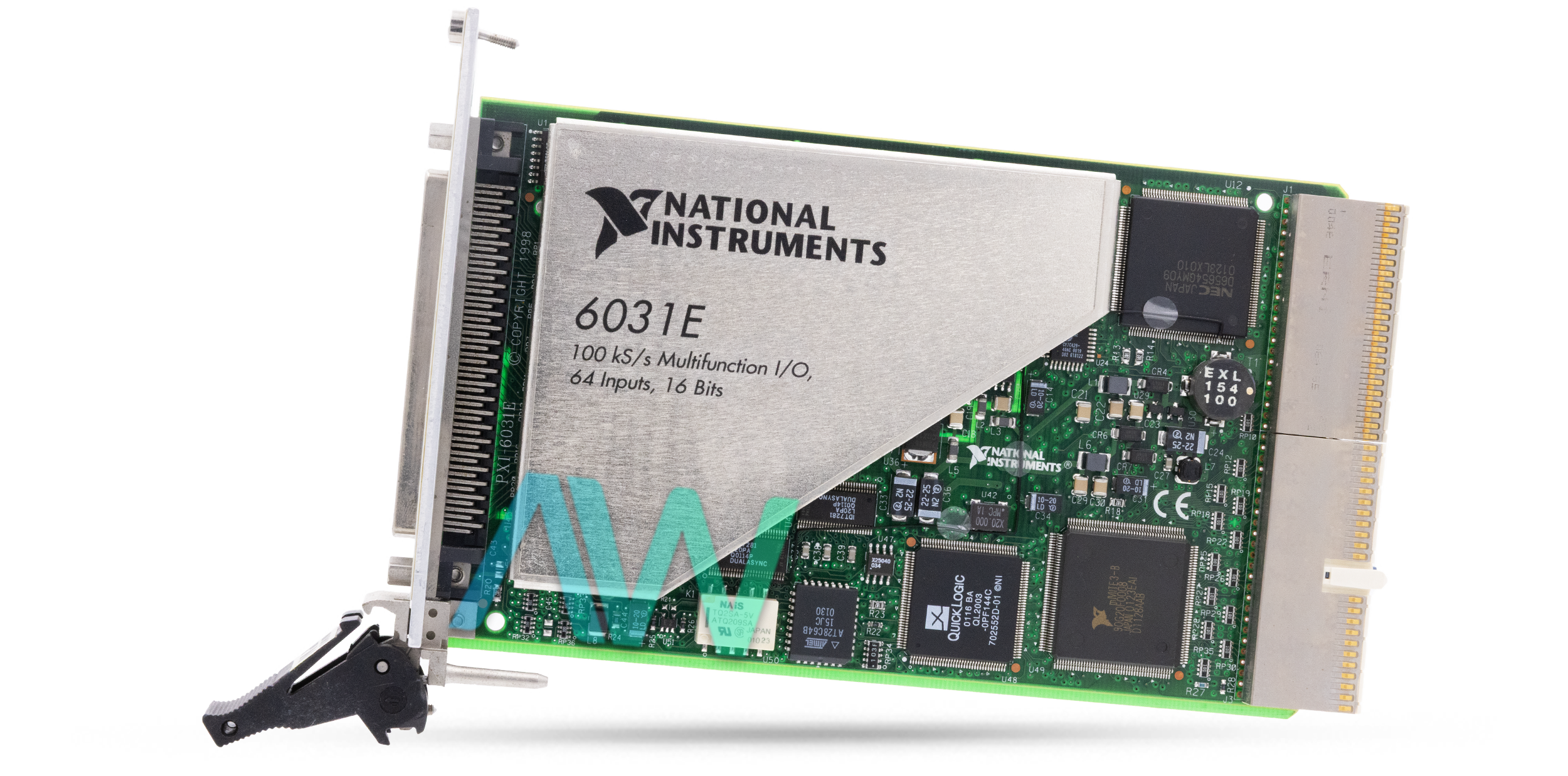

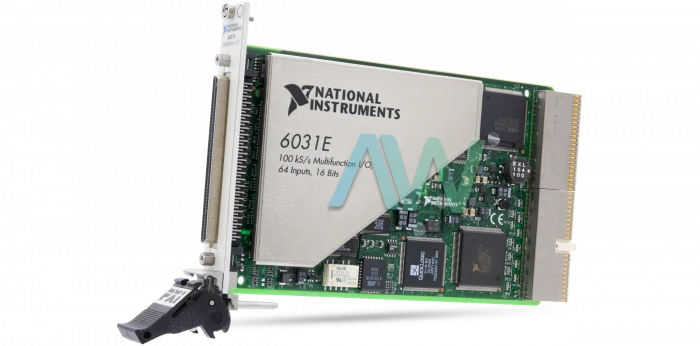

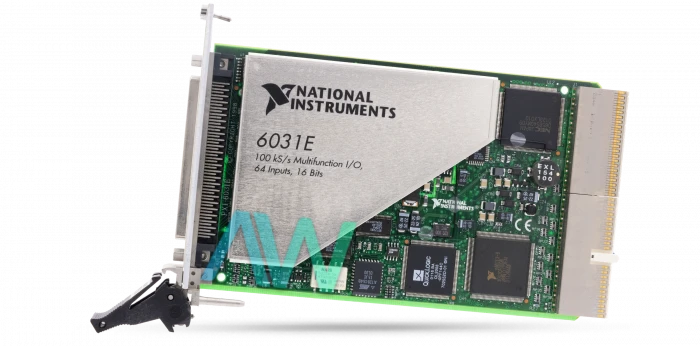

The NI PXI-6031E (Part Number: 777636-01) is an E Series Multifunction Data Acquisition (DAQ) with 64 Analog Input channels, 16-bit resolution, and 100 kS/s maximum sample rate. The 64 single-ended channels can also be configured as 32 differential channels. The input range of the PXI-6031E device is ±0.1 to ±10 V. This device has 14 input ranges and an onboard memory capable of handling 512 samples. The NI PXI-6031E comes featured with two output channels with 16 bit output resolution and 100 kS/s output rate.

The NI PXI-6031E is suitable for ongoing high-speed data logging, control applications, and high voltage signal or sensor measurements when utilized with National Instruments signal conditioning accessories. This device has an onboard temperature sensor to keep track of the operating temperature of the instrument to guarantee it is functioning in the stated range. The PXI-6031E also has the capability to set a trigger based on the level of an analog signal, as well as the capability to trigger off an edge of a digital signal.

The PXI-6031E DAQ offers eight Bidirectional Digital I/O Channels with software-controlled timing and TTL logic levels. This device is capable of handling sinking and sourcing inputs and outputs at 0 V - 5 V maximum digital input and output voltage range. The National Instruments PXI-6031E supports DC input coupling only at ±11 V maximum working voltage.

This Multifunction DAQ has three DMA channels and can be operated in scatter-gather DMA mode. With these DMA channels, the user can choose from various data sources/destinations, such as analog input, analog output, counter/timer 1, etc. The PXI-6031E DAQ has a 0.05 D-type, 100-pin female connector and +4.65 to +5.25 VDC at 1 A power remains available through the I/O connector.

ModelPXI-6031E
ManufacturerNational Instruments
Part Number777636-01
SeriesE Series
TypeMultifunction DAQ
Analog Input Channels64 SE/32 DI
Input Resolution16 bits
Dimensions6.3 x 3.9 in.
Calibration Interval1 year
WarrantyOne Year Warranty
PXI-6031E ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6031E Frequently Asked Questions



Question: What is the input range of the PXI-6031E DAQ?



Answer: The PXI-6031E DAQ has an input range of ±0.1 to ±10 V.



Question: What is the measurement sensitivity of the NI PXI-6031E?



Answer: The NI PXI-6031E has measurement sensitivity of 0.0023 mV.



Question: Where can I find the manual for the National Instruments PXI-6031E?



Answer: The National Instruments PXI-6031E manual can be downloaded from the product page on apexwaves.com.



Question: How many analog input channels does the PXI-6031E have?



Answer: The PXI-6031E has 64 single-ended or 32 differential analog input channels.
