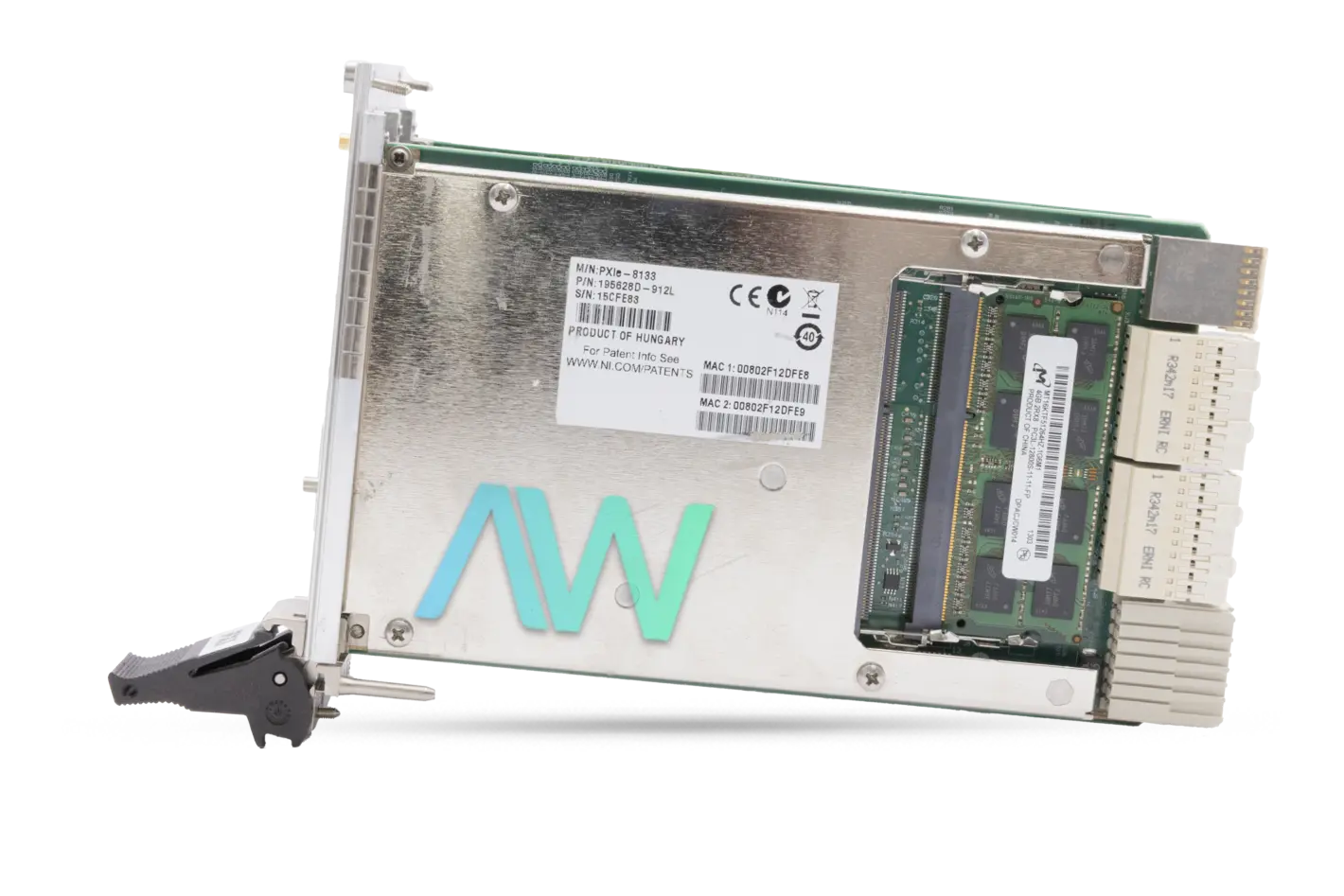

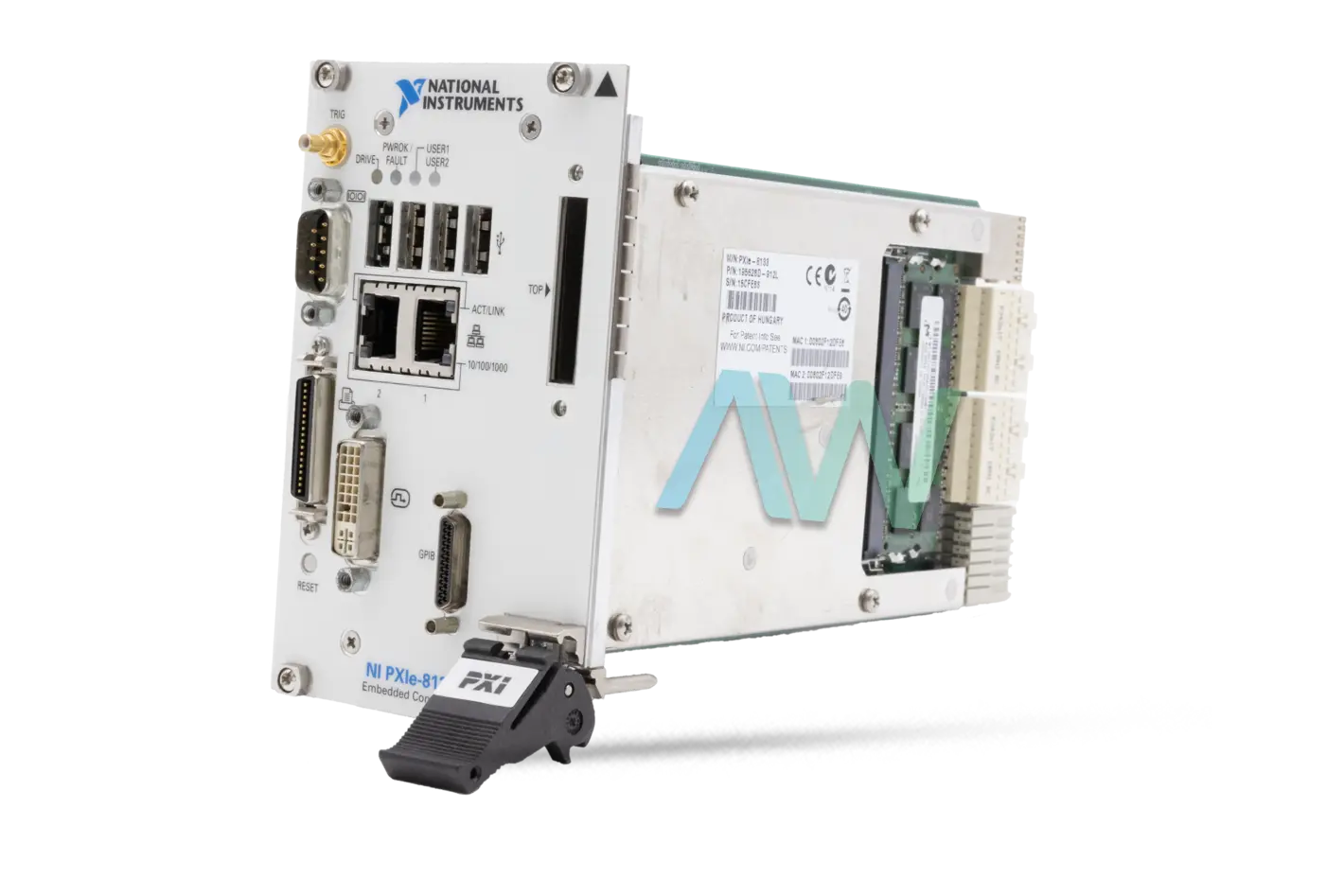

PXIe-8133 National Instruments PXI Controller | Apex Waves | ImagePXIe-8133 National Instruments PXI Controller | Apex Waves | ImagePXIe-8133 NewPXIe-8133 | Legacy, Refurbished and New Surplus

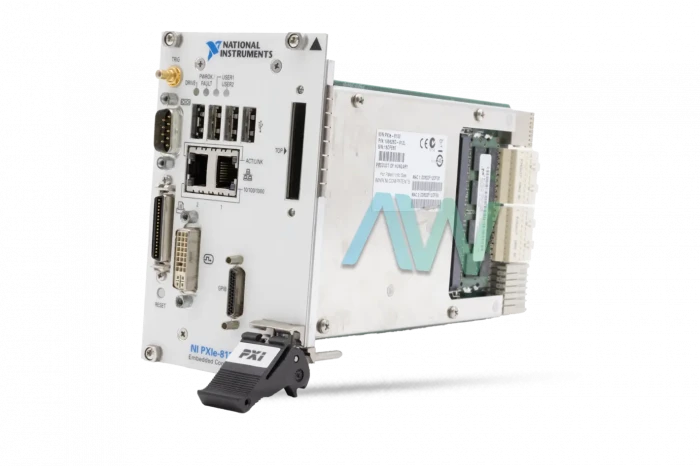

PXIe-8133 National Instruments PXI Controller | Apex Waves | Image
PXIe-8133 National Instruments PXI Controller | Apex Waves | Image
PXIe-8133 New
PXIe-8133 | Legacy, Refurbished and New Surplus

PXIe-8133

4.7/5 | 13 ratings

Modular Systems > National Instruments > PXI Controllers

Part Number PXIe-8133
Manufacturer/Brand National Instruments
Description: PXIe-8133, 3.06 GHz, Quad-Core Processor, PXI Controller
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PXIe-8133 PXI Controller

The PXIe-8133 (Part Numbers: 781478-01, 781478-04, 781479-04, 781479-01) is a 3.06 GHz, Quad-Core, Intel Core i7-820QM Embedded Controller for PXI and CompactPCI frameworks. The device is equipped with a four-wide 3U PXI Express module. The SMB connector on the NI PXIe 8133 front board can interface with or from any PXI Express backplane trigger line. A trigger allocation process is expected to keep two assets from associating with a similar trigger line, resulting in the trigger being double-driven and possibly harming the equipment. The device operates with a maximum system bandwidth of 8 GB per second, and a maximum slot bandwidth of 2 GB per second.

The PXIe-8133 incorporates the quad-center Intel Core i7-3610QE processor. To expand the quantity of threads that the Controller can process, the NI PXIe 8133 Controller fuses Intel Hyper-Threading innovation that takes every one of the four physical cores and parts them into two virtual cores, for a sum of eight virtual cores. These eight virtual cores can execute eight figuring assignments, which is beneficial in multitasking conditions, such as Windows 7. The National Instruments PXIe 8133 operates using the NI-Industrial Communications for EtherCat driver software, the NI-DAQmx driver hardware , and the NI-VISA driver. Multithreaded framework improvement software packages, such as NI LabVIEW, LabWindows/CVI, Measurement Studio, Microsoft Visual Basic, Visual C++, Visual Studio .Net can take a full favorable position of the processing cores on the PXIe-8133 by automatically separating their tasks into independent threads.

The National Instruments PXIe-8133 Embedded Controller has a 2.3 GHz base clock frequency, and, with Intel Turbo Boost innovation, the frequency consequently increments in view of the application type. For instance, when running applications that produce just a single processing thread, the CPU puts the three unused cores into an idle state and increases the dynamic core's clock frequency from 2.3 to 3.3 GHz. The device has a weight of 2.87 lbs, and it has an operating temperature range of 5 to 50 °C; with an ideal storage temperature of –40 to 65 °C.

PXIe-8133 Obsolete Status has been announced by National Instruments, but the PXI Controller will still be available for purchase and repairs by Apex Waves.

ModelPXIe-8133
Part Numbers781478-01, 781478-04, 781479-04, 781479-01
ManufacturerNational Instruments
TypePXI Controller
ProcessorIntel Core i7-820QM Quad-Core Processor
System Bandwidth8 GB/s maximum
Slot Bandwidth2 GB/s maximum
Board DimensionsFour-wide 3U PXI Express module
Weight2.87 lb.
WarrantyThree Year Warranty
PXIe-8133 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXIe-8133:

195628G-022L, 195628G-712L, 195628G-722L, 195628G-912L, 195628G-922L, 195628H-012L, 195628H-022L, 195628H-712L, 195628H-722L, 195628H-912L, 195628H-922L, 195628J-022L, 195628J-712L, 195628J-722L, 195628J-912L, 195628J-922L, 781478-00, 781478-01, 781478-04, 781478-33, 781479-00, 781479-01, 781479-04, 781479-33, 782369-33, 190533A-01, 190533A-01L, 190533A-02L, 190533B-01L, 190533B-02L, 190533C-01L, 190533D-01L, 190536A-01, 190536A-01L, 190536A-02L, 190536B-01L, 190536B-02L, 190536C-01L, 190536D-01L, 190536E-01L, 195628A-01, 195628B-01, 195628B-012L, 195628B-022L, 195628B-712L, 195628B-722L, 195628B-912L, 195628B-922L, 195628C-01, 195628C-012L, 195628C-022L, 195628C-712L, 195628C-722L, 195628C-912L, 195628C-922L, 195628D-012L, 195628D-022L, 195628D-712L, 195628D-722L, 195628D-912L, 195628D-922L, 195628E-012L, 195628E-022L, 195628E-712L, 195628E-722L, 195628E-912L, 195628E-922L, 195628F-012L, 195628F-022L, 195628F-712L, 195628F-722L, 195628F-912L, 195628F-922L, 195628G-012L


Associated NSNs for the PXIe-8133:

5998-01-647-6034 (5998016476034), 5998-01-608-0597 (5998016080597)

National Instruments PXIe-8133 Frequently Asked Questions



Question: What is the CPU frequency for the PXIe-8133 Controller?



Answer: The PXIe-8133 Controller has a CPU frequency of 1.73 GHz (base) or 3.06 GHz (single-core Turbo mode).



Question: What are the PXIe-8133 drivers?



Answer: The PXIe-8133 drivers are NI-VISA and NI-488.2.



Question: What are the differences between the four part numbers for the NI PXIe-8133?



Answer: The NI PXIe-8133 has a base model and an extended temperature model, as well as different installed OS available. Part number 781478-01 is the base model with Windows XP installed, while part number 781478-04 is the base model with Windows 7 (32-Bit) installed. Part number 781479-04 is the extended temperature model with Windows 7 (32-Bit) installed and part number 781479-01 is the extended temperature model with Windows XP installed.



Question: What is the maximum memory size option for the NI PXIe 8133?



Answer: The NI PXIe 8133 has a maximum memory size option of 8 GB.
