PXIe-1062Q, 8-Slot, 100 to 240 VAC, AC Power Supply, PXI Chassis

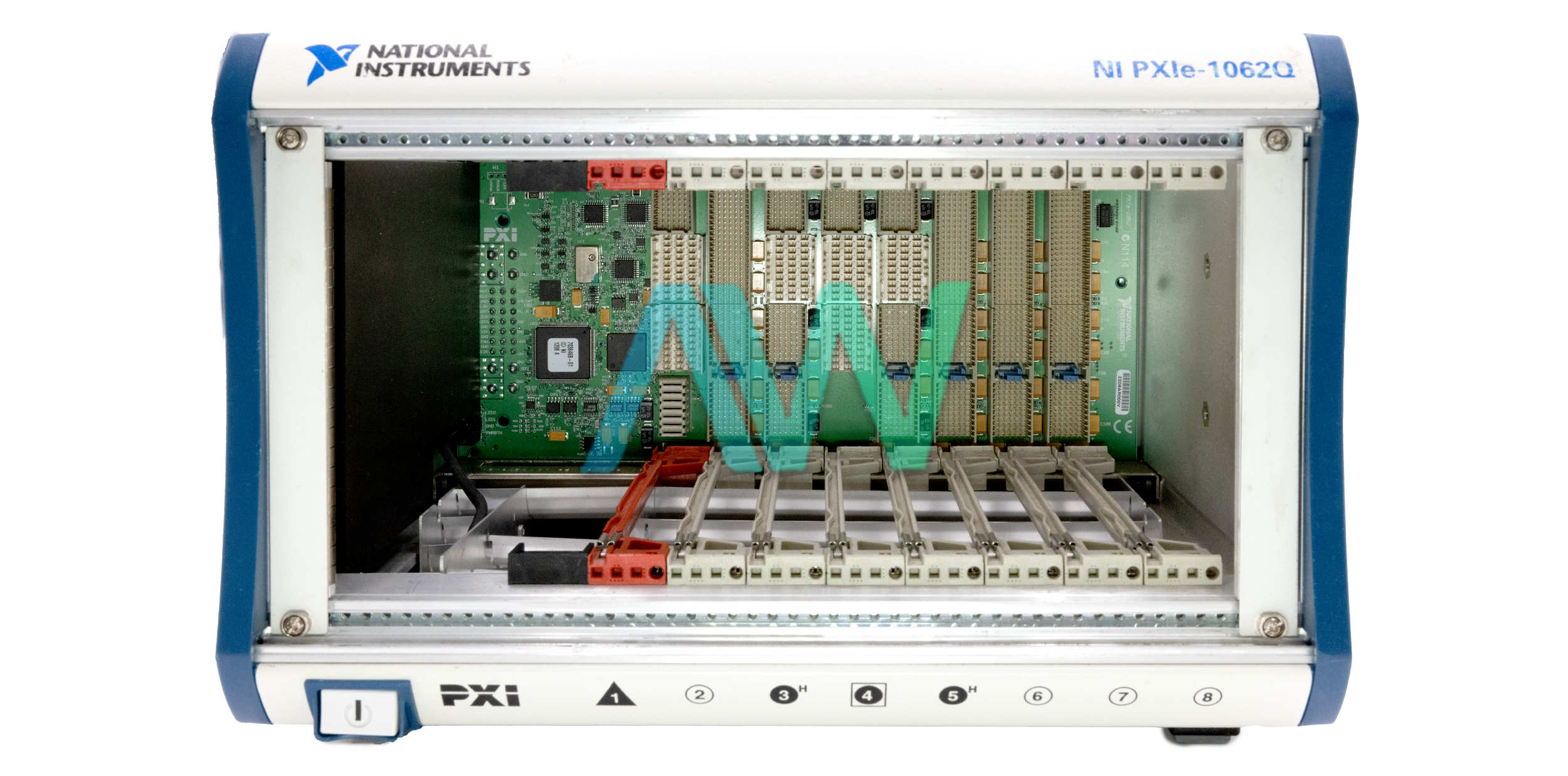

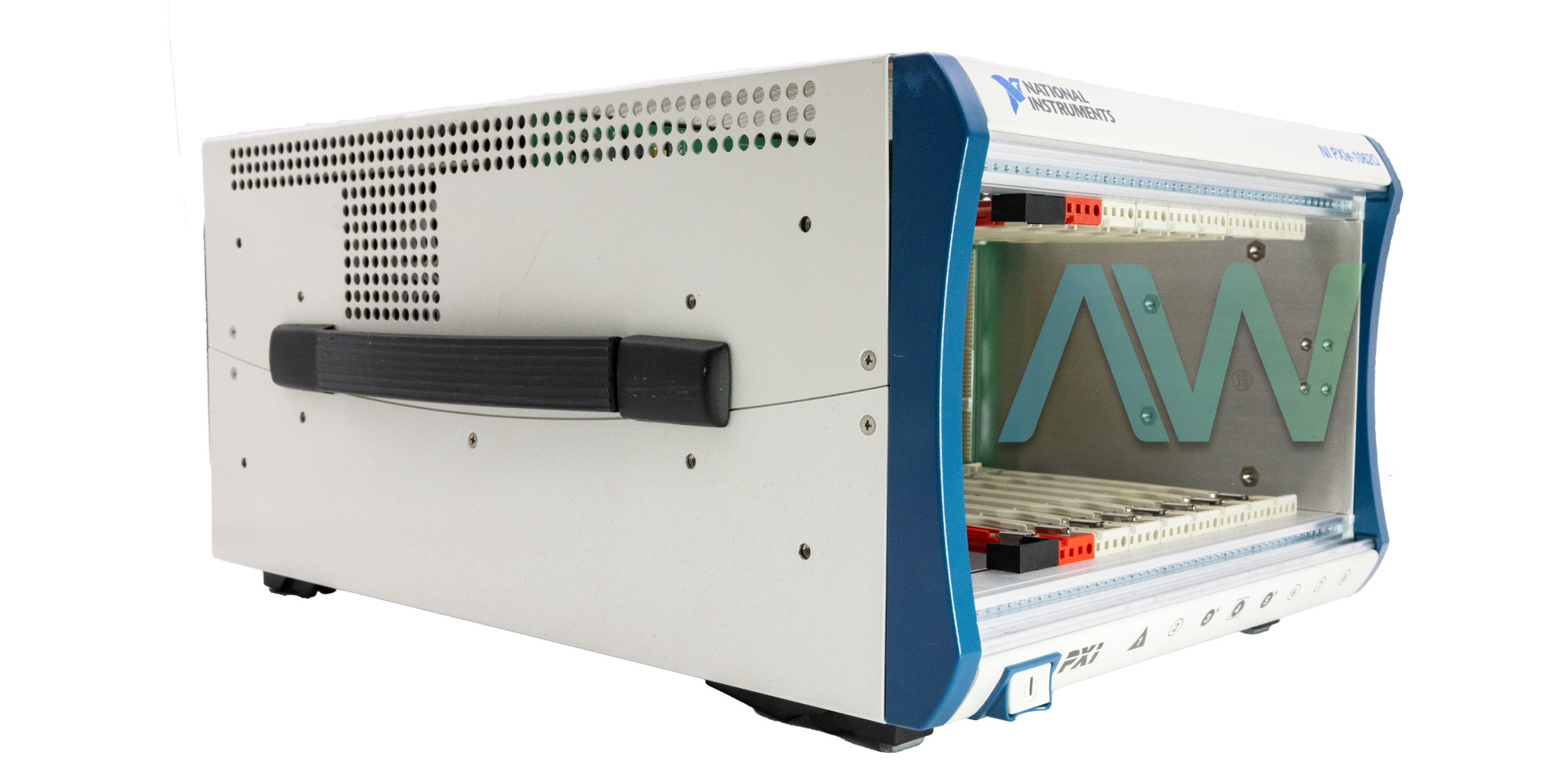

National Instruments PXIe-1062Q PXI Chassis
The NI PXIe-1062Q Chassis (Part Numbers: 779633-01, 779664-01, 193895F-01L) from National Instruments comes with a structural design, an 8-slot PXI Express backplane coupled with an enhanced, high-output power supply. The eight slots share eight trigger lines, which can be utilized to synchronize the functions of a few PXI peripheral modules. The PXIe 1062Q Chassis has one PXI Express System Timing Slot, two Hybrid Slots, and four PXI Slots. The design of this chassis is optimized for usability in a broad range of industries and applications; accepting CompactPCI, 3U PXI, CompactPCI Express, and PXI Express modules. Part number 779664-01 is the identifying number for the spare power supply shuttle of the chassis.
The PXIe-1062Q PXI Chassis has monitoring features for the temperature, power supply, and fan. This chassis is HALT tested for improved dependability and has a power supply shuttle which can be swapped while in the field. Back and front rack-mount kits can be purchased for the PXIe-1062Q, as well as slot blockers for increased cooling, EMC filler panels, and a replacement power supply shuttle.
The device is run using the PXI Platform Services 2.0 software media. The PXI Express system can be configured using the Measurement & Automation Explorer (MAX) tool.
The NI PXIe-1062Q features a maximum 1 GB per second dedicated bandwidth (single direction) PXI Express slot and can provide up to 353.9 W of power for 0°C to 55 °C. To meet XI Express cooling requirements, this model features 30 Watt per slot cooling. This chassis is designed to operate quietly, since it can work at 43.6 dBA. This model also comes with a fan for optimized acoustic emissions and cooling. To provide the user with more flexibility, there is a fan speed selector switch available. The PXIe-1062Q National Instruments complies with CompactPCI and PXI specifications as well.
The NI PXIe-1062Q Chassis provides Switchless CLK10 routing and Rear CLK10 I/O connectors. In addition, this chassis has 10 MHz REF IN / OUT BNCs and voltage monitoring, along with a remote inhibit connector. It weighs 19.4 lbs., and measures 6.97 x 10.68 x 15.61 in. in physical dimensions.
Model | PXIe-1062Q |
---|---|
Manufacturer | National Instruments |
Part Numbers | 779633-01, 779664-01, 193895F-01L |
Type | PXI Chassis |
Slots | 8 |
Power Supply Type | AC |
Maximum System Bandwidth | 3 GB/s |
Input Frequency | 50/60 Hz |
Module Cooling System | Forced Air Circulation |
Operating Temp Range | 0 to 55 °C |
Storage Temp Range | –40 to 71 °C |
Dimensions | 6.97 in. x 10.68 in. x 15.61 in. |
Weight | 19.4 lb. |
Warranty | Three Year Warranty |
PXIe-1062Q Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-1062Q:
National Instruments PXIe-1062Q Frequently Asked Questions
Question: What is the slot cooling capacity on the PXIe-1062Q Chassis?
Answer: The slot cooling capacity on the PXIe-1062Q Chassis is 38 W.
Question: What is the input current rating of the NI PXIe-1062Q Chassis?
Answer: The input current rating of the NI PXIe-1062Q Chassis is 8 A.
Question: What type of onboard clock does the PXIe-1062Q National Instruments have?
Answer: The PXIe-1062Q National Instruments has a VCXO onboard clock.
Question: What makes the NI PXIe 1062Q such a versatile instrument?
Answer: The NI PXIe 1062Q is versatile because the supporting feet can be adjusted to tilt the chassis for easy access to the front panels during benchtop use. Also, there are both back and front rack-mount kits available for this chassis for 19 inch rackmounted applications.
PXIe-1062Q PDF Manuals
8-SLOT-NI-PXIE-1062Q-BACKPLANE-INSTALLATION-GUIDE.PDF
8-SLOT-PXI-BACKPLANE-INSTALLATION-GUIDE.PDF
8-SLOT-NI-PXIE-1062Q-BACKPLANE-INSTALLATION-GUIDE28129.PDF
8-SLOT-PXI-BACKPLANE-INSTALLATION-GUIDE28129.PDF
NI-PXIE-1062Q-LETTER-OF-VOLATILITY.PDF
NI-PXIE-1062Q-POWER-SUPPLY-SHUTTLE-USER-GUIDE.PDF
NI-PXIE-1062Q-USER-MANUAL-AND-SPECIFICATIONS.PDF
PXI-PXI-EXPRESS-CHASSIS-FAN-FILTER-KIT.PDF
PRODUCT-NOTIFICATION-POSSIBLE-SYSTEM-HANG-WITH-THIRD-PARTY-PXI-MODULES.PDF
ARCHIVED--NI-8262-INSTALLATION-GUIDE.PDF
ARCHIVED--NI-PXIE-8101-8102-INSTALLATION-GUIDE.PDF
ARCHIVED--NI-PXIE-8101-8102-USER-MANUAL-AND-SPECIFICATIONS.PDF
ARCHIVED--NI-PXIE-8105-INSTALLATION-GUIDE.PDF
ARCHIVED--NI-PXIE-8105-USER-MANUAL-AND-SPECIFICATIONS.PDF
