785283-01
Modular Systems > National Instruments > PXI Digital Instruments
| Description: | 785283-01, 32 Channel, 68 W, PXIe-6570 PXI Digital Pattern Instrument |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

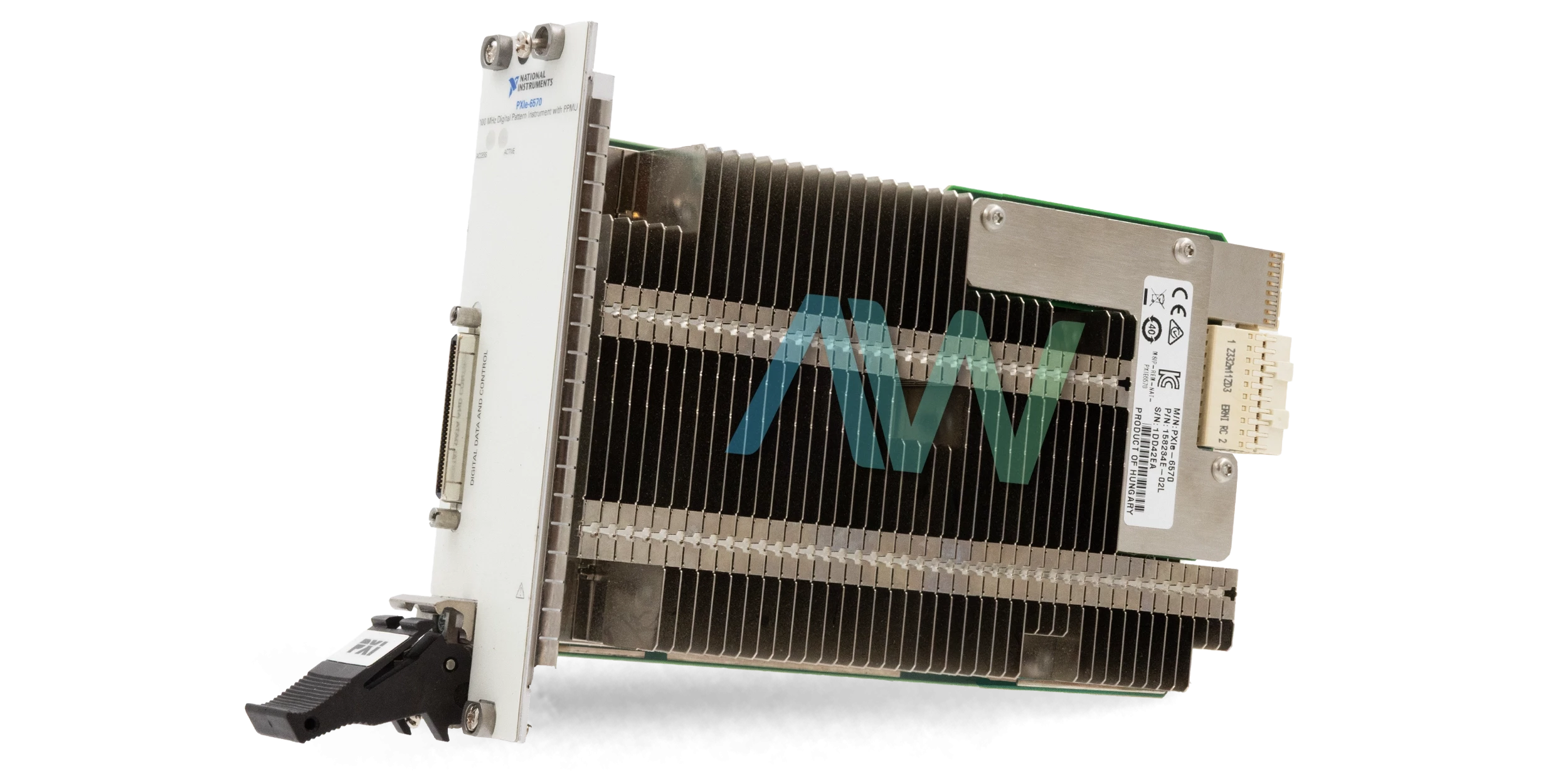

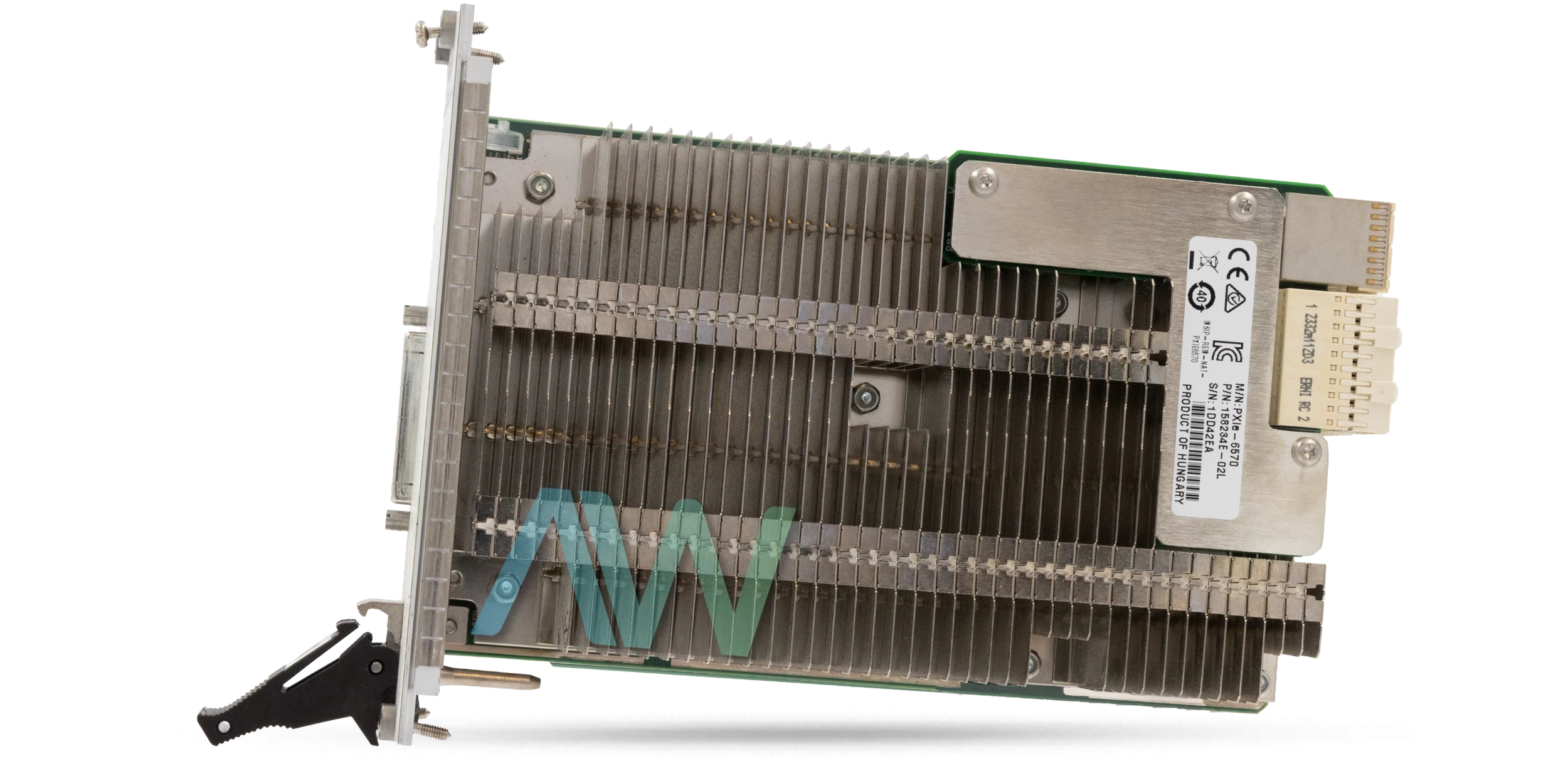

National Instruments 785283-01 PXI Digital Pattern Instrument
The 785283-01 from National Instruments is the identifying part number for the PXIe-6570 PXI Digital Pattern Instrument. With 32 general channels, the 785283-01 is capable of handling high-performance semiconductor characterization and production testing applications. Featuring a convenient digital pattern editor, this instrument offers customization for levels, timing, patterns, and more. In addition, this Digital Pattern Instrument comes equipped with debugging tools including pin states, system status, and digital scope. The 785283-01 supports a measurement range of -2 V to 7 V, making it an excellent choice for a wide variety of test and measurement systems.
The driver of the 785283-01 has a single-ended signal type. The levels for VIH, VTERM, and VIL are programmable, and they operate within a voltage range of -2 V to 6 V. The driver has a max DC current of ±32 mA, and it operates with an output impedance of 50 Ω. In terms of overall power, the instrument has a total maximum input power of 68 W.
Some of the standout features of the 785283-01 are it’s digital source and capture capabilities. The digital source of the device is able to operate in both serial and parallel modes, offering easily accessible support for broadcast and site-unique configurations. A source memory of 32 MB allows plenty of space to work with. The digital capture of the device functions similarly, boasting 1 million samples of capture memory size and a maximum of 512 waveforms.
The 785283-01 includes 2 PXIe slots, weighs 920 g (32.45 oz.), and is 131 mm × 42 mm × 214 mm (5.16 in. × 1.65 in. × 8.43 in.) in size.
| Part Number | 785283-01 |
|---|---|
| Model Name | PXIe-6570 |
| Part Type | PXI Digital Pattern Instrument |
| # Channels | 32 |
| Signal Type | Single-ended |
| Frequency Range | 5 kHz to 200 MHz |
| Input Power | 68 W |
| Dimensions | 131 mm × 42 mm × 214 mm (5.16 in. × 1.65 in. × 8.43 in.) |
| Weight | 920 g (32.45 oz.) |
| Warranty | Three Year Warranty |
| Manufacturer | National Instruments |
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
785283-01
Modular Systems > National Instruments > PXI Digital Instruments
785283-01, 32 Channel, 68 W, PXIe-6570 PXI Digital Pattern Instrument
1-800-915-6216
- Description
- Technical Specifications

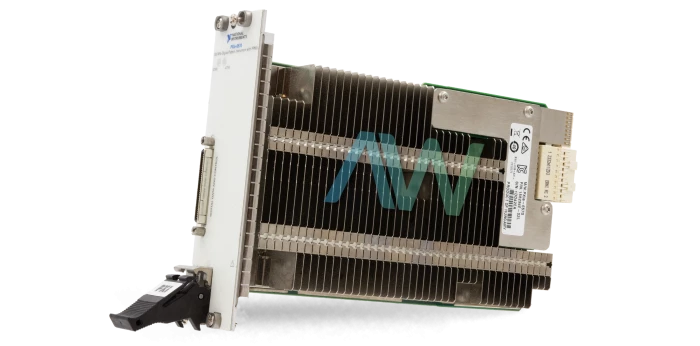

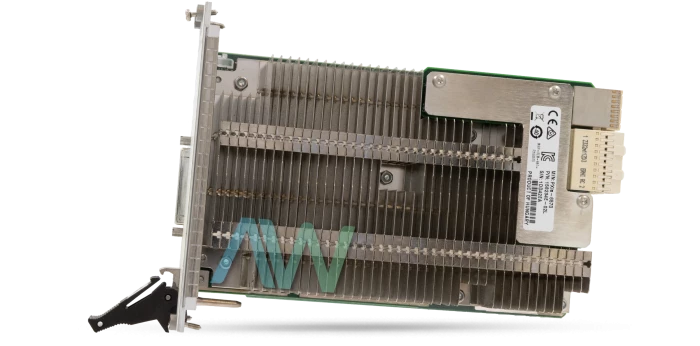

National Instruments 785283-01 PXI Digital Pattern Instrument
The 785283-01 from National Instruments is the identifying part number for the PXIe-6570 PXI Digital Pattern Instrument. With 32 general channels, the 785283-01 is capable of handling high-performance semiconductor characterization and production testing applications. Featuring a convenient digital pattern editor, this instrument offers customization for levels, timing, patterns, and more. In addition, this Digital Pattern Instrument comes equipped with debugging tools including pin states, system status, and digital scope. The 785283-01 supports a measurement range of -2 V to 7 V, making it an excellent choice for a wide variety of test and measurement systems.
The driver of the 785283-01 has a single-ended signal type. The levels for VIH, VTERM, and VIL are programmable, and they operate within a voltage range of -2 V to 6 V. The driver has a max DC current of ±32 mA, and it operates with an output impedance of 50 Ω. In terms of overall power, the instrument has a total maximum input power of 68 W.
Some of the standout features of the 785283-01 are it’s digital source and capture capabilities. The digital source of the device is able to operate in both serial and parallel modes, offering easily accessible support for broadcast and site-unique configurations. A source memory of 32 MB allows plenty of space to work with. The digital capture of the device functions similarly, boasting 1 million samples of capture memory size and a maximum of 512 waveforms.
The 785283-01 includes 2 PXIe slots, weighs 920 g (32.45 oz.), and is 131 mm × 42 mm × 214 mm (5.16 in. × 1.65 in. × 8.43 in.) in size.
| Part Number | 785283-01 |
|---|---|
| Model Name | PXIe-6570 |
| Part Type | PXI Digital Pattern Instrument |
| # Channels | 32 |
| Signal Type | Single-ended |
| Frequency Range | 5 kHz to 200 MHz |
| Input Power | 68 W |
| Dimensions | 131 mm × 42 mm × 214 mm (5.16 in. × 1.65 in. × 8.43 in.) |
| Weight | 920 g (32.45 oz.) |
| Warranty | Three Year Warranty |
| Manufacturer | National Instruments |
