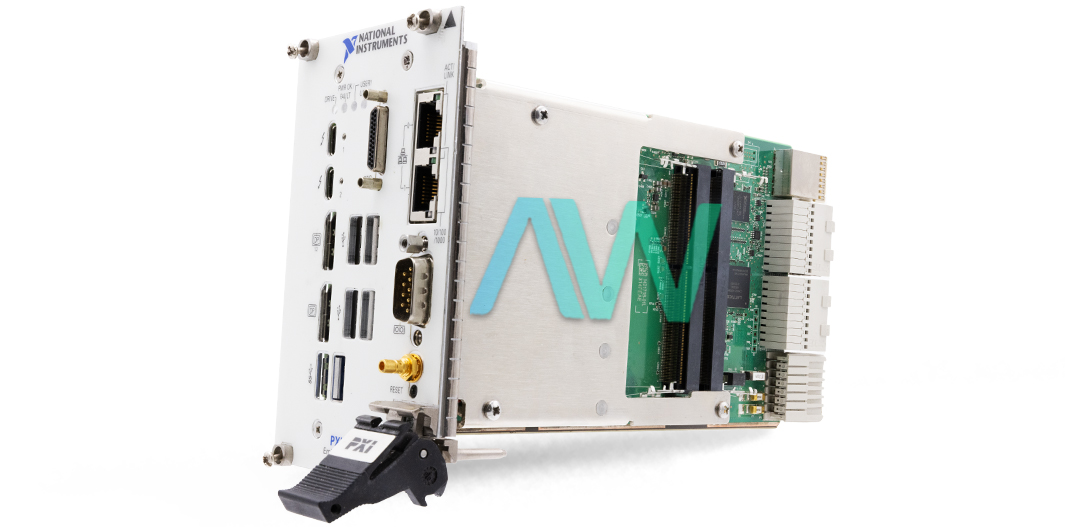

National Instruments 785831-01 PXI Embedded Controller

The National Instruments 785831-01 (PXIe-8861) is an Intel® Xeon® E3-1515M based embedded controller designed for PXI Express systems. It is suitable for demanding tasks like RF, modular instrumentation and data acquisition applications. This controller features a quad-core processor with 8 MB SmartCache that enables efficient processing for high performance applications. It supports up to 32 GB of quad channel DDR4-2133 RAM with an 8 GB standard configuration that allows users to handle memory intensive tasks with ease.

This embedded controller is equipped with multiple connectivity options to ensure versatility. It includes two Gigabit Ethernet ports, one i219 and one i210 with 1588 support for precision time synchronization. The device also offers four USB 2.0 ports and two USB 3.0 ports for high speed data transfer and peripheral connectivity. The controller features two Thunderbolt 3 Type-C ports that support rapid data transfer and peripheral expansion. For video output, it includes one DisplayPort 1.1 and one DisplayPort 1.2.

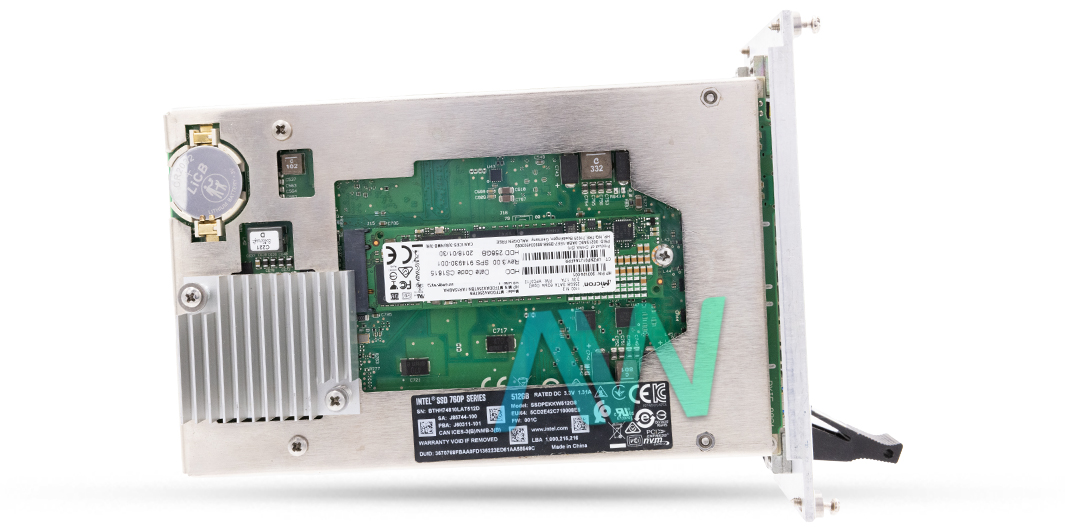

The 785831-01 module is equipped with a solid-state drive with a capacity of 512 GB or more using NVMe technology for fast read/write speeds and reliable performance. It also features a mini-GPIB port for IEEE 488 communication and an RS-232 serial port (DB-9) for legacy devices. The PXI Express 4 Link and PXI Express 2 Link configurations offer high bandwidth for connecting modular instruments and data acquisition cards.

This 785831-01 controller is designed to operate in a wide range of environments, with an ambient operating temperature range of 0 °C to 55 °C and a storage range of -40 °C to 71 °C. It is built to withstand 30 g peak operating shock and random vibrations. It adheres to several safety and electromagnetic compatibility standards. It can be operated with Windows 10 IoT Enterprise or NI Linux Real-Time.

The NI 785831-01 device requires one system slot and three controller expansion slots and fits into a four-wide 3U PXI Express module configuration. The model weighs approximately 1.2 kg and provides a robust solution for various PXI Express applications. The system also supports an optional Trusted Platform Module (TPM 2.0) for secure hardware encryption.
