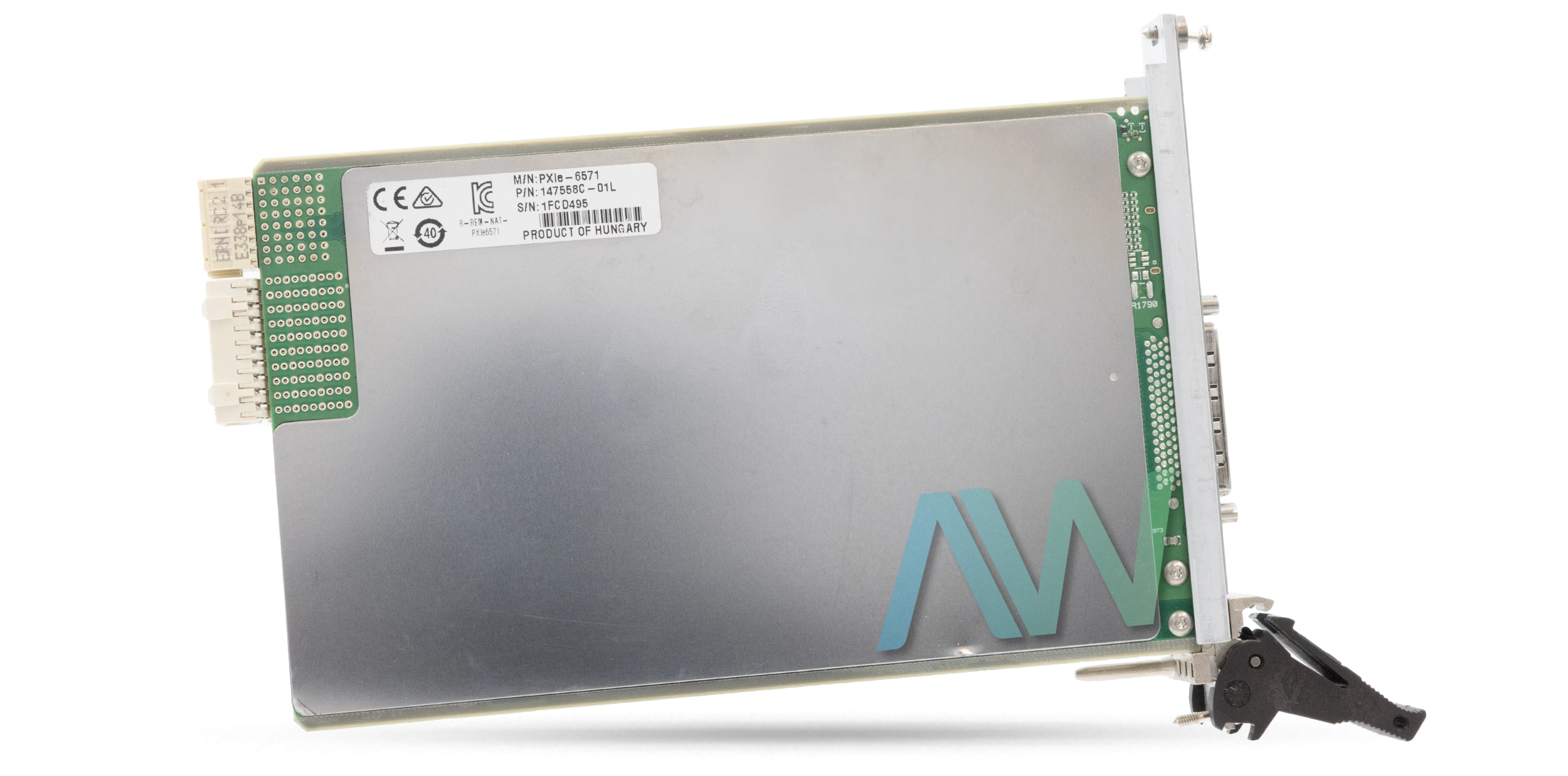

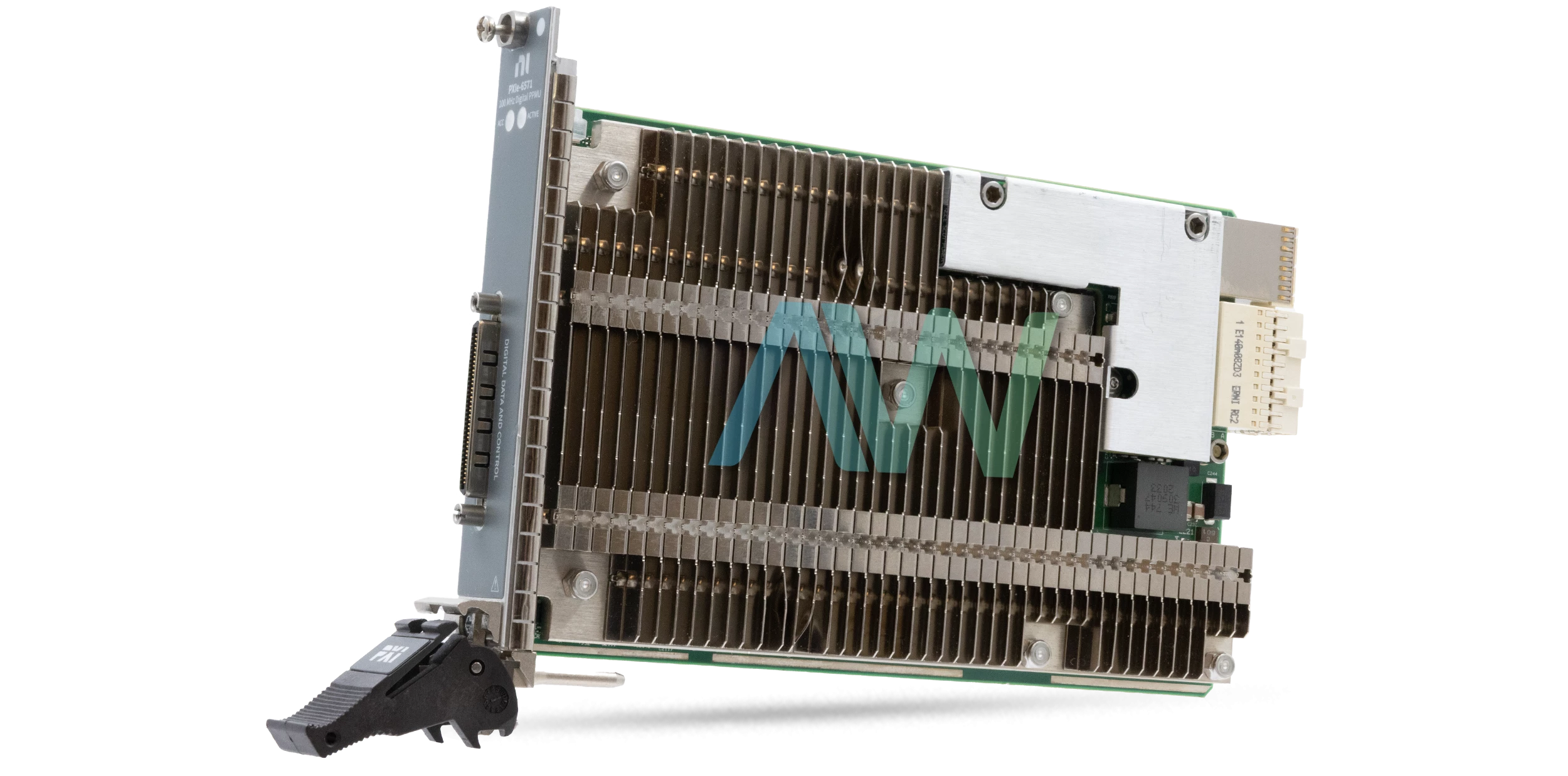

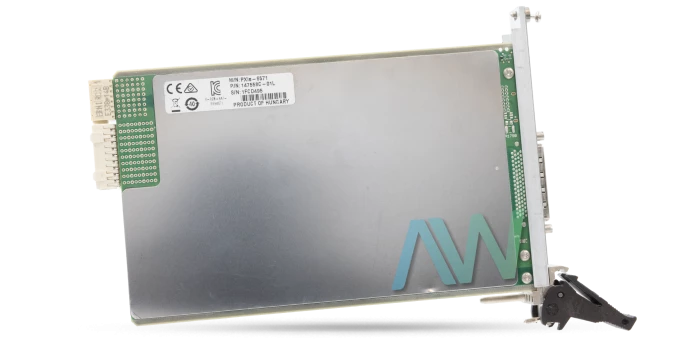

National Instruments 786320-01 PXI Digital Pattern Instrument
The 786320-01 from National Instruments is the identifying part number for the PXIe-6571 PXI Digital Pattern Instrument. Equipped with 32 general channels, the 786320-01 is specifically designed for applications involving production testing and semiconductor characterization. This high-performance instrument offers precise measurement capabilities in addition to a wide range of helpful features. Boasting advanced timing control and a large vector memory of 128 M vectors, the device brings flexible operability to any test and measurement setup.
The power for the 786320-01 draws a combined current from two power rails: 3.3 V and 12 V. 1.7 Amps are drawn from the 3.3 V rail, while the 12 V rail draws in 5.9 Amps. Overall, the maximum input power of the device is 76 W. The 32 channels of the instrument provide ample space for testing. These channels support multi-site resources, featuring 8 resources per instrument.
The 786320-01 features accurate and reliable timing control for test operations with the help of a PXIe_CLK100 master clock source. The instrument supports a vector period range spanning from 10 ns to 40 μs, and it boasts a maximum vector rate of 100 MHz.
To operate the 786320-01, it must be used in conjunction with a chassis that has a slot cooling capacity of 82 W. When used with this chassis, the operating temperature range of the instrument is 0 °C to 40 °C. The physical attributes of the device include dimensions measuring 131 mm × 21 mm × 214 mm (5.16 in. × 0.83 in. × 8.43 in.), and a weight of 640 g (22.5 oz.).
| Model | 786320-01 |
|---|---|
| Model Name | PXIe-6571 |
| Part Type | PXI Digital Pattern Instrument |
| Voltage Range | -2 V to 6 V |
| # Channels | 32 |
| PXIe Slots | 1 |
| Input Power | 76 W |
| Dimensions | 131 mm × 21 mm × 214 mm (5.16 in. × 0.83 in. × 8.43 in.) |
| Weight | 640 g (22.5 oz.) |
| Manufacturer | National Instruments |
